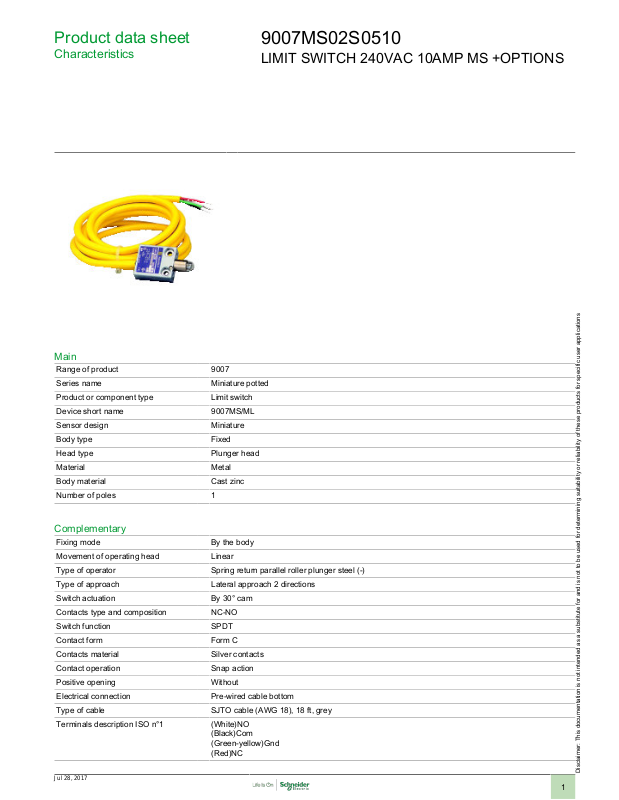

Product data sheet
Characteristics
9007MS02S0510
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
Main
Range of product 9007
Series name Miniature potted
Product or component type Limit switch
Device short name 9007MS/ML
Sensor design Miniature
Body type Fixed
Head type Plunger head
Material Metal
Body material Cast zinc
Number of poles 1
Complementary
Fixing mode By the body
Movement of operating head Linear
Type of operator Spring return parallel roller plunger steel (-)
Type of approach Lateral approach 2 directions
Switch actuation By 30° cam
Contacts type and composition NC-NO
Switch function SPDT
Contact form Form C
Contacts material Silver contacts
Contact operation Snap action
Positive opening Without
Electrical connection Pre-wired cable bottom
Type of cable SJTO cable (AWG 18), 18 ft, grey
Terminals description ISO n°1 (White)NO
(Black)Com
(Green-yellow)Gnd
(Red)NC
Jul 28, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Wire insulation material PVC
Maximum force for tripping 80 ozf
[Ie] rated operational current 6 A at 120 V AC, A300 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal
current
[Ui] rated insulation voltage 300 V degree of pollution 3 conforming to CSA C22.2 No 14
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Marking CSA
Sale per indivisible quantity 1
Height 1.75 in
Width 1.56 in
Depth 0.62 in
Product weight 1.2 lb(US)
3 A at 240 V AC, A300 conforming to NEMA rating designation
5 A at 28 V DC
10 A
300 V degree of pollution 3 conforming to UL 508
UL
CE
Environment
Shock resistance 35 gn (duration = 9 ms) conforming to IEC 60068-2-27
Vibration resistance 10 gn (f = 75...1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection NEMA 2 conforming to Nema type 250
IP degree of protection IP67 conforming to IEC 60529
Ambient air temperature for operation -40...220 °F
Ambient air temperature for storage -40...220 °F
Protective treatment Epoxy powder coat
Product certifications UL
Standards E78403
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 1 conforming to Nema type 250
CE
CSA
LR 25490 Class 32 11 03
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
2
