Product data sheet
Characteristics

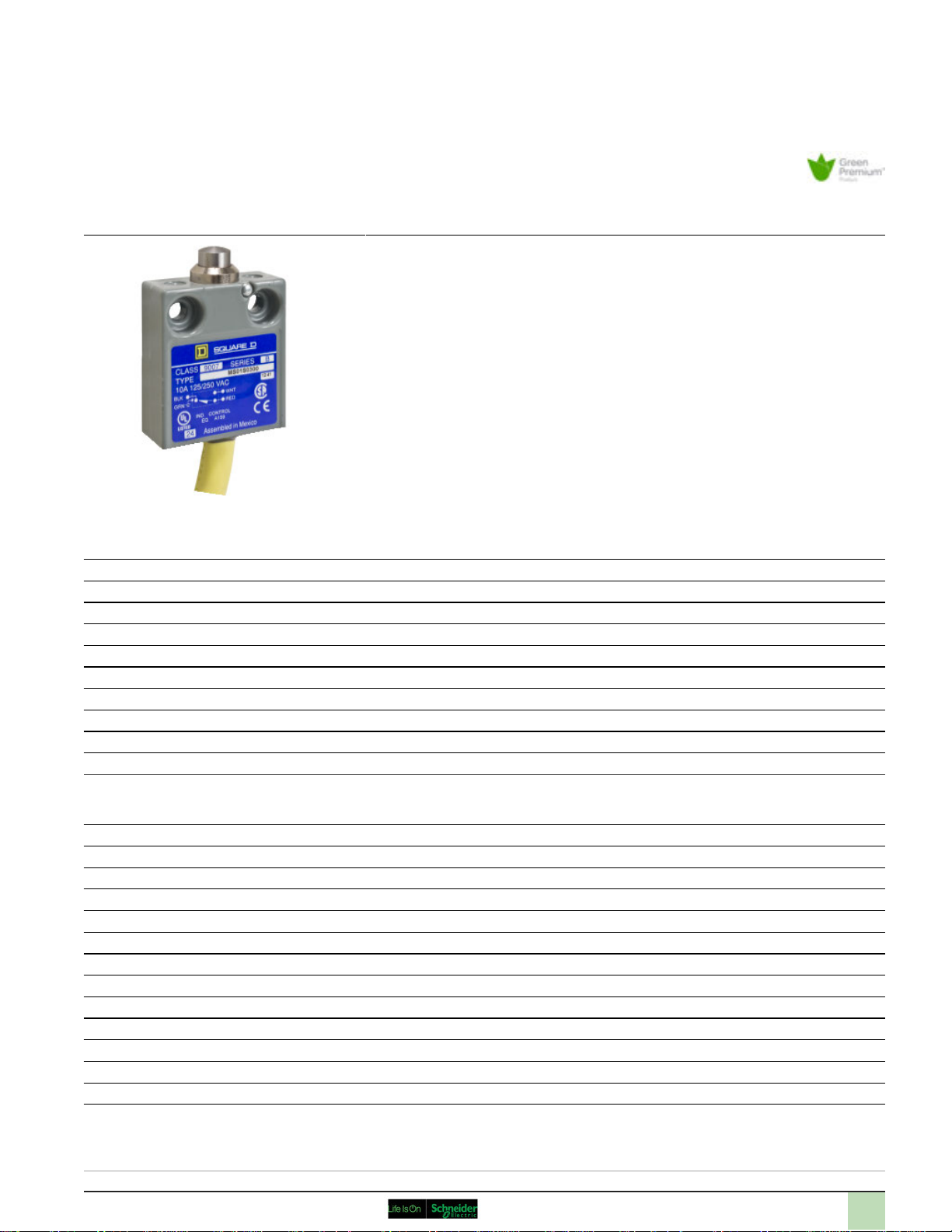

9007MS01S0300
LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
Main
Range of product 9007
Series name Miniature potted
Product or component type Limit switch
Device short name 9007MS/ML
Sensor design Miniature
Body type Fixed
Head type Plunger head
Material Metal
Body material Cast zinc
Number of poles 1
Complementary
Fixing mode By the body
Movement of operating head Linear
Type of operator Spring return plunger stainless steel (-)
Type of approach Vertical approach 1 direction
Switch actuation On end
Contacts type and composition NC-NO
Switch function SPDT
Contact form Form C
Contacts material Silver contacts
Contact operation Snap action
Positive opening Without
Electrical connection Pre-wired cable bottom
Type of cable SJTO cable (AWG 18), 9 ft, yellow
Terminals description ISO n°1 (Green-yellow)Gnd
(Black)Com
(White)NO
(Red)NC
Feb 7, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Wire insulation material PVC
Maximum force for tripping 80 ozf
[Ie] rated operational current 6 A at 120 V AC, A300 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal
current
[Ui] rated insulation voltage 300 V degree of pollution 3 conforming to CSA C22.2 No 14
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Marking CE
Sale per indivisible quantity 1
Height 1.75 in
Width 1.56 in
Depth 0.62 in
Product weight 1.2 lb(US)
3 A at 240 V AC, A300 conforming to NEMA rating designation
5 A at 28 V DC
10 A
300 V degree of pollution 3 conforming to UL 508
CSA
UL
Environment
Shock resistance 35 gn (duration = 9 ms) conforming to IEC 60068-2-27
Vibration resistance 10 gn (f = 75...1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection NEMA 2 conforming to Nema type 250
IP degree of protection IP67 conforming to IEC 60529
Ambient air temperature for operation -40...220 °F
Ambient air temperature for storage -40...220 °F
Protective treatment Epoxy powder coat
Product certifications CE
Standards LR 25490 Class 32 11 03
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 1 conforming to Nema type 250
CSA
UL
E78403
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1150 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
