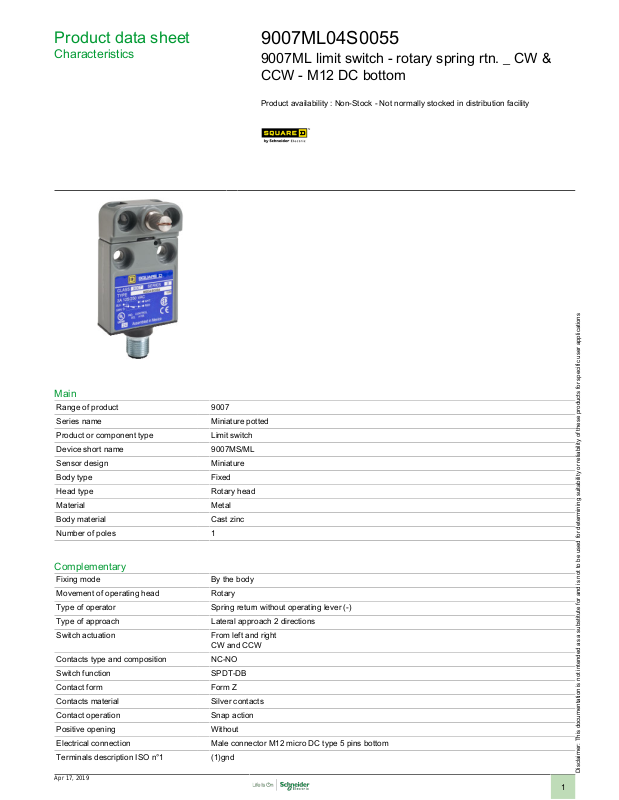

Product data sheet
Characteristics
9007ML04S0055
9007ML limit switch - rotary spring rtn. _ CW &
CCW - M12 DC bottom
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product 9007
Series name Miniature potted
Product or component type Limit switch
Device short name 9007MS/ML
Sensor design Miniature
Body type Fixed
Head type Rotary head
Material Metal
Body material Cast zinc
Number of poles 1
Complementary
Fixing mode By the body
Movement of operating head Rotary
Type of operator Spring return without operating lever (-)
Type of approach Lateral approach 2 directions
Switch actuation From left and right
CW and CCW
Contacts type and composition NC-NO
Switch function SPDT-DB
Contact form Form Z
Contacts material Silver contacts
Contact operation Snap action
Positive opening Without
Electrical connection Male connector M12 micro DC type 5 pins bottom
Terminals description ISO n°1 (1)gnd
Apr 17, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
(2-3)NC
(4-5)NO
Minimum torque for tripping 48 ozf.in
Maximum actuation speed 90 ft/min with 45° cam angle, levers only
Tripping angle 40 °
Maximum displacement angle 70 °
[Ie] rated operational current 3 Aat 28 V DC
[Ithe] conventional enclosed thermal
current
[Ui] rated insulation voltage 300 V degree of pollution 3 conforming to CSA C22.2 No 14
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Marking CE
Sale per indivisible quantity 1
Height 2.49 in
Width 1.56 in
Depth 0.62 in
Product weight 1.2 lb(US)
130 ft/min with 30° cam angle, levers only
3 Aat 60 V AC
3 A
300 V degree of pollution 3 conforming to UL 508
CSA
UL
Environment
Shock resistance 35 gn (duration = 9 ms) conforming to IEC 60068-2-27
Vibration resistance 10 gn (f = 75...1200 Hz) conforming to IEC 60068-2-6
NEMA degree of protection NEMA 2 conforming to Nema type 250
IP degree of protection IP67 conforming to IEC 60529
Ambient air temperature for operation -40...220 °F
Ambient air temperature for storage -40...220 °F
Protective treatment Epoxy powder coat
Product certifications CE
Standards LR 25490 Class 32 11 03
NEMA 4 conforming to Nema type 250
NEMA 6 conforming to Nema type 250
NEMA 6P conforming to Nema type 250
NEMA 1 conforming to Nema type 250
CSA
UL
E78403
Ordering and shipping details
Category 22431 - LIMIT SWITCHES,TYPE 9007MS
Discount Schedule DS1
GTIN 00785901288459
Nbr. of units in pkg. 1
Package weight(Lbs) 1.2
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
