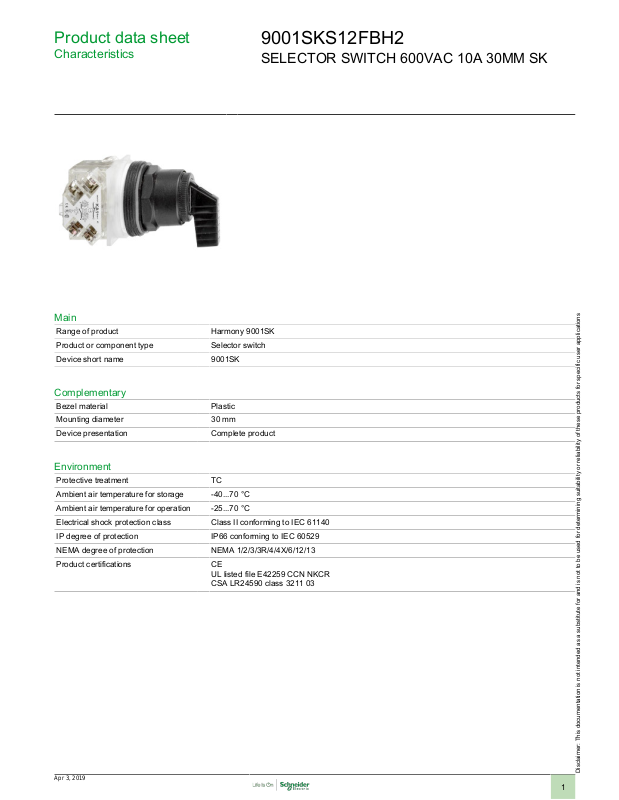

Product data sheet
Characteristics
9001SKS12FBH2
SELECTOR SWITCH 600VAC 10A 30MM SK
Main
Range of product Harmony 9001SK
Product or component type Selector switch
Device short name 9001SK
Complementary
Bezel material Plastic
Mounting diameter 30 mm
Device presentation Complete product
Environment
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Product certifications CE
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03
Apr 3, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
