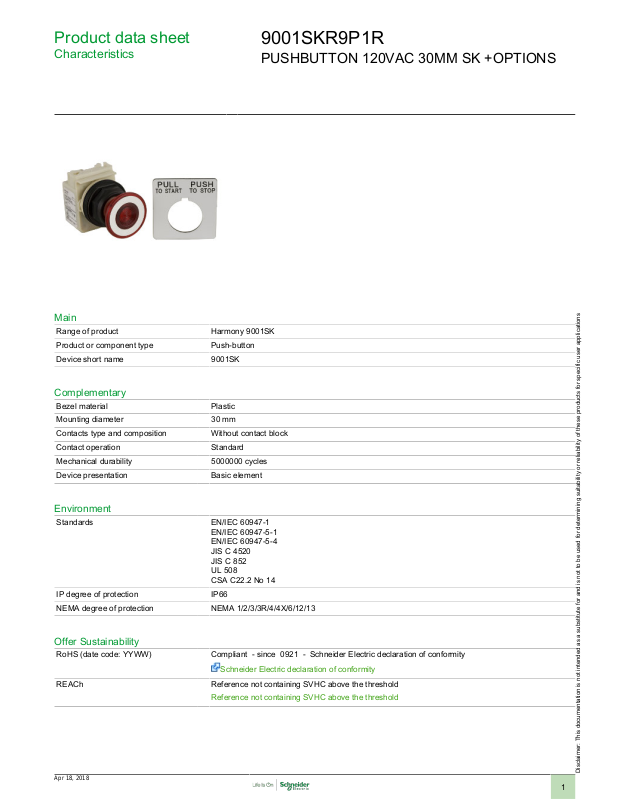

Product data sheet
Characteristics
9001SKR9P1R
PUSHBUTTON 120VAC 30MM SK +OPTIONS
Main
Range of product Harmony 9001SK
Product or component type Push-button
Device short name 9001SK
Complementary
Bezel material Plastic
Mounting diameter 30 mm
Contacts type and composition Without contact block
Contact operation Standard
Mechanical durability 5000000 cycles
Device presentation Basic element
Environment
Standards EN/IEC 60947-1
IP degree of protection IP66
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎- since๎ 0921 ๎-๎ Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Apr 18, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
