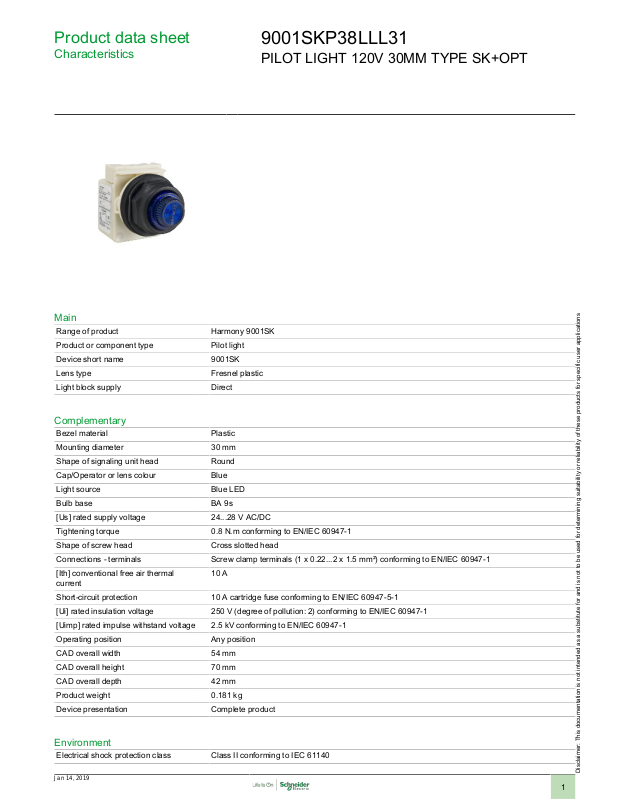

Product data sheet
Characteristics
9001SKP38LLL31
PILOT LIGHT 120V 30MM TYPE SK+OPT
Main
Range of product Harmony 9001SK
Product or component type Pilot light
Device short name 9001SK
Lens type Fresnel plastic
Light block supply Direct
Complementary
Bezel material Plastic
Mounting diameter 30 mm
Shape of signaling unit head Round
Cap/Operator or lens colour Blue
Light source Blue LED
Bulb base BA 9s
[Us] rated supply voltage 24...28 V AC/DC
Tightening torque 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head Cross slotted head
Connections - terminals Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to EN/IEC 60947-1
[Ith] conventional free air thermal
current
Short-circuit protection 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage 250 V (degree of pollution: 2) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to EN/IEC 60947-1
Operating position Any position
CAD overall width 54 mm
CAD overall height 70 mm
CAD overall depth 42 mm
Product weight 0.181 kg
Device presentation Complete product
10 A
Environment
Electrical shock protection class Class II conforming to IEC 61140
Jan 14, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Protective treatment TC
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1
Vibration resistance 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...70 °C
Standards EN/IEC 60947-1
Product certifications NEMA
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
UL 508
