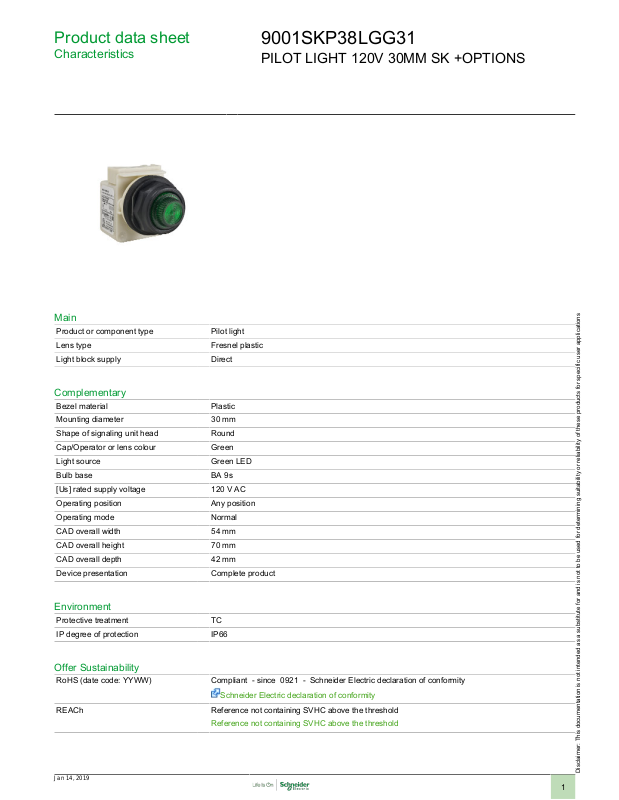

Product data sheet
Characteristics
Main
Product or component type Pilot light
Lens type Fresnel plastic
Light block supply Direct
9001SKP38LGG31
PILOT LIGHT 120V 30MM SK +OPTIONS
Complementary
Bezel material Plastic
Mounting diameter 30 mm
Shape of signaling unit head Round
Cap/Operator or lens colour Green
Light source Green LED
Bulb base BA 9s
[Us] rated supply voltage 120 V AC
Operating position Any position
Operating mode Normal
CAD overall width 54 mm
CAD overall height 70 mm
CAD overall depth 42 mm
Device presentation Complete product
Environment
Protective treatment TC
IP degree of protection IP66
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎- since๎ 0921 ๎-๎ Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Jan 14, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
