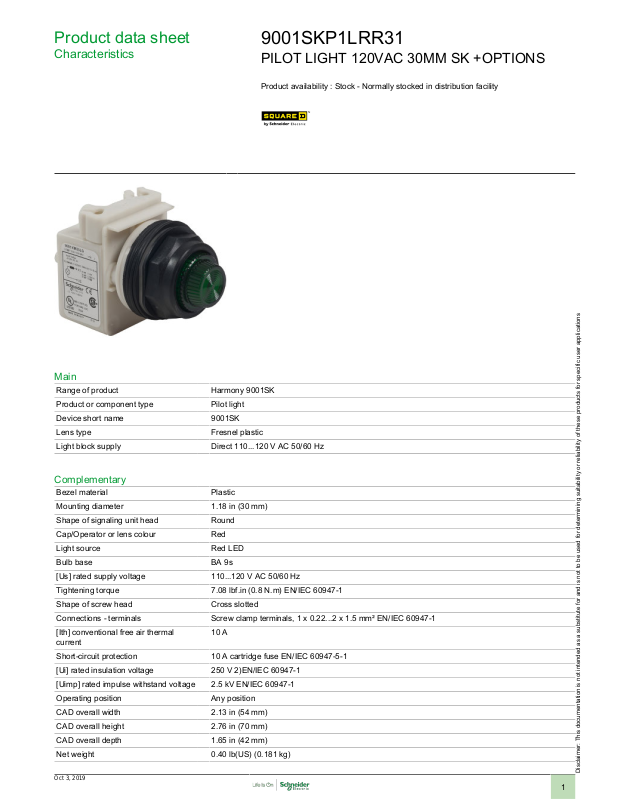

Square D 9001SKP1LRR31 Data Sheet

Product data sheet

Characteristics

9001SKP1LRR31

PILOT LIGHT 120VAC 30MM SK +OPTIONS

Product availability : Stock - Normally stocked in distribution facility

Main

Range of product Harmony 9001SK

Product or component type Pilot light

Device short name 9001SK

Lens type Fresnel plastic

Light block supply Direct 110...120 V AC 50/60 Hz

Complementary

Bezel material Plastic

Mounting diameter 1.18in (30mm)

Shape of signaling unit head Round

Cap/Operator or lens colour Red

Light source Red LED

Bulb base BA 9s

[Us] rated supply voltage 110...120 V AC 50/60 Hz

Tightening torque 7.08lbf.in (0.8N.m) EN/IEC 60947-1

Shape of screw head Cross slotted

Connections - terminals Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

[Ith] conventional free air thermal
current

Short-circuit protection 10A cartridge fuse EN/IEC 60947-5-1

[Ui] rated insulation voltage 250V 2)EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 2.5kV EN/IEC 60947-1

Operating position Any position

CAD overall width 2.13in (54mm)

CAD overall height 2.76in (70mm)

CAD overall depth 1.65in (42mm)

Net weight 0.40lb(US) (0.181kg)

Oct 3, 2019

10A

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Environment

Electrical shock protection class Class II IEC 61140

Protective treatment TC

IP degree of protection IP66 IEC 60529

NEMA degree of protection NEMA 1

Vibration resistance 7 gn 2…500Hz)IEC 60068-2-6

Shock resistance 50 gn IEC 60068-2-27

Ambient air temperature for operation -13…158°F (-25…70°C)

Ambient air temperature for storage -40…158°F (-40…70°C)

Standards CSA C22.2 No 14

Product certifications UL 508

NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 4X

EN/IEC 60947-5-1
EN/IEC 60947-1
JIS C 852
JIS C8201-5-1
UL 508
EN/IEC 60947-5-4
JIS C8201-1

NEMA

Ordering and shipping details

Category 21429 - 9001 SK,SKY

Discount Schedule CS1

GTIN 00785901325314

Package weight(Lbs) 0.15kg (0.32lb(US))

Returnability Yes

Country of origin MX

Offer Sustainability

Sustainable offer status Green Premium product

REACh Regulation REACh Declaration

REACh free of SVHC Yes

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

Environmental Disclosure Product Environmental Profile

Circularity Profile End of Life Information

WEEE The product must be disposed on European Union markets following specific waste collection and

EU RoHS Declaration

Product out of China RoHS scope. Substance declaration for your information.

never end up in rubbish bins.

Contractual warranty

Warranty 18 months

2
