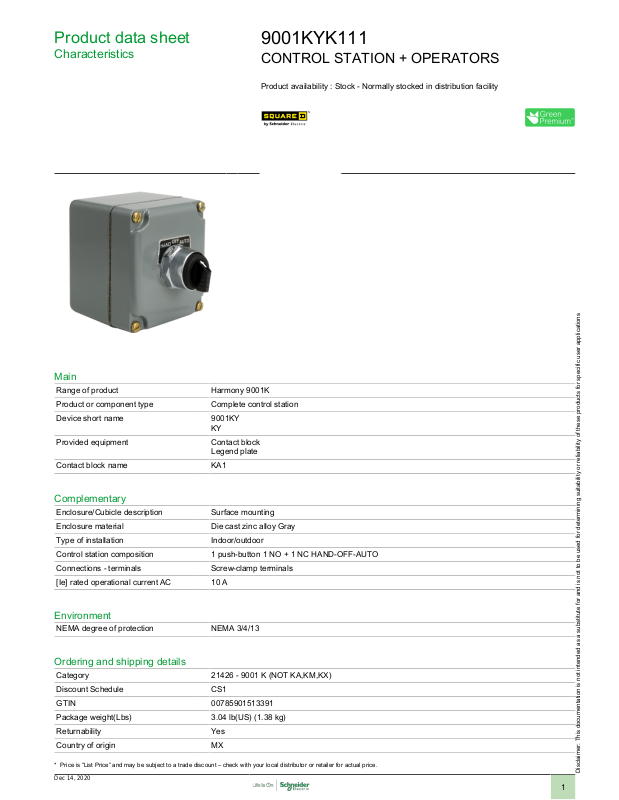

Product data sheet
Characteristics
9001KYK111
CONTROL STATION + OPERATORS
Product availability : Stock - Normally stocked in distribution facility
Main
Range of product Harmony 9001K
Product or component type Complete control station
Device short name 9001KY
Provided equipment Contact block
Contact block name KA1
KY
Legend plate
Complementary
Enclosure/Cubicle description Surface mounting
Enclosure material Die cast zinc alloy Gray
Type of installation Indoor/outdoor
Control station composition 1 push-button 1 NO + 1 NC HAND-OFF-AUTO
Connections - terminals Screw-clamp terminals
[Ie] rated operational current AC 10A
Environment
NEMA degree of protection NEMA 3/4/13
Ordering and shipping details
Category 21426 - 9001 K (NOT KA,KM,KX)
Discount Schedule CS1
GTIN 00785901513391
Package weight(Lbs) 3.04lb(US) (1.38kg)
Returnability Yes
Country of origin MX
*Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.
Dec 14, 2020
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Offer Sustainability
Sustainable offer status Green Premium product
California proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known
REACh Regulation REACh Declaration
REACh free of SVHC Yes
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Environmental Disclosure Product Environmental Profile
to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
EU RoHS Declaration
Contractual warranty
Warranty 18 months
