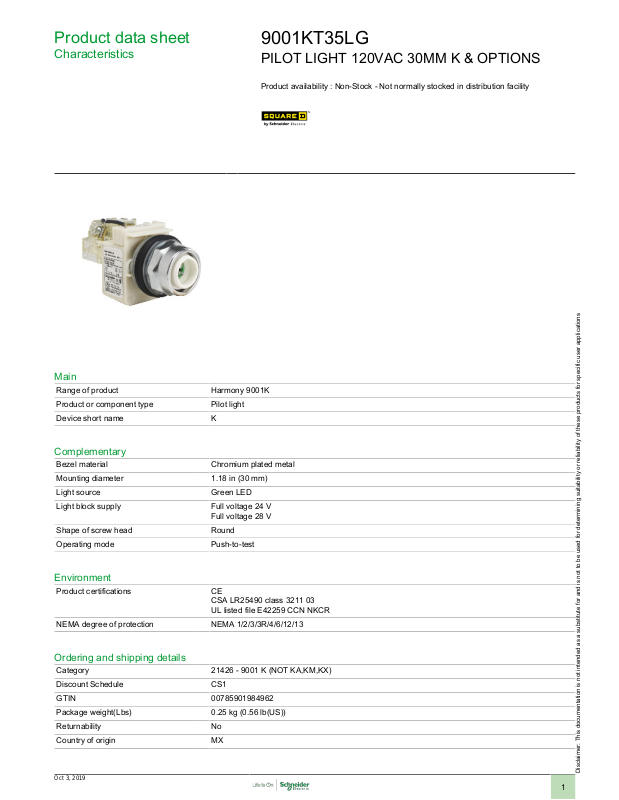

Product data sheet
Characteristics
9001KT35LG
PILOT LIGHT 120VAC 30MM K & OPTIONS
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product Harmony 9001K
Product or component type Pilot light
Device short name K
Complementary
Bezel material Chromium plated metal
Mounting diameter 1.18in (30mm)
Light source Green LED
Light block supply Full voltage 24 V
Shape of screw head Round
Operating mode Push-to-test
Full voltage 28 V
Environment
Product certifications CE
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
CSA LR25490 class 3211 03
UL listed file E42259 CCN NKCR
Ordering and shipping details
Category 21426 - 9001 K (NOT KA,KM,KX)
Discount Schedule CS1
GTIN 00785901984962
Package weight(Lbs) 0.25kg (0.56lb(US))
Returnability No
Country of origin MX
Oct 3, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Offer Sustainability
Sustainable offer status Green Premium product
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which
REACh Regulation REACh Declaration
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Environmental Disclosure Product Environmental Profile
Circularity Profile No need of specific recycling operations
WEEE The product must be disposed on European Union markets following specific waste collection and
is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.p65warnings.ca.gov
EU RoHS Declaration
never end up in rubbish bins.
Contractual warranty
Warranty 18 months
