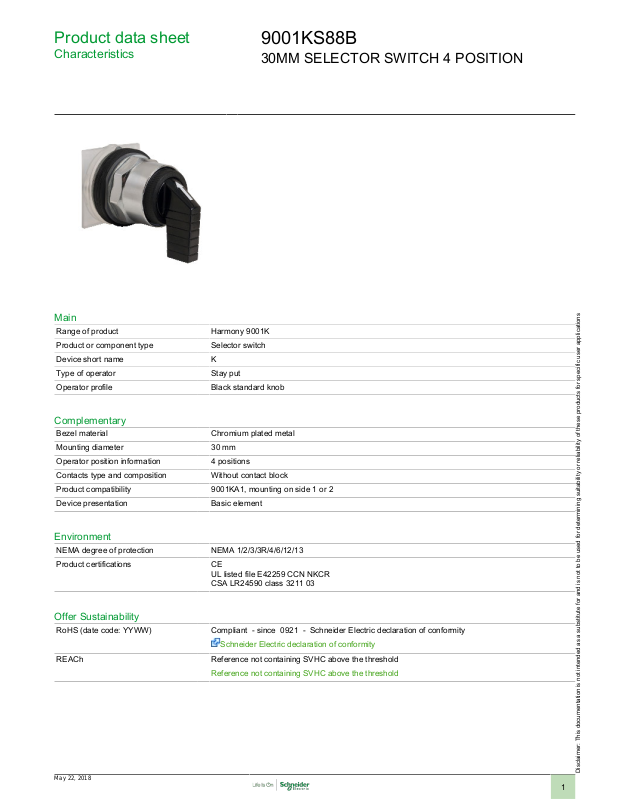

Product data sheet
Characteristics
9001KS88B
30MM SELECTOR SWITCH 4 POSITION
Main
Range of product Harmony 9001K
Product or component type Selector switch
Device short name K
Type of operator Stay put
Operator profile Black standard knob
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Operator position information 4 positions
Contacts type and composition Without contact block
Product compatibility 9001KA1, mounting on side 1 or 2
Device presentation Basic element
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CE
UL listed file E42259 CCN NKCR
CSA LR24590 class 3211 03
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
May 22, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
