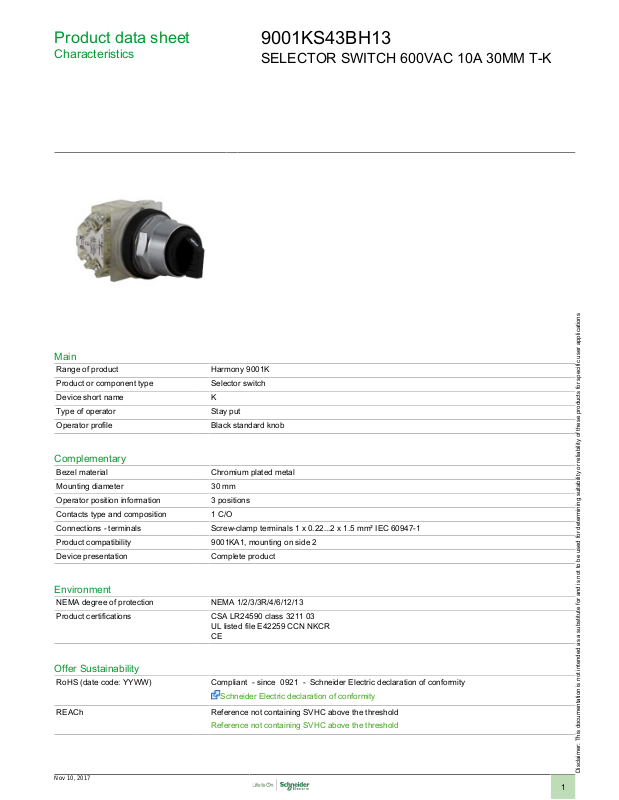

Product data sheet
Characteristics
9001KS43BH13
SELECTOR SWITCH 600VAC 10A 30MM T-K
Main
Range of product Harmony 9001K
Product or component type Selector switch
Device short name K
Type of operator Stay put
Operator profile Black standard knob
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Operator position information 3 positions
Contacts type and composition 1 C/O
Connections - terminals Screw-clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Product compatibility 9001KA1, mounting on side 2
Device presentation Complete product
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03
UL listed file E42259 CCN NKCR
CE
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Nov 10, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
