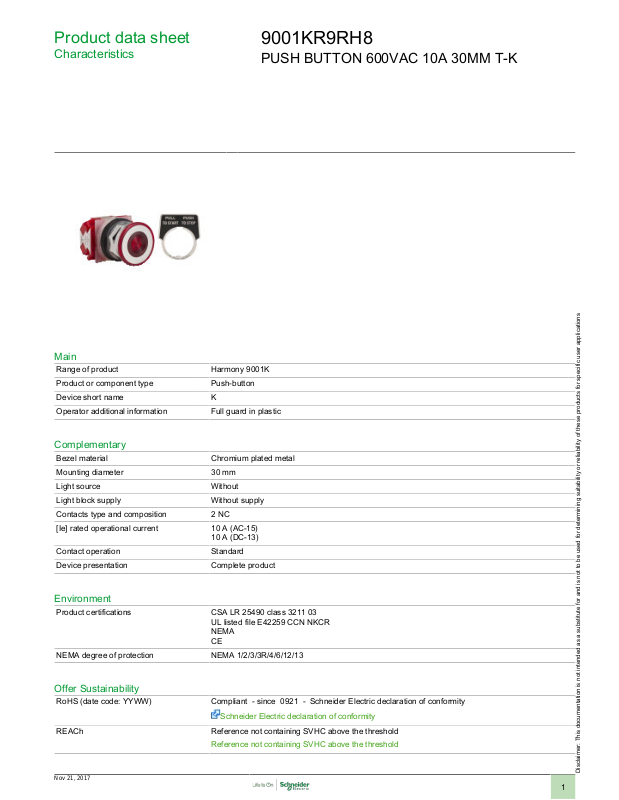

Product data sheet
Characteristics
9001KR9RH8
PUSH BUTTON 600VAC 10A 30MM T-K
Main
Range of product Harmony 9001K
Product or component type Push-button
Device short name K
Operator additional information Full guard in plastic
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Light source Without
Light block supply Without supply
Contacts type and composition 2 NC
[Ie] rated operational current 10 A (AC-15)
Contact operation Standard
Device presentation Complete product
10 A (DC-13)
Environment
Product certifications CSA LR 25490 class 3211 03
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
UL listed file E42259 CCN NKCR
NEMA
CE
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Nov 21, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
