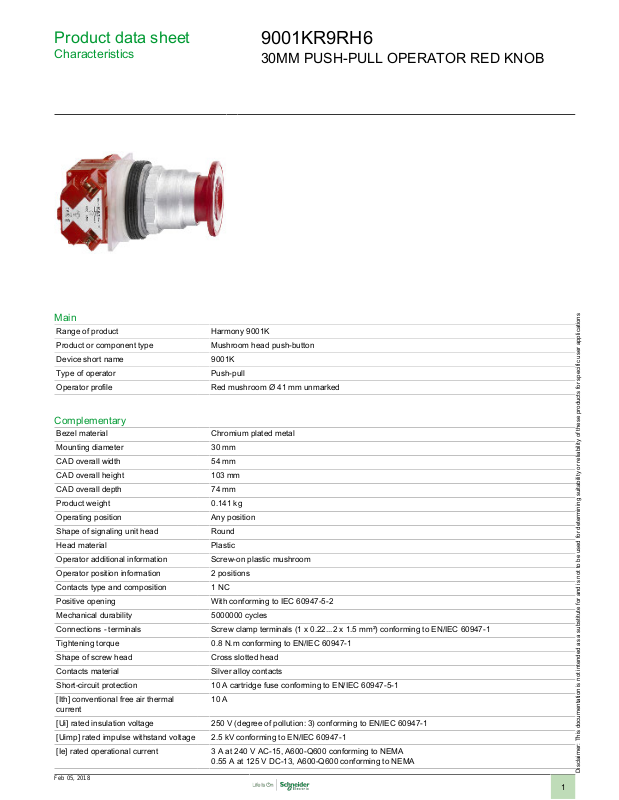

Product data sheet
Characteristics
9001KR9RH6
30MM PUSH-PULL OPERATOR RED KNOB
Main
Range of product Harmony 9001K
Product or component type Mushroom head push-button
Device short name 9001K
Type of operator Push-pull
Operator profile Red mushroom Ø 41 mm unmarked
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
CAD overall width 54 mm
CAD overall height 103 mm
CAD overall depth 74 mm
Product weight 0.141 kg
Operating position Any position
Shape of signaling unit head Round
Head material Plastic
Operator additional information Screw-on plastic mushroom
Operator position information 2 positions
Contacts type and composition 1 NC
Positive opening With conforming to IEC 60947-5-2
Mechanical durability 5000000 cycles
Connections - terminals Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to EN/IEC 60947-1
Tightening torque 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head Cross slotted head
Contacts material Silver alloy contacts
Short-circuit protection 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal
current
[Ui] rated insulation voltage 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to EN/IEC 60947-1
[Ie] rated operational current 3 A at 240 V AC-15, A600-Q600 conforming to NEMA
Feb 05, 2018
10 A
0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
[Icm] rated short-circuit making
capacity
Rated breaking capacity <= 3 kA at 240 V AC-15, 720 VA
Device presentation Complete product
<= 0.1 kA at 600 V DC-13
<= 12 kA at 120 V AC-15, 7200 VA
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 6 kA at 120 V AC-15, 720 VA
<= 0.1 kA at 600 V DC-13
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 1.2 kA at 600 V AC-15, 720 VA
<= 1.5 kA at 480 V AC-15, 720 VA
Environment
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Overvoltage category Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1
Standards CSA C22.2 No 14
Product certifications UL 508
Vibration resistance 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
NEMA
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Contractual warranty
Warranty period 18 months
2
