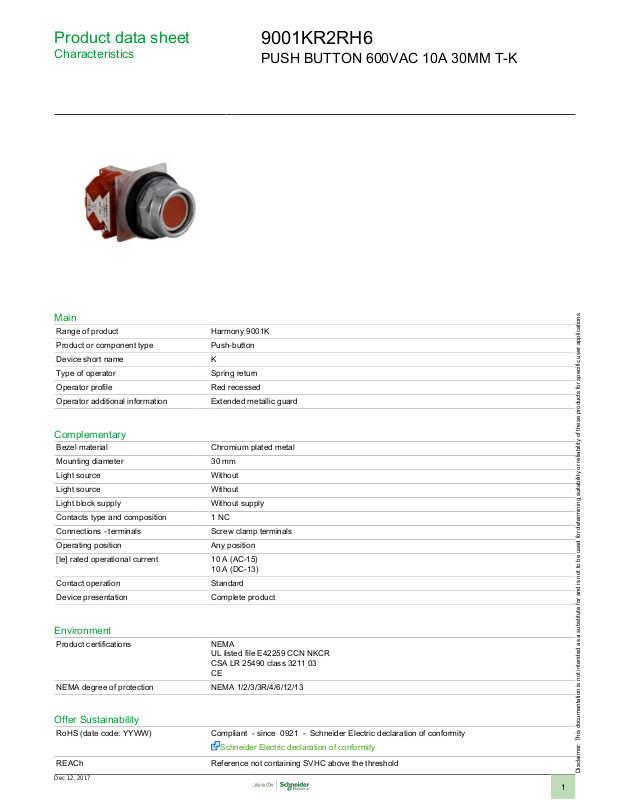

Product data sheet
Characteristics
9001KR2RH6
PUSH BUTTON 600VAC 10A 30MM T-K
Main
Range of product Harmony 9001K
Product or component type Push-button
Device short name K
Type of operator Spring return
Operator profile Red recessed
Operator additional information Extended metallic guard
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Light source Without
Light source Without
Light block supply Without supply
Contacts type and composition 1 NC
Connections - terminals Screw clamp terminals
Operating position Any position
[Ie] rated operational current 10 A (AC-15)
10 A (DC-13)
Contact operation Standard
Device presentation Complete product
Environment
Product certifications NEMA
UL listed file E42259 CCN NKCR
CSA LR 25490 class 3211 03
CE
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Dec 12, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Reference not containing SVHC above the threshold
