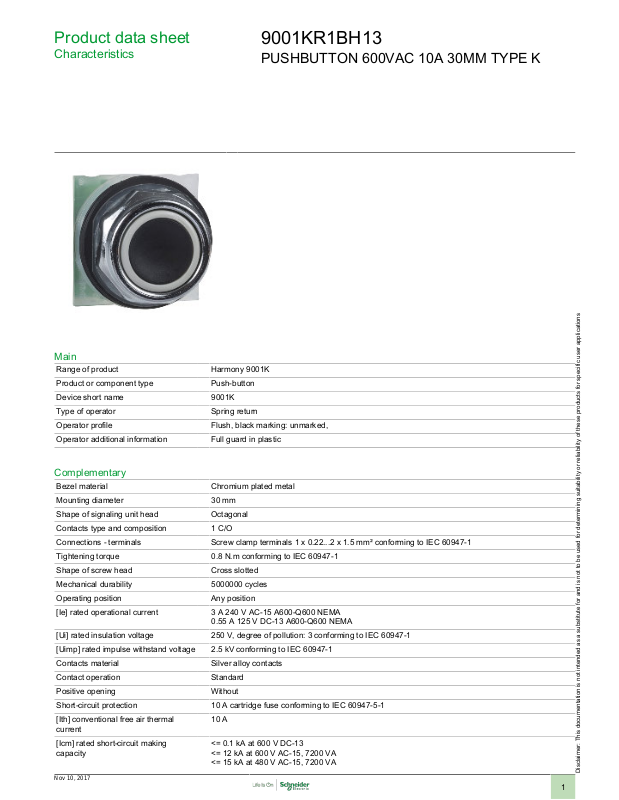

Product data sheet
Characteristics
9001KR1BH13
PUSHBUTTON 600VAC 10A 30MM TYPE K
Main
Range of product Harmony 9001K
Product or component type Push-button
Device short name 9001K
Type of operator Spring return
Operator profile Flush, black marking: unmarked,
Operator additional information Full guard in plastic
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Shape of signaling unit head Octagonal
Contacts type and composition 1 C/O
Connections - terminals Screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Tightening torque 0.8 N.m conforming to IEC 60947-1
Shape of screw head Cross slotted
Mechanical durability 5000000 cycles
Operating position Any position
[Ie] rated operational current 3 A 240 V AC-15 A600-Q600 NEMA
[Ui] rated insulation voltage 250 V, degree of pollution: 3 conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Contacts material Silver alloy contacts
Contact operation Standard
Positive opening Without
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal
current
[Icm] rated short-circuit making
capacity
Nov 10, 2017
0.55 A 125 V DC-13 A600-Q600 NEMA
10 A
<= 0.1 kA at 600 V DC-13
<= 12 kA at 600 V AC-15, 7200 VA
<= 15 kA at 480 V AC-15, 7200 VA
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
<= 30 kA at 240 V AC-15, 7200 VA
<= 60 kA at 120 V AC-15, 7200 VA
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
Rated breaking capacity <= 3 kA at 240 V AC-15, 720 VA
Terminals description ISO n°1 (13-14-11-12)OF
CAD overall width 48 mm
CAD overall height 45 mm
CAD overall depth 56 mm
Product weight 0.121 kg
Device presentation Complete product
<= 6 kA at 120 V AC-15, 720 VA
<= 0.1 kA at 600 V DC-13
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 1.2 kA at 600 V AC-15, 720 VA
<= 1.5 kA at 480 V AC-15, 720 VA
Environment
Standards JIS C 852
Product certifications UL 508
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Vibration resistance 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Electrical shock protection class Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1
CSA C22.2 No 14
JIS C 4520
EN/IEC 60947-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
NEMA
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Contractual warranty
Warranty period 18 months
