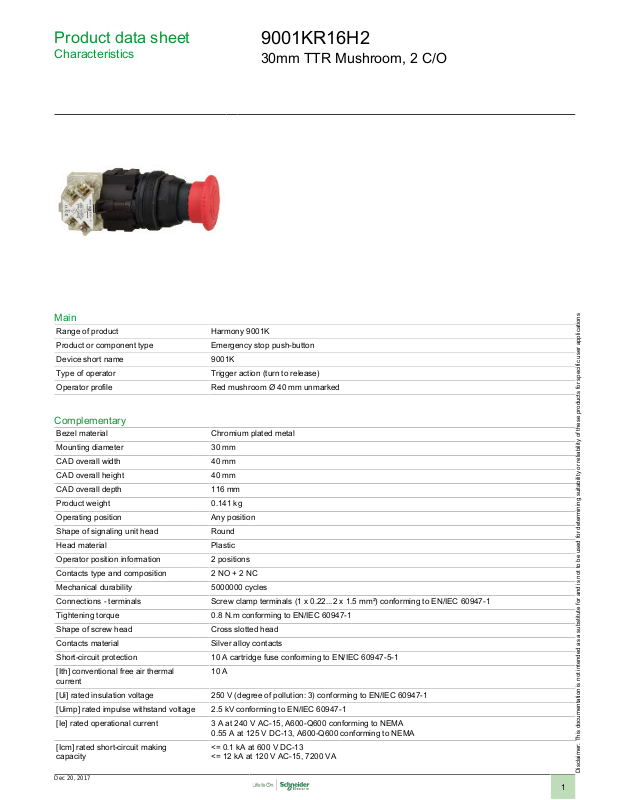

Product data sheet
Characteristics
9001KR16H2
30mm TTR Mushroom, 2 C/O
Main
Range of product Harmony 9001K
Product or component type Emergency stop push-button
Device short name 9001K
Type of operator Trigger action (turn to release)
Operator profile Red mushroom Ø 40 mm unmarked
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
CAD overall width 40 mm
CAD overall height 40 mm
CAD overall depth 116 mm
Product weight 0.141 kg
Operating position Any position
Shape of signaling unit head Round
Head material Plastic
Operator position information 2 positions
Contacts type and composition 2 NO + 2 NC
Mechanical durability 5000000 cycles
Connections - terminals Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to EN/IEC 60947-1
Tightening torque 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head Cross slotted head
Contacts material Silver alloy contacts
Short-circuit protection 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal
current
[Ui] rated insulation voltage 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 2.5 kV conforming to EN/IEC 60947-1
[Ie] rated operational current 3 A at 240 V AC-15, A600-Q600 conforming to NEMA
[Icm] rated short-circuit making
capacity
Dec 20, 2017
10 A
0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA
<= 0.1 kA at 600 V DC-13
<= 12 kA at 120 V AC-15, 7200 VA
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
Rated breaking capacity <= 3 kA at 240 V AC-15, 720 VA
Device presentation Complete product
<= 6 kA at 120 V AC-15, 720 VA
<= 0.1 kA at 600 V DC-13
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 1.2 kA at 600 V AC-15, 720 VA
<= 1.5 kA at 480 V AC-15, 720 VA
Environment
Protective treatment TC
Ambient air temperature for storage -40...70 °C
Ambient air temperature for operation -25...70 °C
Overvoltage category Class II conforming to IEC 61140
IP degree of protection IP66 conforming to IEC 60529
NEMA degree of protection NEMA 1
Standards CSA C22.2 No 14
Product certifications NEMA
Vibration resistance 7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6
EN/IEC 60947-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
EN/IEC 60204-1 for emergency stop devices if used with emergency stop legend plate type 9001KN
EN/ISO 13850 for emergency stop devices if used with emergency stop legend plate type 9001KN
UL 508
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
Contractual warranty
Warranty period 18 months
