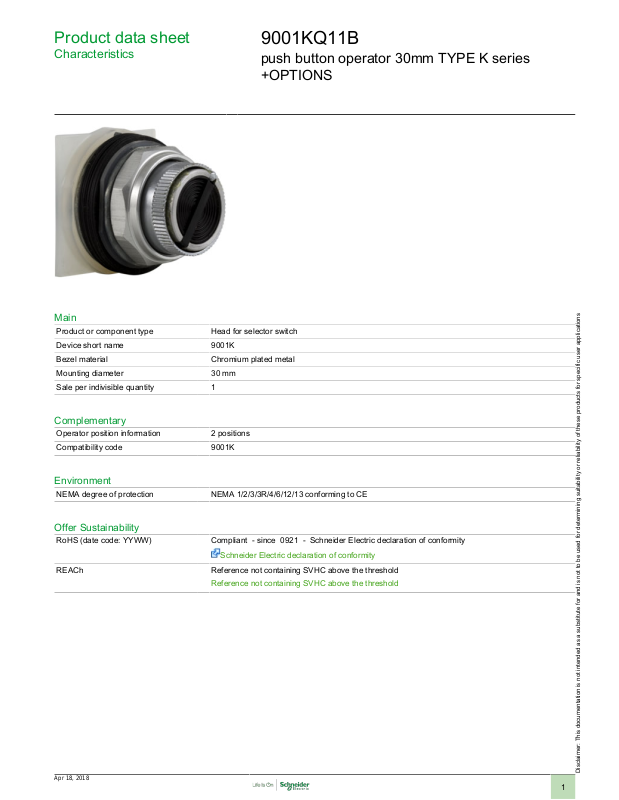

Product data sheet
Characteristics
9001KQ11B
push button operator 30mm TYPE K series
+OPTIONS
Main
Product or component type Head for selector switch
Device short name 9001K
Bezel material Chromium plated metal
Mounting diameter 30 mm
Sale per indivisible quantity 1
Complementary
Operator position information 2 positions
Compatibility code 9001K
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13 conforming to CE
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Apr 18, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
