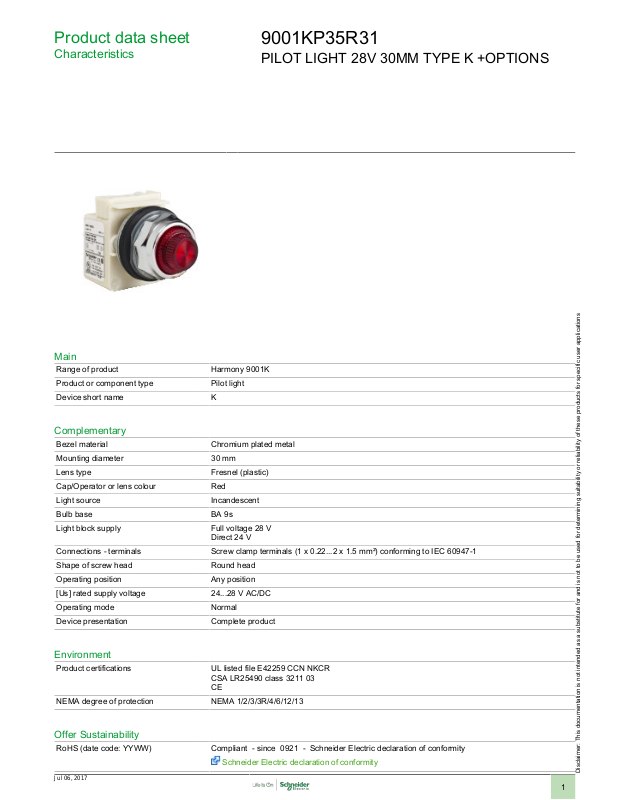

Product data sheet
Characteristics
9001KP35R31
PILOT LIGHT 28V 30MM TYPE K +OPTIONS
Main
Range of product Harmony 9001K
Product or component type Pilot light
Device short name K
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Lens type Fresnel (plastic)
Cap/Operator or lens colour Red
Light source Incandescent
Bulb base BA 9s
Light block supply Full voltage 28 V
Connections - terminals Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1
Shape of screw head Round head
Operating position Any position
[Us] rated supply voltage 24...28 V AC/DC
Operating mode Normal
Device presentation Complete product
Direct 24 V
Environment
Product certifications UL listed file E42259 CCN NKCR
CSA LR25490 class 3211 03
CE
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 0921 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
Jul 06, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
