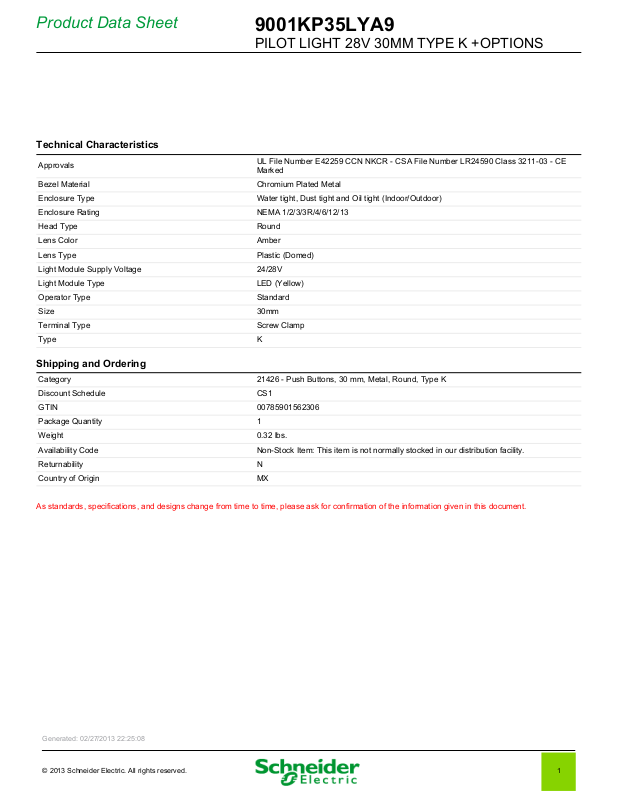

Product Data Sheet
9001KP35LYA9
PILOT LIGHT 28V 30MM TYPE K +OPTIONS
Approvals
UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE
Marked
Bezel Material Chromium Plated Metal
Enclosure Type Water tight, Dust tight and Oil tight (Indoor/Outdoor)
Enclosure Rating NEMA 1/2/3/3R/4/6/12/13
Head Type Round
Lens Color Amber
Lens Type Plastic (Domed)
Light Module Supply Voltage 24/28V
Light Module Type LED (Yellow)
Operator Type Standard
Size 30mm
Terminal Type Screw Clamp
Type K
Technical Characteristics
Category 21426 - Push Buttons, 30 mm, Metal, Round, Type K
Discount Schedule CS1
GTIN 00785901562306
Package Quantity 1
Weight 0.32 lbs.
Availability Code Non-Stock Item: This item is not normally stocked in our distribution facility.
Returnability N
Country of Origin MX
Shipping and Ordering
As standards, specifications, and designs change from time to time, please ask for confirmation of the information given in this document.
Generated: 02/27/2013 22:25:08
© 2013 Schneider Electric. All rights reserved.
