Square D 9001KM1 Data Sheet

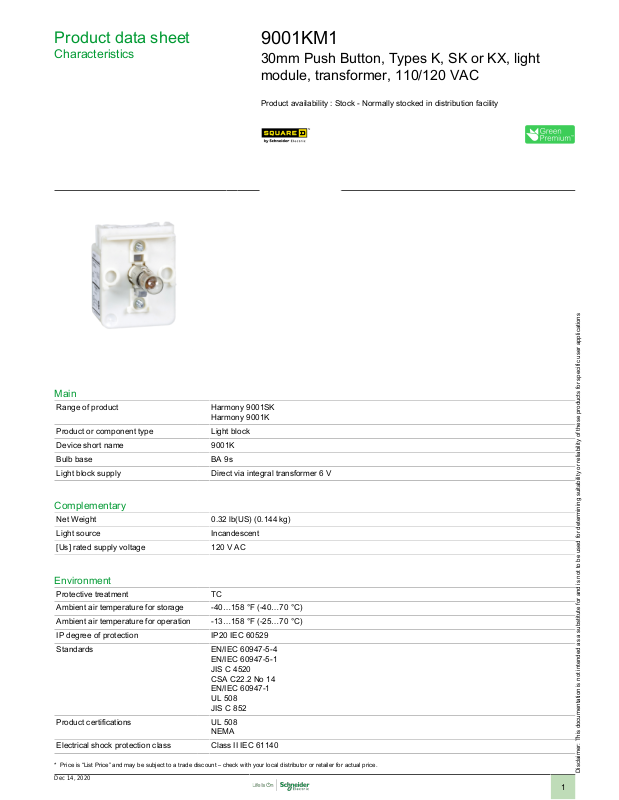

Product data sheet

Characteristics

9001KM1

30mm Push Button, Types K, SK or KX, light
module, transformer, 110/120 VAC

Product availability : Stock - Normally stocked in distribution facility

Main

Range of product Harmony 9001SK

Product or component type Light block

Device short name 9001K

Bulb base BA 9s

Light block supply Direct via integral transformer 6 V

Harmony 9001K

Complementary

Net Weight 0.32lb(US) (0.144kg)

Light source Incandescent

[Us] rated supply voltage 120 V AC

Environment

Protective treatment TC

Ambient air temperature for storage -40…158°F (-40…70°C)

Ambient air temperature for operation -13…158°F (-25…70°C)

IP degree of protection IP20 IEC 60529

Standards EN/IEC 60947-5-4

Product certifications UL 508

Electrical shock protection class Class II IEC 61140

EN/IEC 60947-5-1
JIS C 4520
CSA C22.2 No 14
EN/IEC 60947-1
UL 508
JIS C 852

NEMA

*Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.

Dec 14, 2020

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Vibration resistance 7 gn 2…500Hz)IEC 60068-2-6

Shock resistance 50 gn IEC 60068-2-27

Ordering and shipping details

Category 21435 - 9001 KM LIGHT MODULES

Discount Schedule CS1

GTIN 00785901725237

Nbr. of units in pkg. 1

Package weight(Lbs) 0.33lb(US) (0.15kg)

Returnability Yes

Country of origin MX

Packing Units

Package 1 Height 1.80in (4.572cm)

Package 1 width 2.20in (5.588cm)

Package 1 Length 3.70in (9.398cm)

Offer Sustainability

Sustainable offer status Green Premium product

California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which

REACh Regulation REACh Declaration

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

Environmental Disclosure Product Environmental Profile

WEEE The product must be disposed on European Union markets following specific waste collection and

is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov

EU RoHS Declaration

never end up in rubbish bins.

Contractual warranty

Warranty 18 months

2
