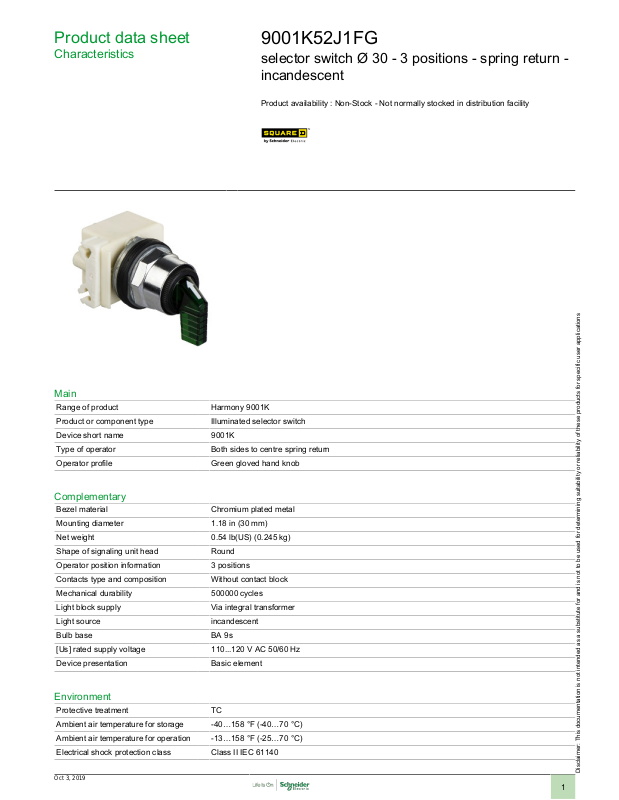

Product data sheet
Characteristics
9001K52J1FG
selector switch Ø 30 - 3 positions - spring return incandescent
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product Harmony 9001K
Product or component type Illuminated selector switch
Device short name 9001K
Type of operator Both sides to centre spring return
Operator profile Green gloved hand knob
Complementary
Bezel material Chromium plated metal
Mounting diameter 1.18in (30mm)
Net weight 0.54lb(US) (0.245kg)
Shape of signaling unit head Round
Operator position information 3 positions
Contacts type and composition Without contact block
Mechanical durability 500000cycles
Light block supply Via integral transformer
Light source incandescent
Bulb base BA 9s
[Us] rated supply voltage 110...120 V AC 50/60 Hz
Device presentation Basic element
Environment
Protective treatment TC
Ambient air temperature for storage -40…158°F (-40…70°C)
Ambient air temperature for operation -13…158°F (-25…70°C)
Electrical shock protection class Class II IEC 61140
Oct 3, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
IP degree of protection IP66 IEC 60529
NEMA degree of protection NEMA 1
Standards EN/IEC 60947-1
Product certifications UL 508
Vibration resistance 7 gn 2…500Hz)IEC 60068-2-6
Shock resistance 50 gn IEC 60068-2-27
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6
EN/IEC 60947-5-4
UL 508
JIS C 852
CSA C22.2 No 14
JIS C 4520
EN/IEC 60947-5-1
NEMA
Ordering and shipping details
Category 21426 - 9001 K (NOT KA,KM,KX)
Discount Schedule CS1
GTIN 00785901959519
Package weight(Lbs) 0.25kg (0.55lb(US))
Returnability No
Country of origin MX
Offer Sustainability
Sustainable offer status Green Premium product
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which
REACh Regulation REACh Declaration
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Environmental Disclosure Product Environmental Profile
Circularity Profile No need of specific recycling operations
WEEE The product must be disposed on European Union markets following specific waste collection and
is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.p65warnings.ca.gov
EU RoHS Declaration
never end up in rubbish bins.
Contractual warranty
Warranty 18 months
