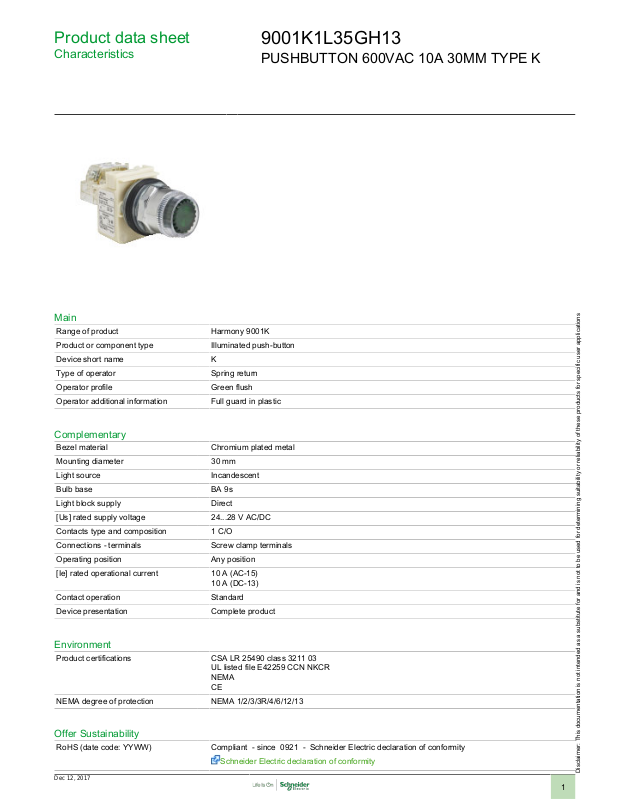

Page 1
Product data sheet
Characteristics
9001K1L35GH13
PUSHBUTTON 600VAC 10A 30MM TYPE K
Main
Range of product Harmony 9001K
Product or component type Illuminated push-button
Device short name K
Type of operator Spring return
Operator profile Green flush
Operator additional information Full guard in plastic
Complementary
Bezel material Chromium plated metal
Mounting diameter 30 mm
Light source Incandescent
Bulb base BA 9s
Light block supply Direct
[Us] rated supply voltage 24...28 V AC/DC
Contacts type and composition 1 C/O
Connections - terminals Screw clamp terminals
Operating position Any position
[Ie] rated operational current 10 A (AC-15)
Contact operation Standard
Device presentation Complete product
10 A (DC-13)
Environment
Product certifications CSA LR 25490 class 3211 03
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
UL listed file E42259 CCN NKCR
NEMA
CE
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎- since๎ 0921 ๎-๎ Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
Dec 12, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Page 2
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
2
