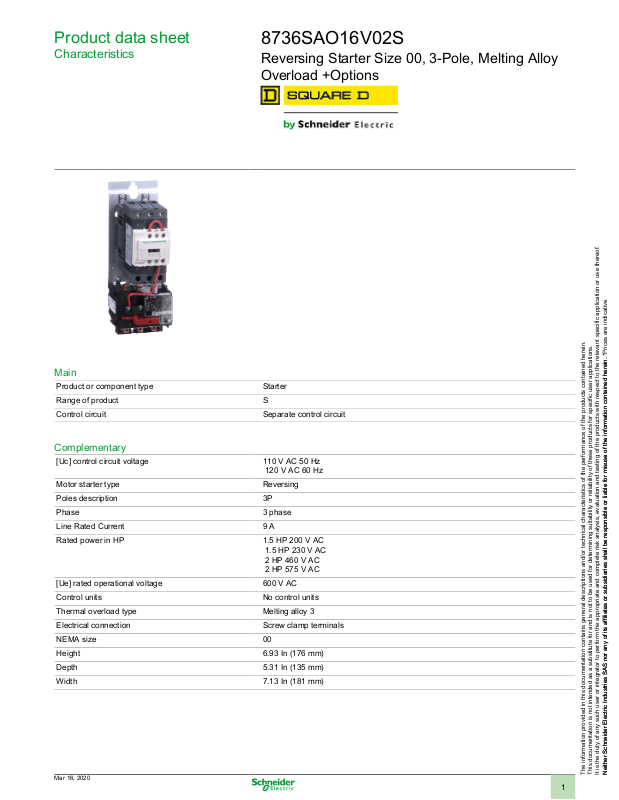

Product data sheet
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. *Prices are indicative
Characteristics
8736SAO16V02S
Reversing Starter Size 00, 3-Pole, Melting Alloy
Overload +Options
Main
Product or component type Starter
Range of product S
Control circuit Separate control circuit
Complementary
[Uc] control circuit voltage 110 V AC 50 Hz
Motor starter type Reversing
Poles description 3P
Phase 3 phase
Line Rated Current 9A
Rated power in HP 1.5 HP 200 V AC
[Ue] rated operational voltage 600 V AC
Control units No control units
Thermal overload type Melting alloy 3
Electrical connection Screw clamp terminals
NEMA size 00
Height 6.93In (176mm)
Depth 5.31In (135mm)
Width 7.13In (181mm)
120 V AC 60 Hz
1.5 HP 230 V AC
2 HP 460 V AC
2 HP 575 V AC
Mar 16, 2020
1
Environment
NEMA degree of protection Not rated (open device)
Installation direction Horizontal
Product certifications CSA
NEMA
UL listed
Ordering and shipping details
Category 21271 - 8702,36 SA,SB(NOT S*R,T,W)
Discount Schedule CP1
GTIN 00785901903710
Returnability Yes
Country of origin MX
Offer Sustainability
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead com-
EU RoHS Directive Not compliant
China RoHS Regulation
pounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
China RoHS Declaration
Contractual warranty
Warranty 18 months
Product Life Status : Commercialised
