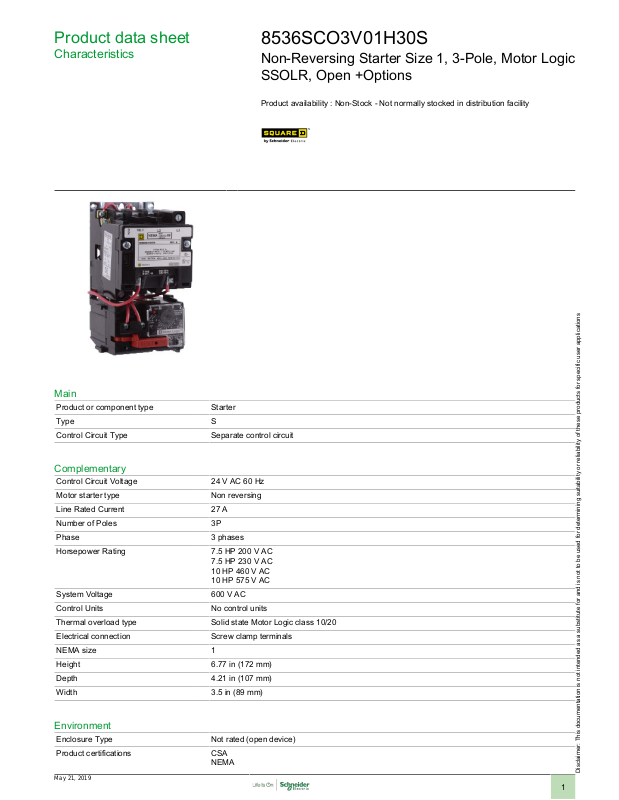

Product data sheet
Characteristics
8536SCO3V01H30S
Non-Reversing Starter Size 1, 3-Pole, Motor Logic
SSOLR, Open +Options
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Starter
Type S
Control Circuit Type Separate control circuit
Complementary
Control Circuit Voltage 24 V AC 60 Hz
Motor starter type Non reversing
Line Rated Current 27 A
Number of Poles 3P
Phase 3 phases
Horsepower Rating 7.5 HP 200 V AC
System Voltage 600 V AC
Control Units No control units
Thermal overload type Solid state Motor Logic class 10/20
Electrical connection Screw clamp terminals
NEMA size 1
Height 6.77 in (172 mm)
Depth 4.21 in (107 mm)
Width 3.5 in (89 mm)
7.5 HP 230 V AC
10 HP 460 V AC
10 HP 575 V AC
Environment
Enclosure Type Not rated (open device)
Product certifications CSA
NEMA
May 21, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
UL listed
Ordering and shipping details
Category 21192 - 8502,36 SC,SD(NOT S*R,T,W)
Discount Schedule CP1
GTIN 00785901041078
Nbr. of units in pkg. 1
Package weight(Lbs) 4
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎- since๎ 1545 ๎-๎ Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
Contractual warranty
Warranty period 18 months
