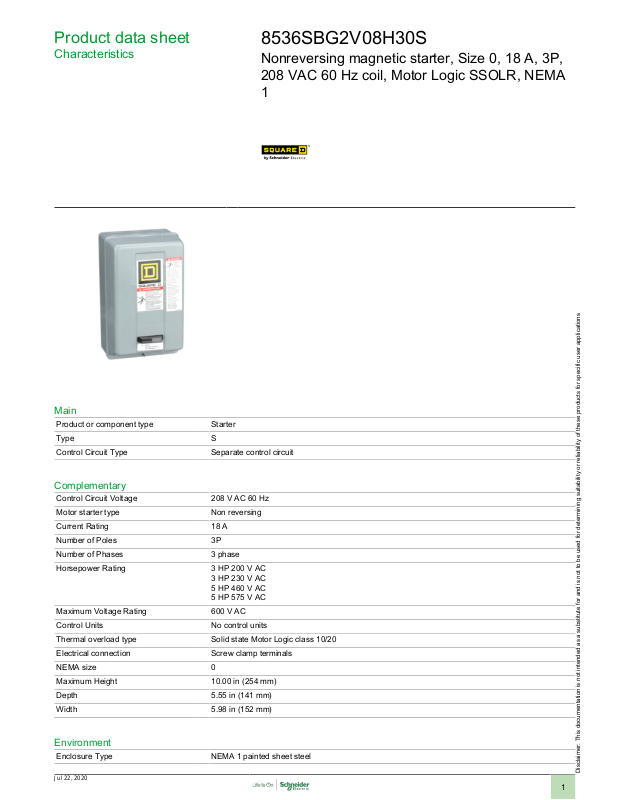

Square D 8536SBG2V08H30S Data Sheet

Product data sheet

Characteristics

8536SBG2V08H30S

Nonreversing magnetic starter, Size 0, 18 A, 3P,
208 VAC 60 Hz coil, Motor Logic SSOLR, NEMA
1

Main

Product or component type Starter

Type S

Control Circuit Type Separate control circuit

Complementary

Control Circuit Voltage 208 V AC 60 Hz

Motor starter type Non reversing

Current Rating 18A

Number of Poles 3P

Number of Phases 3 phase

Horsepower Rating 3 HP 200 V AC

Maximum Voltage Rating 600 V AC

Control Units No control units

Thermal overload type Solid state Motor Logic class 10/20

Electrical connection Screw clamp terminals

NEMA size 0

Maximum Height 10.00in (254mm)

Depth 5.55in (141mm)

Width 5.98in (152mm)

3 HP 230 V AC
5 HP 460 V AC
5 HP 575 V AC

Environment

Enclosure Type NEMA 1 painted sheet steel

Jul 22, 2020

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Product certifications CSA

UL Listed
NEMA

Ordering and shipping details

Category 21191 - 8502,36 SA,SB(NOT S*R,T,W)

Discount Schedule CP1

GTIN 00785901340416

Nbr. of units in pkg. 1

Package weight(Lbs) 6lb(US) (2.72kg)

Returnability No

Country of origin MX

Offer Sustainability

EU RoHS Directive Not compliant

China RoHS Regulation China RoHS declaration

Product out of China RoHS scope. Substance declaration for your information.
