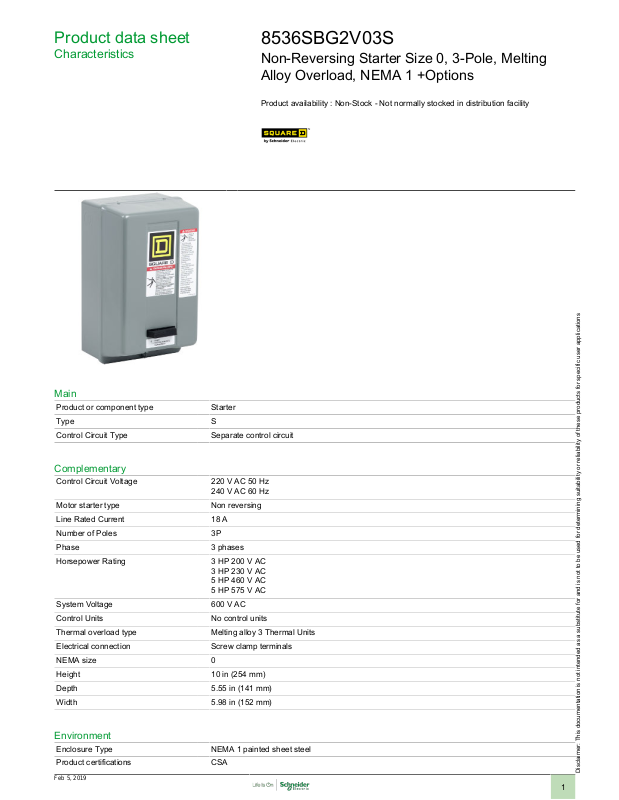

Product data sheet
Characteristics
8536SBG2V03S
Non-Reversing Starter Size 0, 3-Pole, Melting
Alloy Overload, NEMA 1 +Options
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Starter
Type S
Control Circuit Type Separate control circuit
Complementary
Control Circuit Voltage 220 V AC 50 Hz
Motor starter type Non reversing
Line Rated Current 18 A
Number of Poles 3P
Phase 3 phases
Horsepower Rating 3 HP 200 V AC
System Voltage 600 V AC
Control Units No control units
Thermal overload type Melting alloy 3 Thermal Units
Electrical connection Screw clamp terminals
NEMA size 0
Height 10 in (254 mm)
Depth 5.55 in (141 mm)
Width 5.98 in (152 mm)
240 V AC 60 Hz
3 HP 230 V AC
5 HP 460 V AC
5 HP 575 V AC
Environment
Enclosure Type NEMA 1 painted sheet steel
Product certifications CSA
Feb 5, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
NEMA
UL listed
Ordering and shipping details
Category 21191 - 8502,36 SA,SB(NOT S*R,T,W)
Discount Schedule CP1
GTIN 00785901340867
Nbr. of units in pkg. 1
Package weight(Lbs) 6
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
Contractual warranty
Warranty period 18 months
