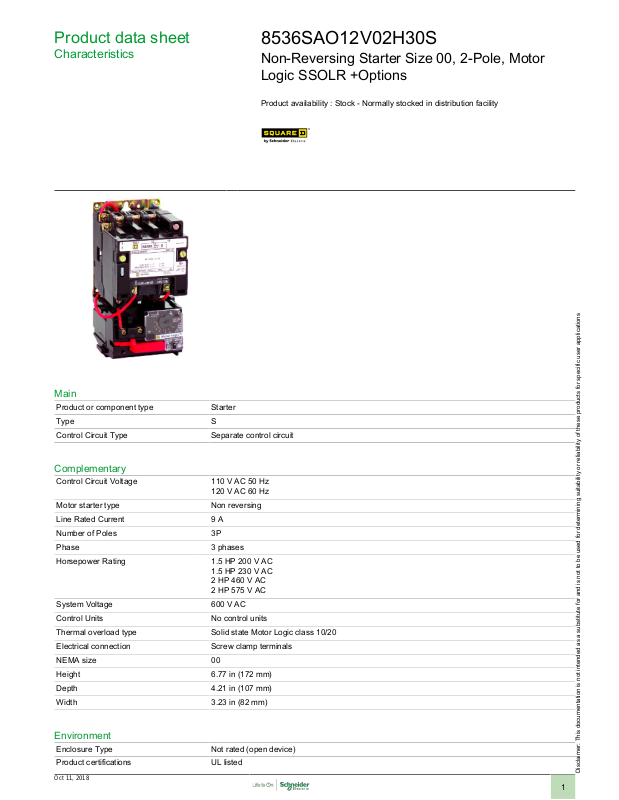

Product data sheet
Characteristics
8536SAO12V02H30S
Non-Reversing Starter Size 00, 2-Pole, Motor
Logic SSOLR +Options
Product availability : Stock - Normally stocked in distribution facility
Main
Product or component type Starter
Type S
Control Circuit Type Separate control circuit
Complementary
Control Circuit Voltage 110 V AC 50 Hz
Motor starter type Non reversing
Line Rated Current 9 A
Number of Poles 3P
Phase 3 phases
Horsepower Rating 1.5 HP 200 V AC
System Voltage 600 V AC
Control Units No control units
Thermal overload type Solid state Motor Logic class 10/20
Electrical connection Screw clamp terminals
NEMA size 00
Height 6.77 in (172 mm)
Depth 4.21 in (107 mm)
Width 3.23 in (82 mm)
120 V AC 60 Hz
1.5 HP 230 V AC
2 HP 460 V AC
2 HP 575 V AC
Environment
Enclosure Type Not rated (open device)
Product certifications UL listed
Oct 11, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
CSA
NEMA
Ordering and shipping details
Category 21191 - 8502,36 SA,SB(NOT S*R,T,W)
Discount Schedule CP1
GTIN 00785901039679
Nbr. of units in pkg. 1
Package weight(Lbs) 3.8500000000000001
Returnability Y
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Compliant ๎
- since๎
1545 ๎
-๎
Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
Contractual warranty
Warranty period 18 months
2
