Square D 8501RS41P14V14 Data Sheet

Product data sheet

Characteristics

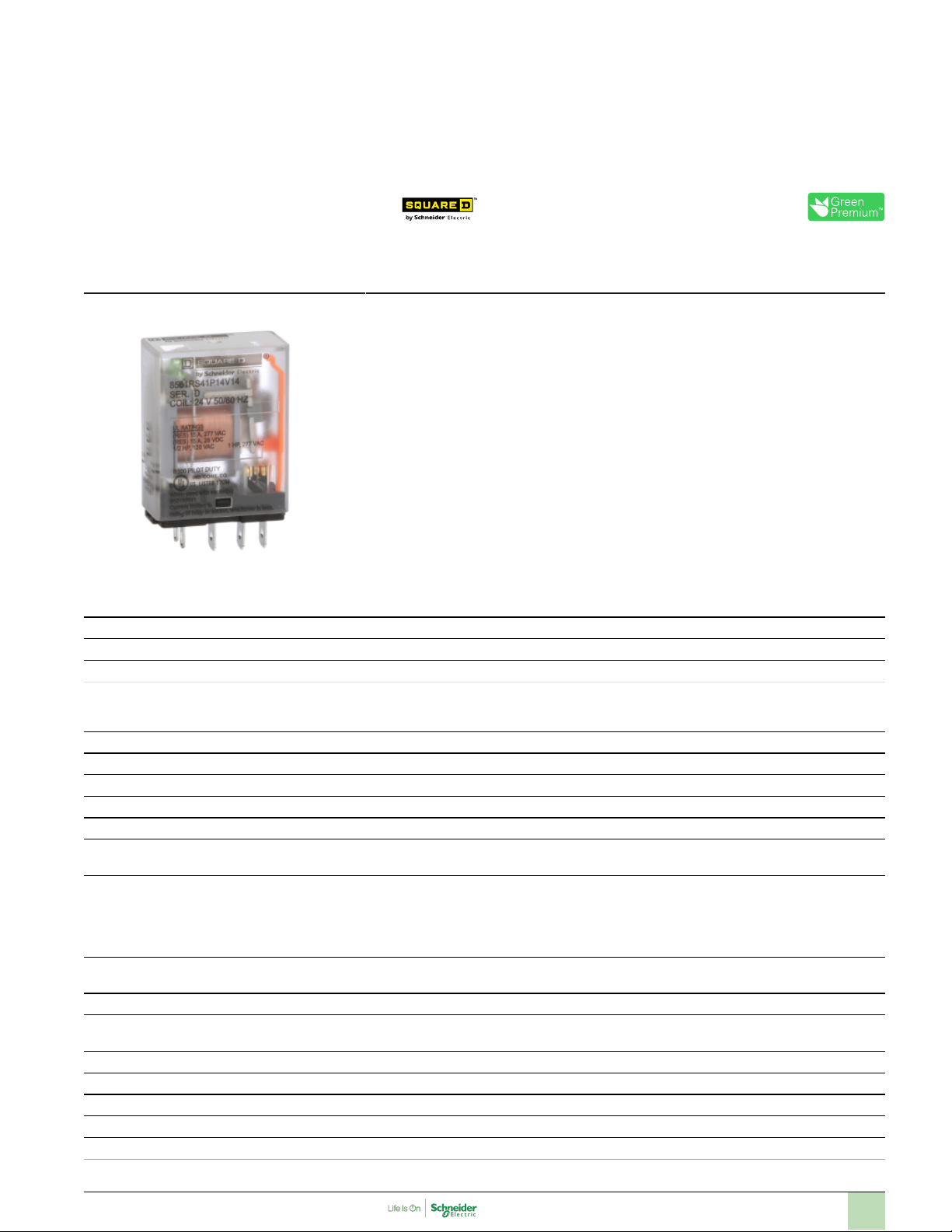

8501RS41P14V14

Relay, miniature plug in, 15 A, 1 pole, 24 VAC
coil, pilot light

Main

Product range 8501R

Product type Miniature Relay

Relay type Standard

Complementary

Mounting type Socket

Contact composition SPDT

[Uc] control circuit voltage 24 V AC

Pilot light Green indicator relay energised LED

Manual operator Without test button

Horsepower rating 0.5 120 V AC

Breaking capacity 3A 120 V AC inductive control circuit UL 508

Maximum switching voltage 300V AC

Contact material Silver alloy, gold flashed

Operating time 20 ms - pick-up

Shape of pins Spade

For use with 8501NR41

Maximum Height 1.07in (27.3mm)

Width 0.55in (14mm)

Depth 1.65in (41.8mm)

1 277 V AC

1.5A 240 V AC inductive control circuit UL 508
15A 120 V AC resistive control circuit UL 508
10A 277 V AC resistive control circuit UL 508
15A 28 V DC resistive control circuit UL 508

30V DC

20 ms - drop-out

* Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.

Aug 7, 2020

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Environment

Ambient temperature range ­operational

Product certifications UL Listed

-40…131°F (-40…55°C)

UL Recognized
CSA
CE

Ordering and shipping details

Category 21143 - 8501 R

Discount Schedule CP2

GTIN 00785901218470

Nbr. of units in pkg. 1

Package weight(Lbs) 0.06lb(US) (0.03kg)

Returnability No

Country of origin CN

Offer Sustainability

Sustainable offer status Green Premium product

California proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl

REACh free of SVHC Yes

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free Yes

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

Environmental Disclosure Product Environmental Profile

phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive
harm. For more information go to www.p65warnings.ca.gov

EU RoHS Declaration

Contractual warranty

Warranty 18 months
