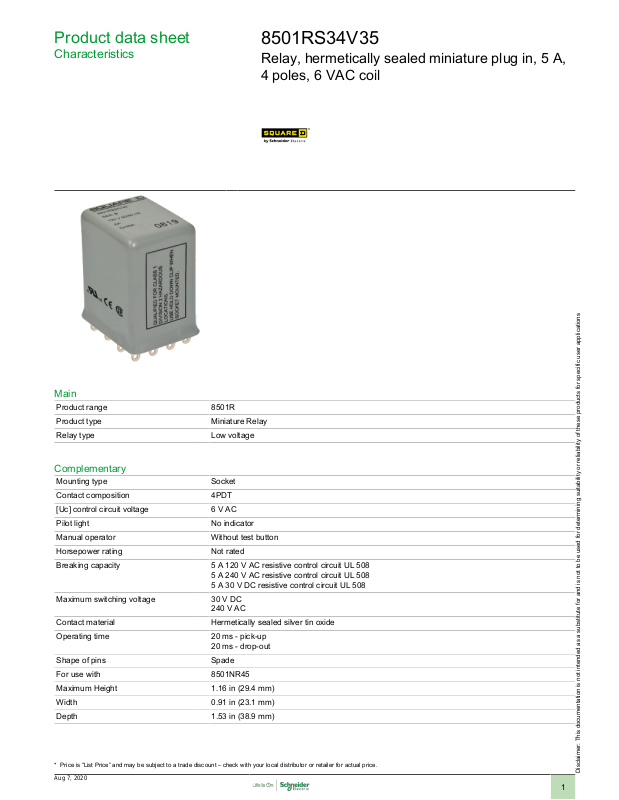

Product data sheet
Characteristics
8501RS34V35
Relay, hermetically sealed miniature plug in, 5 A,
4 poles, 6 VAC coil
Main
Product range 8501R
Product type Miniature Relay
Relay type Low voltage
Complementary
Mounting type Socket
Contact composition 4PDT
[Uc] control circuit voltage 6 V AC
Pilot light No indicator
Manual operator Without test button
Horsepower rating Not rated
Breaking capacity 5A 120 V AC resistive control circuit UL 508
Maximum switching voltage 30V DC
Contact material Hermetically sealed silver tin oxide
Operating time 20 ms - pick-up
Shape of pins Spade
For use with 8501NR45
Maximum Height 1.16in (29.4mm)
Width 0.91in (23.1mm)
Depth 1.53in (38.9mm)
5A 240 V AC resistive control circuit UL 508
5A 30 V DC resistive control circuit UL 508
240V AC
20 ms - drop-out
* Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.
Aug 7, 2020
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Environment
Ambient temperature range operational
Product certifications UL Listed
-40…131°F (-40…55°C)
UL Recognized
CSA
CE
Ordering and shipping details
Category 21143 - 8501 R
Discount Schedule CP2
GTIN 00785901983279
Nbr. of units in pkg. 25
Package weight(Lbs) 0.12lb(US) (0.05kg)
Returnability No
Country of origin CN
Offer Sustainability
California proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl
REACh free of SVHC Yes
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free Yes
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive
harm. For more information go to www.p65warnings.ca.gov
EU RoHS Declaration
Contractual warranty
Warranty 18 months
