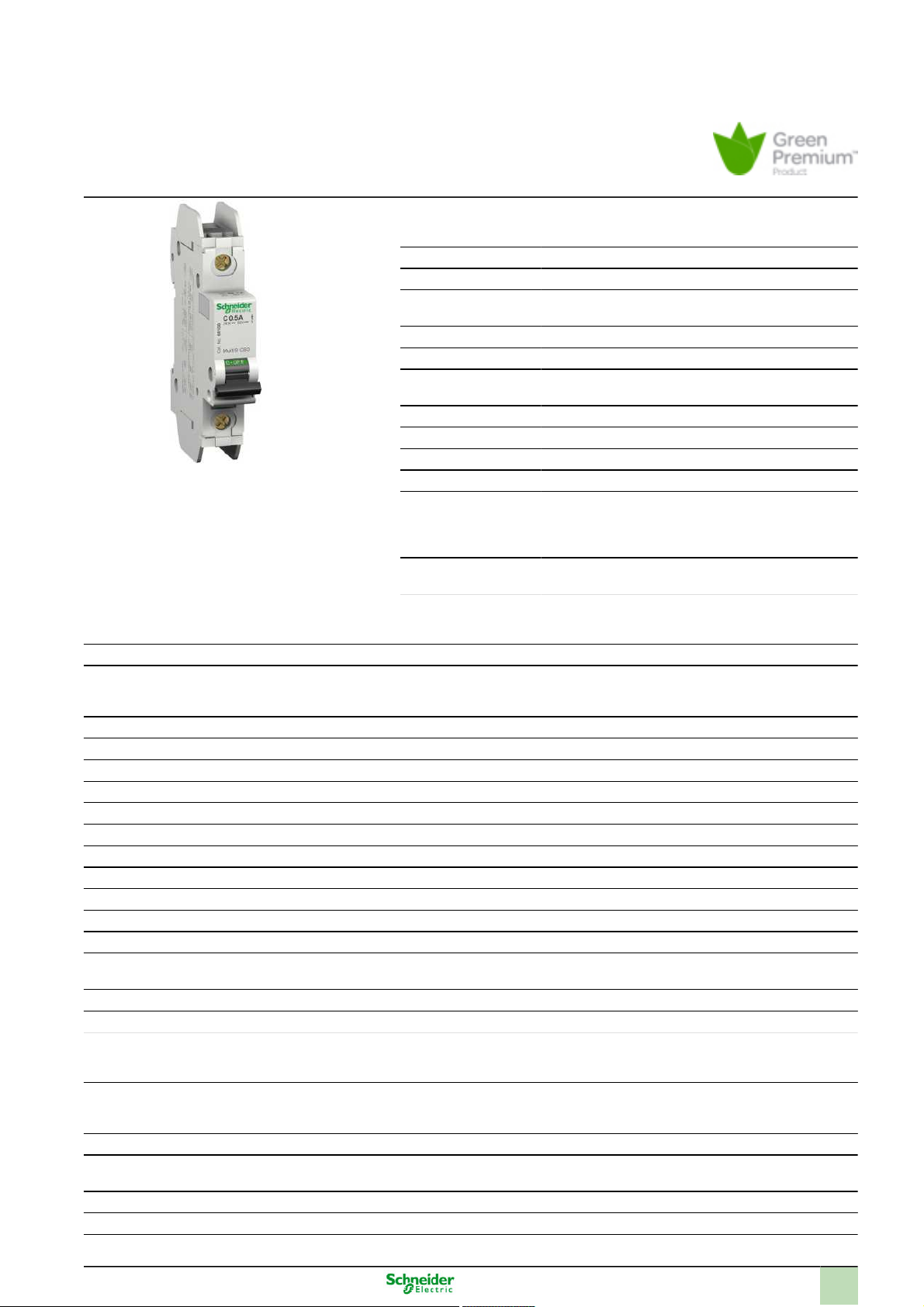

Product data sheet
Characteristics
60107
MINIATURE CIRCUIT BREAKER 120V 6A
Main
Device application Distribution
Range of product C60
Product or component
type
Device short name C60 UL489
Poles description 1P
Number of protected
poles
[In] rated current 6 A at 30 °C
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10 kA Icu conforming to IEC 60947-2 - 277 V AC
Suitability for isolation Yes conforming to UL 489
Miniature circuit-breaker
1
50/60 Hz
10 kA AIR conforming to UL 489 - 277 V AC 50/60
Hz
Yes conforming to IEC 60947-2
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 120...240 V AC 50/60 Hz
Magnetic tripping limit 7...10 x In
Contact position indicator Yes
Control type Toggle
Local signalling Positive break indication
Mounting mode Fixed
Mounting support 35 mm symmetrical DIN rail
9 mm pitches 2
Product weight 0.11 kg
Colour Grey
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type terminals rigid wire(s) 25 mm² max
Wire stripping length 14 mm
Tightening torque 2 N.m
60 V DC
125 V DC
Tunnel type terminals flexible wire(s) 16 mm² max
Environment
Standards IEC 60947-2
IP degree of protection IP40 IEC 60529
Tropicalisation 2 conforming to UL 489
Relative humidity 95 % (55 °C)
Operating altitude 2000 m
UL 489
CSA C22.2 No 5.2
2 conforming to IEC 60068-1
Aug 4, 2016
1
Ambient air temperature for operation -25...60 °C
Ambient air temperature for storage -40...70 °C
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
REACh Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Compliant - since 1201 - Schneider Electric declaration of conformity
2
