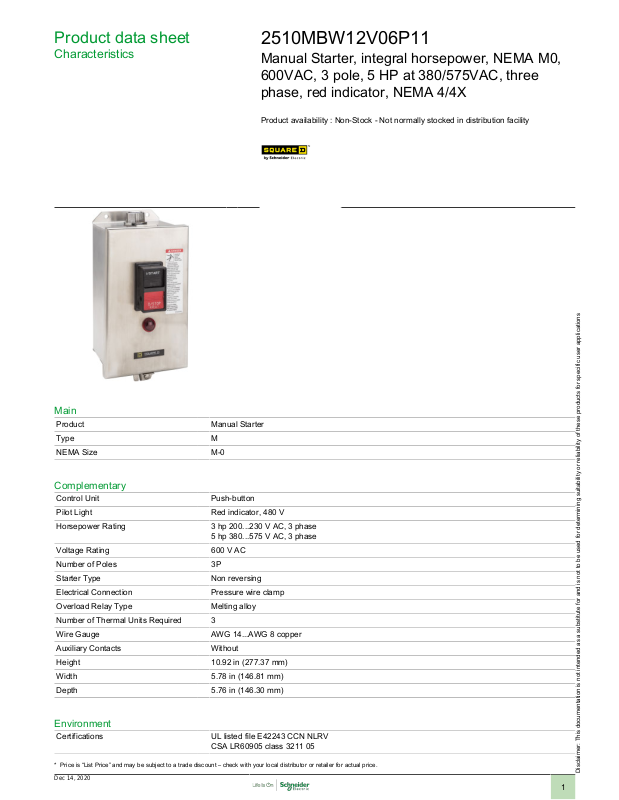

Product data sheet
Characteristics
2510MBW12V06P11
Manual Starter, integral horsepower, NEMA M0,
600VAC, 3 pole, 5 HP at 380/575VAC, three
phase, red indicator, NEMA 4/4X
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product Manual Starter
Type M
NEMA Size M-0
Complementary
Control Unit Push-button
Pilot Light Red indicator, 480 V
Horsepower Rating 3hp 200...230 V AC, 3 phase
Voltage Rating 600 V AC
Number of Poles 3P
Starter Type Non reversing
Electrical Connection Pressure wire clamp
Overload Relay Type Melting alloy
Number of Thermal Units Required 3
Wire Gauge AWG 14...AWG 8 copper
Auxiliary Contacts Without
Height 10.92in (277.37mm)
Width 5.78in (146.81mm)
Depth 5.76in (146.30mm)
5hp 380...575 V AC, 3 phase
Environment
Certifications UL listed file E42243 CCN NLRV
CSA LR60905 class 3211 05
*Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.
Dec 14, 2020
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
NEMA Enclosure Rating NEMA 4/4X brushed stainless steel
Ordering and shipping details
Category 21103 - 2510,2511,2512 M,T
Discount Schedule CP1
Package weight(Lbs) 9.28lb(US) (4.21kg)
Returnability No
Country of origin MX
Offer Sustainability
California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which
REACh Regulation REACh Declaration
REACh free of SVHC Yes
EU RoHS Directive Compliant
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
PVC free Yes
is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov
EU RoHS Declaration
Product out of China RoHS scope. Substance declaration for your information.
Contractual warranty
Warranty 18 months
2
