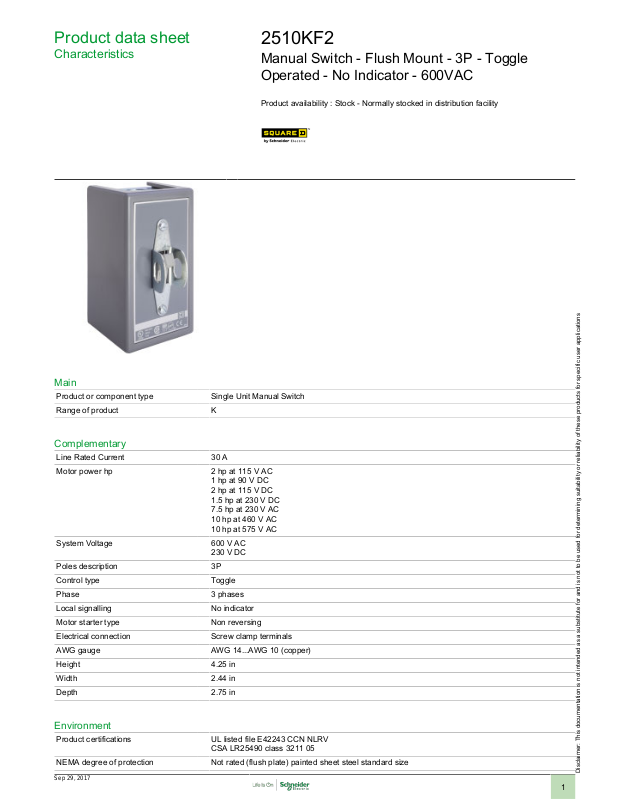

Product data sheet
Characteristics
2510KF2
Manual Switch - Flush Mount - 3P - Toggle
Operated - No Indicator - 600VAC
Product availability : Stock - Normally stocked in distribution facility
Main
Product or component type Single Unit Manual Switch
Range of product K
Complementary
Line Rated Current 30 A
Motor power hp 2 hp at 115 V AC
System Voltage 600 V AC
Poles description 3P
Control type Toggle
Phase 3 phases
Local signalling No indicator
Motor starter type Non reversing
Electrical connection Screw clamp terminals
AWG gauge AWG 14...AWG 10 (copper)
Height 4.25 in
Width 2.44 in
Depth 2.75 in
1 hp at 90 V DC
2 hp at 115 V DC
1.5 hp at 230 V DC
7.5 hp at 230 V AC
10 hp at 460 V AC
10 hp at 575 V AC
230 V DC
Environment
Product certifications UL listed file E42243 CCN NLRV
CSA LR25490 class 3211 05
NEMA degree of protection Not rated (flush plate) painted sheet steel standard size
Sep 29, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Ordering and shipping details
Category 21102 - 2510,2511,2512 K
Discount Schedule CP1
GTIN 00785901554448
Nbr. of units in pkg. 1
Package weight(Lbs) 0.53000000000000003
Returnability Y
Country of origin MX
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW) Will be compliant ๎on๎ 3Q2014
Will be compliant ๎on๎ 3Q2014
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Contractual warranty
Warranty period 18 months
2
