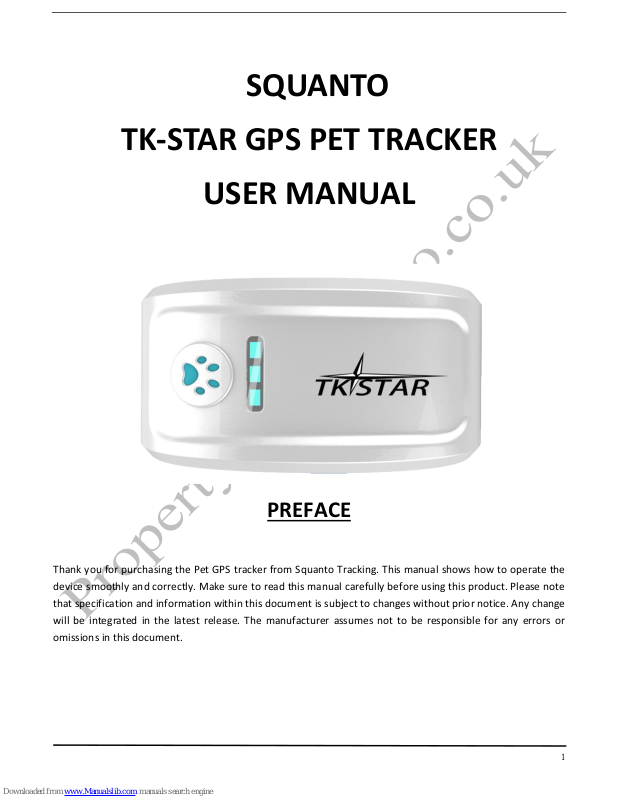

SQUANTO TK-STAR User Manual

1

SQUANTO

TK-STAR GPS PET TRACKER

USER MANUAL

PREFACE

Thank you for purchasing the Pet GPS tracker from Squanto Tracking. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note
that specification and information within this document is subject to changes without prior notice. Any change
will be integrated in the latest release. The manufacturer assumes not to be responsible for any errors or
omissions in this document.

2

1. SUMMARY

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any
remote targets by SMS or internet. It uses the latest advanced technology of GPS and A-GPS dual positioning.

Content

Specs.

Dimensions

70mm x 37mm x 20mm(2.7”*1.4”*0.78”)

Weight

65g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status 45s
Warm status 35s
Hot status 1s

Car charger

12—24V input
5V output

Wall charger

110－220V input
5V output

Battery

Chargeable changeable 3.7V 1000mAh Li-ion battery

Stand by

300hours

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing

3

LED INDICATOR STATUS

MEANING

Left-GREEN-Not lit

Device fault or dormant.

Left-GREEN-Continuously lit

No GPRS signal.

Left-GREEN-Flashing

GSM/GPRS communication established.

Center-RED-Not lit

Fully charged.

Center-RED-Solid red

Charging.

Center-RED-Flashing

Low battery.

Right-BLUE-Not lit

No power to the unit or the unit can’t start.

Right-BLUE-Continuously lit

Searching for GPS signal.

Right-BLUE-Flashing

GPS location successful.
