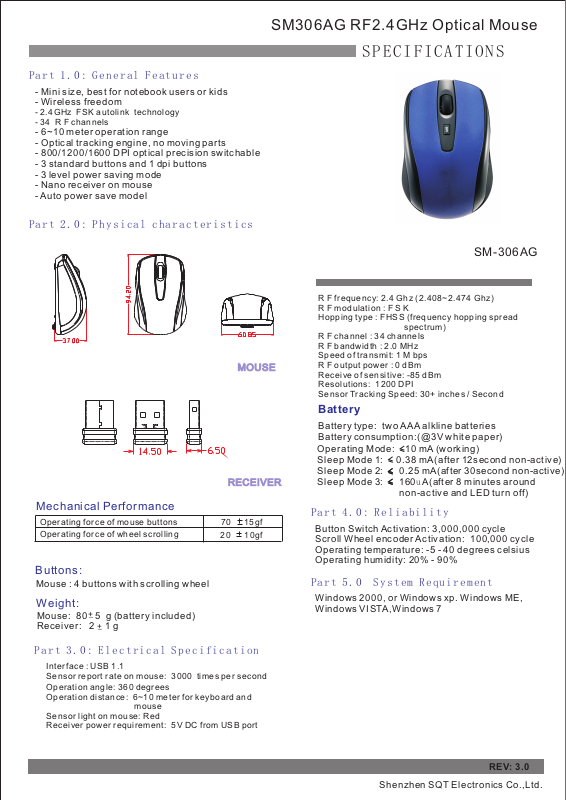

SM306AG RF2.4GHz Optical Mouse
Pa r t 1 . 0 : G e ne r a l F e a t ur e s
- Mini size, best for notebook users or kids
- Wireless freedom
- 2.4GHz FSK au tolink techno logy
- 34 R F channels
- 6~10 meter operation range
- Optical tracking engine, no moving parts
- 800/1200/1600 DPI optical precision switchable
- 3 standard buttons and 1 dpi buttons
- 3 level power saving mode
- Nano receiver on mouse
- Auto power save model
Pa r t 2 . 0 : P h ys i c a l c h a ra c t e r i s ti c s
MOUSE
SPECIFICATIONS
SM-306AG
R F frequency: 2.4 Ghz (2.408~ 2.474 Ghz)
R F modulation : F S K
Hopping type : FH SS (frequen cy hopping spre ad
spectrum)
R F channel : 34 chan nels
R F bandwidth : 2.0 MHz
Speed of transm it: 1 M bps
R F output power : 0 dBm
Receive of sens itive: -85 dB m
Resolutions : 1200 DPI
Sensor Trackin g Speed: 30+ in ches / Second
RECEIVER
Mechanical Performance
Operating for ce of mouse but tons
Operating for ce of wheel scr olling
70 15gf
20
10gf
Buttons:
Mouse : 4 buttons with scrolling wheel
Weight:
_
Mouse: 80 5 g (battery included)
Receiver: 2 1 g
+
_
+
Pa r t 3 . 0 : E l ec t r i c a l S pe c i f i c a ti o n
Interface : U SB 1.1
Sensor report r ate on mouse: 3 000 times per sec ond
Operation ang le: 360 degre es
Operation dis tance: 6~10 m eter for keyboa rd and
mouse
Sensor light on m ouse: Red
Receiver powe r requireme nt: 5V DC from USB po rt
Battery
Battery type: two AAA alkline batteries
Battery consumption:(@3V white paper)
Operating Mode: 10 mA (working)
Sleep Mode 1: 0.38 mA(after 12second non-active)
Sleep Mode 2: 0.25 mA(after non-active)
Sleep Mode 3: 160u A(after 8 minutes around
non-active and LED turn off)
30second
Pa r t 4 . 0 : R e li a b i l i t y
Button Switch Activation: 3,000,000 cycle
Scroll Wheel encoder Activation: 100,000 cycle
Operating temperature: -5 - 40 degrees celsius
Operating humidity: 20% - 90%
Pa r t 5 . 0 S y s te m R e q u i r em e n t
Windows 2000, or Windows xp. Windows ME,
Windows VISTA,Windows 7
REV: 3.0
Shenzhen SQT Electronics Co.,Ltd.
