Part 1.0: General Features
Sleep Mode 1: 1.0 mA(after 5second non-active)
Sleep Mode 2: 0.8 mA(after 59 non-active)
-
Mini size, best for notebook users or kids
- Totally Wireless freedom
- 2.4GHz FSK Autolink technology
- 34 two way R F channels
- Operation distance of 6~10 meters for mouse
- 800~1200~1600
-
3 level power saving mode
- NANO receiver on mouse
- Auto power save model
DPI optical precision switchable
Part 2.0: Physical characteristics

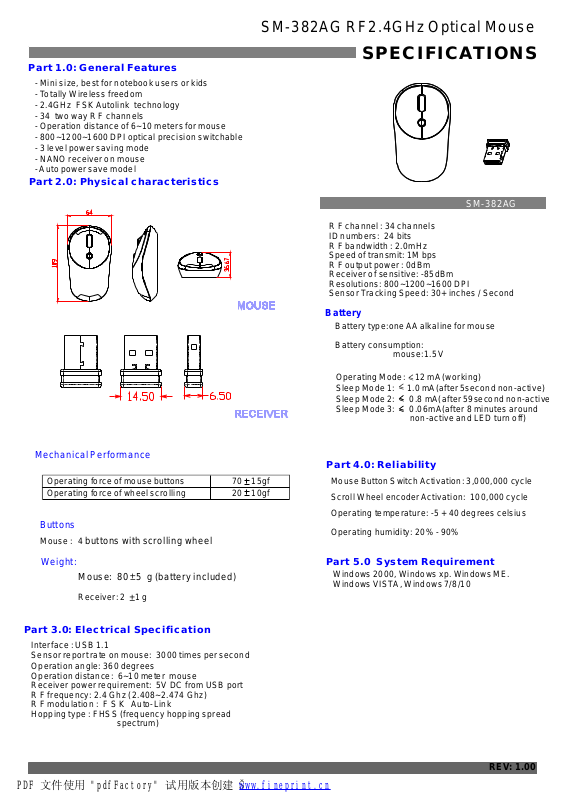

SM-382AG RF2.4GHz Optical Mouse
SPECIFICATIONS
SM-382AG
R F channel : 34 channels
ID numbers: 24 bits
R F bandwidth : 2.0mHz
Speed of transmit: 1M bps
R F output power : 0dBm
Receiver of sensitive: -85dBm
Resolutions: 800~1200~1600 DPI
Sensor Tracking Speed: 30 inches / Second+
Mechanical Performance
Operating force of mouse buttons
Operating force of wheel scrolling
Buttons
Mouse : 4 buttons with scrolling wheel
Weight:
Mouse: 80 5 g (battery included)
Receiver: 2 1 g
70 15gf
20 10gf
Battery
Battery type:one AA alkaline for mouse
Battery consumption:
Operating Mode: 12 mA (working)
Sleep Mode 3: 0.06mA(after 8 minutes around
non-active and LED turn off)
mouse:1.5V
second
Part 4.0: Reliability
Mouse Button Switch Activation: 3,000,000 cycle
Scroll Wheel encoder Activation: 100,000 cycle
Operating temperature: -5 + 40 degrees celsius
Operating humidity: 20% - 90%
Part 5.0 System Requirement
Windows 2000, Windows xp. Windows ME.
Windows VISTA, Windows 7/8/10
Part 3.0: Electrical Specification
Interface : USB 1.1
Sensor report rate on mouse: times per second 3000
Operation angle: 360 degrees
Operation distance: 6~10 meter mouse
Receiver power requirement: 5V DC from USB port
R F frequency: 2.4 Ghz (2.408~2.474 Ghz)
R F modulation : F S K Auto-Link
Hopping type : FHSS (frequency hopping spread
spectrum)
PDF 文件使用 "pdfFactory" 试用版本创建 Š www.fineprint.cn
REV: 1.00
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable condition without restriction.
