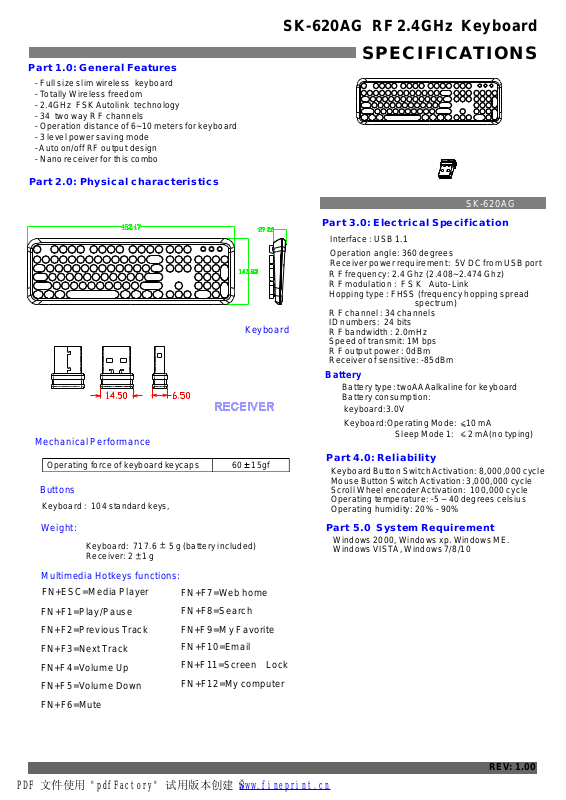

SQT Electronics SK620AG Users Manual

SK-620AG RF 2.4GHz Keyboard

Part 1.0: General Features

- Full size slim wireless keyboard

- Totally Wireless freedom

- 2.4GHz FSK Autolink technology

- 34 two way R F channels

- Operation distance of 6~10 meters for keyboard

-

3 level power saving mode

- Auto on/off RF output design

- Nano receiver for this combo

Part 2.0: Physical characteristics

Mechanical Performance

Keyboard

SPECIFICATIONS

SK-620AG

Part 3.0: Electrical Specification

Interface : USB 1.1
Operation angle: 360 degrees

Receiver power requirement: 5V DC from USB port

R F frequency: 2.4 Ghz (2.408~2.474 Ghz)
R F modulation : F S K Auto-Link
Hopping type : FHSS (frequency hopping spread
spectrum)
R F channel : 34 channels
ID numbers: 24 bits
R F bandwidth : 2.0mHz
Speed of transmit: 1M bps
R F output power : 0dBm
Receiver of sensitive: -85dBm

Battery

Battery type: twoAAAalkaline for keyboard
Battery consumption:

keyboard:3.0V

Keyboard:Operating Mode: 10 mA

Sleep Mode 1: 2 mA(no typing)

Operating force of keyboard keycaps

Buttons

Keyboard : 104 standard keys,

Weight:

Keyboard: 717.6 5 g (battery included)
Receiver: 2 1 g

Multimedia Hotkeys functions:

FN+ESC=Media Player
FN+F1=Play/Pause
FN+F2=Previous Track
FN+F3=Next Track
FN+F4=Volume Up
FN+F5=Volume Down
FN+F6=Mute

60 15gf

FN+F7=Web home
FN+F8=Search

FN+F9=M y Favorite
FN+F10= Email
FN+F11=ScreenLock

FN+F12= My computer

Part 4.0: Reliability

Keyboard Button Switch Activation: 8,000,000 cycle
Mouse Button Switch Activation: 3,000,000 cycle
Scroll Wheel encoder Activation: 100,000 cycle
Operating temperature: -5 ~ 40 degrees celsius
Operating humidity: 20% - 90%

Part 5.0 System Requirement

Windows 2000, Windows xp. Windows ME.
Windows VISTA, Windows 7/8/10

PDF 文件使用 "pdfFactory" 试用版本创建 Š www.fineprint.cn

REV: 1.00
