SQOOM LFC-06 Instruction Manual

The new clinically tested premium anti-aging method acts
deep inside the skin and quickly bolsters up wrinkles no­tably – without injections, at the push of a button.

Instruction
Manual

Summary overview 4

Give your skin what it needs 6

Application 8

Application programmes

Cleansing 10

Massage 12

Nutrition 14

Lifting 16

Whitening 18

Wrinkle Care 20

Maintenance and storage 22

Technical specification 23

Contents

3

Thank you for purchasing SQOOM.
This high-quality concept from the
medical and dermatology expert
Schick Medical oers a number of
active gels and an innovative physical
device for highly eective anti-aging
results. Cleansing,Massage, Nutrition,
Lifting,Whitening and Wrinkle Care
programmes are all scientifically proven
and dermatologically tested.

SQOOM is an innovative microcom­puter-controlled anti-aging treatment
using highly developed active gels to
regenerate the skin from deep within.
The patented synchron technology
features a unique combination of
iontophoresis with ultrasound and
active ingredients. Your skin will
soon be much more radiant and youth­ful-similar to an intensive treatment
in the beauty salon. The easy-to-follow
and gentle treatment tightens wrinkles,
regenerates connective tissue and
develops new cells.

Please read this instruction manual
carefully to achieve the best possible
results from your SQOOM treatment.

Highly acclaimed SQOOM concept

Anti-aging technology at the highest
scientific level.

2

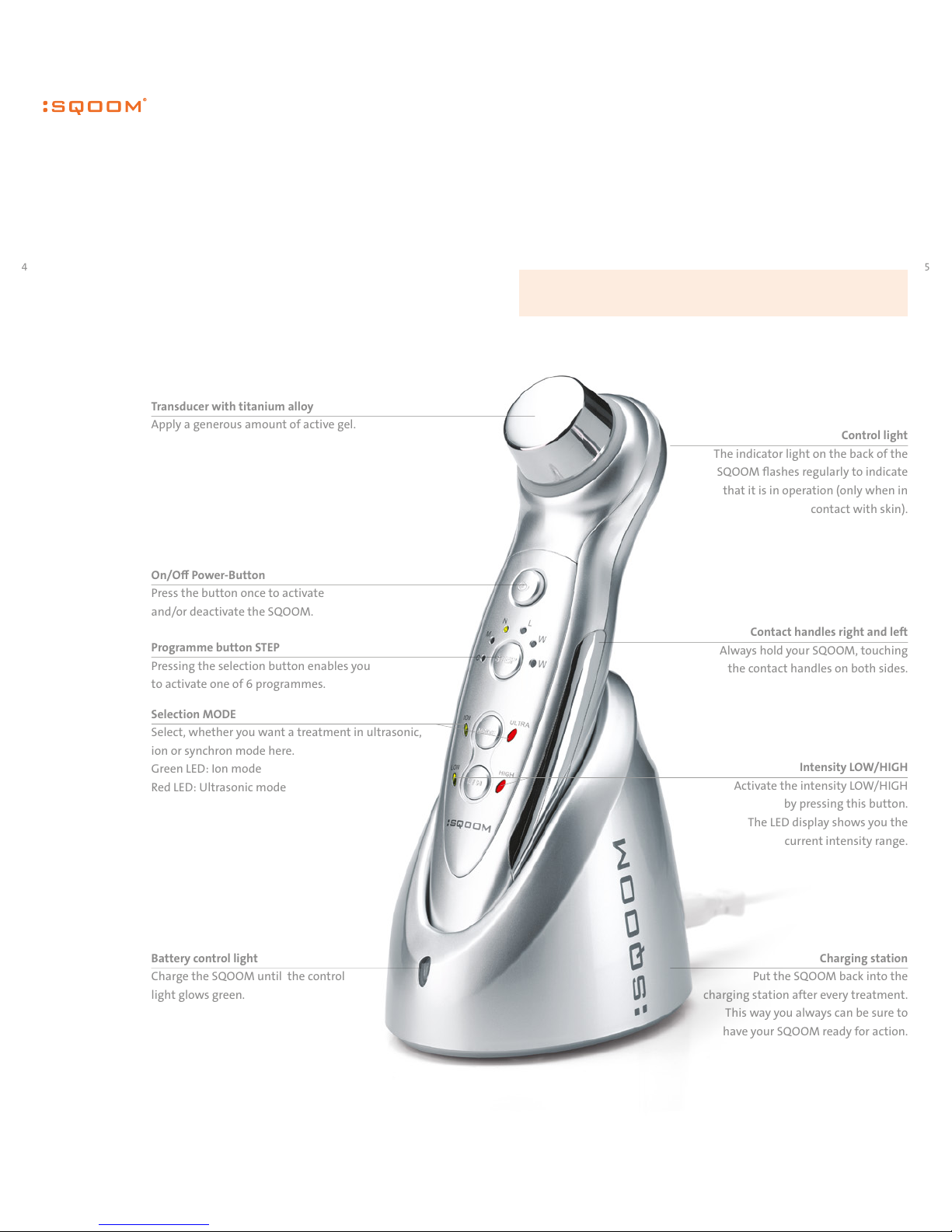

Control light

The indicator light on the back of the

SQOOM flashes regularly to indicate

that it is in operation (only when in

contact with skin).

Contact handles right and left

Always hold your SQOOM, touching

the contact handles on both sides.

Charging station

Put the SQOOM back into the

charging station after every treatment.

This way you always can be sure to

have your SQOOM ready for action.

5

Please use the SQOOM with the treatment gels developed by us. We accept no
liability for results when using cosmetics or medicines produced by others.

Battery control light

Charge the SQOOM until the control
light glows green.

Transducer with titanium alloy

Apply a generous amount of active gel.

On/O Power-Button

Press the button once to activate
and/or deactivate the SQOOM.

Selection MODE

Select, whether you want a treatment in ultrasonic,
ion or synchron mode here.
Green LED: Ion mode
Red LED: Ultrasonic mode

Programme button STEP

Pressing the selection button enables you
to activate one of 6 programmes.

Intensity LOW/HIGH

Activate the intensity LOW/HIGH

by pressing this button.

The LED display shows you the

current intensity range.

Please read this summary overview to get
acquainted with your SQOOM. It provides a
first impression of the device’s operation.

Summary overview

4

The SQOOM xcential hyaGel

An innovative anti-aging gel
made of skin friendly and
natural agents. The main ingre­dient is fragmented hyaluronic
acid- fragmented because
common hyalurone particles
are quite large and bulky and
unleash their tightening eect
only for a short time and only
in the upper skin layers. Special
bacteria divide the hyaluronic
acid particles included in the
SQOOM xcential hyaGel into
significantly smaller bits befo­re adding them to the xcential
hyaGel. This enables substan­tially improved penetration of
the critical skin layers by hig­her quantities of the particles,
where they fill hollow spaces
formed as the skin ages.

The SQOOM DeSpot

Due to its unique combination
of active ingredients, DeSpot
is able to prevent and block
age spots, to brighten skin
areas, regenerate and
reconstruct already aged skin
and tighten the connective
tissue.
DeSpot helps counteract
symptoms of old age through
cell regeneration, detoxi­fication and by capturing free
radicals.

7

The outstanding success of SQOOM is based
on the perfect interaction of methodology
and agents. While the SQOOM device is res­ponsible for the transport, the SQOOM gels
ensure the provision of the right and active
ingredients. Just like a well-balanced team
they jointly provide the skin with everything
it needs in order to look fresher, younger
and more radiant. And it doesn‘t take long.
Give SQOOM 20 minutes of your valuable
time once in a week, and the first visible
results will appear within a short period.

Give your skin what it needs.

xcentialSkinCare

Innovative antiAge cream for
daily care. Ideal as the final
stage in the SQOOM treatment.

The SQOOM cleanser

When the skin is cleansed
deep down into the pores, all of
the keratin, sebum and other
products generated from the
breakdown of the skin are
removed. The skin is left in the
perfect state to receive the
valu able active substances
from the SQOOM xcential hya­Gel which penetrates into the
lower layers of the skin. The
SQOOM cleanser disinfects the
skin and has a gently cooling
eect. Aloe vera gel moisturi­ses the skin while panthenol
and chamomile extract have a
soothing eect. They influence
the bacteria flora and ensure
beneficial conditions for the
skin-friendly micro-organisms.

6

DO NOT USE WITH

9

Clean your skin as usual before each
treatment programme. Next, apply one
of the active gels generously directly
on the transducer or the skin area to
be treated, depending on the selected
programme.

Now, choose the appropriate treatment
programme and hold the SQOOM firmly
on both sides, touching the contact
handles. Next, lay the transducer on
the skin area to be treated and move it
softly over the skin in slow circles.

Please note: If you are treating other
people with your SQOOM, be sure to
touch the other person with your free
hand (skin contact), to close the circle
and ensure the proper operation of your
SQOOM.

8

1. Clean the skin as usual (Re­move makeup, creams and fra­grance) and start the SQOOM
by pressing the POWER button.

2. Press the STEP button, until
the control light C (CLEANSING)
lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity HIGH.

The diaphane of your SQOOM
corresponds to the adjoining
graphic, the device is ready for
operation and you can start
the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

After completing the SQOOM
cleansing treatment, please
wash your face with a damp
cloth or water. Next, you can
start with the xcential hyaGel
application.

11

CLEANSING programme 1

Deep cleaning of the skin

Programme: C
Gel: cleanser
Treatment time: 4 min.

User programmes

Combined with the cleanser,
this level ensures a clean and
pure skin. The synchron
technology increases the
positive result. Keratin, sebum
and other skin degradation
products are simply dissol­ved and washed away with a
damp cloth or water after the
treatment.

First apply the cleanser
generously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

10

13

We recommend performing
the CLEANSING programme
prior to each treatment.

1. Start the SQOOM by pressing
the POWER button.

2. Press the STEP button, until
the control light M (MASSAGE)
lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity LOW and
HIGH.

When the diaphane of your
SQOOM corresponds to the
adjoining graphic, the device
is ready for operation and you
can start the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

Wash o the remaining gel after
the SQOOM treatment. Use
the SQOOM xcential SkinCare
as an optimal completion and
for the daily care.

MASSAGE Programme 2

Skin tightening

Programme: M
Gel: xcential hyaGel
Treatment time: 8 min.

User programmes

12

Just like a conventional mas­sage, the SQOOM massage
brings back relaxation and
elasticity to the skin. Negative
and positive ions and sound
waves activate the cell spaces
and eectively stimulate the
metabolism. Your skin beauty
improves notably.

First apply the xcential hyaGel
generously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

We recommend performing
the CLEANSING programme
prior to each treatment.

1. Start the SQOOM by pressing
the POWER button.

2. Press the STEP button, until
the control light N (NUTRITI­ON) lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity LOW and
HIGH.

When the diaphane of your
SQOOM corresponds to the
adjoining graphic, the device
is ready for operation and you
can start the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

Wash o the remaining gel after
the SQOOM treatment. Use
the SQOOM xcential SkinCare
as an optimal completion and
for the daily care.

15

NUTRITION Programme 3

Highly ecient nutrient introduction

Programme: N
Gel: xcential hyaGel
Treatment time: 8 min.

User programmes

Your skin needs nutrition.
The unique synchron techno­logy strongly activates the
cell spaces guaranteeing an
ecient introduction of
nutrients in combination
with the extremely eective
xcential hyaGel.

Note:

In case of very sensitive skin,
we recommend you to use
the W programme (WRINKLE
CARE) instead of the N pro­gramme (NUTRITION).

First apply the xcential hyaGel
generously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

14

We recommend performing
the CLEANSING programme
prior to each treatment.

1. Start the SQOOM by pressing
the POWER button.

2. Press the STEP button, until
the control light L (LIFTING)
lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity LOW and
HIGH.

When the diaphane of your
SQOOM corresponds to the
adjoining graphic, the device
is ready for operation and you
can start the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

Wash o the remaining gel after
the SQOOM treatment. Use
the SQOOM xcential SkinCare
as an optimal completion and
for the daily care.

17

LIFTING Programme 4

Wrinkle reduction, skin tightening

Programme: L
Gel: xcential hyaGel
Treatment time: 8 min.

User programmes

The regular and careful ap­plication of this programme
quickly leads to a notable
tightening and rejuvenation
of the skin. Wrinkles – and in
particular deep wrinkles – are
significantly reduced.
The skin becomes soft and
elastic again. The synchron
technology activates the
production of body elastin and
collagen.

FIrst apply the xcential hyaGel
generously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

16

19

1. Start the SQOOM by pressing
the POWER button.

2. Press the STEP button, until
the control light W (WHITE­NING) lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity LOW and
HIGH.

When the diaphane of your
SQOOM corresponds to the
adjoining graphic, the device
is ready for operation and you
can start the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

Wash o the remaining gel after
the SQOOM treatment. Use
the SQOOM xcential SkinCare
as an optimal completion and
for the daily care.

WHITENING Programme 5

Treatment pigmentary abnormalities (age spots)

Programme: W
Gel: DeSpot
Treatment time: 8 min.

User programmes

18

Select this programme for a
targeted treatment of pigmen­tary abnormalities and age
spots. The introduction of the
eective gel enables you to
experience a notable reduction
in skin discoloration.

First apply the DeSpot ge­nerously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

21

We recommend performing
the CLEANSING programme
prior to each treatment.

1. Start the SQOOM by pressing
the POWER button.

2. Press the STEP button, until
the control light W (WRINKLE
CARE) lights up.

3. Next press the MODE button
to select the functional mode
ION and ULTRA, until both
control lights light up.

4. Press the L/H button to
select the intensity LOW and
HIGH.

When the diaphane of your
SQOOM corresponds to the
adjoining graphic, the device
is ready for operation and you
can start the treatment.

The default operation time is
4 minutes. You can repeat the
treatment after the acoustic
signal by pressing the STEP
button repeatedly.

Wash o the remaining gel after
the SQOOM treatment. Use
the SQOOM xcential SkinCare
as an optimal completion and
for the daily care.

WRINKLE CARE Programme 6

Gentle programme for sensitive skin

Programme: W
Gel: xcential hyaGel
Treatment time: 8 min.

User programmes

20

SQOOM has developed a spe­cial application programme
specifically for the tender and
more sensitive facial skin: the
WRINKLE CARE programme.
The soft massage in combina­tion with the xcential hyaGel
tightens the skin tissue and
reduces wrinkles with utmost
sensitivity.

Note:

In case of extremely sensiti­ve skin, we recommend you
always the WRINKLE CARE
programme in the first few
weeks.

First apply the xcential hyaGel
generously on the transducer
or the skin area to be trea­ted. Hold the SQOOM firmly
on both sides, touching the
contact handles. Next, lay the
transducer on the skin area to
be treated and move it softly
over the skin in slow circles.

Important notes

Only use the SQOOM system with
the treatment gels developed by
Schick Medical.

Do not treat one area for longer
than 20 minutes a day.

Do not apply SQOOM to areas
of skin affected by skin cancer or
surgery.

Do not apply SQOOM when wearing
a cardiac pacemaker.

In cases of thyroid hyper
function, do not apply SQOOM to
the front of the neck or chest area.

Do not apply SQOOM near joint
implants, as this may cause pain.

Do not use SQOOM on the abdomen
or chest area during pregnancy.

Avoid contact with the eyes.

Keep the device and the gel/cream
away from children.

Do not store the gel/cream at tem­peratures exceeding 25 ºC.

The gel/cream is intended for skin
application only.

If you are treating someone else
with your SQOOM, be sure to touch
them with your free hand (skin
contact) to ensure proper operation
of the system.

© All rights reserved by the
Schick Medical GmbH.
All content is subject to copyright.

Schick Medical GmbH, D-78628 Rottweil

CE, ISO 9001 2000, UL-C, US, UFD,
HS Mark

Guaranteed for 2 years.

Technical specifications

Device name

Device LFC-06
Series KTL-SF0700-6001

Charging station

Line voltage AC 100-240 V, 50/60 Hz
Weight 133 g

Hand set

Lithium/Ion battery
Line Voltage AC 100 V bis 240 V
Output/Adapter 4.2 V = 1 A
Output 7 W
Weight 194 g (gross)

Ultrasound

Frequency 1 MHz
Intensity levels from 0,1 W/cm

2

to 0,5 W/cm

2

Ionisation 1 Hz/150 µsec

pulse range

For recycling reasons, the device
should not be disposed of with normal
household waste at the end of its service
life. You can dispose of the device by
returning it to Schick Medical GmbH or
corresponding collection points.

23

Please observe the following instructions
for a long service life of your device.

Maintenance, recharging and environmental
protection

22

· Store in a dry place and do not
wash with water.

· Clean the transducer with a
damp cloth.

· Place the device into the
charging dock after switching­off and make sure the red LED
light glows.

· The red LED light turns green
when the charging process has
been completed. In the case of
charging errors, the red LED will
flash.

· If the battery is completely
empty charge it for at least 3
hours before using the device
again.

· When completely charged
the power will last for
approximately 4 hours.

· Keep the STEP button pressed
for about 3 seconds to indicate
the charging status of the
battery. If the 6 LED programme
lights glow the device is fully
charged. If only 2 LED lights
glow, the remaining battery
power is 30 minutes. A signal
tone indicates the battery
needs to be recharged.

· The device will automatically
switch-off after 2 minutes if not
in use.

· The preset application time of
each step is 4 minutes. A signal
tone sounds after 4 minutes
and the device switches to
standby mode. The device will
switch-off completely if not
reactivated within 2 minutes.

· The nominal input voltage is
100-240 V AC, meaning that you
use the device while travelling
everywhere around the world.

· Remove the power plug from
the charging station as soon as
the device has been charged
completely.

· Always keep electrical contacts
clean, free of dust and dry.

A registered trademark of
Schick Medical GmbH

Auf dem Wall 29
D-78628 Rottweil
Tel.: [phone]
Fax: [phone]
[e-mail]
www.SQOOM.com

105.201208.EN
