User’s Manual
2
Product Overview
1. Flash
2. Shutter button
3. Up / Zoom In button
4. Down / Zoom Out button
5. Menu button
6. Viewfinder
Top view
1. Reset switch
2. Camera stand clip
3. Power button
4. Mode selector
Side view
1. Flash Pop-up button
2. SD card slot
3. USB port
4. TV-out terminal
Side view
1. Lens
2. Self-timer/Charge LED
3. Microphone
Front view
3
Table of Contents
1 Getting Started ....................................................................................................................... 4
• Camera Package Contents ..................................................................................................... 4
• Using the Camera Stand........................................................................................................ 4
• Charging the Battery ............................................................................................................ 4
• Powering the Camera On and Off............................................................................................ 5
• Checking the Battery Level .................................................................................................... 5
• Setting Auto Power Off .......................................................................................................... 5
• Reset Function ..................................................................................................................... 5
• Checking Camera Status ....................................................................................................... 6
2 Camera Setting....................................................................................................................... 6
• Camera Modes .....................................................................................................................6
• Setting the Beep Sound On and Off......................................................................................... 6
• Restoring the Factory Settings................................................................................................ 7
• Setting Display Language ...................................................................................................... 7
3 Taking Pictures ....................................................................................................................... 7
• Taking a Picture.................................................................................................................... 7
• Setting Exposure Compensation ............................................................................................. 8
• Setting the White Balance ..................................................................................................... 8
• Setting Image Resolution ...................................................................................................... 9
• Using the Flash ....................................................................................................................9
• Setting Self-timer ............................................................................................................... 10
• Using the 4X Digital Zoom Function ...................................................................................... 10
• Setting Frequency .............................................................................................................. 10
4 Recording Video Clips ........................................................................................................... 11
• Recording Video Clips.......................................................................................................... 11
5 Playback Pictures and Video Clips ............................................................................................ 11
• Reviewing Pictures on the Screen ......................................................................................... 11
• Playback Video clips on the Screen ....................................................................................... 11
• Protect/Unprotect the Pictures or Video Clips Against Deletion .................................................. 11
• Deleting One Picture or Video Clip......................................................................................... 12
• Deleting All Pictures and Video Clips...................................................................................... 12
• Setting TV-out ................................................................................................................... 13
6 Using SD (Secure Digital) Card ............................................................................................... 14
• Using the SD Card .............................................................................................................. 14
• To Format a Memory Card.................................................................................................... 15
• About DPOF ....................................................................................................................... 15
7 Installing Software onto a Computer........................................................................................ 16
• Installing the Software ........................................................................................................ 16
• Software Included with Your Camera..................................................................................... 16
• Computer System Requirements........................................................................................... 17
8 Transferring Pictures, Video Clips to Your Computer ................................................................... 18
• Before You Transfer Pictures and Video Clips .......................................................................... 18
• Mass Storage/PC CAM ......................................................................................................... 18
• Connecting to Your Computer............................................................................................... 18
• Transferring and Viewing the Pictures and Video Clips on PC..................................................... 19
• Transferring and Viewing the Pictures and Video Clips on Mac ................................................... 19
9 Using the Camera as a Web Cam (PC only) ............................................................................... 19
• Setting up NetMeeting™ ...................................................................................................... 19
• Start NetMeeting™ ............................................................................................................. 19
10 Troubleshooting Problems....................................................................................................... 20
11 Getting Help......................................................................................................................... 21
• Online Services .................................................................................................................. 21
• Customer Support .............................................................................................................. 21
• ArcSoft Software Help ......................................................................................................... 21
12 Appendix ............................................................................................................................. 22
• Technical Specifications....................................................................................................... 22
• Tips, Your Safety & Maintenance........................................................................................... 22
• Uninstalling the Camera Driver (PC only) ............................................................................... 22
• Regulatory Information ....................................................................................................... 23
4
1 Getting Started
The Spypen oboe camera provides you easy-to-use features. It has now easier and more enjoyable. Here
are a few examples of what you can do with your camera.
Enjoy point & shoot operation.
Store pictures and video clips to the internal memory.
Playback of pictures and video clips on the screen or a computer.
Send the pictures and video clips over the Internet to family and friends.
• Camera Package Contents
USB Cable
AV Cable
Camera stand
The CD-ROM includes
Digital Camera Driver (PC)
Arcsoft
®
Software Suite (PC & Mac)
Microsoft
®
NetMeeting™
Adobe
®
Acrobat
®
Reader (PC & Mac)
User’s manual in PDF format.
Warranty Card
Spypen oboe
• Using the Camera Stand
• Charging the Battery
A rechargeable battery (non-replaceable)
is integrated into camera.
Please fully charge the battery for
approximately 10 hours before you use the camera for the first time, and about 3 hours for subsequent
recharging.
The integrated battery should last for the life of the camera, but as is the case with all rechargeable
batteries the actual charge held may decline with use.
You can only charge the battery by connecting it to the computer via a USB cable. Your computer must be
powered on for your camera to charge. Please follow the steps below:
1. Plug the USB A plug into a USB port on your computer.
2. Plug the other end of the USB cable into the USB port on your camera.
3. The battery begins charging and the Charging LED lights up in green. The LED will blink when the battery
is fully charged.
NOTE:
Power off the camera before charging the battery. Otherwise, the Charge LED will light up in orange, indicating that the
camera is not in the charge mode.
5
• Powering the Camera On and Off
Press and hold the Power button to power on the camera. The
screen will be turned on in two seconds. You can see the screen
through the viewfinder. Press and hold the Power button again
will power the camera off.
Power button
• Checking the Battery Power Level
Check the battery power level before taking pictures.
1. Power on the camera.
2. Check the battery power level that appears on the camera screen.
Battery has adequate power.
Only half of the battery power is left.
Battery power is low. Please charge the battery.
• Setting Auto Power Off
This camera is designed to automatically power off to save battery life in 1 min. /3 min. of inactivity. Press
the Power button if you want to power on the camera again.
You can change the power saving setting by the following steps:
Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
Select “Off” to disable the Auto Power off function.
• Reset Function
In the rare situation that the camera locks up (usually in a very low power situation), we have incorporated
a “camera reset switch” on the side of the camera that allows the camera processor to be reset without
losing any images.
To use the reset switch, simply depress the reset switch gently
using a paper clip or ball point pen. The camera will reboot and
return to the mode prior to the lock-up. It is important to note
that the camera needs to be recharged immediately in order to
avoid locking up again.
Reset switch
6
• Checking Camera Status
Power on the camera, view the camera screen to check which camera settings are active. If the feature icon
is not displayed, it means that particular feature is not activated.
Still Image Mode
Playback Mode
00: 12
Video Mode
Still Image Resolution
Camera Status
Battery Power Level
Other Features
Still Image Mode
SD Card inserted
Self-timer On
(Economic)
800 x 600
Flash Off
Half
Low
The length of video
clip remaining
00: 12
Locked le
Current le/Number
of les
Pictures remaining
Full
Flash On
Auto Flash
(Normal)
1600 x 1200
(Fine)
2048 x 1536
Video Mode
Recording
Zoom status bar
Focus Mark
2 Camera Setting
• Camera Modes
The camera has three working modes: Still Image mode
, Video mode
and Playback mode
. Use the Mode
selector to select the mode you prefer.
Mode selector
• Setting the Beep Sound On and Off
When the Beep sound is turned on, the camera will beep when you press the buttons. You can turn the
Beep sound on and off in the Still Image and Playback modes. We use Still Image mode as an example.
Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
7
• Restoring the Factory Settings
You can easily change all the settings that you have made back to the camera default settings by the
following steps. You can restore the Factory default setting in the Still Image and Playback modes. We use
Still Image mode as an example. Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
• Setting Display Language
Under this setting, you can select the language you prefer for the screen. You can change the Language
setting in the Still Image and Playback modes. We use Still Image mode as an example. Power on the
camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
3 Taking Pictures
• Taking a Picture
1. Power on the camera. Set the Mode Selector to Still Image
mode .
2. Use the screen to frame your subject.
3. Hold the camera steady and press the Shutter button to take
a picture. A beep will sound when the picture has been taken.
The counter on the screen will decrease by one.
Shutter button
8
• Setting Exposure Compensation
You can adjust the exposure compensation value (EV) within the range of -1.5EV to +1.5EV in order to
compensate for current lighting conditions. This setting can be used to obtain better result when shooting with
backlighting, indirect indoor lighting, a dark background, and so on.
Power on the camera. Set the Mode selector to Still Image mode.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
NOTE:
• A higher EV value is best for light-coloured subjects and backlight subjects. A lower EV value is best for dark-coloured
subjects and for shooting outdoors on a clear day.
• When shooting under very dark or very bright conditions, you may not be able to obtain satisfactory results even after
performing exposure compensation.
• Exposure compensation returns to its standard default setting (AUTO) after you power off and power on the camera
again.
• Setting the White Balance
Selecting the right type of white balance can help to make the colour of a subject appear more natural
under the type of lighting that is available.
Power on the camera. Set the Mode selector to Still Image mode.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
9

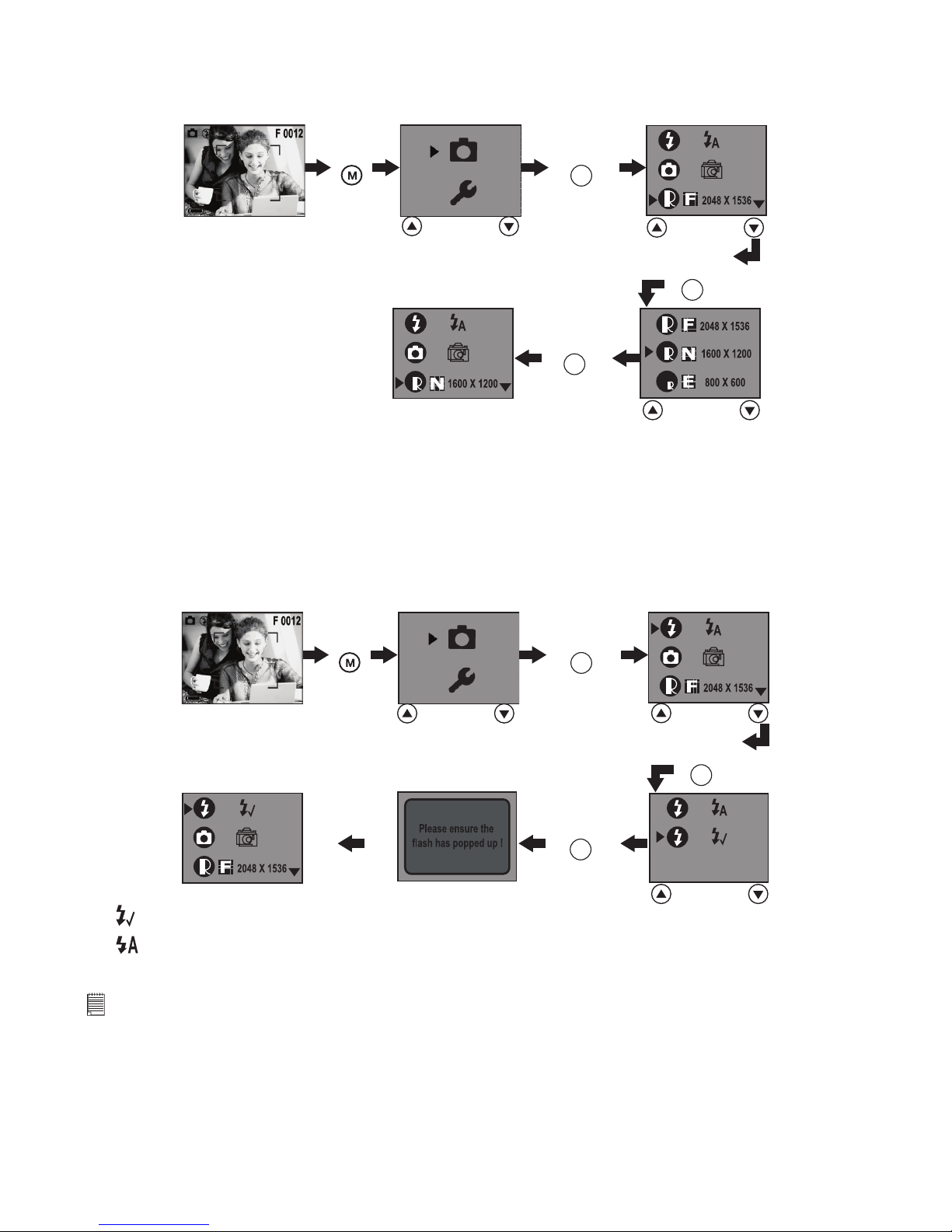

• Setting Image Resolution
Picture resolution refers to the number of pixels in a digital picture. The higher the resolution, the more
pixels in your picture and the more memory space the picture uses. A higher resolution takes up more
memory but produces a higher quality digital picture when printed.
Power on the camera. Set the Mode selector to Still Image mode.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
Here is the approximate number of pictures you can expect the camera to hold at each setting based on
the 16MB internal memory.
F: 2048 x 1536; approximately 17 pictures
N: 1600 x 1200; approximately 28 pictures
E: 800 x 600; approximately 105 pictures
• Using the Flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy shadows. The flash icon that is
displayed on the screen is the active option. You can change the flash setting by the following steps:
Power on the camera. Set the Mode selector to Still Image mode.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
Flash Mode On - The flash fires for every picture. Use this setting in high-contrast situations to
provide fill-light or use it indoors in low light.
Auto Flash Mode - The flash fires automatically as needed. Use this setting to take most
pictures.
NOTE:
• Flash is not available in Video mode.
• Never touch or block the ash with your ngers. Doing so can soil these components and interfere with the correct ash
operation.
• Effective ash light range: Approx. 3.3~5.0 feet (Approx. 1.0~1.5m)
10
• Setting Self-timer
Your camera is designed with a self-timer function, which allows you to take pictures with a 10-second builtin timer. Place the camera on a flat surface or use a tripod when using the Self-timer function.
1. Power on the camera. Set the Mode Selector to Still Image mode .
2. Follow the steps below to activate the Self-timer function:
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
3. Frame your subject using the screen.
4. Press the shutter button to take a picture.
5. The self-timer LED blinks in red and the camera beeps to indicate that the countdown is being
performed. The camera beeps for 6 seconds and then quicker for 6 seconds. The self-timer turns off
automatically when the picture is taken.
• Using the 4X Digital Zoom Function
The digital zoom feature is available in Still Image and Video modes. This feature enlarges the central area
of an image and photograph only the enlarged portion of the image. Images can be enlarged up to 4 times
before the image is taken. A bar appears on the screen, indicating the zoom status. The zoom setting will
remain after taking pictures. Please zoom out to take standard pictures.
• Setting Frequency
In order to take a better indoor picture, the camera needs to be set to suit the correct lighting frequency.
Set the frequency to 60Hz for US, 50Hz for Europe.
You can change the Frequency setting in the Still Image and Playback modes. We use Still Image mode as
an example. Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
11
4 Recording Video Clips
• Recording Video Clips
Use the Video mode to record video clips. You can record video clips with audio feature, and the resolution
is set to 320x240 pixels automatically. The remaining recording time on the screen will decrease while
recording video clips.
1. Power on the camera. Set the Mode selector to Video mode
.
2. Frame your subject using the screen.
3. Press the Shutter button to start recording.
4. Press the Shutter button again to stop recording, or recording stops when the current memory is full.
5 Playback Pictures and Video Clips
• Reviewing Pictures on the Screen
1. Power on the camera. Set the Mode Selector to Playback mode
.
2. Use the Up/Down buttons to view the pictures taken.
• Playback Video clips on the Screen
1. Power on the camera. Set the Mode Selector to Playback mode
.
2. Use the Up/Down buttons to select a video clip which is indicated by a video icon
.
3. Press the Shutter button to play the video clip. Press it again to stop playing.
• Protect/Unprotect the Pictures or Video Clips Against Deletion
Power on the camera. Set the Mode selector to Playback mode
.
Press the Up/Down buttons to select a picture or a video clip you want to protect.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
Select “Lock” to protect and “Unlock” to unprotect. The
icon appears when you review the protected
picture or video clip under Playback mode.
12
• Deleting One Picture or Video Clip
Power on the camera. Set the Mode Selector to Playback mode
. Use Up/Down button to select a picture
or video clip you want to delete. Please note that the video icon
appears on the screen when a video
clip is selected.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
• Deleting All Pictures and Video Clips
You can delete all unprotected pictures and video clips in the current memory as follows:
Power on the camera. Set the Mode Selector to Playback mode
.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
13
• Setting TV-out
Setting the Video Output System
The video output signal (NTSC or PAL) can be switched to accommodate different signal systems. For
example: NTSC for USA, Canada, Taiwan, Japan, etc. and PAL for Europe, Asia (excluding Taiwan), and so
on.
You can change the video output system setting in the Still Image and Playback modes. We use Still Image
mode as an example. Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
Connecting to a TV
When the camera is connected to a TV, the TV screen now performs as the camera screen.
1. Connect the camera to a TV via the AV cable (supplied) as illustrated.
2. Set the TV to “video” mode.
3. When the Mode Selector is set to Still Image and Video
modes, you can preview the subjects you want to record on
the TV screen.
4. When the camera is set to Playback mode
, you can review
all the pictures and video clips stored in the camera on the
TV.
AV cable
NOTE:
Please do not connect the USB cable to the camera while it is connected to the TV, vice versa.
14
6 Using SD (Secure Digital) Card
• Using the SD Card
IMPORTANT!
Files contained in the card may conict with the Spypen oboe camera, valuable data in your existing SD
card may be distorted or lost when the card is inserted in the Spypen oboe camera. We strongly recommend
the user to use a NEW SD card for the Spypen oboe camera. We are not liable for losing or corrupting any
valuable data or les in your SD card due to your improper operation.
Your camera comes with a built-in 16MB flash memory for storing pictures and video clips as you record
them. You can expand the memory space by using a commercially available SD card (up to 256MB).
The camera senses whether a memory card is inserted, and automatically saves pictures and video clips
accordingly. Note that you can not save pictures and video clips to the built-in flash memory while a
memory card is inserted into the camera.
Memory Card Precautions
1. Only use a SD memory card with this camera. Proper operation is not guaranteed when any other type
of card is used.
2. Electrostatic charge, electrical noise, and other phenomena can cause data corruption or even loss.
Always make sure that you always back up important data on other media (MO disc, computer hard
drive, and so on).
3. If a memory card starts to behave abnormally, you can restore normal operation by formatting it.
However, we recommend that you always take along more than one memory card whenever using the
camera far away from the home or office.
4. We recommend that you format a memory card before using it for the first time after purchasing it, or
whenever the card you are using seems to be the cause of abnormal pictures. Remember to format a
memory card if it was used in another digital camera or other devices.
IMPORTANT!
• Make sure you power off the camera before inserting or removing a memory card.
• Be sure to orient the card correctly when inserting it. Never try to force a memory card into the slot when you feel
resistance.
• SD memory cards have a write protection switch, which you can use to protect against accidental deletion of picture
and video clip les. Note that you must remove the write protection (if the memory card is under write protection)
whenever you want to record pictures and video clips to it, format it, or erase pictures and video clips.
Inserting the SD Card
Power off the camera. Open the rubber cover, insert the SD card ensuring the
card is inserted correctly as illustrated.
Removing the SD Card
To remove the SD card, power off your camera, gently push the SD card inwards
and then release it for the SD card to bounce out from the SD card slot.
IMPORTANT!
• Never insert any other objects except a SD memory card into the camera’s card slot.
Doing so creates the risk of damaging the camera and the memory card.
• Should water or any foreign objects ever get into the card slot, immediately power off
the camera, and contact your dealer or nearest service provider.
SD�Card�
15
• To Format a Memory Card
Formatting a memory card deletes any data already stored on it. You can format the
memory card in the Still Image and Playback modes. Power on the camera.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
IMPORTANT!
• You can format a memory card on the camera or on a computer. However formatting a memory card on a computer
takes much longer.
• Note that data deleted by a format operation cannot be recovered. Make sure you do not have any useful data currently
stored on a memory card before you format it.
• About DPOF
DPOF stands for “Digital Print Order Format”, which is a format for recording on a memory card or other
medium which digital camera images should be printed and how many copies of the image should be
printed. Then you can print on a DPOF-compatible printer or at a professional print service.
Changing the DPOF setting:
Power on the camera. Set the Mode Selector to Playback mode
. Use the Up/Down button to select a
picture you want to print and then following the steps below to select the number of copies.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
NOTE:
You can not change DPOF setting under any one of the conditions:
• When a video clip is selected.
• When no SD card is inserted.
16
7 Installing Software onto a Computer
• Installing the Software
For Windows
®
Users:
PC
IMPORTANT!
• Please backup all the necessary data before any driver/software installation.
• Our CD-ROM is tested and recommended to use under English Window OS.
IMPORTANT! (For Windows® 98SE)
On Windows® 98SE Mass Storage function needs to install the Spypen oboe Driver.
IMPORTANT! (For Windows® Me, 2000, XP)
Directly plug-in the camera to transfer and view the pictures and video clips. There is no need to install the driver for
directly plugging in the camera to transfer and view pictures and video clips. Please install the driver rst if you want
to use PhotoStudio®, Funhouse™, PhotoPrinter®, VideoImpression™ to transfer pictures and video clips or want to use
NetMeeting™ function.
IMPORTANT! – If the computer requests you to install the Windows® operating system during the software installation,
place the windows® CD into the computer CD-ROM drive. The computer will install the necessary les from the CD
automatically. When the Windows software appears to have nished the operation, close the Windows screen, remove
the Windows CD and store it safely.
NOTE:
Microsoft® NetMeeting™ is already bundled with Windows® 2000 and XP OS. Users using Windows® 2000 or XP do not
need to install this software from the CD-ROM.
Open & Close
1. Before you begin, close all other software applications opened
on your computer.
2. Insert the CD supplied into the computer CD-ROM Drive.
3. The CD User Interface Screen will automatically launch.
4. With the mouse, click on each software interface button in turn
and follow the on-screen instructions.
NOTE:
If the setup screen doesn’t appear after loading the CD, then you can manually start it by double-clicking the “My
Computer” icon on your desktop, then double-clicking the icon for the CD-ROM drive. When the CD-ROM window opens,
double-click the “INSTALL-E.EXE” icon.
For Macintosh® Users:
MAC
NOTE:
Directly plug-in the camera to transfer and navigate the pictures and video clips, and no need to install the driver.
1. Before you begin, close all other software applications opened on your computer.
2. Insert the CD supplied into the computer CD-ROM Drive.
3. Double click the CD-ROM icon “Spypen”.
4. Install the software included.
• Software Included with Your Camera
Digital Camera Driver Plug & Play removable disk
Easy to use, just plug your camera to your computer and use it as a removable drive which will show up as an
additional drive letter. Use the ArcSoft® software suite to view, edit and print the Pictures.
PhotoStudio® 4.0 Picture Editing Software
PhotoStudio® 4.0 is a full-featured, easy-to-use digital image-editing program that provides a complete
set of photo editing and retouching tools, plus a wide selection of special effects and enhancements.
Its powerful features include a wide variety of input and output options, layers, multiple undo and redo
functions, image management tools, editable text, multiple file format support and a lot more.
For further help on how to use PhotoStudio® 4.0, go to “Help” to access the Help Topics.
Visit http://www.arcsoft.com for all your FAQ’s, tips and technical support.
17
ArcSoft Funhouse™ 1.0 Picture Editing Software
ArcSoft Funhouse™ is an image entertainment application that enables users to create “photo fantasies”
by combining their personal photos with a wide variety of fantasy backgrounds. Users can get their own
images from digital cameras, scanners, disk drives and Photo CDs, and seamlessly combine them with
just a few clicks of the mouse. The fantasy backgrounds include fictional characters, classic works of art,
Olympic heroes, 50’s funnies, bathing beauties, muscle men and a lot more.
For further help on how to use ArcSoft Funhouse™ 1.0, go to “Help” to access the Help Topics.
Visit http://www.arcsoft.com for all your FAQ’s, tips and technical support.
ArcSoft PhotoPrinter® 2000 Picture Printing Software
ArcSoft PhotoPrinter® is an easy-to-use printing utility that enables the user to layout and print multiple
images in different sizes quickly and easily on a single sheet of paper. The program offers a large selection
of printing templates. It also includes commonly used image-editing tools and a wide selection of templates
for frames, edges and backgrounds for enhancing images.
For further help on how to use ArcSoft PhotoPrinter™ 2000, click the “?” on the top right hand corner to
access the Help Topics.
Visit http://www.arcsoft.com for all your FAQ’s, tips and technical support.
ArcSoft VideoImpression™ 1.6 Movie Making Software
ArcSoft VideoImpression™ is an easy-to-use video and image editing software program. The program
enables users to create and edit new videos using existing video and image files - making desktop video
presentations for home, business, and the Web.
Microsoft® NetMeeting™ Web Cam software
NetMeeting™ provides the most complete conferencing solution for the Internet and corporate intranet.
Powerful features let you communicate with both audio and video, collaborate on virtually any Windowsbased application, exchange graphics on an electronic whiteboard, transfer files, use the text-based chat
program, and much more. Using your PC and the Internet, you can now hold face-to-face conversations
with friends and family around the world.
Adobe® Acrobat® Reader .PDF File Reading Software
Adobe® Acrobat® Reader lets you view and print Adobe Portable Document format (PDF) files on all major
computer platforms, as well as fill in and submit Adobe PDF forms online.
• Computer System Requirements
For acceptable picture transfer and editing performance, we recommend the following minimum
requirements:
For Windows® Users
PC
• Compatible with Microsoft® Windows® 98SE, Me, 2000 or XP
• Pentium® II 333MHz or equivalent processor
• 64MB RAM (128MB recommended)
• USB Port
• 200MB free disk space
• Colour monitor with high colour (16-bit) graphic capability or higher
• CD-ROM drive
• Standard mouse and keyboard
• Speaker
• Microphone
For Macintosh® Users
MAC
• PowerPC® Processor
• Mac™ OS 9.2 ~ x
• USB Port
• 64MB RAM (128MB recommended)
• 150MB Free disk space
• Colour monitor with high colour (16-bit) graphic capability or higher
• CD-ROM drive
• Standard mouse and keyboard
• Speaker
• Microphone
18
8 Transferring Pictures and Video Clips to a Computer
• Before You Transfer Pictures and Video Clips
IMPORTANT!
Before you transfer your picture and video clip les, make sure you have installed the software from the CD.
• Mass Storage/PC CAM
You can choose Mass Storage or PC CAM as a driver type for this camera. Mass Storage (HDD) allows
the camera to become an external hard disk drive (HDD). Pictures and video clips may be viewed or
downloaded from your camera’s internal memory or SD memory card onto your computer. While PC CAM
allows you to view live video and record video clips on your computer.
You can choose Mass Storage or PC CAM by the following steps.
Press
Shutter button
Press
Press
Shutter button
Press
Shutter button
For Windows® and Macintosh® Users:
PC
MAC
• Connecting to Your Computer
Connecting with the USB Cable.
USB Series “Mini B” Plug Connects
to your Spypen oboe
USB Series “A” Plug
Connects to your PC
SD�Card�
B
1.
Power on the camera.
2.
Plug the USB A plug into a USB port on your computer.
3.
Open the rubber cover, plug the other end of the USB cable into the USB port on your camera.
For Windows
®
Users:
PC
• Transferring and Viewing the Pictures and Video Clips on PC
1.
Power on the camera
2.
Set the Driver Type to Mass Storage mode.
3.
Connect the camera to a computer via the USB cable.
4.
Open the Windows
®
Explorer and then you can see a “Removable Disk” drive.
5.
Double click “Removable Disk” -> double click “DCIM” -> double click “100 MEDIA”.
6.
All the pictures and video clips are placed in the folders under “100 MEDIA”. Highlight the pictures or
video clips and drag them to a folder of your choice. You can also create sub folders to group them or
use the Arcsoft software to edit and manage the pictures or video clips.
19
For Macintosh® Users:
MAC
• Transferring and Viewing the Pictures and Video Clips on Mac
NOTE:
For Mac user, directly plug-in the camera, no need to install the driver.
1. Power on the camera
2. Set the Driver Type to Mass Storage mode.
3. Connect the camera with Mac via a USB cable, the systems will automatically recognize the MASS
STORAGE drive. (System will automatically detect a Mass Storage named “untitled”)
NOTE:
The drive name varies depending on different versions of Mac OS systems.
4. Double click the folder “untitled” -> double click “DCIM” -> double click “100 MEDIA”.
5. Double click the folder “100 MEDIA” to enter sub-folder.
6. You can copy the pictures and video clips from the sub-folders to the hard disk.
9 Using the Camera as a Web Cam (PC only)

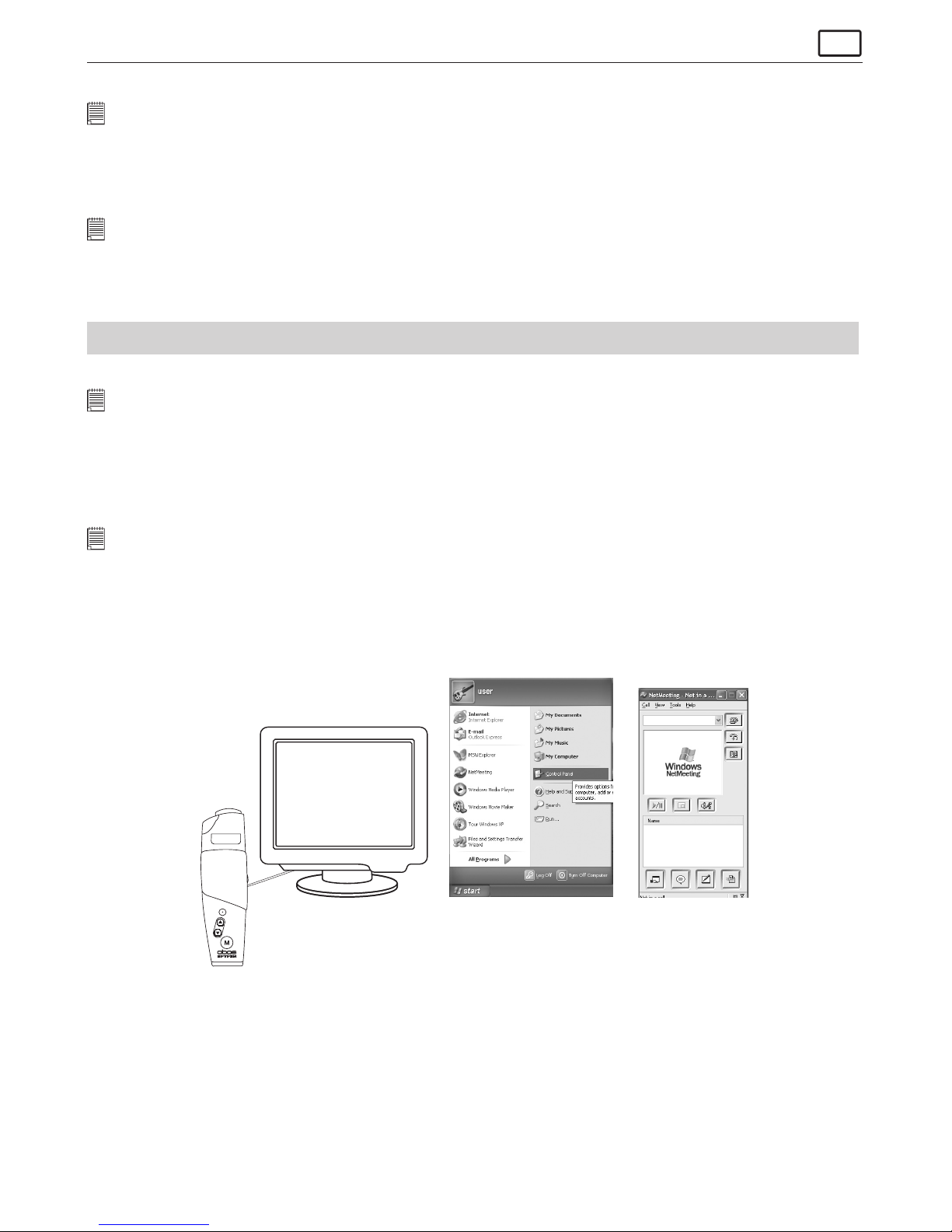

• Setting up NetMeeting™
NOTE:
Set the Driver Type to PC CAM before starting NetMeeting™, for further details please refer to Mass Storage/PC CAM.
1. Connect your Spypen oboe to a PC via a USB cable.
2. Place it on the top of your PC monitor or another flat surface.
3. Connect your speakers (not included) to your audio card’s line out jack respectively.
4. Connect your microphone to the computer before using the NetMeeting™ function.
• Start NetMeeting™
NOTE:
For Windows® XP / 2000 users who use NetMeeting™ for the rst time , Go to Start -> Run ->type in “conf” ->click “OK”
and then follow the on-screen setup instruction to set up NetMeeting™.
1. Double click the “NetMeeting” icon on the desktop or select the “NetMeeting” icon from the Windows®
Start Menu.
2. If you need further help on how to use Microsoft® NetMeeting™, select the “Help” under the menu bar
and choose the topic you need. You can also visit the website:
http: //www.microsoft.com/windows/netmeeting.
20
10 Troubleshooting Problems
The troubleshooting guide is designed to help you. If problems continue, please contact customer support.
Details are provided under “Getting Help”.
Participants can not hear you while
using NetMeeting™.
Your microphone is not connected
with your computer.
Connect your microphone to your
computer.
I receive an error message when I am
installing “Digital Camera Driver”.
“Digital Camera Driver” does not
load.
I can not upload images or video clips
to my computer.
Connection failure. Check all cable connections are secured.
Shut down all other applications and
attempt to reinstall the driver.
Check the USB controller in your BIOS if it
is activated. If this does not work contact
your national customer support representative.
Symptom Problem Solution
My CD Installation wizard does not
work.
The auto installation le is switched
to off or the CD-ROM is disconnected.
Go to the computer desktop. Right click
on “My Computer”. Click “Properties”.
Select “Device Manager”. Double click
on “CD-ROM”, double click on “CD-ROM”
(normally the manufacturer’s name).
Click on “Settings”. Ensure “Auto insert
notication” is ticked and the “disconnect”
is ticked. If you change the settings the
computer will ask you to restart your PC.
Click “Yes”.
I cannot upload images to the Mac. Connection failure.
Check all cable connections are secured.
Camera does not power on.
or
Low battery icon appears.
Battery is exhausted. Recharge the battery.
Camera suddenly powers off.
Auto Power off function activated.
or
Battery is exhausted.
Power on the camera again.
or
Recharge the battery.
Image is not recorded when the shutter button is pressed.
Camera is powered off.
or
Memory is full.
Power the camera on.
or
Delete images you no longer need, or
use another memory card.
Camera powers down during selftimer countdown.
Battery is exhausted. Recharge battery.
Recorded pictures are not saved in
memory.
Camera powers off before the save
operation is complete.
or
Removing the memory card before
the save operation is complete.
If the indicator is on the screen, recharge
battery.
or
Do not remove the memory card before
the save operation is complete.
Colour of the playback pictures is different from the picture on the screen
during recording.
Sunlight or light from another source
is shining directly into the lens during
recording.
Position the camera so sunlight does not
shine directly onto the lens.
Pictures are not displayed. A memory card with pictures
recorded by another camera is loaded
into the camera.
This camera cannot display non-DCF pictures recorded onto a memory card by
another digital camera.
I cannot use NetMeeting™. Camera is not set to PC CAM. Camera should be set to PC CAM.
I cannot download images and video
clips in Windows® ME.
No removable disk can be seen in
“My Computer” when the camera is
plugged to the PC.
Go to the computer desktop and right click
“My Computer”, then click “Properties”,
select “Device Manager”. Double click “My
Digital Cam” and click “Update Driver”.
Insert the Spypen oboe CD ROM and
locate the driver from Spypen oboe CD
ROM to update Mass Storage driver in
Windows® ME.
Images on the screen is blurred. Maybe the user is short-sighted. Please wear a pair of prescribed glasses.
You need to install the camera driver for
Windows® 98SE system.
Camera Driver not installed.
Please also refer to the help files & User Guides that accompany the enclosed applications. For further
information and support, please visit our website: http://www.plawa.com or http://www.spypen.com
21
11 Getting Help
• Online Services
Website: http://www.plawa.com
http://www.spypen.com
• Customer Support
plawa-feinwerktechnik GmbH & Co. KG
Bleichereistr. 18
73066 Uhingen - Germany
Helpline: +49 (0)7161 9387-220 (English, German)
Website: http://www.plawa.com
Email: support@plawa.com
• ArcSoft Software Help
For North America For South & Central America
ArcSoft HQ Support Centre Tel: 1-510-979+5520
(Fremont California, CA) Fax: 1-510-440-1270
Tel: 1-800-762-8657 E-mail:latlnsupport@arcsoft.com
(toll free number)
Fax: 1-510-440-1270
E-mail: support@arcsoft.com
For China For Japan
ArcSoft China Support Centre (Beijing) ArcSoft Japan Support Centre (Tokyo)
Tel: 8610-6849-1368 Tel: +81-03-3834-5256
Fax: 8610-6849-1367 Fax: +81-03-5816-4730
E-mail: china@arcsoft.com Web: http://www.mds2000.co.jp/arcsoft
E-mail: japan@arcsoft.com and
support@mds2000.com
For Oceania For Europe/Middle East/
ArcSoft Australian Support Centre Africa & Rest of the World
(Baulkham Hills, New South Wales) ArcSoft Europe Support Centre (Ireland)
Tel: 61 (2) 9899-5888 Tel: +353-(0) 61-702087
Fax: 61 (2) 9899-5728 Fax: +353-(0) 61-702001
E-mail: support@supportgroup.com.au E-mail: europe@arcsoft.com
Visit http://www.arcsoft.com for technical support and frequently asked questions (FAQ’s).
plawa and Spypen are registered trademarks of plawa-feinwerktechnik GmbH & Co. KG . All other products
are trademarks or registered trademarks of their respective companies. Product design and technical
features can be changed without notice.
22
12 Appendix
• Technical Specications
• Internal Memory: 16MB NAND FLASH
• External Memory: support SD card memory card up to 256MB (not included)
• Still Image Resolution:
- Resolution 2048 x 1536 F: Approx. 17 pictures
- Resolution 1600 x 1200 N: Approx. 28 pictures
- Resolution 800 X 600 E: Approx. 105 pictures
• Self-timer for Shooting Still Images: 10 seconds.
• Video Clip:
- Frame rate: Approx. 15 fps video clip (320 X 240)
Approx. 20 fps PC camera (320 X 240)
- Length: Approx. 90 seconds based on 16MB internal memory
- Unlimited when connected to computer via USB cable
• File Format:
- Still Image - Compression in JPEG and EXIF 2.1 formats after download to PC via USB (depend on
application used)
- Video Clip with Audio Feature - AVI Format
• Lens Type: Low profile micro lens
• Working Range: 1.5m to infinity
• Focusing: Fixed focus
• Build in Flash: Flash Modes - AUTO, OFF, ON.
• Effective flash light range: Approx. 1 ~ 1.5 m (Approx. 3 ~ 5 feet)
• Viewfinder: CyberView™ - 17° field of view, virtual image of 18 inch screen at a distance of 5 feet.
• External Connector: USB, SD card slot
• Auto Power Off: After 1 min. /3 min. inactivity or Off
• Power Supply: USB Port
Li-Polymer rechargeable battery
(User can recharge the battery approximately 250 ~ 280 times)
• Power Consumption: Approximately 60 minutes of continuous usage, or approximately 200 images
without using flash light
• Operating System:
- For Windows® Users: Microsoft® Windows® 98SE, Me, 2000 or XP
- For Macintosh® Users: Mac OS 9.2 ~ x
• Tips, Your Safety & Maintenance
Your Camera should only be operated within the following environmental conditions;
• 32 - 104º Fahrenheit; 0 - 40º Celsius
• 20% - 85% relative humidity, non condensing
Battery life or image quality may be affected outside these conditions.
Camera Cautions
• NEVER immerse any part of the Camera or its accessories into any fluid or liquid.
• ALWAYS disconnect the Camera from your PC or TV before cleaning it.
• ALWAYS remove dust or stains with a soft cloth dampened with water or neutral detergent.
• NEVER place hot items on the surface of the Camera.
• NEVER attempt to open or disassemble Camera as this will affect any warranty claim.
• Uninstalling the Camera Driver (PC only)
1. Unplug the camera to PC.
2. Go to Start -> Setting -> Control Panel.
3. Double click Add/Remove Programs.
4. In Add/Remove Programs, select “My Digital Cam” and click the Remove button.
5. Restart the computer.
23
• Regulatory Information
FCC Notice
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded cable must be used with this unit to ensure compliance with the Class B FCC limits.
Under the environment with electrostatic discharge, the product may malfunction and require user to reset
the product.
UK 0504
© 2004 Spypen Part No.: OM3219UK002
Loading...
