Spyder Controls WIRE1 User Manual

Spyder Controls Corporation
Defining Innovation and Reliability in System Control

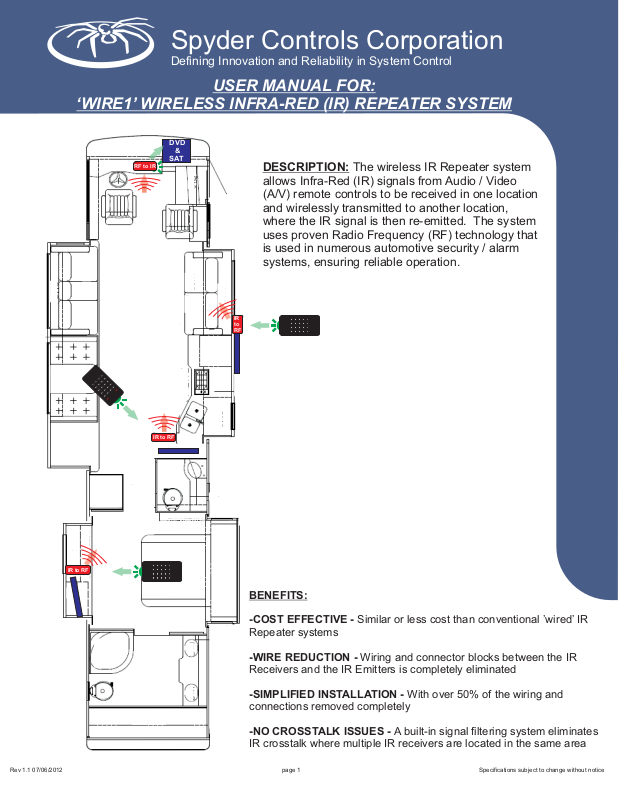

USER MANUAL FOR:
‘WIRE1’ WIRELESS INFRA-RED (IR) REPEATER SYSTEM
DVD
&
RF to IR
SAT
DESCRIPTION: The wireless IR Repeater system
allows Infra-Red (IR) signals from Audio / Video (A/V) remote controls to be received in one location and wirelessly transmitted to another location, where the IR signal is then re-emitted. The system uses proven Radio Frequency (RF) technology that is used in numerous automotive security / alarm systems, ensuring reliable operation.
IR to RF
IR to RF
BENEFITS:
-COST EFFECTIVE -
Similar or less cost than conventional ’wired’ IR
Repeater systems
-WIRE REDUCTION -
Wiring and connector blocks between the IR
Receivers and the IR Emitters is completely eliminated
-SIMPLIFIED INSTALLATION -
With over 50% of the wiring and
connections removed completely
-NO CROSSTALK ISSUES -
A built-in signal filtering system eliminates
IR crosstalk where multiple IR receivers are located in the same area
Rev 1.1 07/06/2012 page 1 Specifications subject to change without notice
Spyder Controls Corporation
Defining Innovation and Reliability in System Control
WIRE1 User Manual
DESCRIPTION: The wireless IR Repeater system allows Infra-Red (IR) signals from
Audio / Video (A/V) remote controls to be received in one location and wirelessly transmitted to another location, where the IR signal is then re-emitted. The system uses proven Radio Frequency (RF) technology that is used in numerous automotive security / alarm systems, ensuring reliable operation.
Operational Voltage Range:5to16VDC RF Characteristics:
- ISM band:
- Base frequency:
- Channel spacing:
- Over-the-air data rate:
- TX power:
- Number of channels:
900MHz; 903MHz;
199.951172MHz;
249.756 Kbs; 0 dBm;
52.
MODEL: WIRE1 FCC ID: OV9-WIRE1 IC: 10245A-WIRE1
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
_______________________________________________________________
Industry Canada Statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
User Manual
Cet appareil est conforme la norme d'Industrie Canada exempts de license RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de la appareil.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Rev 1.1 JULY 31, 2012 page 1 Specifications subject to change without notice
Spyder Controls Corporation
0.5"
2.0"
2.18"
120.00°
0.5"
2.0"
2.18"
120.00°
Defining Innovation and Reliability in System Control
WIRe Repeater (Receiver)
USB cable
Ground
12v*
LED Indicator
IR Receiver
Programming Button
Receiver Angle
LED Indicator
IR Receiver
User Manual
Programming Button
Receiver Angle
Rev 1.1 JULY 31, 2012 page 2 Specifications subject to change without notice
Spyder Controls Corporation
0.5"
2.0"
120.00°
Defining Innovation and Reliability in System Control
wIRe Repeater (Emitter)
Emitter LEDs
LED Indicator
Emitter Angle
12v
Ground
Connector
Programming Button
Rev 1.1 JULY 31, 2012 page 3 Specifications subject to change without notice
User Manual
Spyder Controls Corporation
Action WIRE Response Indicator
Quick press*
(once)
1. Enter the Transmit Learning Codes (TLC) state
2. Transmit "learn" packets 2 times per second
LED flashes slow (1
time per second
1/4s ON, 3/4s OFF)
Long press*
1. Increment RF channel
2. Returns to TLC state
LED is ON for 1 sec
Quick press
(once)
1. Exit from TLC mode
2. Entering Main Operation mode
LED stops flashing
2 Quick presses
1. Enter Listening Mode
2. Device ‘listens’ for an RF signal**.
3. Once an RF signal is received, the device learns (memorizes) that channel.
4. Device will automatically exit Listening Mode and resume normal operation.
LED flashes FAST (2
times per second,
1/4s ON, 1/4s OFF)
2 Quick presses
(while in
Listening Mode)
1. Manually exit from Listening Mode
2. Revert to the channel it was on before this learning cycle started
LED stops flashing
Defining Innovation and Reliability in System Control
WIRE Channel Settings
* Quick button press would be one that was for less than ½ second.
* Long button press would be one that was for about 1 second.
Note:
When in Listening Mode, a WIRE will only act on learn packets that contain its traffic-type byte.
**The wIRe devices operate on 52 unique channels. When a wIRe device enters Learning Mode, it begins with the existing channel stored in memory and ‘listens’ for a matching RF signal for 1 second. If no matching signal is received within 1 second, the wIRe device increments up to the next channel and listens for 1 second and so on until a matching RF signal is received. It can take up to 52 seconds for a wIRe device to find a matching signal and learn / memorize it.
Rev 1.1 JULY 31, 2012 page 4 Specifications subject to change without notice
