Spyder Electra Dx User manual

Download

Page 1

Kingman Group 14010 Live Oak Avenue, Baldwin Park, CA 91706, U.S.A.

Toll-free 888.KINGMAN

www.kingman.com

ELECTRA DX

JAVA 9.6V RECHARGEABLE BATTERY & CHARGER INCLUDED

14010 Live Oak Avenue, Baldwin Park, CA 91706, U.S.A.

Telephone: 626-430-2300 Fax:626-851-8530

Website: www.kingman.com

Page 2

CAUTION

• This paintball marker is NOT a toy. It can cause serious injury or death.

• Recommend at least 18 years of age to purchase this product.

• Install a barrel plug in the barrel when not actually playing.

• All persons using this product, or within range while this product is being used, must wear eye and face protection specifically designed for paintball.

• Never shoot a person who is not wearing proper protection.

• Treat every paintball marker as if it were loaded.

• Never look down the barrel of the marker.

• Keep the paintball marker on safe until ready to shoot.

• Always remove gas source before disassembly.

• Fire only 0.68 caliber paintballs from this product.

• Read this manual and air system warning before using this product.

• Transfer this instruction manual upon change of marker ownership.

CO2/HP AIR TANK WARNING

WARNING

• VALVES MUST BE INSTALLED OR REMOVED ONLY BY QUALIFIED PERSONNEL.

• BOTTLE MUST BE RETESTED SEE CO2/HP TANK LABEL FOR RETEST DATE!

• Improper use, filling, storage or disposal of this cylinder may result in death, personal injury and property damage.

• This cylinder must be filled only by properly Trained personnel in accordance with CGA Pamphlets P.1 and G-6.3 available from the Compressed Gas Association

www.CGANET.COM

IMPORTANT

• Firing velocity may vary according to altitude and climate conditions.

• BEFORE using your marker in play, you must always first perform a “SAFE VELOCITY TEST”. This can only be accomplished by using a testing device called a “Velocity Chronograph” and can be performed by the dealership where you purchased this product or at a local paintball playing field.

• NOTE: This product is intended to be used at a velocity no greater than 300 feet per second (FPS).

• Recommended velocity is 280 FPS or less.

• This product is NOT intended to be used at any distance less than 25 feet.

• This paintball marker may have excess gas after removal of the tank. Please remove all paintballs and discharge the remaining gas safely.

• Do not over pressurize. Do not expose pressurized cylinder to temperatures in excess of 130 degrees F.

• Do not expose cylinder to corrosive materials and do not clean with caustic cleaners.

• Do not alter this cylinder in any way.

• Cylinders heated to a temperature of 250 degrees For more must be condemned or re qualified in accordance with test defined in CFR-49.

• Keep cylinder out of reach of children.

• The valve should NEVER be detached from the canister. Should this occur, please seek assistance from a trained airsmith immediately.

• This tank is intended for paintball use only.

Page 3

Spyder Electra & Electra DX (Matte Black and Matte Blue)

ITEM # NAME OF PARTS ITEM # NAME OF PARTS 01 Spyder Barrel Plug 27 Striker Spring Guide 02KB Electra 13.5" Barrel (Black) 27A Flat Disc 02KC Electra 13.5" Barrel (Blue) 29B Lock Screw 04GA Mini Detent Cover (Black) E29E LED Circuit Board 05A M4 x 6 Screw (Black) 2529 Thumb Adjuster w/ Screw (Black) 05B M4 x 6 Screw (Silver) 2529A Thumb Adjuster w/ Screw (Blue) 05C Direct Feed Screw 33F Compact Nut Screw 07 M5 X 14 Screw w/ Washer 35D Spyder Gauge 09 O-Ring #015 80D 35F Regulator Lock Screw 10A Valve Spring 2535K Electra Drop Forward (Black) 11 Cup Seal Guide 2535KA Electra Drop Forward (Blue) 12 Cup Seal 36C 5/32" X 7/8" Screw (Silver) 13 Valve Pin 36D 5/32" x 5/8" Screw (Black) 14 Valve Body 36E 5/32" X 7/8" Screw (Black) 15 Valve Body Screw 37A Filter O-Ring 16 M5 x 12 Screw (Black) 37B Air Filter 16D M5 x 12 Screw (Silver) 37C Disconnect O-Ring #011 (Black) 2317 Electra Venturi Cocking Bolt 37D Plastic Washer RF17A Retaining Screw 2537 Electra Disconnect Hose RF17B Retaining Spring 39D Electra Striker Knob RF17C Retaining Ball 2541 Electra Spare Parts Kit JE18A Striker 42 Male To Male Adapter 19A Striker O-Ring 42F C/A Male Adapter 20 Barrel O-Ring (Black) 2547 Electra Sight Rail (Black) 21 Bolt Pin 2547A Electra Sight Rail (Blue) 2504 Direct Feed (Black) 49 Trigger Roll Pin 2504A Direct Feed (Blue) 49B Secondary Sear Roll Pin 2506 Electra Receiver (Black) 49C Touch Switch Roll Pin 2506A Electra Receiver (Blue) E24 On/Off Switch with Wiring Harness 2508 Vertical Adapter (Black) E24A Battery Harness 2508C* Vertical Adapter w/ Gauge (Blue) E33 On/Off Screw (M2 x 6 Screw) 2508N Low Pressure Chamber (Black) E40 Straight Elbow - 2 3/4"(Clear) 2508NA Low Pressure Chamber (Blue) JE1015 Java 9.6v Rechargeable Battery 23F Striker Plug (Black) JE12 Trigger Sear 23FA Striker Plug (Silver) JE18C Coil Set 2535 C/A Adapter (Black) JE18E Coil Set Screw 2535C* C/A Adapter w/ Regulator (Blue) JE26 Charge Pin 2544F Mini Fore Grip (Black) JE27 Touch Switch 2544FA Mini Fore Grip (Blue) JE29 Circuit Board Screw 2544H Model S Expansion Chamber (Pewter) JE30B Tournament Lock Switch 2544HA Model S Expansion Chamber (Silver) JE31C Trigger 21 Bolt Screw JE31D Trigger Adjust Screw 22B M4 X 8 Screw w/Washer (Black) JE31E Sear Spring 23B Quick Disconnect Pin JE31F Trigger Spring 23C Disconnect Pin Lock JE32 Grip Cover (Black) 24A Sight Rail Screw w/ washer JE32A Grip Cover (Clear) 25 Striker Spring JE33C Grip Cover Screw (Black) 26A Striker Buffer JE33D Grip Cover Screw (Silver)

37K

37D

42F

36C/36E 36E/36C

35E

37A

37B

2535

2535C

2544F

2544FA

37C

2535KA

36D36D

2535K

37C

33F JE30B

JE1015

JE29

33F

JE33C/JE33D

2544HA

16/16D

E29E

JE26

2529A

JE27

2529

35D

2544H

JE31F

JE31C

49C

18C

JE29

16/16D

JE32A/JE32

JE33C/JE33D

23FA

29B

09 09

JE31D

E24

JE12

JE31E

19A

23F

E33

JE18E

2508NA

49B

23B

18B

27A

2508N

10A

26A

2508 / 2508C

02KC

2506

2506A

2317

RF17C RF17A

RF17B

02KB

05C

2504

2504A

05C

09 09

05A

39D

23C

04GA

2547

2547A

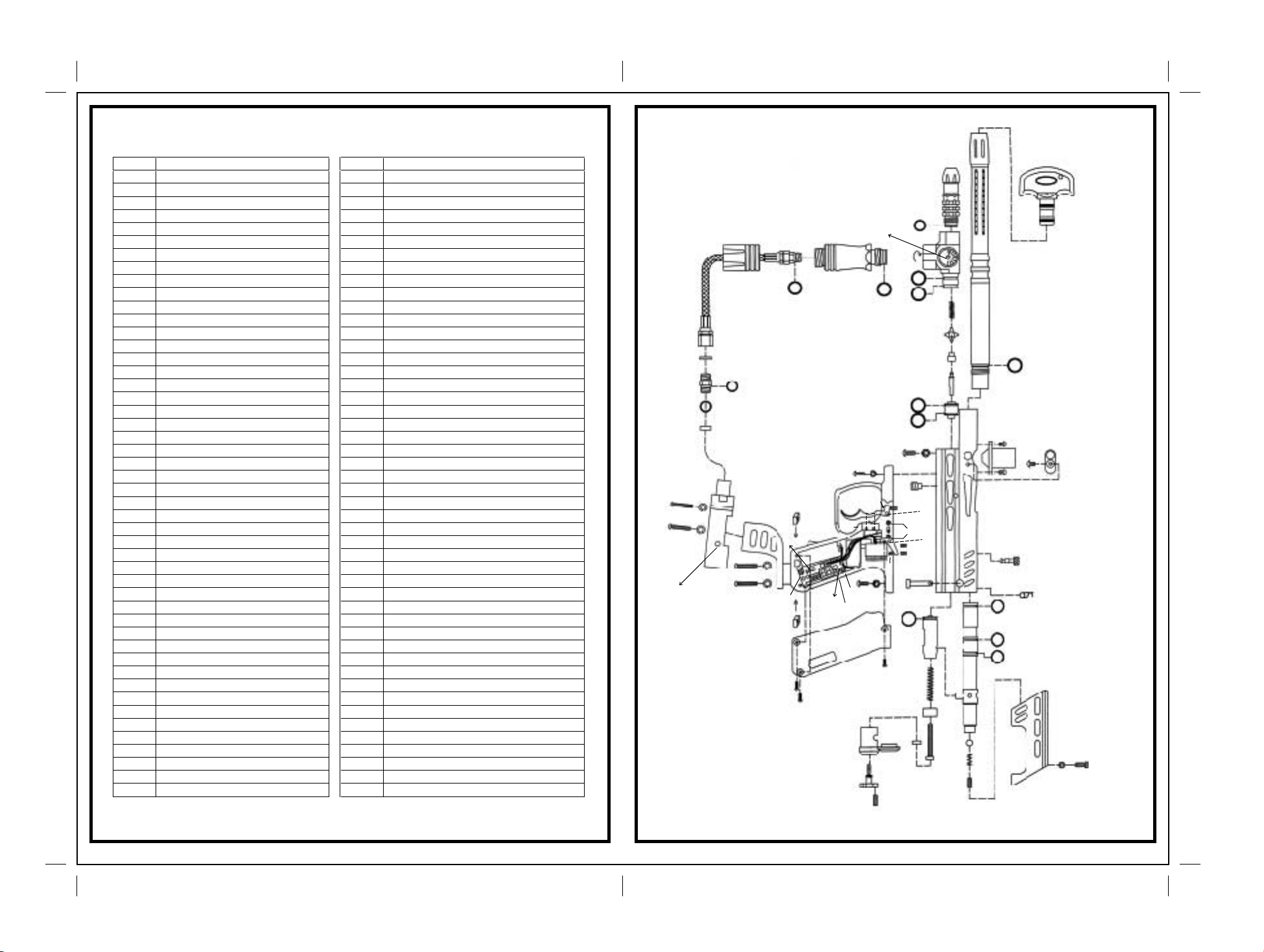

SPYDER Electra and Electra DX Parts List

24A

* For Electra DX Model Only.

P2 P3

Page 4

OPERATION GUIDE

Put the marker on 'SAFE' by pushing the on/off switch to the right. The marker is now off. To

power on the marker, push the on/off switch to the left. CAUTION: with the power on, the electronic circuit board is now powered on and ready to shoot.

Cock the marker by pulling the Cocking Knob (#39D) rearward until it latches. Caution: if you let

go before it latches, your marker may fire.

Tighten the air tank until it is snug. If a leak occurs between the tank and the C/A adapter,

replace the tank o-ring.

Install a 7/8th vertical elbow with loader onto the direct feed. Fill the loader with .68 caliber

paintballs only.

With the safety off, fire the marker by pulling the trigger.

Only use lubrication specifically designed for paintball markers. To lubricate your marker, you will

need to disassemble your marker (please note how parts are removed from marker as this will ease re-assembly). Remove the Disconnect Lock Pin (#23C) and the Quick Disconnect Pin (#23B). Hold down the Striker Plug (#23F/#23FA) and Thumb Adjuster (#2529 #2529A), as internal parts may be spring-loaded. As you pull the cocking knob out of the receiver, the VenturiCocking Bolt (2317) and striker (JE18A) will also be removed.

Lubricate o-rings #9B and #19A with a few drops of paintball oil only.

Re-assemble parts back into the marker. Note: when putting the Venturi-Cocking Bolt and striker

back into the marker, you will need to apply pressure behind the bolt while Pushing the sear (#JE12) forward to its limit at the same time. (right now the battery side grip must be opened ) This will allow the bolt and striker to be properly installed back into the receiver.

When you are finished shooting the marker, first, unload the marker of all paintballs (also see

#10 below). NOTE: there may be a ball in the receiver; take a couple of shots in a safe direction to make sure that the barrel and receiver are empty. Second, put the barrel plug into the barrel. Put the safety on and slowly unscrew the air source tank. Caution: do not unscrew the tank valve from the tank. Doing so may cause serious injury or death.

Empty the hopper or remove the hopper off the marker to stop the flow of paintballs in the

10)

marker.

Adjusting the regulator – To adjust the regulator, turn the regulator screw (#35E) clockwise to

11)

increase the pressure (500~600 psi is recommended). When your nitrogen or compressed air system is properly installed to the C/A adapter (#2535, #2535C), the recommended output pressure of the air system should be at 750 ~ 850 psi.

CHARGING INSTRUCTION AND SPECIFICATIONS FOR RECHARGEABLE BATTERY

The battery to be used with your frame is a specially designed 9.6Volt NiMH Battery. To maximize the life of the battery, please read the following instructions before use.

CONNECTING THE BATTERY

Remove the left Electra DX grip cover (part#JE32A). The battery terminal is located to the left of the circuit board. Attach the battery to the battery connectors by aligning the + (positive) on

the battery connector to the + (positive) on the battery.

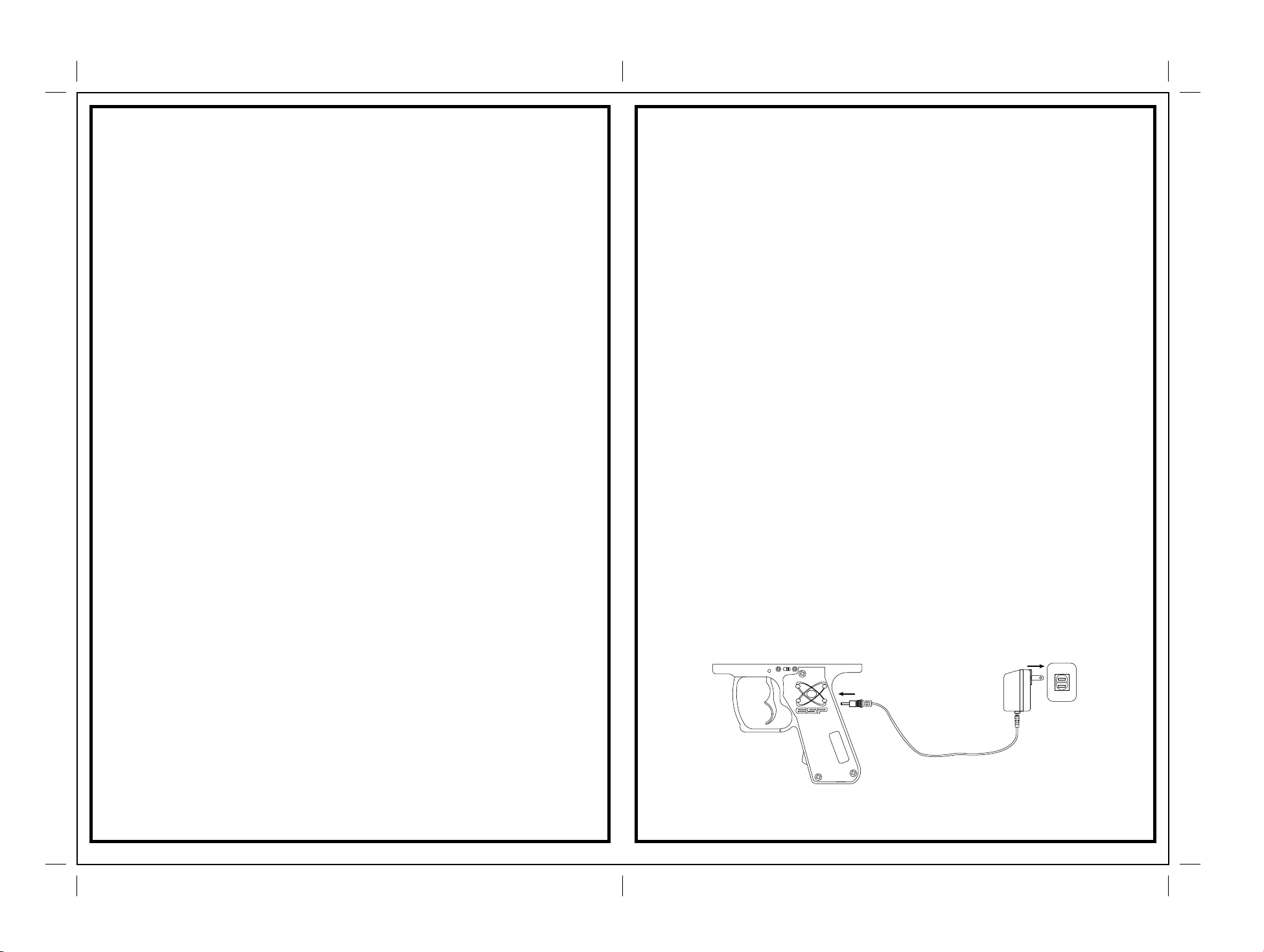

THE CHARGER FOR THIS BATTERY

This charger is specially designed for a 9.6Volt rechargeable battery. Five types of chargers will be available from your Kingman Dealer:  1. Java Rapid Standard Indoor 110v A/C Charger (#JE1026) 2. Java Rapid Car Charger (#JE1022) 3. Java Standard Indoor 110v A/C Charger (#JE1024) 4. Java Standard 2B Indoor Charger (#JE1023) 5. Java Standard Indoor 220v A/C Charger (JE1025)

Using a Rapid Charger it will take approximately one and a half hours to fully charge the JAVA 9.6v battery. It will take approximately 5-6 hours for the standard charger.

WARNING Using other unspecified batteries or chargers can cause damage to the circuit board. This will void all warranty and liability from Kingman. Please use only Java 9.6 volt NiMH rechargeable battery (Part #

JE1015) and Java chargers

RECHARGING THE BATTERY AFTER INITIAL USE

A fully charged battery will provide about 8000-12000 shots in normal use. The actual shots will depend on the markers and the type of use. Due to the characteristics of the NiMH battery, it won't be necessary to completely drain the battery before recharging it. So, you can charge the battery any time you want and the time needed to the full charge will depend on how much energy is left in the battery. The more energy left in the battery, the sooner it will achieve a full charge.

Adjusting the trigger pull – You may adjust the trigger pull on your marker by turning the

12)

Trigger Adjust Screw (JE31D). Follow these steps to access the trigger adjust screw:

(1) Remove the two frame screws (#16/#16D) that connect the grip frame  to the receiver. (2) Look inside the trigger frame to find the Trigger Adjust Screw. This is a  small screw connected to one end of the trigger. (3) Turn the Trigger Adjust Screw counterclockwise to turn the screw slightly out of  the trigger. This will shorten the trigger pull. (4) CAUTION: Do not over adjust and shorten the trigger pull too much as this will cause the trigger to be too sensitive and function improperly. (5) Reassemble marker.

P4 P5

Page 5

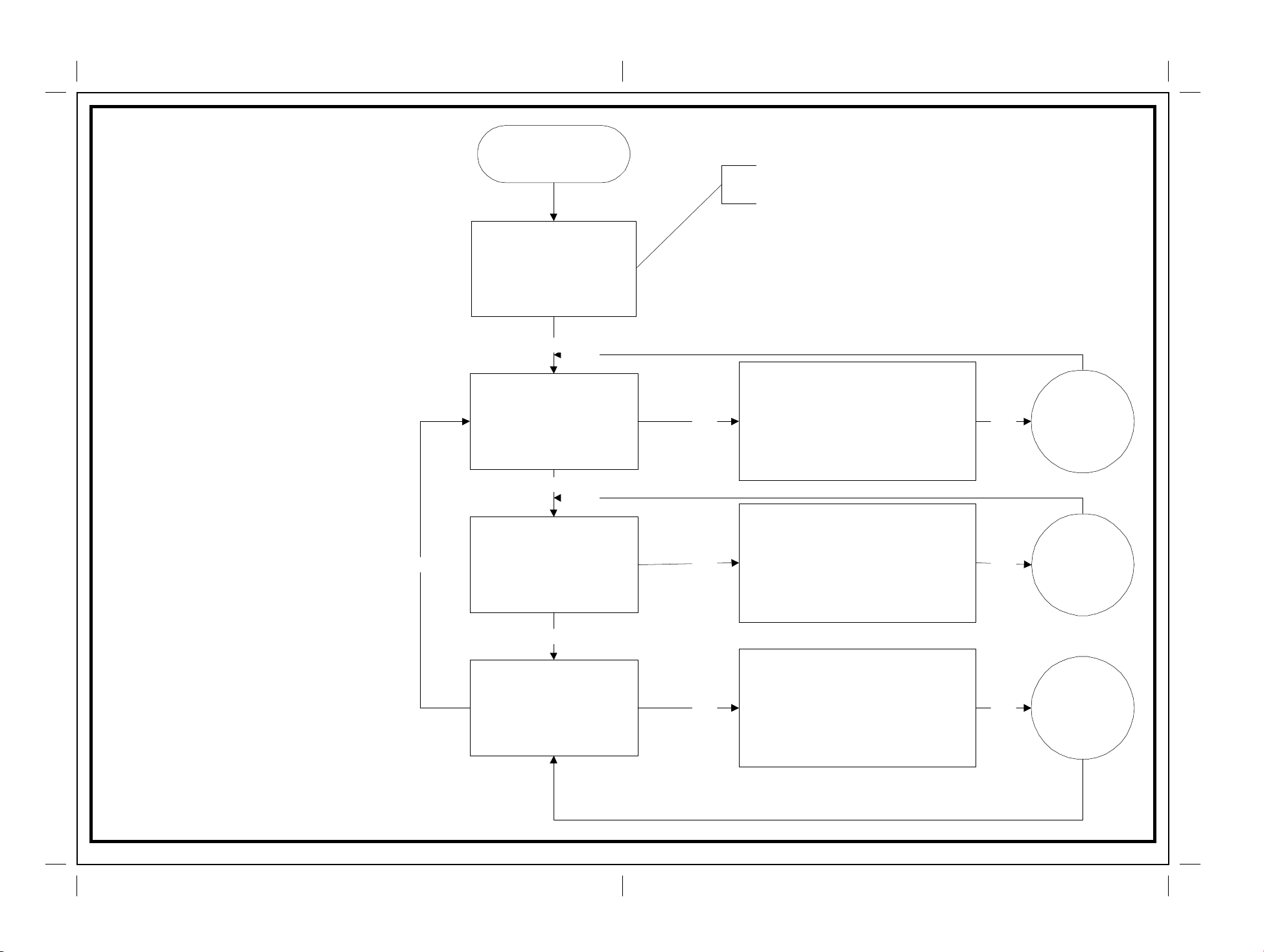

Digital LED P anel ( D .L.P ) Specifications & Operation Dia gram

1. The D.L.P has one push key for adjustment and one LED Array for Mode Indicator, and two digits LED to display ROF.

2. For "MODE" indicator, the LED Indicator shows following functions: ( From left hand side to right hand side, the left hand side is the side near push key. ) (1). Battery Low (2). SEMI (3). Burst-3 (4). Burst-6 (5). FULL

3. For "R.O.F." display , the rate of fire can be adjusted from "05" to "13", that is the rate of fire will be ranged from 5 shots per second to 13 shots per second. But for "SEMI" mode, the "R.O.F" display will be fixed on "13" for reactive trigger response up to 13 shots per second.

4. When Power turns ON, the defaults will be Mode ="SEMI" and "R.O.F" = "13". All settings can be adjusted while power keeps ON. Any adjustments will be lost when Power turns OFF.

Click

5. The "Battery Low" Indicator will keeps OFF during normal operations. When the capacity of battery dropped to about 1/3 of the battery full capacity, this indicator will be turn ON.

6. The D.L.P also equipped with a "LOCK" function. A short-circuit plug located on the internal circuit board serves this function. When this plug had been pulled out, the MODE will be locked to SEMI, and cannot be adjusted.

7. Operation Methods: Press, Push and hold the key for over 2 seconds, then release the key.

Power ON

SEMI

MODE display " 2:Semi "

ROF display "13"

Click

Burst 3

MODE display " 3:Burst-3

ROF display unchanged

Click

Burst 6

MODE display " 4:Burst-6

ROF display unchanged

Click

FULL

MODE display " 5: Full"

ROF display unchanged

For SEMI Mode, the ROF can not be adjusted.

Notes: During the interval of ROF Adjustment, the SAFETY will be turned ON automatically, that is, trigger will be disabled on this interval. The SAFETY will be turned OFF automatically at the end of ROF Adjustment, then the trigger will be functioning normally.

ROF Adjustment The Indicator of Burst-3 will be on, and the shot rate display on th right

Press

will start to flash. You can adjust the

Press

shot rate by clicking Push key. The range of rate is from 5 to 13 shots per second.

ROF Adjustment The Indicator of Burst-6 will be on, and the shot rate display on th right

Press

will start to flash. You can adjust the

Press

shot rate by clicking Push key. The range of rate is from 5 to 13 shots per second.

ROF Adjustment The Indicator of FULL will be on, and the shot rate display on th right

Press

will start to flash. You can adjust the

Press

shot rate by clicking Push key. The range of rate is from 5 to 13 shots per

second.

End of ROF

Adjustment

End of ROF

Adjustment

End of ROF

Adjustment

Click, Push and then release the key. The duration should be less than 1 seconds.

Page 6

NOTICE:

I. TROUBLESHOOTING

It is recommended that the battery be charged prior to use to ensure the maximum capacity if you leave the battery unused for over a week.

LIFE OF BATTERY

With the qualified Charger, and in normal use conditions, about 700 – 1000 chargerecharge cycles can be expected. This be varied depending on the type of use.

GENERAL MAINTENANCE

1. Use compressed air to clean the coil set after each use (part no. #JE18C) to maintain performance.

2. Beside step (1), cleaning should only be performed on the exterior of the E-Marker frame. Never submerge the E-Marker frame in any type of liquid for any reason. The electronics may become damaged or destroyed. Keep water or cleaning solution from entering the inside of the E-Marker frame. Solvents should not be used to clean any part of the E-Marker frame.

3. Always use the appropriate tool to remove screws and other components of the EMarker frame.

4. DO NOT DRY FIRE.

TOURNAMENT MODE SETTING

ONE OR MORE OF THE FOLLOWING MAY CAUSE RECOCKING RELATED PROBLEMS:

a. The pressure in the tank is too low or too high. b. Need lubrication. (See OPERATION GUIDE in P4) c. #19A (striker o-ring) is damaged. Replace with new Kingman or Kingman-approved

o-ring. (NOTE: the #19A O-ring cannot be substituted by a tank o-ring or a #9 o-ring).

d. Need to clean barrel and upper chamber or the receiver. e. Paintball may be defective (i.e. expired, change shape) f. #9 (bolt o-ring) is damaged or the o-ring has expanded or swelled.

Replace with a new o-ring. g. After ball breaks, remove all parts from UPPER chamber of receiver, wipe parts clean, and reassemble parts into receiver. Also make sure to clean barrel with squeegee.

II. HELPFUL HINTS

Always remove air tank before any disassembly of your marker. DO NOT remove #14 (valve body) unless specific valve body repairs are needed. If needed, remove valve body with a long, soft-tipped object such as the eraser end of a pencil. DO NOT remove the valve body with a screwdriver as it will damage the valve body and cause air leaks. (Note: #15 screw must be removed prior to taking out the valve body).

Air leaks are usually cause by a damaged valve body or damaged cup seal (#12). Replace with new valve body and/or cup seal if necessary.

To assure marker is assembled properly, follow the schematic drawing or place parts in order during disassembly. Parts assembled backwards or placed in the wrong order will cause marker to malfunction.

The Electra DX circuit board – (Digital LED) part no. E29E also equipped with a “LOCK” function. A short-circuit plug (JE30B) located on the internal circuit board serves this function. When this plug had been pulled out, the MODE will be locked to SEMI, (single shot mode) and cannot be adjusted. Putting the lock switch (JE30B) back into the circuit board will enable the multi-mode functions. IMPORTANT! For optimal performance, Kingman recommends that an agitator loader or hopper be used in order to shoot at high rate of fire. Kingman also recommends to use JAVA CO2 Air Tank or High Pressure Air Tank and tournament grade paint.

P8 P9

III. ELECTRONIC GRIP TROUBLESHOOTING

a. Check to make sure there is enough air pressure to fire the marker. b. Battery may need to be recharged. c. Specific troubleshooting questions may be answered by calling toll free at

(888) KINGMAN or (626) 430-2300.

Page 7

WARRANTY STATEMENT

Kingman warranties to the original customer purchaser that this product is free from defects in material and workmanship under normal use and service for a period of 12 months from the original date of purchase by the initial owner/purchaser. For warranty to be effective, customer must return the enclosed warranty registration card, along with a copy of the purchase receipt, within fifteen days of purchase. Kingman agrees to repair or replace (at its discretion) any product within a reasonable period of time. This warranty does not cover orings, 9.6v rechargeable battery, charger, scratches, nicks, normal wear and tear of parts, any modifications or normal fading of anodizing or damage caused by dropping or hitting of products. This warranty shall not apply if it is shown by Kingman that the consumer caused the defect or malfunction because of misuse. This warranty only covers original factory parts. Any modifications or tampering of original factory parts will not be covered by this warranty. Any damage caused by water will not be covered by this warranty. Warranty work can only be conducted by Kingman technician or Kingman authorized technicians. If product needs repair, package it carefully and send together with your name, address, phone number and a brief description of the malfunction to:

KINGMAN GROUP

14010 Live Oak Avenue Baldwin Park, CA 91706 U.S.A.

KINGMAN GROUP  Warranty Registration

PLEASE COMPLETE AND RETURN THIS FORM, ALONG WITH A COPY OF YOUR PURCHASE RECEIPT, WITHIN 15 DAYS OF PURCHASE SO THAT WE MAY VALIDATE YOUR ONE YEAR LIMITED WARRANTY.

Mail to: Kingman Group

14010 Live Oak Avenue, Baldwin Park, CA 91706 U.S.A.

Name   Telephone ( )

Address

City    State Zip  Country

Your age E-mail address   Occupation

Product name and model

What other brand(s) of markers do you own?

Why did you purchase this Kingman marker?

Avg # of times you play paintball per month

What is the next paintball product you intend to buy?

What are your hobbies (other than paintball)?

Phone no.: 626.430.2300 Fax no.: 626.851.8530

Website: www.kingman.com

What are some magazines you like to read?

Have you purchased products from the Internet within the last 6 months?

Comments/Suggestions:   

14010 Live Oak Avenue, Baldwin Park, CA 91706 USA Telephone:(626)430-2300 Fax:(626)851-8530 Website: www.kingman.com

P10 P11
