Page 1

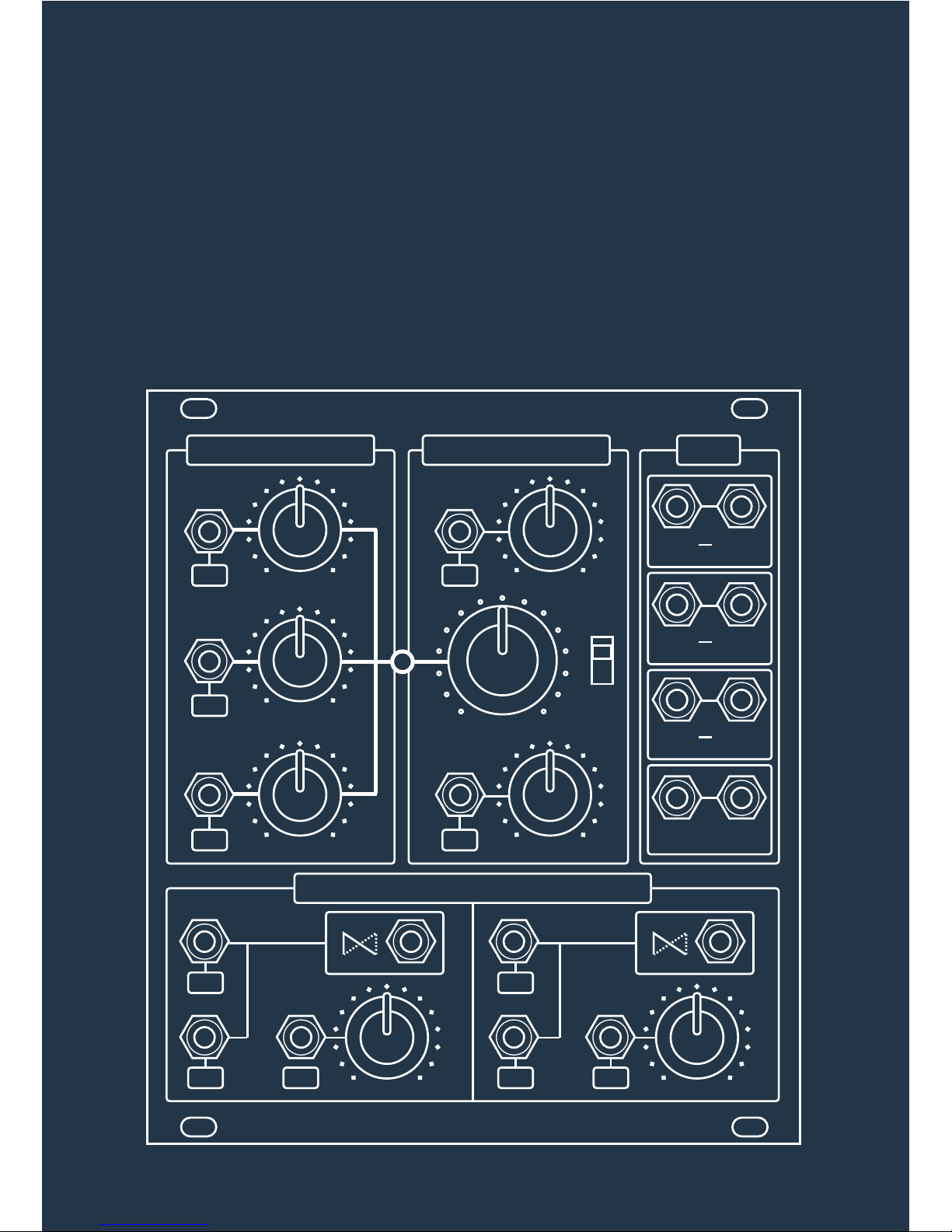

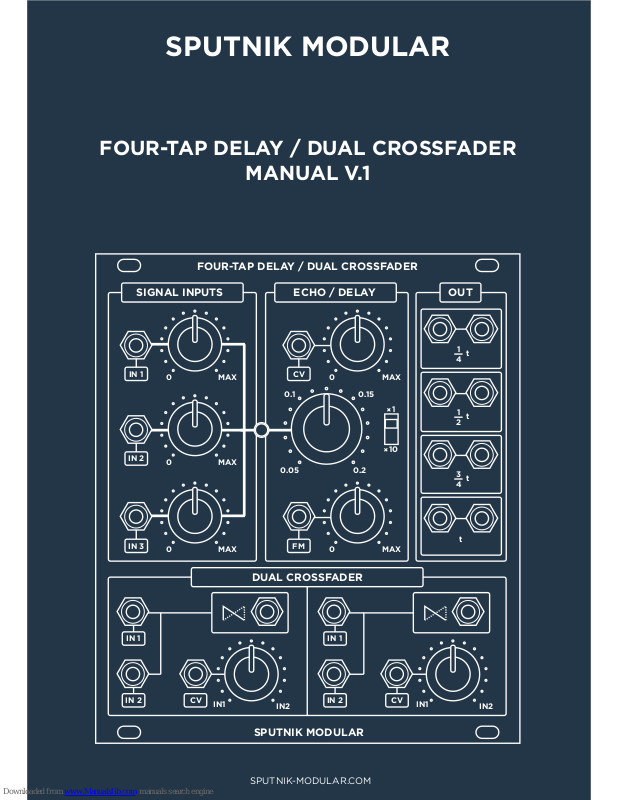

FOUR-TAP DELAY / DUAL CROSSFADER
MANUAL V.1
SPUTNIK-MODULAR.COM
0 MAX
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK MODULAR
SIGNAL INPUTS
CV
DUAL CROSSFADER
IN 1
t
1
4
OUT
0 MAX
ECHO / DELAY
CV
0 MAX
FM
0.05 0.2
0.1 0.15
1
+
+
10
CVIN 2
IN 1
IN 2
IN 1
0 MAX
IN 3
0 MAX
IN1
IN2
IN1
IN2
IN 2
t
t
3
4
t
1
2
SPUTNIK MODULAR
Page 2
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM
SPUTNIK MODULAR
TABLE OF CONTENTS
SPECIFICATIONS
INSTALLATION
DESCRIPTION
DIAGRAM
WARRANTY
3
4
5
6
7
Page 3
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM
SPUTNIK MODULAR
SPECIFICATIONS
FORMAT:
Eurorack
DIMENSIONS:
22HP, 40mm deep
INTERNAL AND EXTERNAL SIGNALS (3.5mm Jacks):
CV: 0-5V, AUDIO: +/-5V
MAX CURRENT:
+12V: 90mA
-12V: 90mA
+5V: 100mA
Page 4
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM

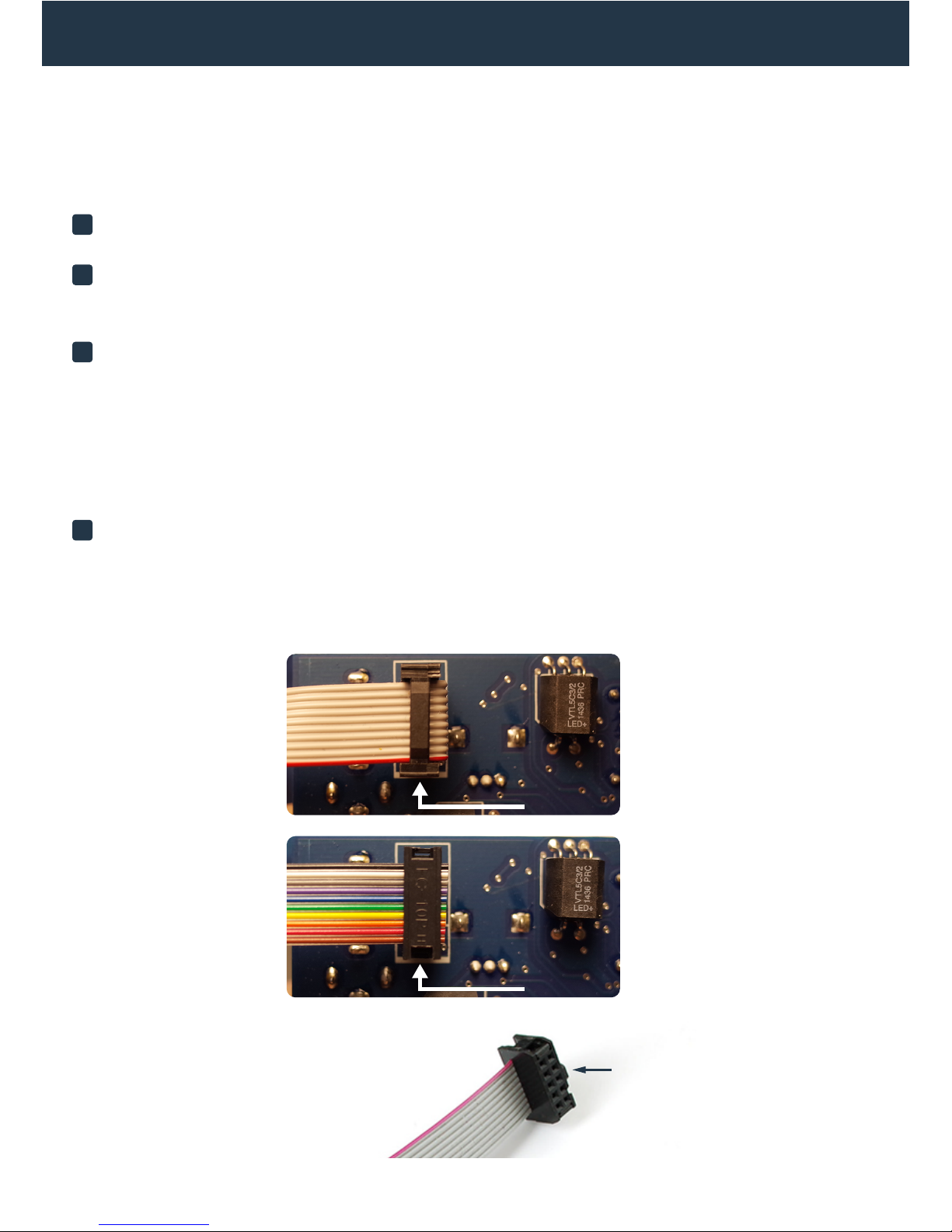

INSTALLATION
Remove module from packaging.
Power down your modular synthesizer and disconnect the power
cable from the wall outlet.
Attach the included power cable to the module’s power connector and
connect the other end to the power distribution bus in your EuroRack
synthesizer case. If you have a bi-colored ribbon cable the red stripe
should be on a same side with a bold white line on a pcb. In case if you
have a rainbow-colored ribbon cable the key is brown. Connector also
has a key which should match sikscreen on a pcb.
Position the module on the mounting rails in your EuroRack case and
screw down mounting screws. Power up! If your case does not turn on
properly then you have installed the module incorrectly. Simply power
down and make sure to follow the diagram when reconnecting the
module.
1
2
3
4
BI-COLORED RIBBON
WHITE STRIPE
–12V
RAINBOW RIBBON
WHITE STRIPE
–12V
KEY
SPUTNIK MODULAR
Page 5
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM
The SPUTNIK FOUR-TAP DELAY / DUAL CROSSFADER is a modular digital
delay with patch points that allow you to create a variety of time-based
effects from extreme cross-modulation to subtle, tape-like warble. The
delay features a three input mixer summed to the delay section.
Delay time is variable between approximately 0.05-.2 seconds or .5
seconds to 2 seconds in X10 mode. Delay time can be further modified by
the CV and FM inputs. The delay then outputs four taps from the different
time intervals in the delay line, which can then be used for feedback patching (like a feedback knob on a typical delay pedal) or patched into one of
the two voltage controlled crossfaders (for use in feedback patching or as
a wet/dry mix).
SPUTNIK MODULAR
DESCRIPTION
Page 6
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM
SPUTNIK MODULAR

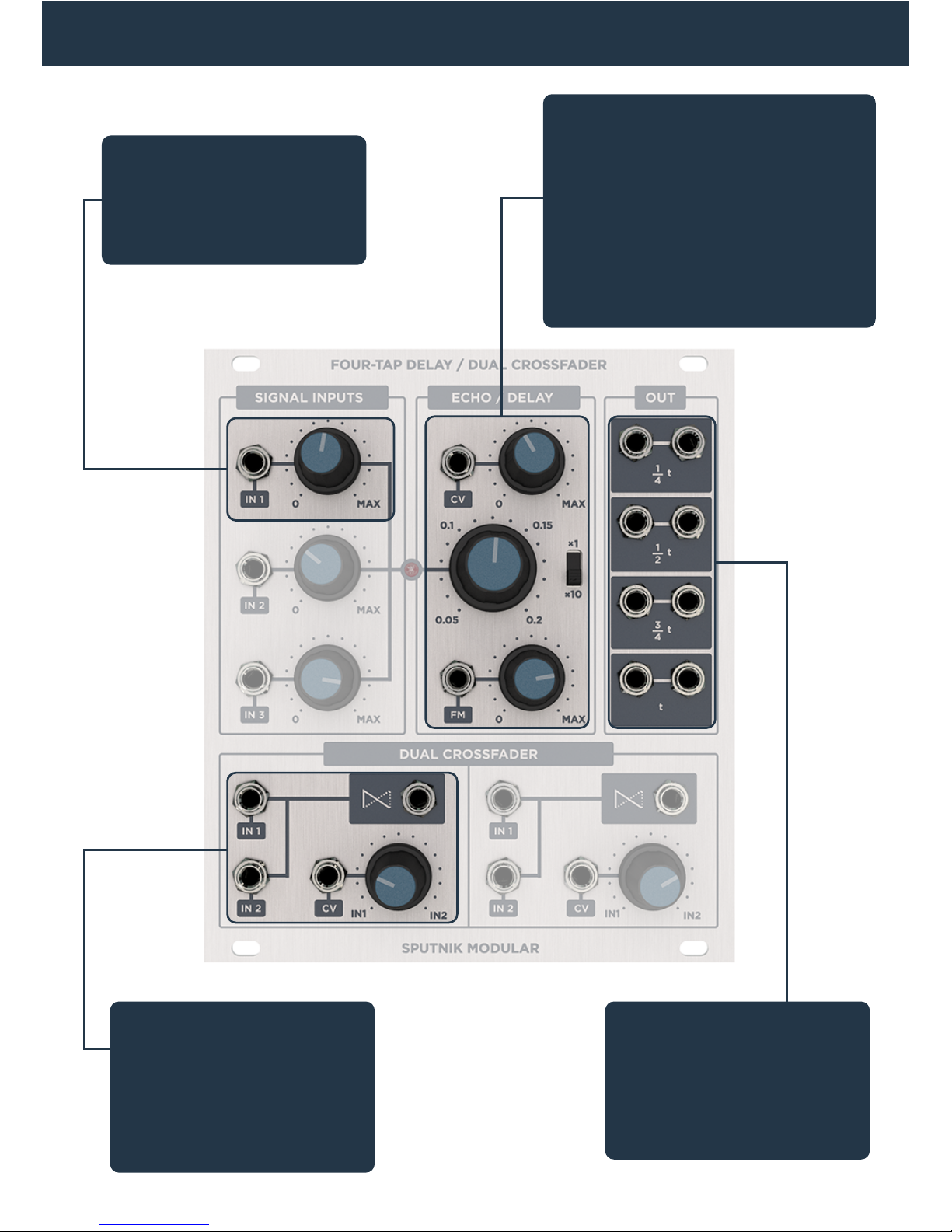

SIGNAL INPUTS
Three audio inputs (modular or
line-level) with volume attenuator knobs and peak indicator
LED.
OUT
Four audio outputs of four taps
(2 output jacks each) of time
divisions from the delay circuit:
1/4t, 1/2t, 3/4t, and t. “t” is set
by the delay time knob.
DUAL CROSSFADER
Two crossfaders, each with an
output mix that is continuously
variable between the two inputs.
Crossfading can be achieved via
the control knob or using CV
(0V to +5V).
ECHO / DELAY
Delay time is variable between approximately 0.05-.2 seconds (X1 mode) or .5
seconds to 2 seconds (X10 mode).
CV input (0V to +5V) to control the delay
time with attenuator knob.
FM input for AC-coupled frequency
modulation of delayed signal with
attenuator knob.
Page 7
FOUR-TAP DELAY / DUAL CROSSFADER
SPUTNIK-MODULAR.COM
WARRANTY
This product is covered by the Sputnik Modular warranty, for one year
following the date of purchase. This warranty covers any defect in the
manufacturing of this product. This warranty does not cover any damage
or malfunction caused by incorrect use – such as, but not limited to, power
cables connected backwards, excessive voltage levels, or exposure to
extreme temperature or moisture levels.
The warranty covers replacement or repair, as decided by Sputnik Modular.
Please contact customer service via our website
(www.sputnik-modular.com) for a return authorization.
