SPULEN MK7/A3/S3 Throttle Pipe
Page 2
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
01
Spulen MK7/A3/S3
Throttle pipe

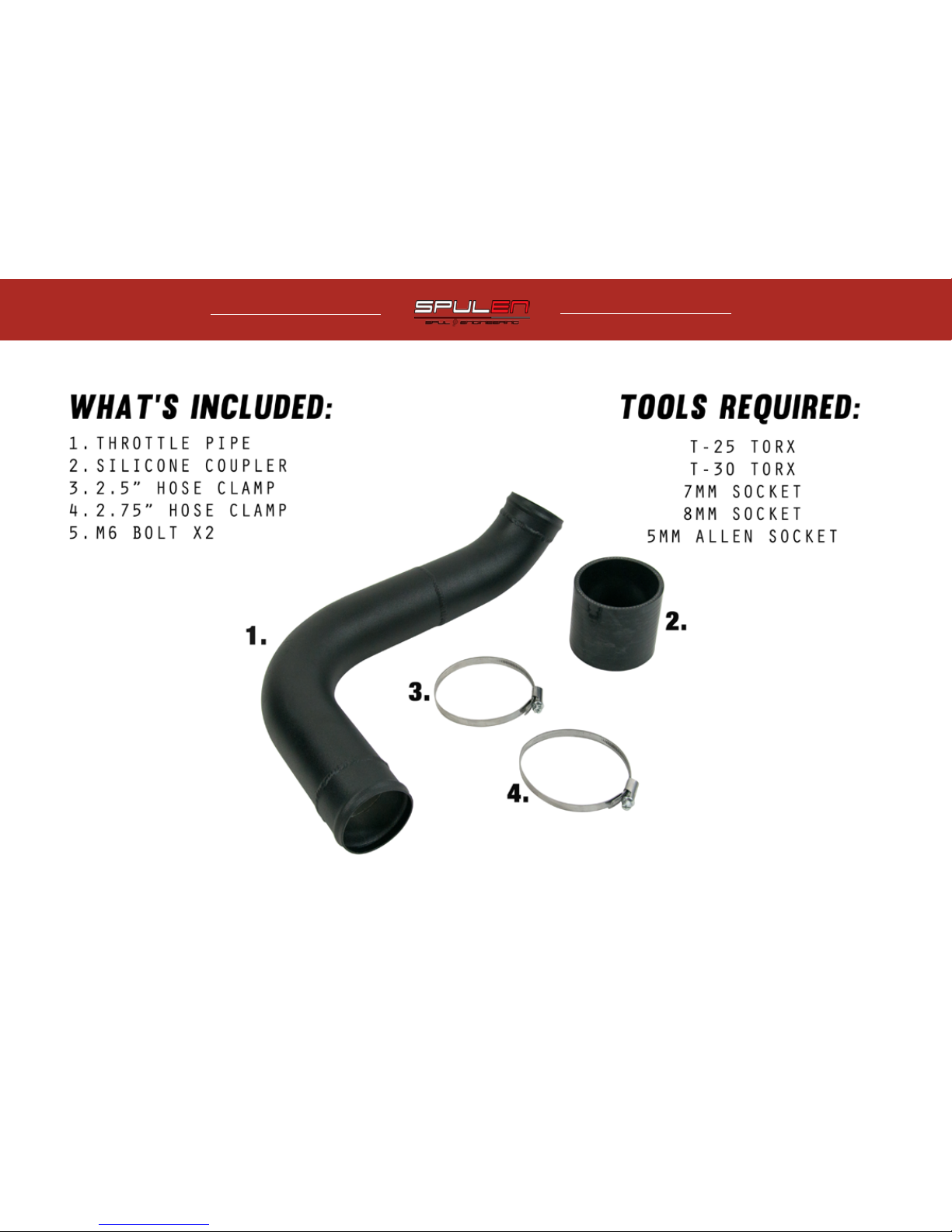

Page 3
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
02

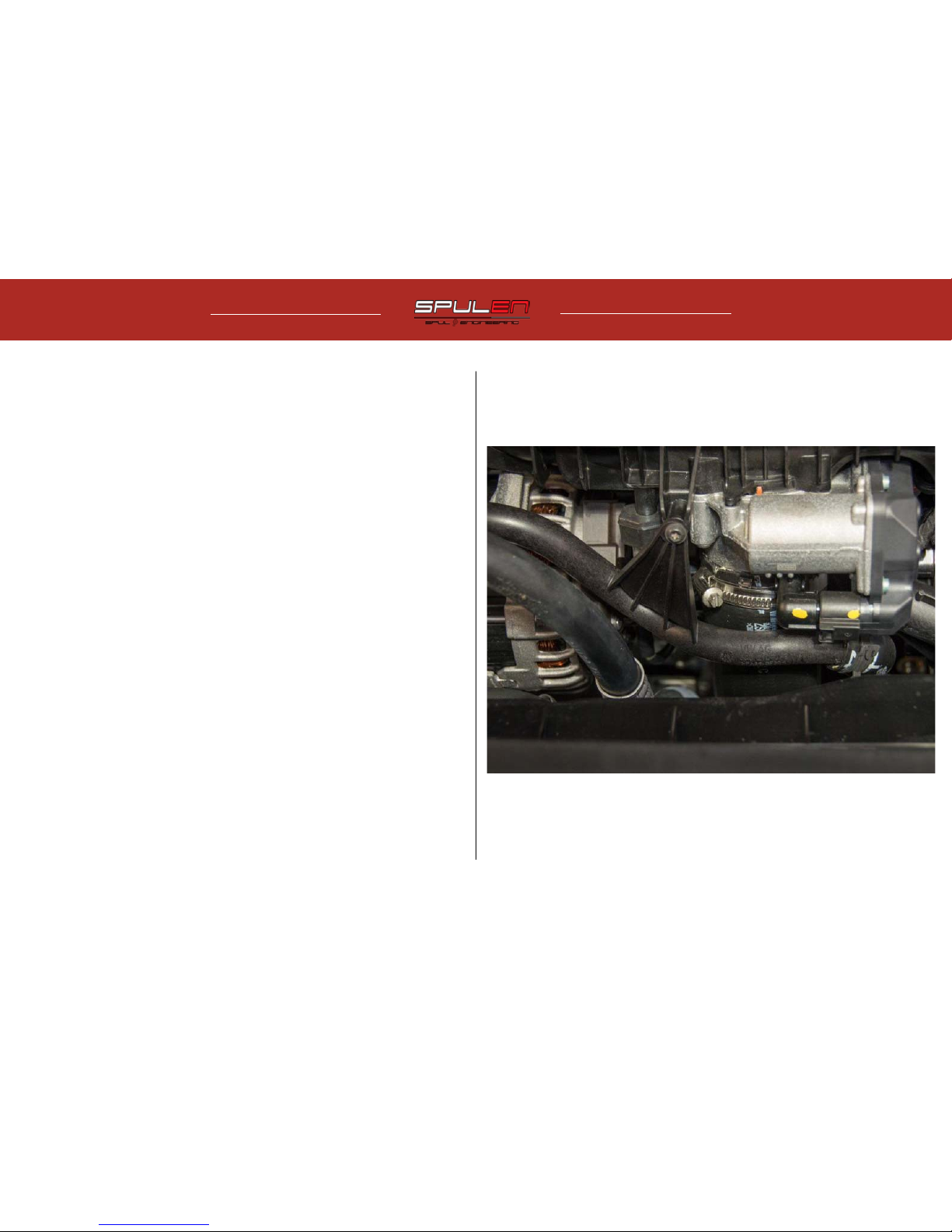

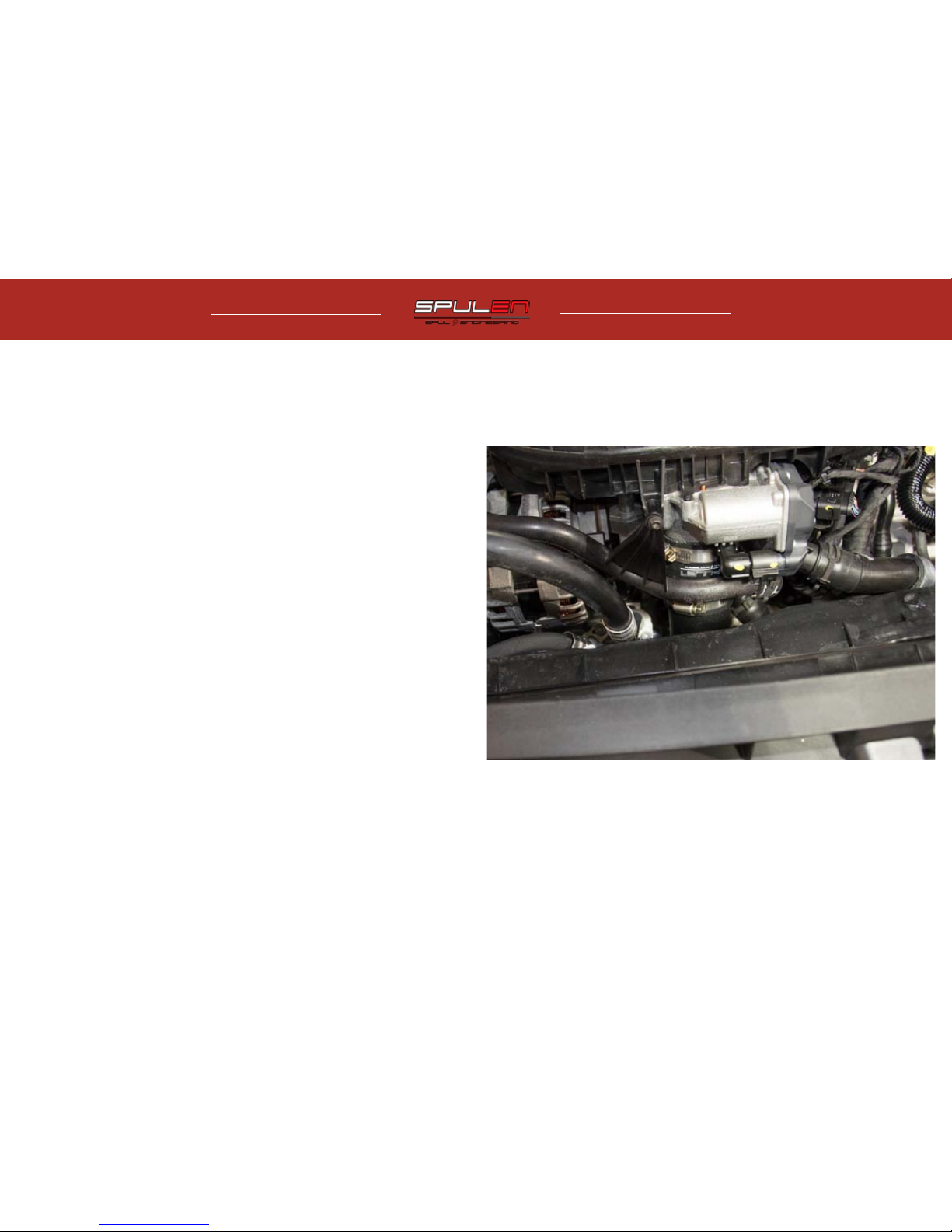

1. Loosen the 7mm hose clamp at the
throttle body.
Spulen MK7/A3/S3
Throttle pipe
Page 4
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
03

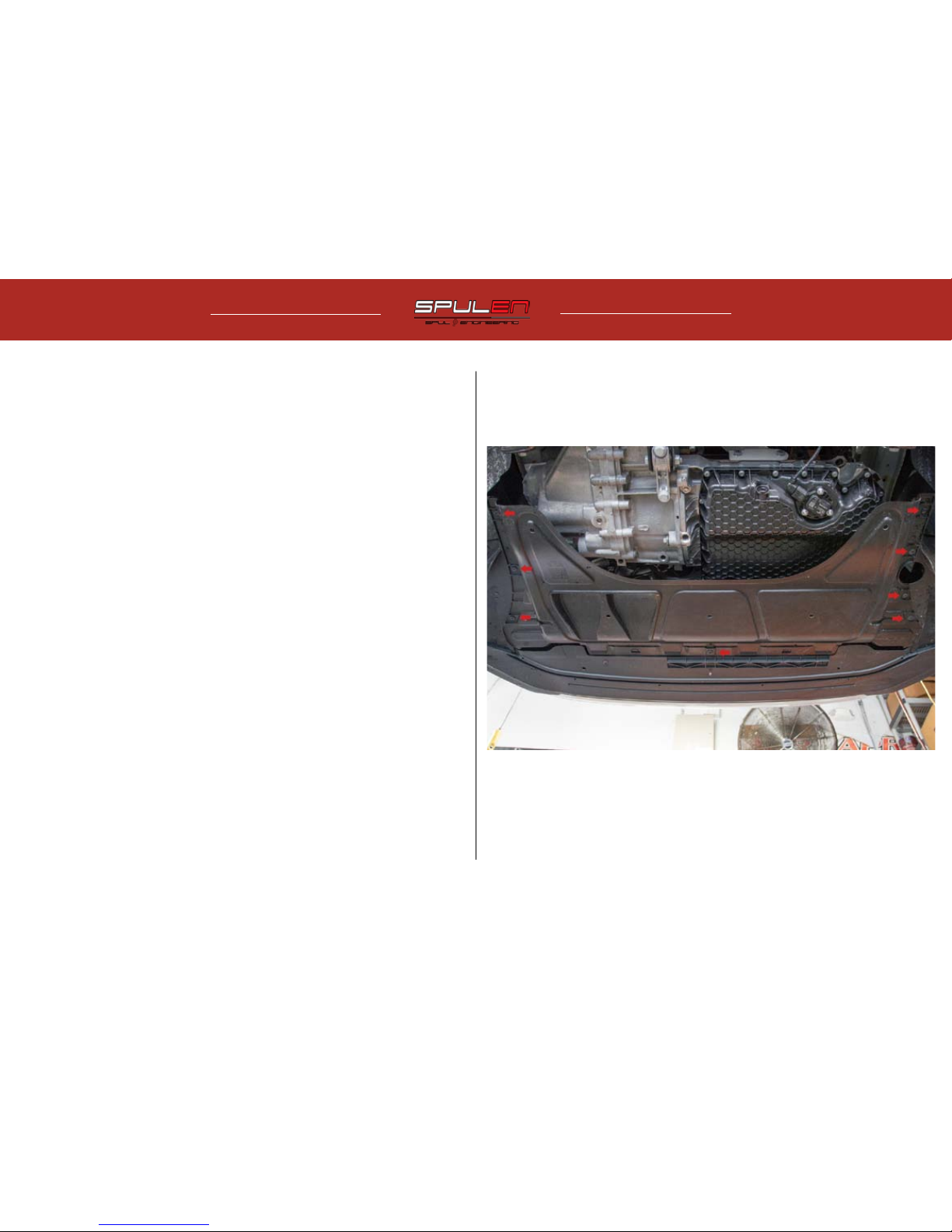

2. Remove the 8x T-25 screws securing the
lower splash guard.
Spulen MK7/A3/S3
Throttle pipe
Page 5
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
04

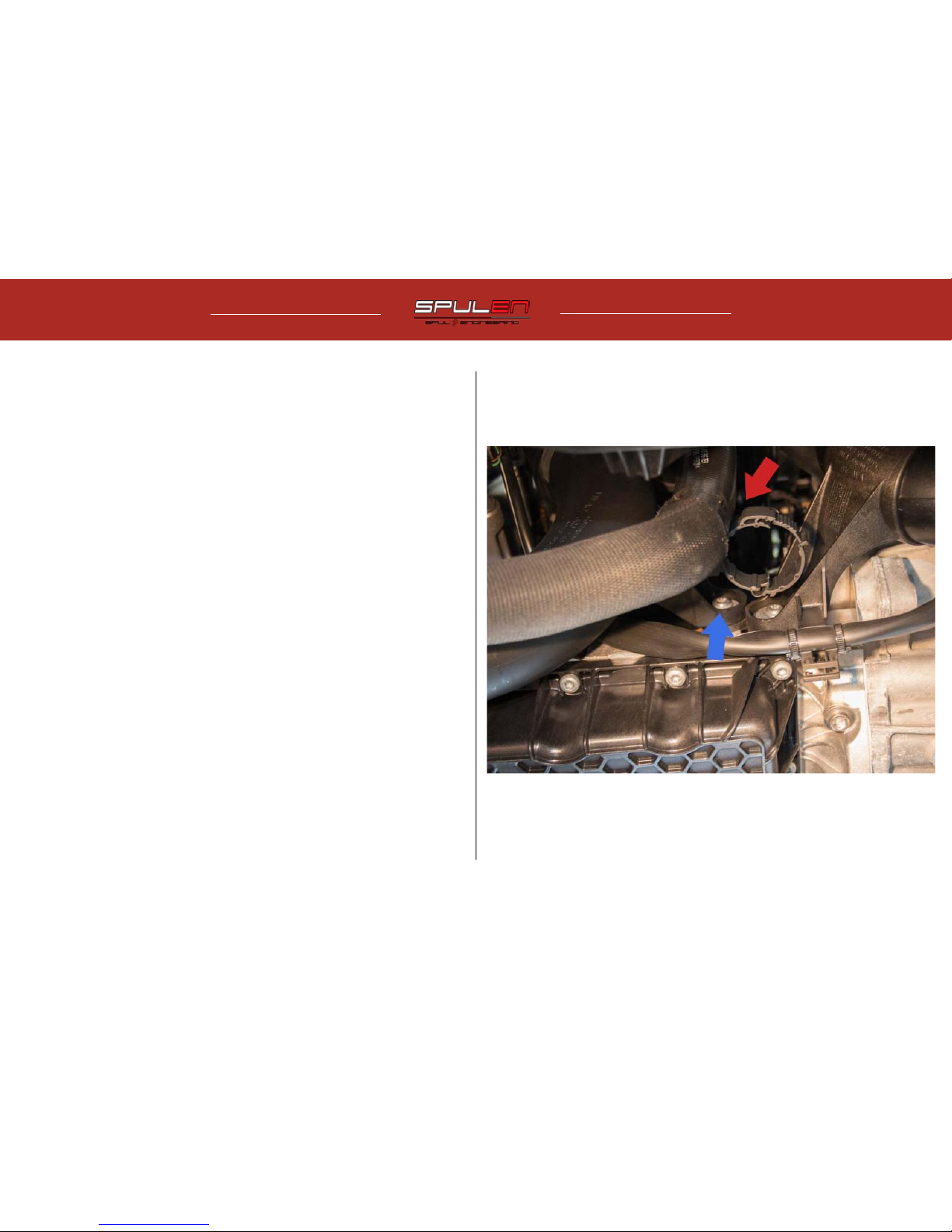

3. Release the radiator hose from the factory
throttle pipe (red arrow). Loosen the T-30 torx
securing the pipe to the block (blue arrow).
Spulen MK7/A3/S3
Throttle pipe
Page 6
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
05

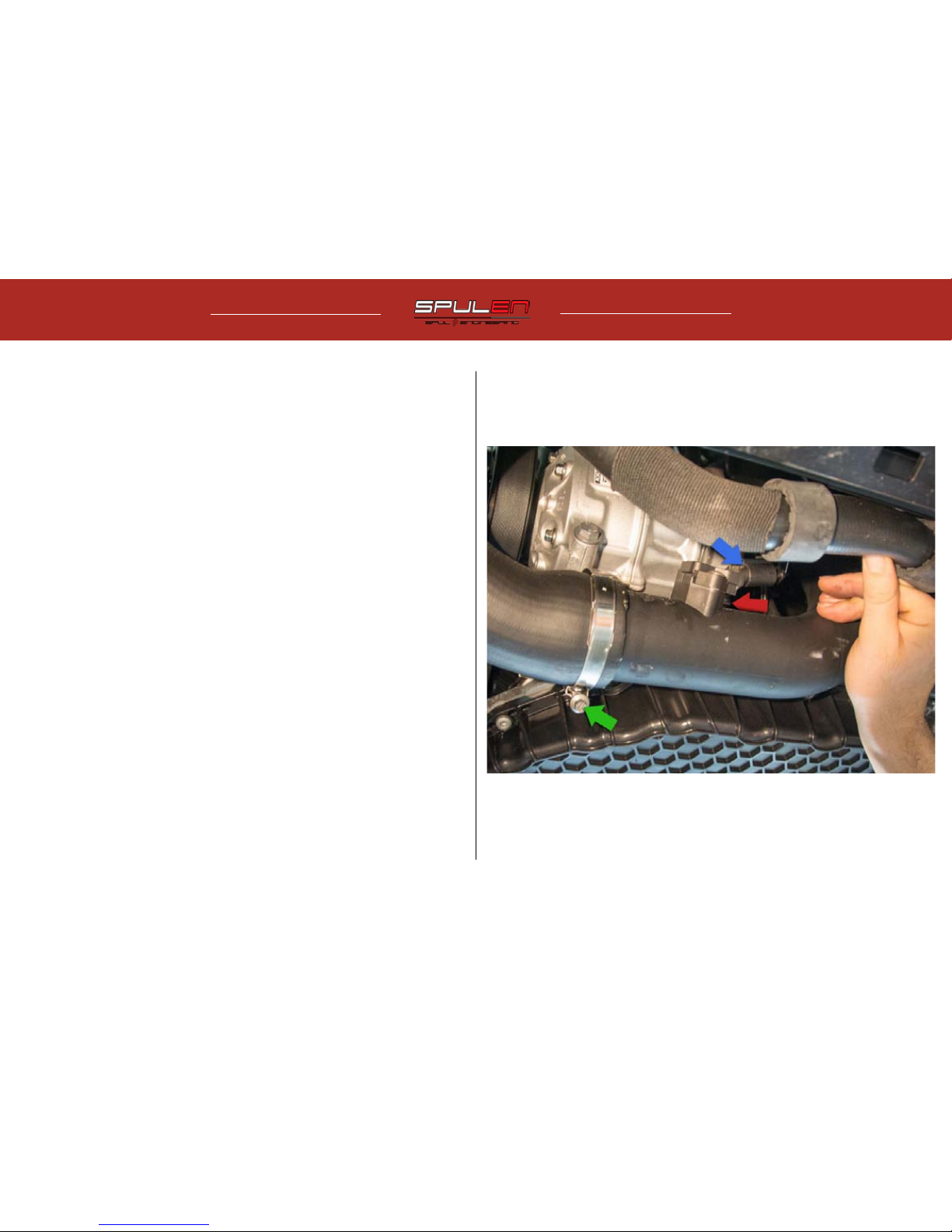

4. Remove the T-30 torx securing the
factory pipe to the block (red arrow).
Disconnect the MAP sensor (blue arrow).
Loosen the 7mm hose clamp (green arrow).
Remove the factory throttle pipe.
Spulen MK7/A3/S3
Throttle pipe
Page 7
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
06

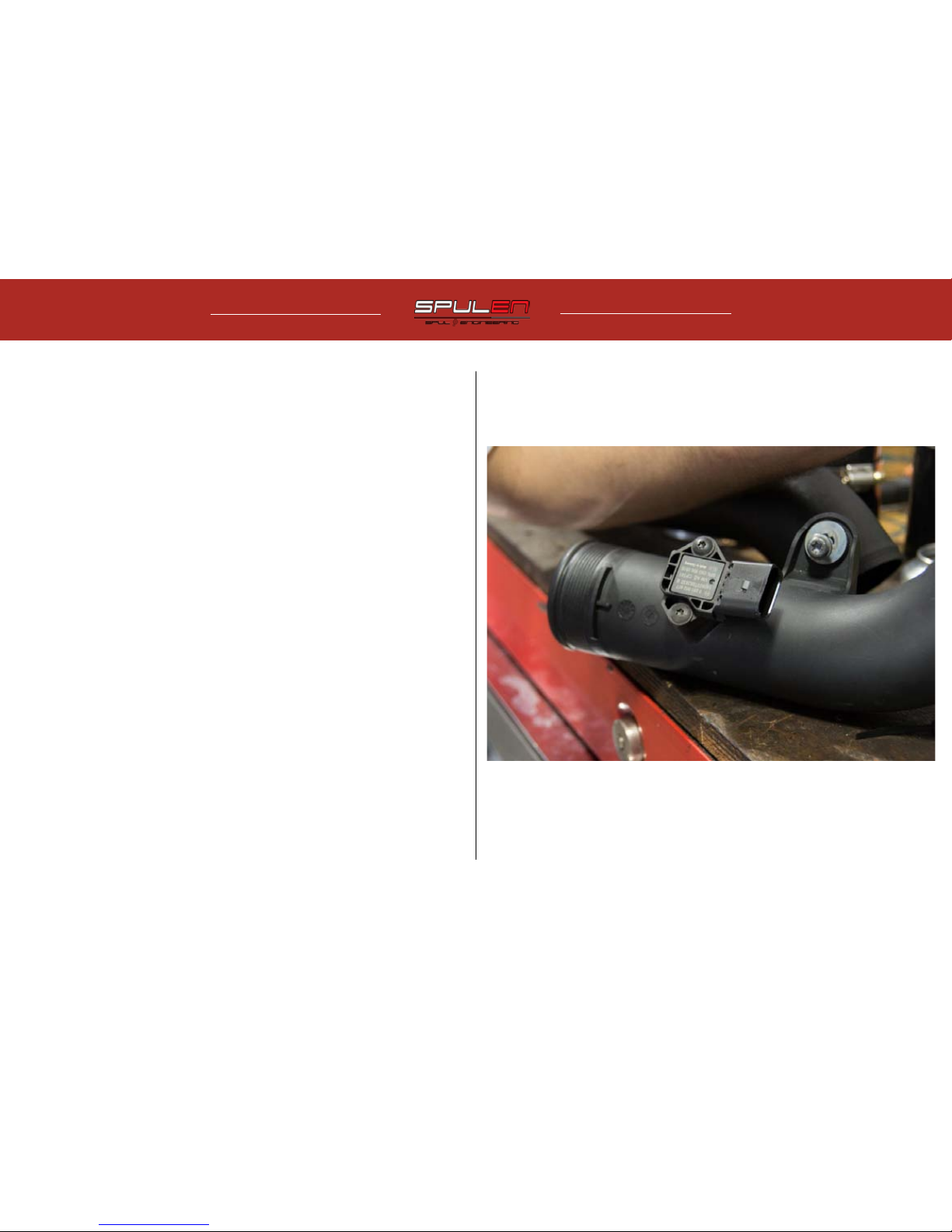

5. Remove the 2x T-25 screws securing the
MAP sensor.
Spulen MK7/A3/S3
Throttle pipe
Page 8
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
07

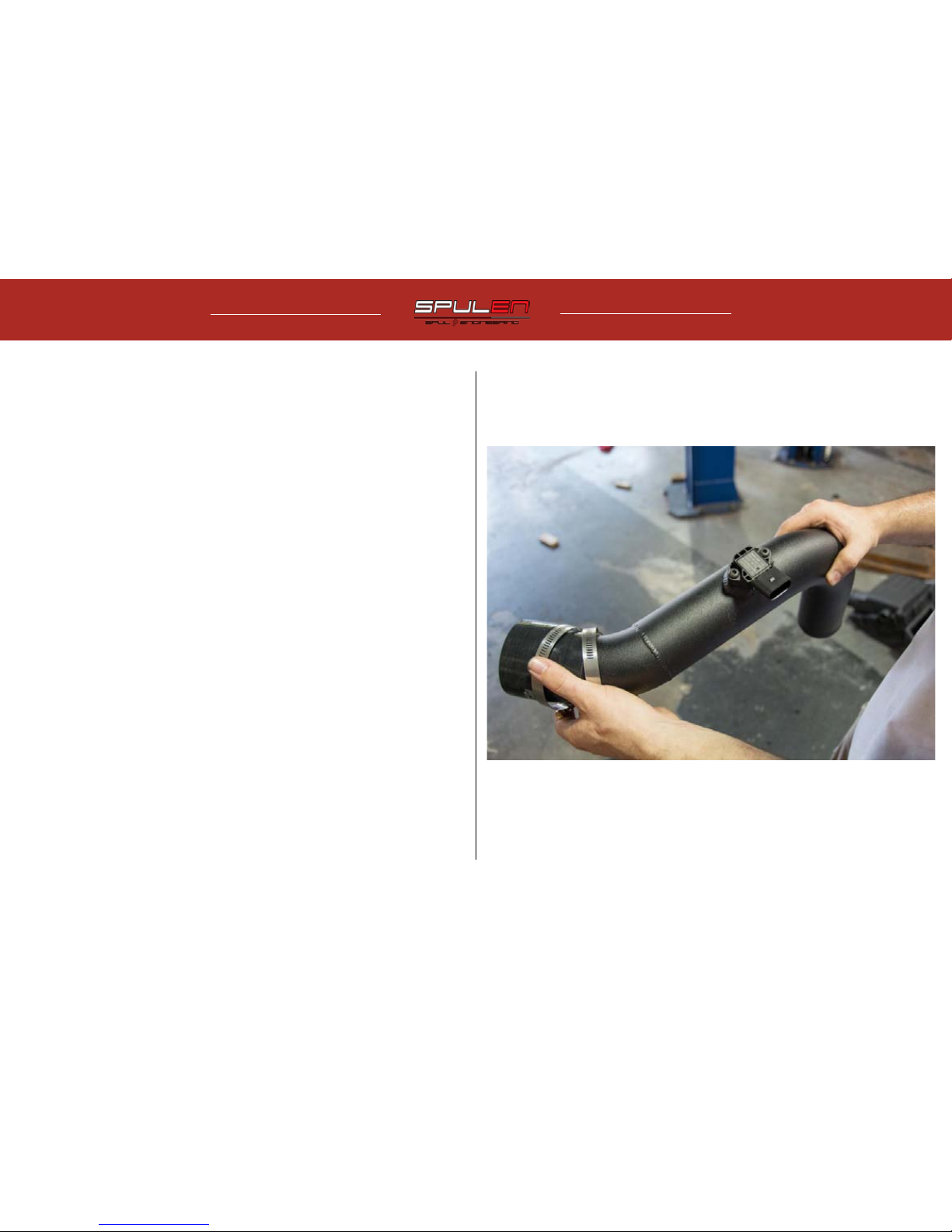

6. Install the MAP sensor into the new
throttle pipe and secure with the included
5mm allen head bolts. Install the silicone
coupler and loosely install the hose clamps
on the pipe.
Spulen MK7/A3/S3
Throttle pipe
Page 9
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
08
7. Install the new throttle pipe onto the car.
Insure proper clearance between radiator
fans and tighten 8mm clamps at the throttle
body.
Spulen MK7/A3/S3
Throttle pipe
Page 10
Install instructions
7716 Wiles Rd.Coral Springs, FL 33067
www.uspmotorsports.com
09
9. Reinstall the splash guard removed in
step 2.
Spulen MK7/A3/S3
Throttle pipe
8. Reconnect the MAP sensor. Reconnect
the intercooler hose that was
disconnected in step 4.
