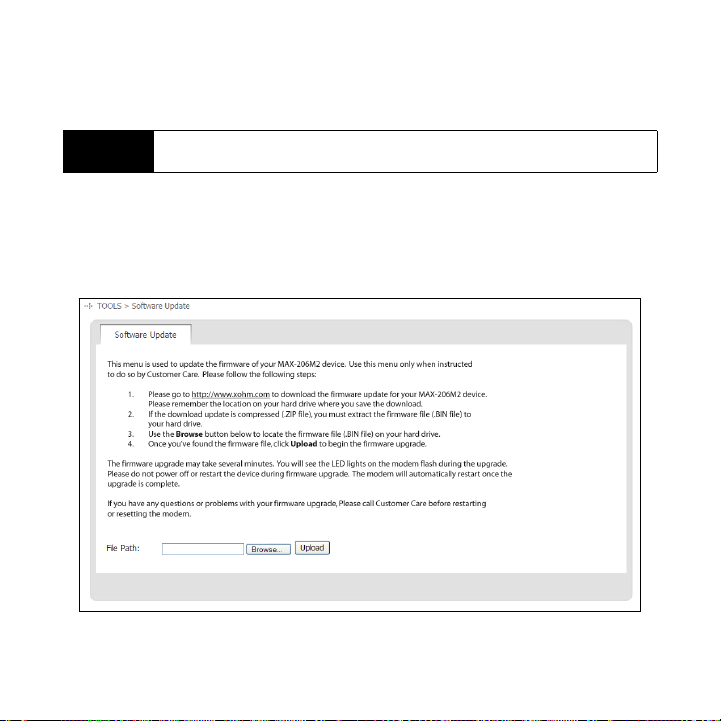

Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Section 3: Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3A. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Section 4: User Information and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 47
4A. Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Software Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Transmitter Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Receiver Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4B. Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
ZyXEL warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Welcome to XOHM
XOHM is a wireless Internet service that lets you get online at broadband speed. The
XOHM WiMAX network connects you to the people you need, the entertainment you
love and the information you can’t live without. You’ll connect to the Internet using your
choice of computer without long-term contracts or complications.
Getting started with XOHM is simple: just connect your
ZyXEL (XOHM Modem) to your computer and set up your XOHM account, and you’ve
got broadband.
This guide covers all the information required to set up, install, and configure your
XOHM Modem.
䢇 Get Started
䢇 Your XOHM Modem Settings
䢇 Troubleshooting
䢇 User Information and Warranty
For more information about XOHM WiMAX, visit www.xohm.com.
XOHM Modem MAX-206M2 by
Welcome to XOHM i
ii
Section 1
Get Started
Section 1A
Your XOHM Modem
This section outlines the basic layout of your modem and connections.
What’s in the Box
䢇 XOHM Modem MAX-206M2 by ZyXEL
䢇 Power adapter
䢇 Ethernet cable
䢇 XOHM Modem Setup Assistant CD
䢇 Get Started Guide
䢇 User Guide
Before setting up your XOHM Modem, make sure you have all the items listed
above. If any items are missing, contact your XOHM retailer or call
877-333-XOHM (877-333-9646).
Modem Requirements
䢇 CD-ROM drive (for XOHM Modem Setup Assistant only)
䢇 32MB RAM minimum (64MB recommended)
䢇 20MB available hard disk space
䢇 One available 10/100Mbps Ethernet port
䢇 Web browser (XOHM Modem is compatible with Internet Explorer 6 and higher,
Firefox 1.5 and higher, and Safari 2.0. It may also function with other browsers.)
䢇 Credit card for activation
XOHM Care at
2 Your XOHM Modem
Get to Know Your Device
Computer or
Home Network
Telephones
[future service]
WiMAX
Tower
XOHM Modem
MAX-206M2 by ZyXEL
Internet
Your XOHM Modem lets you connect to the XOHM WiMAX network to provide fast
and easy wireless connectivity to the Internet in your home or office.
WiMAX Overview
Your XOHM Modem 3
Your XOHM Modem
Device Connectors (back of device)
Power
Adapter
Reset
Button
Remote
Antenna
[coming soon]
Telephones
[future service]
Computer/
Wi-Fi Router
1. Power jack (black): Connects the power adapter to power the modem.
2. Reset button (red): Resets the unit back to factory defaults (use ONLY as a last
resort).
3. Antenna connectors (gold): Connect a remote antenna (available separately) to extend
a signal from a strong area (such as near a window) to a weaker area where it may
be more convenient to place the modem.
4. Phone ports 1 / 2 (gray): Connect telephones to the modem. [Future service.]
5. Ethernet ports 1/2 (yellow): Connects the modem to computers and/or a Wi-Fi router.
[Coming soon.]
4 Your XOHM Modem
Modem LED Display (front panel)
Signal Strength
Indicator
WiMAX
Signal
Phone 1 & 2
[future service]
LAN 1 & 2 Power
1. WiMAX LEDs: The leftmost LED indicates WiMAX connectivity. A blinking LED
indicates that the unit is ranging, while a solid LED indicates that a connection has
been established and that the modem is ready to transmit and receive. The three
LEDs to the right indicate the signal strength of the reception (1-3). These LEDs
will be green when illuminated.
Signal Strength LEDs: The number of signal strength LEDs illuminated reflects the strength
Note
of the WiMAX signal being received by the XOHM Modem; however, the strength of signal
does not affect the speed of your connection. As long as there is sufficient signal strength to
make a connection, you may achieve maximum connection speed. (For more information
about signal strength, see “XOHM WiMAX Signal Strength” on page20.)
2. Phone 1 / Phone 2 LEDs: Illuminates when the VoIP phone “line” is in use. If no voice
accounts are configured, the LED will be off. If a voice account is configured and
registered, the LED will be green. When the connected phone is off-hook, the LED
will blink. When there is new voicemail on the account, the LED will be amber
(optional).
3. LAN 1 / LAN 2 LEDs: Illuminates when the modem is connected to the computers or
other networking devices. This LED will be green, and will flash as data is sent
through the connection.
[Future service.]
Your XOHM Modem
Your XOHM Modem 5
4.
Power LED: Indicates if the unit has power and is operating correctly. A blinking LED
indicates the unit is loading the firmware and configuration, while a solid LED
indicates the unit is ready for operation. This LED will be green.
Positioning Your Modem
Your XOHM Modem has a convenient, contemporary design that allows for simple
setup. When setting up your modem:
䢇 Only use your XOHM Modem indoors. Avoid moisture or extreme temperatures.
䢇 For improved reception, place the modem near a closed window.
䢇 Position the modem within easy access of a reliable power supply.
䢇 Make sure the m odem is near en ough to your
computer to easily connect the modem to the
computer using the supplied Ethernet cable.
䢇 The unit’s omnidirectional antennas are built
into the sides (“handles”) of the modem case.
Make sure to provide ample space around the
device to ensure maximum WiMAX signals.
䢇 The antennas must be installed to provide a
separation distance of at least 20cm from all persons
to satisfy Federal Communications Commission radio
frequency exposure compliance.
䢇 Where possible, keep your modem at least
one foot away from other electronic devices,
such as Wi-Fi routers and cordless phones,
to avoid potential signal interference.
5dBi Omnidirectional Antennas
6 Your XOHM Modem
Accessories: Various accessories for your device, such as remote antennas and battery
Note
pac ks, will be av ail able from XOHM in th e fu ture. Ple ase visit
updates.
www.xohm.com for details and
Your XOHM Modem
Your XOHM Modem 7
Section 1B
Install Your XOHM Modem Using the XOHM Modem Setup Assistant
This section outlines the basic steps to install your modem using the XOHM Modem
Setup Assistant included on the XOHM Modem Setup Assistant CD that came with
your modem.
You can set up your modem without running the XOHM Modem Setup Assistant, but we
Note
recommend that you use the setup assistant for the sake of simplicity and to facilitate
future updates and diagnostics.
Install the XOHM Modem Setup Assistant
1. Insert the XOHM Modem Setup Assistant CD into your computer’s
CD drive.
䡲 The installation should begin automatically. If your computer
does not launch the installation program, click
My Computer and double-click on the CD Drive. From the
CD drive file list, click
begin the installation.
Depending on your system settings, you may be required to log in as an administrator to
Note
install software on your computer.
The screen images in this user guide are illustrative and may not reflect the final software.
8 Install Your XOHM Modem Using the XOHM Modem Setup Assistant
XOHM Modem Setup Assistant.exe to
Start >
2. From the XOHM Modem Setup Assistant Welcome screen, click Next.
3. Follow the onscreen instructions to complete the installation wizard.
䡲 Accept the terms of the XOHM License Agreement.
● If you do not agree with the terms, click Cancel. Your installation will be
cancelled and the program will exit.
䡲 Select a destination folder for the program. (Default is C:\Program Files\XOHM\
Modem Setup Assistant.)
䡲 Click Install at the “Ready to Install the Program” prompt.
䡲 When the Completed screen appears, select Launch XOHM Modem Setup Assistant
and click
Note
Finish to complete the installation and launch the setup program.
If your computer has a current Internet connection, the program will automatically check
for a software update. If the
the onscreen instructions to update the XOHM Modem Setup Assistant software.
New Software Found screen is displayed, click Next and follow
Installation: Modem Setup Assistant
Install Your XOHM Modem Using the XOHM Modem Setup Assistant 9
Install Your XOHM Modem
1. If it did not launch automatically, launch the XOHM Modem Setup Assistant by
clicking
Start > (All) Programs > XOHM > XOHM Modem Setup Assistant. The Welcome
screen appears.
2. Follow the onscreen instructions to install your modem.
䡲 Insert the round end of the power adapter into the modem’s power port and plug
the other end into a power source. (The Power LED should illuminate.)
䡲 Insert one end of the supplied Ethernet cable to your computer and the other
end into the yellow
LAN 1 port. (The LAN 1 LED should illuminate.)
10 Install Your XOHM Modem Using the XOHM Modem Setup Assistant
3. Use the Modem Setup Assistant to check your XOHM signal strength. It may take
Signal
Strength
a few moments for the signal to find your modem.
䡲 If the setup assistant displays any green circles ( , , or ), you’re in fine
shape. Click
䡲 If you do not have any green circles showing ( ), or if you would like to look for a
Next and proceed to step 7.
stronger signal, try moving the modem to a different location (nearer a window,
on a higher floor, or away from other electronic devices; for tips on locating your
modem, follow the onscreen instructions or see “Positioning Your Modem” on
page6). Wait several seconds at each location and click
Test to see if you’re
getting a signal.
䡲 If you cannot acquire a WiMAX signal, call XOHM Care at 877-333-XOHM (9646).
Installation: Modem Setup Assistant
Install Your XOHM Modem Using the XOHM Modem Setup Assistant 11
4.
Click Activate My Modem to connect to the XOHM activation site.
Your Web browser will launch and you will see an
Activation in Progress screen. When
the XOHM site opens, follow the instructions to explore the XOHM service options,
choose the option that’s right for you, and activate XOHM. When complete, submit
your order.
5. Wait for activation and provisioning to complete. (Activation by XOHM is typically
fast but may take several minutes.)
䡲 During activation and provisioning, make sure that you do not disconnect your
modem. Disconnecting will interrupt the process.
䡲 When activation and provisioning have been completed, the Activation Complete
screen appears. The modem will disconnect and reconnect automatically and the
modem indicator lights (LEDs) will turn off and on in sequence (Power, LAN, and
Signal Strength).
12 Install Your XOHM Modem Using the XOHM Modem Setup Assistant
Loading...
