Spring Well SS+, SS1, SS4 Installation Instructions Manual
1
SALT-BASED WATER SOFTENER
MODELS: SS1, SS4, SS+
Installation Instructions
CUSTOMER SERVICE IS AVAILABLE MON-FRI 9AM-6PM EST
800-589-5592
WWW.SPRINGWELLWATER.COM
Our traditional salt-based whole house water softeners
are the most reliable ion exchange softeners on the
market today. Use 40% less detergent, extend the life of
your appliances see less spotting on hard surfaces. All
with an industry-leading warranty!
"
2
Additional Parts Included
1. Electronic Head
2. 50’ Drain Line
3. Brine Tank
4. Hose Clamp
123
4
8
PLEASE READ INSTRUCTIONS FULLY BEFORE INSTALLATION.
Be sure to follow all applicable plumbing codes. The system must be
installed on main water supply line.
CAUTION: Do not install on well water unless you have spoken to a
customer service representative first.
NOTE: This system does require electricity.
If the tank is not perfectly straight, carefully lift the tank straight up a few
inches and tap it on the ground until the tank stands vertical and fits
snuggly into the tank boot.
3
Product Specs
SS1
Tank Width
9”
Tank Height
48” (57” with head)
Flow Rate
11 GPM Service
Connection Size
3/4”
Backwash Rate
2 GPM
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 120 F
pH Range
6.5 - 10
Grain
32K
Brine Tank
18”(w) x 33” (h)
SS4
Tank Width
10”
Tank Height
54” (63” with head)
Flow Rate
13 GPM Service
Connection Size
3/4”
Backwash Rate
2.4 GPM
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 120 F
pH Range
6.5 - 10
Grain
48K
Brine Tank
18”(w) x 33” (h)
SS+
Tank Width
13”
Tank Height
54” (63” with head)
Flow Rate
20 GPM Service
Connection Size
3/4”
Backwash Rate
4 GPM
Operating Pressure
25-80 PSI
Operating Temperatures
36 - 150 F
pH Range
6.5 - 10
Grain
80K
Brine Tank
18”(w) x 33” (h)
For replacement filters, please visit: www.springwellwater.com/replacements
#
4
Installation Instructions
Locate main tank box and unpack the tank. Next find the brine tank box and
unpack the brine tank. Inside the brine tank you will find the parts and the
electronic head.

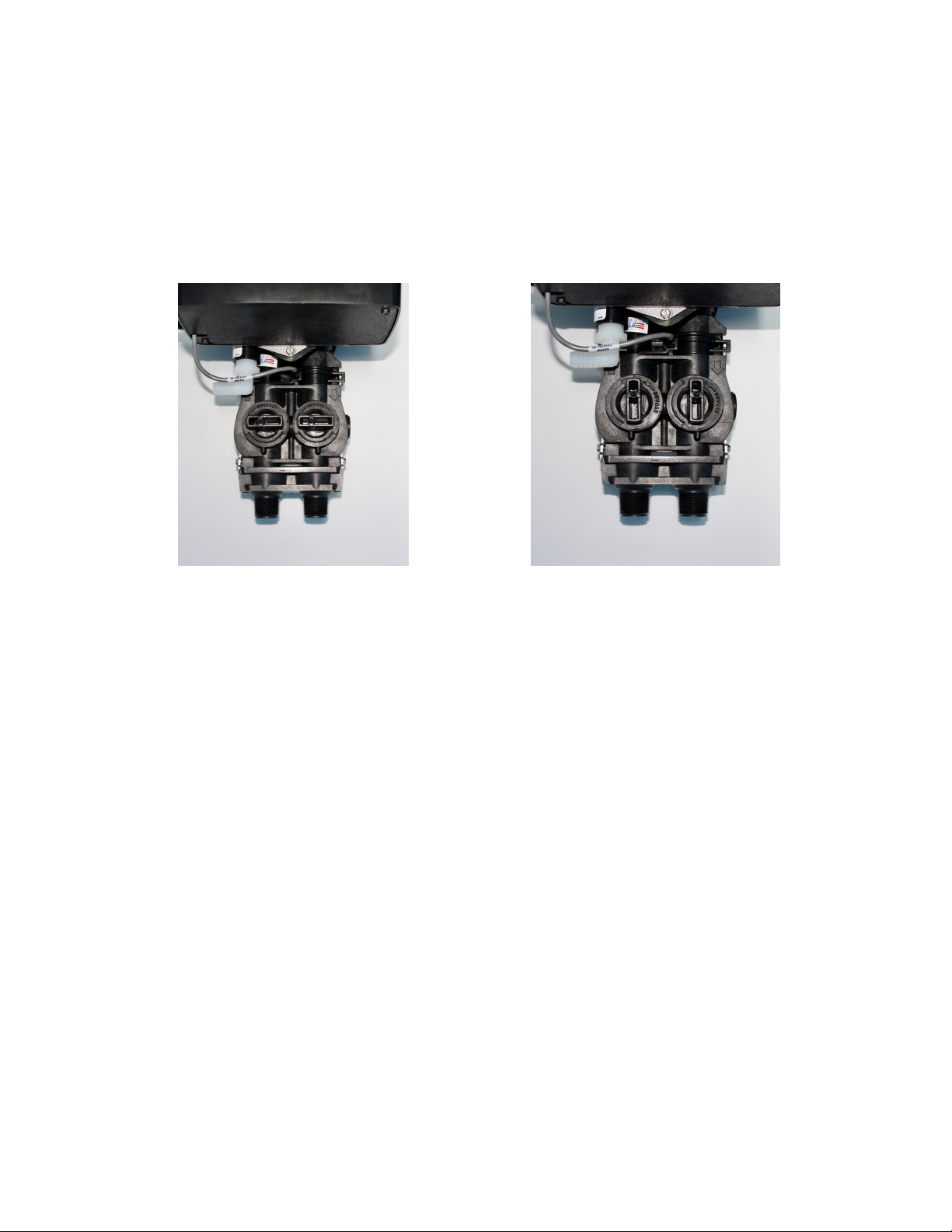

Remove the gray cap on top of the main tank. Remove the blue cap from the
distributor tube. Place the electronic head on top of distributor tube and press
down, then screw down hand tight.
