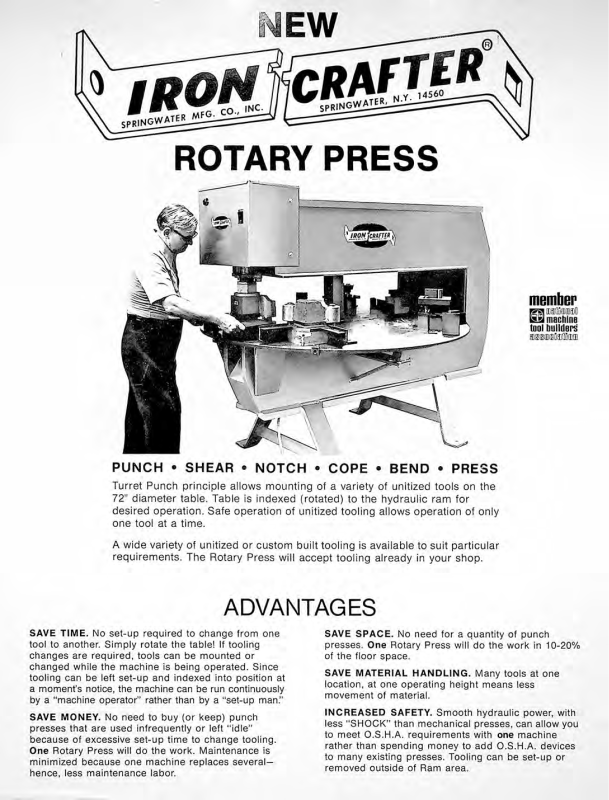

ROTARY PRESS
PUNCH • SHEAR • NOTCH • COPE • BEND • PRESS
Turret Punch principle allows mounting of a variety of unitized tools on the
72" diameter table. Table is indexed (rotated) to the hydraulic ram for
desired operation. Safe operation of unitized tooling allows operation of only
one tool at a time.
member
iwg DDaffiteniaD
blo
machine
tool Guilders
mgffilDIBlMMO
A wide variety of unitized or custom built tooling is available to suit particular
requirements. The Rotary Press will accept tooling already in your shop.
ADVANTAGES
SAVE TIME. No set-up required to change from one
tool to another. Simply rotate the table! If tooling
changes are required, tools can be mounted or
changed while the machine is being operated. Since
tooling can be left set-up and indexed into position at
a moment’s notice, the machine can be run continuously
by a “
machine operator
SAVE MONEY. No need to buy (or keep) punch
presses that are used infrequently or left “
because of excessive set-up time to change tooling.
One Rotary Press will do the work. Maintenance is
minimized because one machine replaces several
hence, less maintenance labor.
” rather than by a “
set-up man."
idle
”
—
SAVE SPACE. No need for a quantity of punch
presses. One Rotary Press will do the work in f0-20%
of the floor space.
SAVE MATERIAL HANDLING. Many tools at one
location, at one operating height means less
movement of material.
INCREASED SAFETY. Smooth hydraulic power, with
less “
SHOCK
to meet O.S.H.A. requirements with one machine
rather than spending money to add O.S.H.A. devices
to many existing presses. Tooling can be set-up or
removed outside of Ram area.
” than mechanical presses, can allow you
Page 2
FEATURES:
1. Air operated adjustable table locking
(positioning) system.
2. Adjustable stroke control: 0" to 6".
3. Pneumatic foot lever control.
4. Manual indexing of 72" table (standard).
Optional: Power indexing; \ H.P. reversible
gear motor.
UNITIZED TOOLS:
No. 57A.R.P. Flat Bar Shear. To j" x 6" capacity.
No. 57 R.P. Angle Shear. To 4" x 4
No. 56 R.P. Channel Shear. To 4" Channel.
No. 50 A.R.P. Air Bend Die. To f
Various sizes universal Vee Notchers and Edge
Notchers (Copers) available to }" capacity.
Various sizes unitized punches available to j" capacity.
Various sizes unitized pipe notching and pipe
punching tools.
Specifications subject to change without notice.
" x 6" capacity.
” x j" capacity.
ROTARY PRESS
SPECIFICATIONS:
Capacity: 40 ton hydraulic.
Stroke Length: 6".
Speed: 41"/minute (Optional to 80"/minute).
Shut Height: 12" maximum.
Power: 3 H.P. 220/440/3 ph/60 cycle.
Variable volume pump, 3000 PSI max.,
15 gallon oil reservoir.
Table Size: 72" diameter.
Dimensions: 120" x 72".
Weight: Approx. 8000 lbs.
Patent applied for.
Printed in U.S.A.
%
HYDRAULIC
IRON WORKERS
SPRINGWATER MFG. CO., INC.
FORMERLY EL-CHEM MACHINERY, INC.
MANUFACTURERS OF QUALITY METAL WORKING MACHINERY
HYDRAULIC BAR BENDERS
8 TON, 30 TON, C-FRAME PRESSES.
TUBING CUTTERS
MILL STREET
SPRINGWATER, N. Y. 14560
PHONE (716) 669-2411
