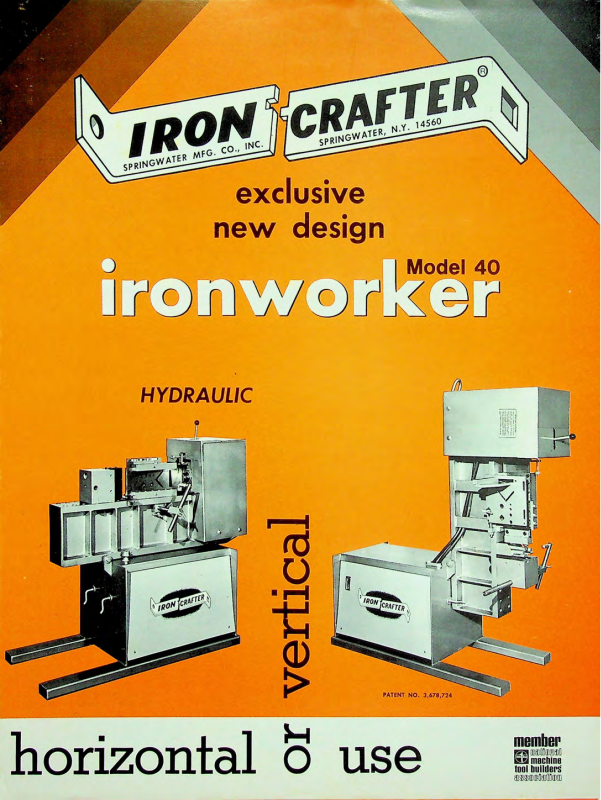

Page 1
new
design
j
\ \
\ O
C
I Model 40
/
\
J 7
M
HYDRAULIC
!
a
I
I#*
■i
rd
j=su
*1
o
1C
horizontal
■K
CD
>
o
PATENT NO. 3,678,724
use
l-'
7
1
member
iwaiMiaMi
Ififil
machine
tool builders:
MMOffllfflOO
Page 2
STEEL
FABRICATING SHOPS ■ SCHOOLS MAINTENANCE
SHOPS
SPRINGWATER'S new IRON CRAFTER is the first rrlpjor change in iron worker design since they were originated. The
addition of the bending capability incorporates another valuable metal working function into this truly all-purpose
machine. Wherever metal is fabricated, this machine will promptly pay for itself in labor savings and improved
fabricating capability.
Versatile In addition to bending, the IRON CRAFTER
shear, punch, press, notch and cope.
Easy to Operate Infinite stroke control allows operator to
use only the length of stroke necessary to perform the in
tended operation, and gives the operator the ability to
repeat each stroke with accuracy.
Operator can stop, hold or return the IRON-CRAFTER'S
stroke at any time during the cycle. This feature can save
considerable time during set-up operations and save costly
damage to precision punches and dies.
The IRON CRAFTER will operate in either a horizontal or
vertcial position. The operator has a choice of position
depending on the type of material and the job being per
formed. Changing positions is fast and simple since there
are no bolts or pins to remove or replace.
Safe Smooth hydraulic operation eliminates shock that is
typical of mechanical machines. The IRON CRAFTER cannot
be damaged by overloading because an automatic by-pass
valve stalls the machine immediately to prevent damage to
the machine or tools.
can
Quick change All attachments can be interchanged and
mounted in a matter
Portable Weighs only 1400 lbs. Mounted casters (optional)
provide easy movement by one man. The IRON CRAFTER is
only 24" wide so if fits easily through standard door open
ings. With optional
and can be used on construction sites.
Quality The IRON CRAFTER is precision built with the
highest quality material. Blades are heat treated hi-chrome
alloy. They can be reversed to provide a new cutting edge,
or simply resharpened.
Cuts Costs Being able to perform many metal working
jobs, the multi-purpose IRON CRAFTER eliminates the need
of single purpose, specialized machines. Short-run inexpen
sive fooling can be built right in your shop.
Maintenance The IRON CRAFTER is engineered for long,
trouble-free service with normal use. The principle is simple
because there is only one moving part — the blade and you
use only the amount of power necessary to do the job.
of
minutes.
gasoline engine it becomes truly portable
NOTCH
Package Die Sets available for
Notching and Coping.
NOTCH/COPE
PRESS
1
B
1
A
I?
■
r
!
Ih
I m lvi>
j, 1
'-Z
H
40 Ton Capacity: ^
Special Fixtures
can be
easily adapted
Square Notcher/Coper with
;
optional Swivel Base
easy and fast removal of
notched material (slugs).
to
provide
to utilize pressing capabilities
such as unitized punches, pipe
notchers, pipe punches, etc.
Shut height variable from
0" to 11-1/41'
\
c
Page 3
Page 4
BEND/FORM
NO. 50A AIR BEND DIE
HORIZONTAL BENDER
No. 51A Heavy Duty Horn Type Forming Die
Set bends up to 1/2" x 6" bar. Provides
complete clearance (360°) for bending
boxes, frames, long bars, etc. Male die bolts
to frame
block. Female die attaches to ram knife.
Both pieces case hardened.
of machine
in
place of 6" support
NO. 51 BENDER
l
\ . R'
.n
Bending Capacity: 40 Tons:
Bends 3/4" x 6" mild steel flats.
Die opening adjustable from 1/2" to 5"
NO. 53 FORMING DIES
Page 5
C-FRAME PUNCH
Operates oft Iron Crafter power supply. Punches up to 3" diameter
hole. 12" throat can be mounted on a bench or on the back of Iron
PUNCH
Crafter. Adjustable stroke control.
STRUCTURAL PUNCH
I (ft ll E
Page 6
m
SPECIFICATIONS
■
=
ELECTRICAL
MACHINE OPERATION
STROKE
THROAT DEPTH
SHIPPING DIMENSIONS
OPERATING HEIGHT
CONTROLS
Standard 3 H.P., 220/440, 3 Phase, 60 Cycle motor.
Single phase, 3 H.P., 1 1 0/220 — optional. Gas engine
drives available — optional.
Hydraulic
2-1 / 2"
6"
1400 lbs.WEIGHT
59" high x
In vertical position — 63"
In horizontal position — 55"
Manual lever — standard
Foot lever controls — optional
60"
long x 24" wide
CAPACITY
BENDING
SHEARING
1" x 4" mild steel flats
1-1 18" rounds
Special dies available for larger
materials.
Flats — Up to 3/4" x 4"
Rounds — Up to 1 -1 / 4"
Angles — Up to 3" x 3" x 5/16"
Squares — Up to 1"
Optional shearing die sets:
Angles — up to 4" x 4" x 3/8"
Channels — 3" or 4"
Flat bar —
1 /
2" x 6"
PRESSING
PUNCHING
NOTCHING
SQUARE COPER-
NOTCHER
40 tons hydraulic pressure
3/4" dia. in 5/8" mild steel or
1" dia. in 7/16" mild steel.
Up to 5" x 5" in 1 /4" mild steel
3" x 3" in 1 /4" mild steel
SPRINGWATER MFG. CO., INC.
MANUFACTURERS OF QUALITY METAL WORKING MACHINERY
HYDRAULIC BAR BENDERS
8
TON,
30
TON,
C-FRAME PRESSES.
i'i r i
Specifications subject to change
FORMERLY EL-CHEM MACHINERY, INC.
TUBING CUTTERS
without
I
notice.
MILL STREET
SPRINGWATER, N. Y. 14560
PHONE (716) 669-2411
Printed in U.S.A.
