Page 1

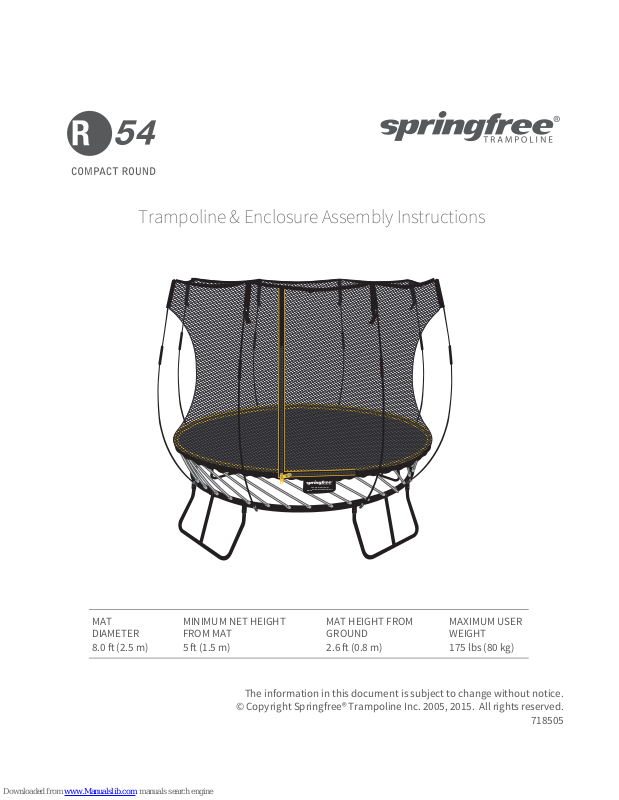

Trampoline & Enclosure Assembly Instructions
.
A TIME
T
A
NE
!O
FE
SA
IT
DO
O JUMP?
T
NT
WA
À LA FOIS.
UNE
!
É
RIT
SÉCU
UTE
O
N T
-LE E
S
FAITE
R?
AUTE
S
E
ENVIE D
MAT
DIAMETER
8.0 (2.5 m)
MINIMUM NET HEIGHT
FROM MAT
5 (1.5 m)
MAT HEIGHT FROM
GROUND
2.6 (0.8 m)
MAXIMUM USER
WEIGHT
175 lbs (80 kg)
The information in this document is subject to change without notice.
© Copyright Springfree® Trampoline Inc. 2005, 2015. All rights reserved.
718505
Page 2

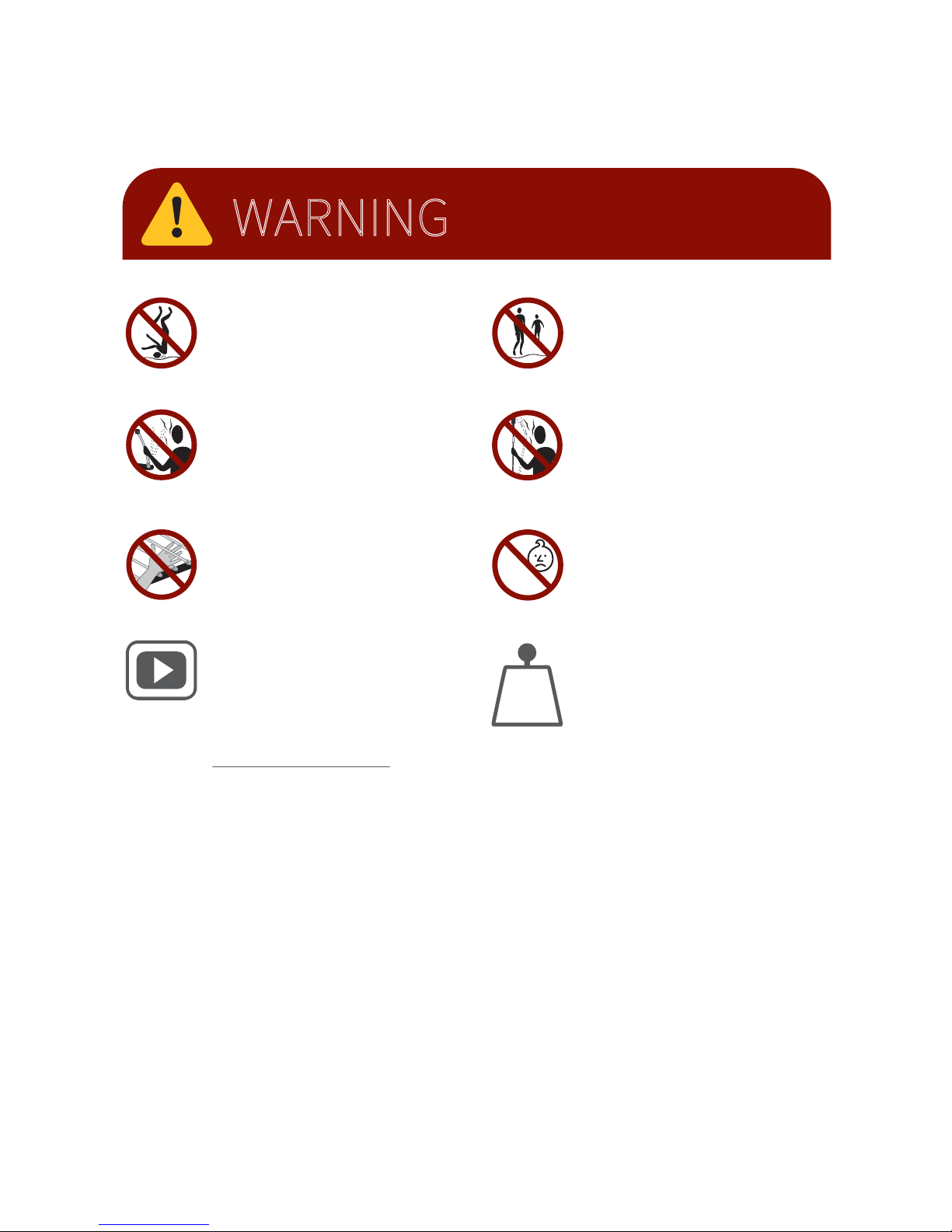

WARNING
Read the warnings on this page and those
contained in the User Guide before you assemble
and use the trampoline and enclosure.
No somersaults or flips. Landing on
the head or neck can cause serious
injury, paralysis, or death, even when
landing in the middle of the bed.
Treat any loaded rod with caution
until you are sure it is properly
installed or uninstalled. Keep face
clear of loaded rods. An improperly
installed rod could release and cause
facial injury or blindness.
Do not hold onto, or place fingers
between the rods while someone is
jumping on the trampoline.
Installing the trampoline can be
challenging if you don’t carefully
follow these instructions. To make it
easier, we have helpful demonstration
videos that will guide you through
each step. Visit
http://springfr.ee/install-ov or scan
the code in Step 1 to get started.
0-6
KG
LBS
No more than one person at a time.
Multiple jumpers increase the chances
of loss of control and collision and can
result in serious head, neck, back, leg,
arm or other injuries.
Never attempt to remove a black net
rod from its net pocket or disengage
(unlock) the rod sleeve while the black
net rod is under tension.
Entrapment hazard possible for
children under 6 years of age.
Your Springfree trampoline has been
designed only for domestic use, for
residential backyards used by both
children and adults. The Maximum
User Weight for this trampoline is
located on the front panel of this
manual. Jumpers at or near the
Maximum User Weight should take
extra precautions in their manoeuvres
to ensure they do not initiate contact
with the ground while jumping as this
can cause serious injury.
Page 3
WARNING
Keep small children at least 25 (7.5 m) away while
A.
assembling the trampoline; they could be injured by
improperly assembled rods releasing and ejecting
from the frame.
Do not attempt to use the trampoline until it is
B.
completely assembled.
Be aware that when loaded, the rods can spring back
C.
and may cause injury. In particular, keep your face
well clear of the rods during assembly or
disassembly. An improperly installed rod could
release and cause facial injury or blindness.
Maintain a minimum clearance of 16.5 . (5 m) above
D.
the mat [in USA and Canada, 24 (7.3 m) above the
trampoline from ground level] in order to prevent
users from inadvertently contacting overhead
hazards such as electric wires, tree limbs or
clothesline.
Maintain a minimum clearance of 5 (1.5 m) [in EU
E.
countries, 6.5 (2.0 m)] on all sides of the
trampoline. This area should not include concrete,
bitumen, brick or other hard surfaces or be in the
proximity of other conflicting installations (e.g.
pools, swings, slides, climbing frames) as these can
cause serious injuries if users fall o the trampoline.
Place the trampoline on a flat level surface with
F.
impact attenuating properties such as grass and
ensure that it is suiciently stable to prevent it from
tipping over and/or blowing away. Sandbags or pegs
may be suitable anchorage devices.
Please read the following precautions carefully
before beginning the assembly process. Retain for
future reference.
Refer to Installation Step 11 for more information.
Do not locate the trampoline on top of other
G.
objects or store anything underneath the
trampoline bed.
Place the trampoline in a well-lit area.
H.
Record the date of purchase on the enclosure label
I.
in the space provided.
Only use approved Springfree Trampoline
J.
accessories, and install in accordance to
installation instructions. Do not make
modifications to the trampoline or accessories.
Secure the trampoline against unauthorized and
K.
unsupervised use.
The owner and supervisors of the trampoline are
L.
responsible to make all users aware of practices
specified in the User Guide.
Trampoline enclosure is supplied as part of the
M.
trampoline. Do not install enclosures that are not
suited to your product.
The trampoline is intended for indoor/outdoor
N.
usage. Refer to Trampoline location information in
the User Guide for more details.
Page 4
1
If
f
o
r
a
n
y
re
a
so
n
yo
u
u
need tod
to
d
to
rem
o
v
e
a
r
od
f
rom
t
h
e ma
t,
d
o
n
o
t t
wis
t o
r
rotate
t
h
e
m
m
a
t
edge
as
sho
w
n
.
T
h
is
co
u
co
u
l
d
c
aus
e
se
r
io
us
i
nj
u
r
nj
u
r
y
o
r
d
a
ma
ge
t
h
e
t
r
h
e
t
ram
p
o
l
ine
.
Si
Si
vous
de
vez dé
s
i
ns
talle
r
une
t
ig
es d
u
ta
p
is
,
t
ig
es d
u
ta
p
is
,
ne
tord
e
z
et
n
e
t
o
u
r
ne
z
p
a
s
le
b
o
r
d
d
u
t
apis
.
C
el
a
peut
en
t
ra
ne
r
de
gr
a
v
es
bles
s
u
re
s
o
u des do
m
ma
ge
s
au
t
r
am
p
o
line.
A
D
B
7
G
E
5
C

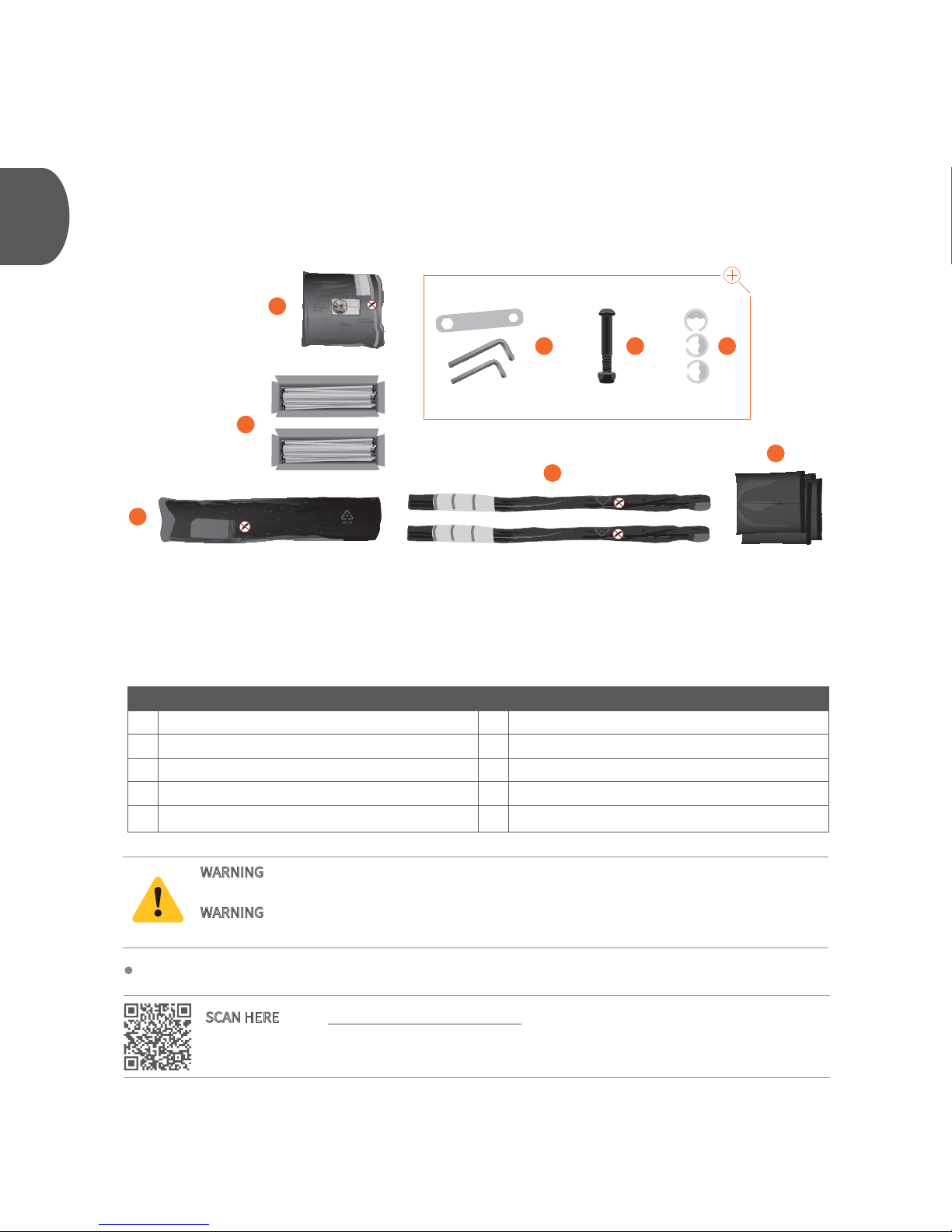

Part Quantity Part Quantity
40
1
1
F
Spare C-clips
G
Black Net Rods
H
Sandbags
3
1
A
Mat
B
White Mat Rods
C
Net
D
Wrenches
E
Spare Small Bolt & Nut
F
H
3
8
4
WARNING - Installation typically takes two hours to complete. Two people are recommended
for assembly.
WARNING
- The sleeves on the rods are intended to provide protection from fibres or splinters.
Do not remove. If they are damaged, replace them.
Layout all parts listed as shown.
SCAN HERE
or visit http://springfr.ee/g4-install-ov for a helpful installation overview video.
Page 5
2
B
C
A
ED

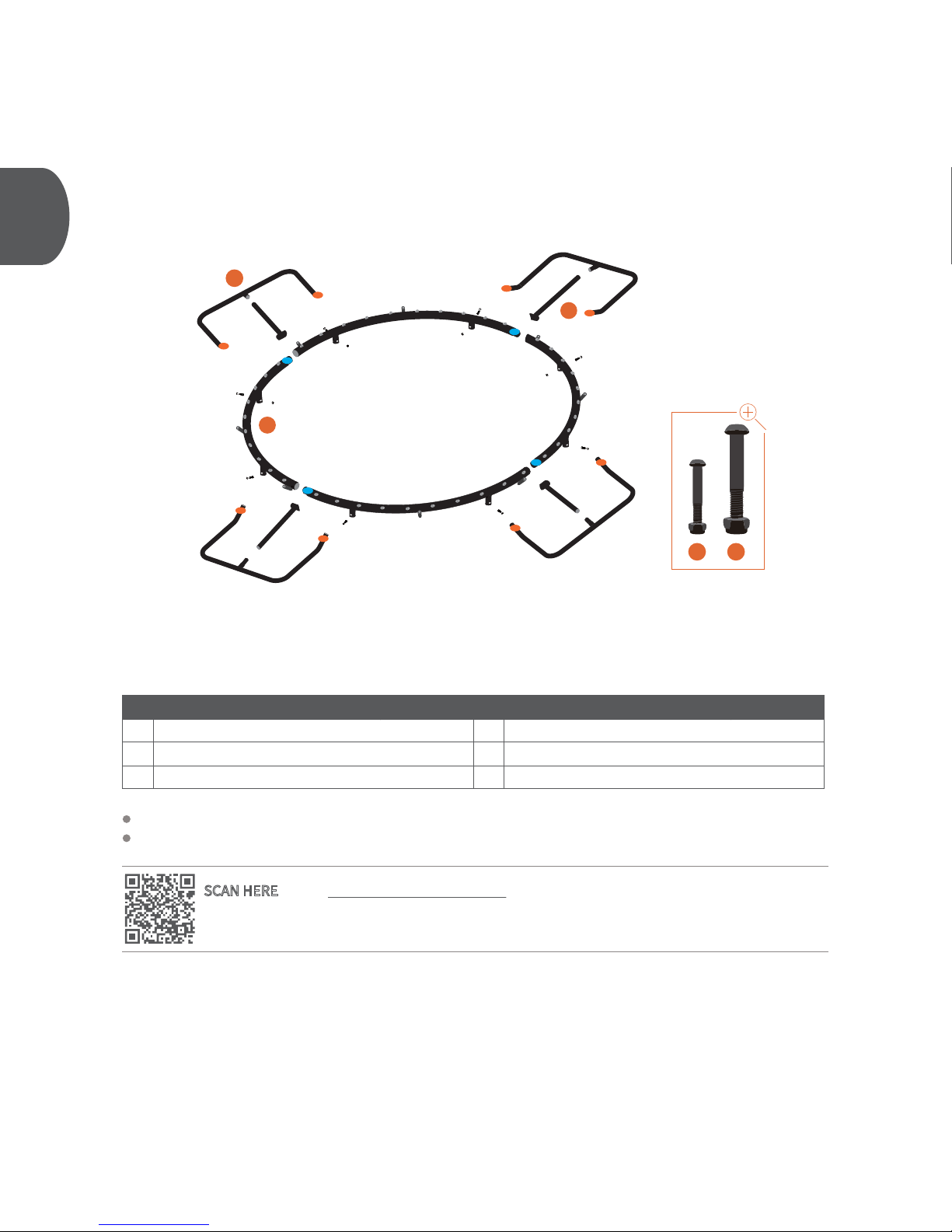

Part Quantity Part Quantity
A
Curved Frame Sections
B
Legs
C
Center Posts
Lay out the remaining parts as shown. The coloured stickers all face upwards.
If you are missing any parts please contact Springfree® Trampoline directly.
SCAN HERE or visit http://springfr.ee/g4-step-2 for a helpful installation video for Step 2.
48
4
4
Small Bolts & Nuts
D
Large Bolts & Nuts
E
C-clips (Attached to Frame)
F
4
8
Page 6
3
2
4
1
WARNING - Use the tools provided to fasten the nuts. Do not over tighten the nuts. Do not use
power driver, torque wrench, or drill.
TIP - Fastening the final two frame sections oen requires additional eort. Two people may be
required for assembly.
3

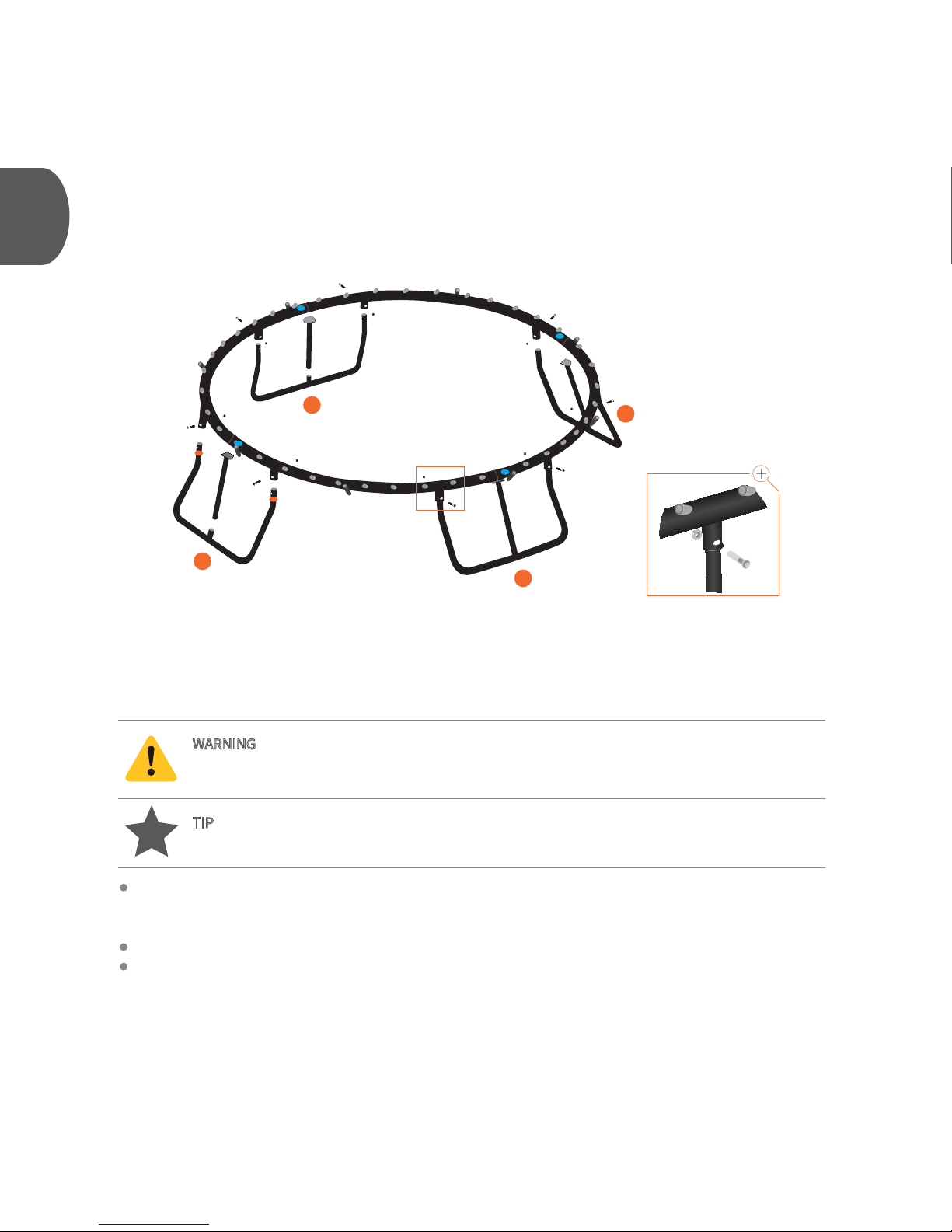

Connect and fasten one frame section at a time together with the large nuts and bolts. When finished, the
bolt head should be flush with the frame and face out from the center of the trampoline (the nut should
face the center).
Attach a center post to the middle of each leg section.
Then, in the order shown in the illustration, li the frame and evenly put the legs into the leg hole on the
frame. We recommend that two people work together to complete this step. One person to hold the frame
up and horizontal, and the other person to put the legs into the leg hole.
Page 7
4
Incorrect Position
Correct Position
NOTE - Before proceeding, double check that all of the bolts and nuts are tightened. Use the tools
provided to fasten the nuts. Do not over tighten the nuts. Do not use power driver,
torque wrench, or drill.

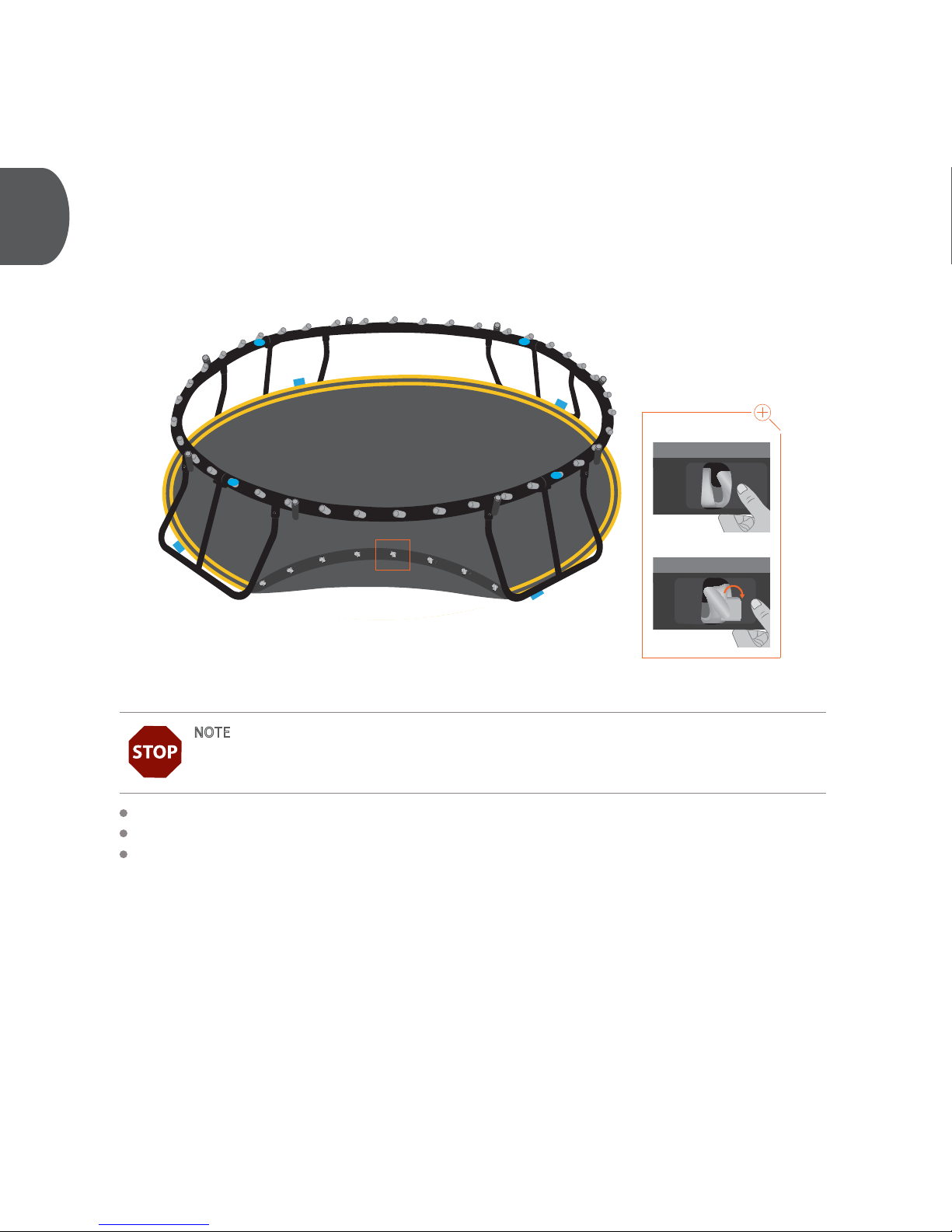

Lay out the mat with the yellow stripes facing upwards inside the trampoline frame.
The blue tags on the mat should approximately align with the blue stickers on the frame.
Before moving to the next step, ensure that the mat rod holders are correctly positioned with the mat
rod holder tag outside the mat rod holder pocket, as per the insert. If the mat rod holder tag is under
the pocket, adjust accordingly.
Page 8
5

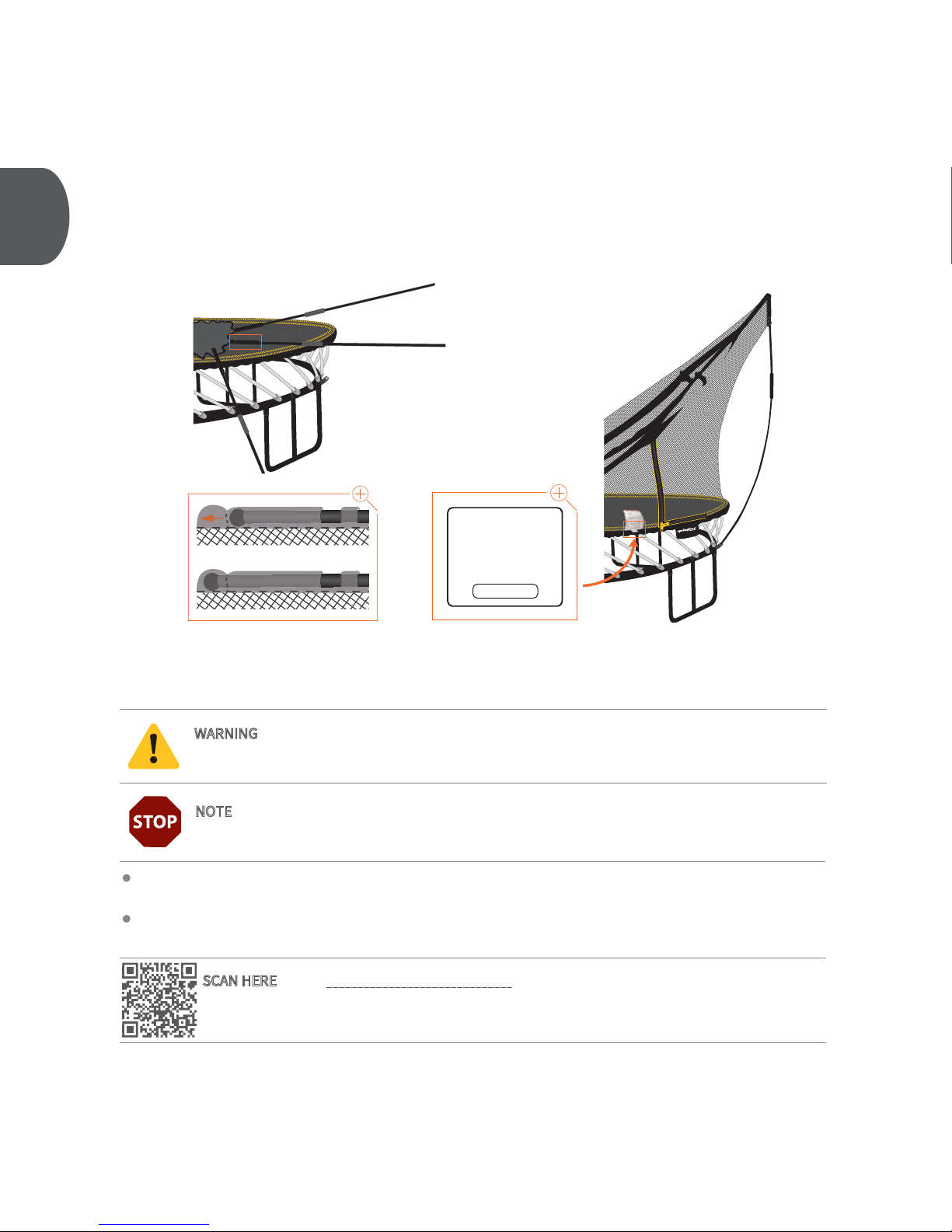

NOTE - As you install the white mat rods into the mat rod sockets the net will become tight
against the frame. Handle the net with care and be sure that it does not get caught or it may
tear.

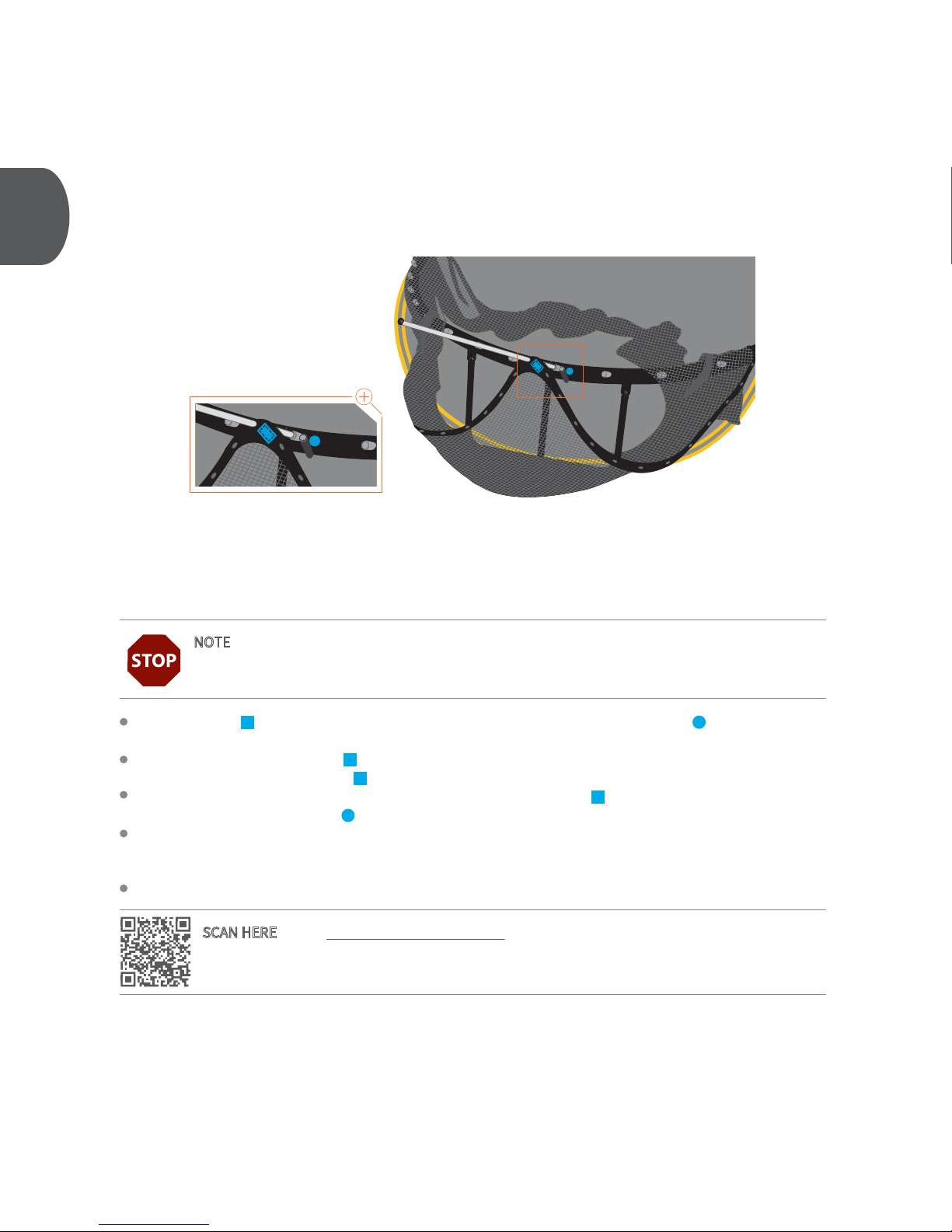

Locate the blue tag on the bottom edge of the net and match it with one of the blue stickers on the
frame.
Holding the net so that the blue tag is facing you, gently place the rest of the net inside the frame as
shown. DO NOT let go of the blue tag.
Put a white mat rod through the hole to the immediate le of the blue tag in the net and then into the
mat rod socket next to the blue sticker.
Then, working carefully around the frame, insert the remaining white mat rods through the net holes and
into the corresponding mat rod socket. When finished, the net should be stretched tightly around the
OUTSIDE of the frame.
Be sure that the white mat rods are seated down to the bottom of each mat rod socket.
SCAN HERE or visit http://springfr.ee/g4-step-5 for a helpful installation video for Step 5.
Page 9

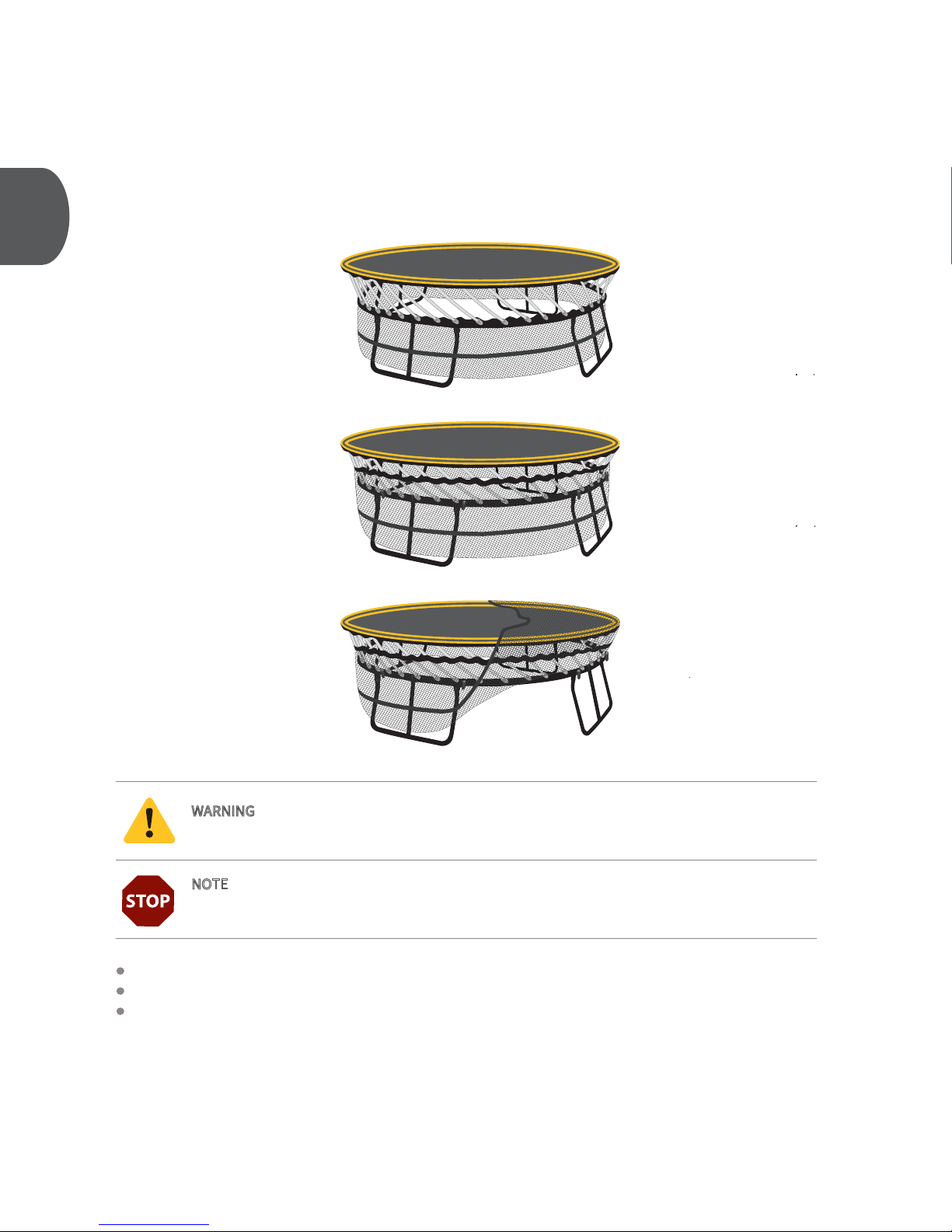

6a
4
551
3
WARNING - Treat any loaded rod with caution until you are sure it is properly installed or
uninstalled. Keep your face well away from any loaded rod.
WARNING - Both people must maintain a steady grip on the rod until it is securely installed in
the mat rod holder.

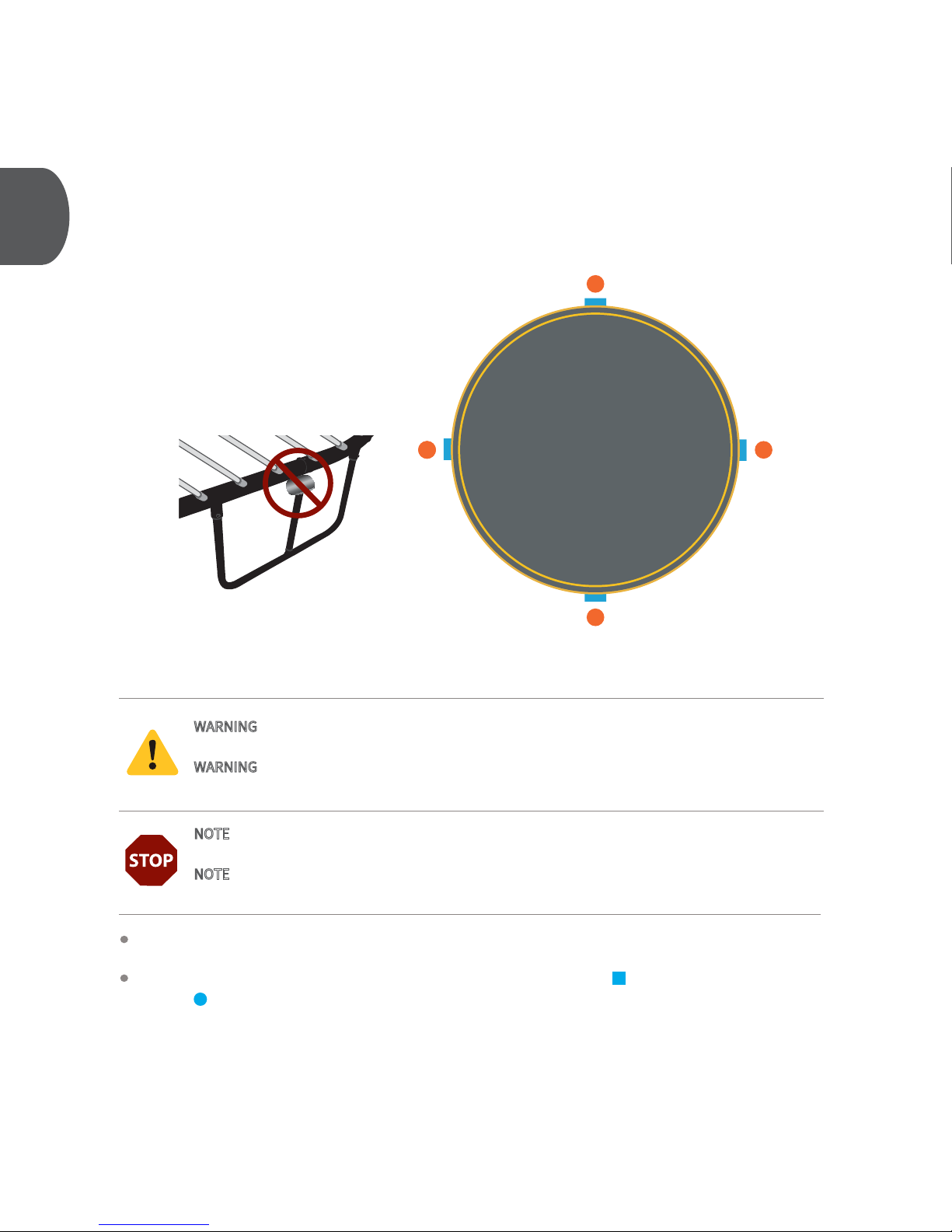

NOTE - Before you install the first white mat rod into a mat rod holder, read the instructions in
Step 6b and 6c.
NOTE - Following the sequence shown spreads the tension evenly across the mat. If you do not
follow this sequence, it will be very diicult to attach the mat.
2
Check that the center posts of the leg sections are correctly seated under the trampoline frame. If they
are not, adjust them now.

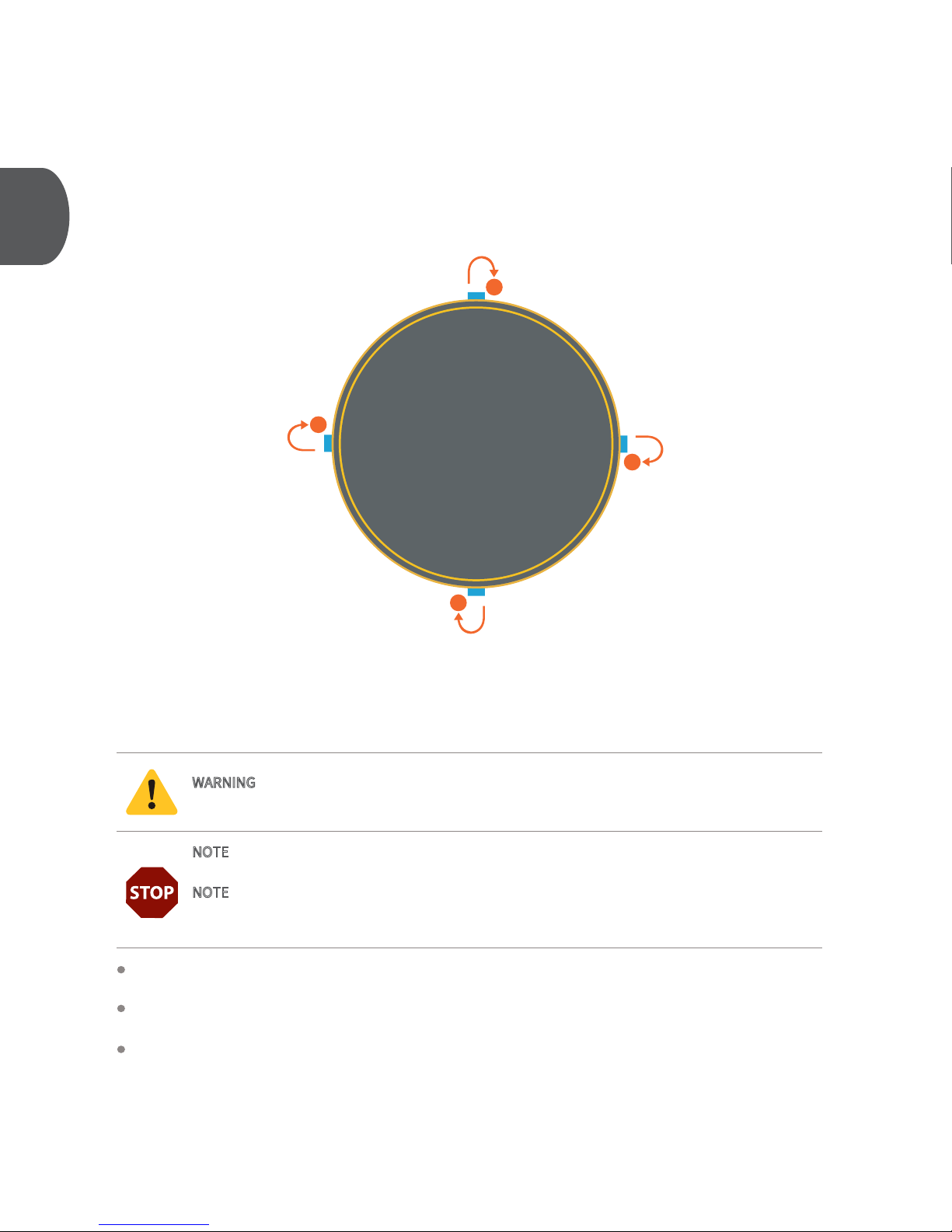

Attach one white mat rod at each of the locations shown - where the blue tags on the mat match with
the blue stickers on the frame.
Page 10

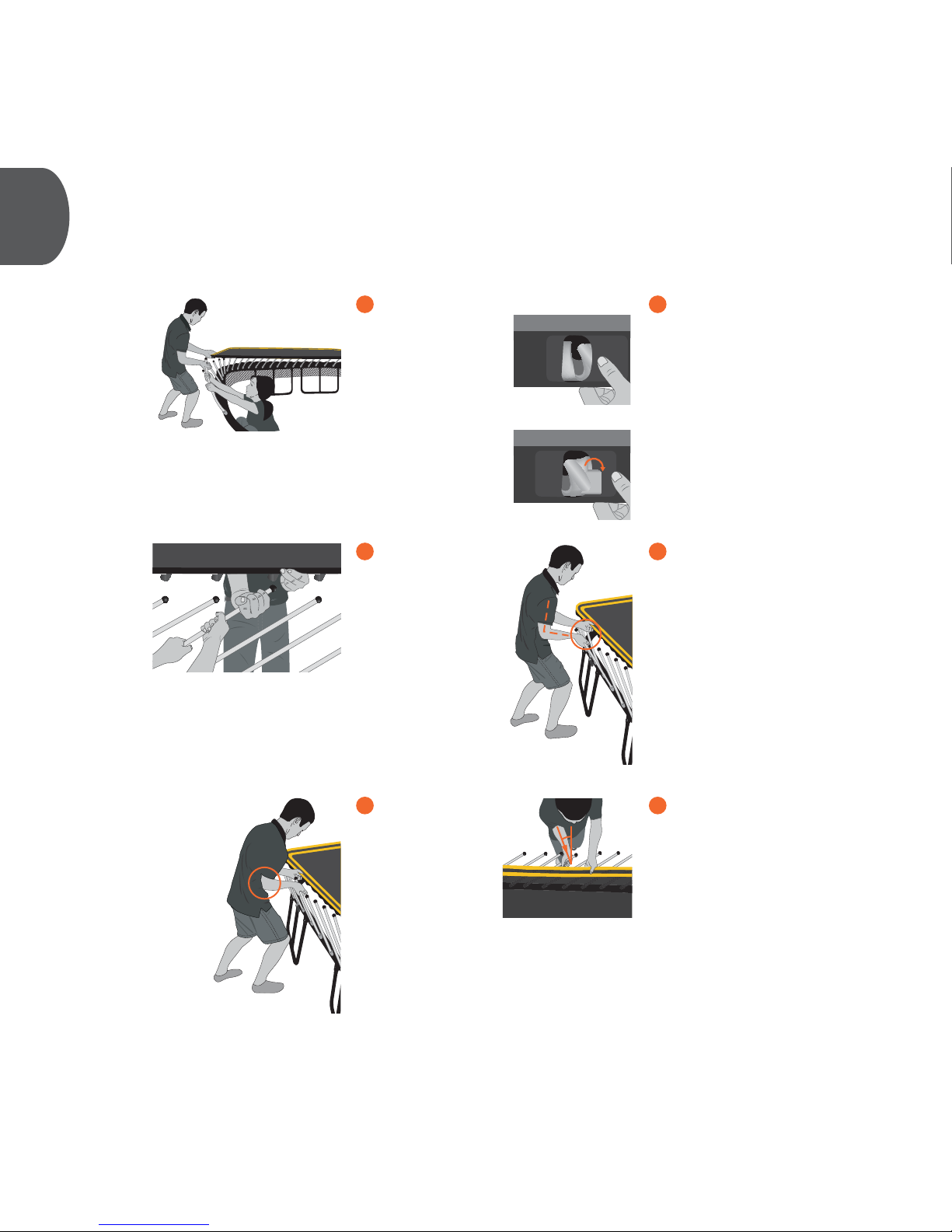

6b
1

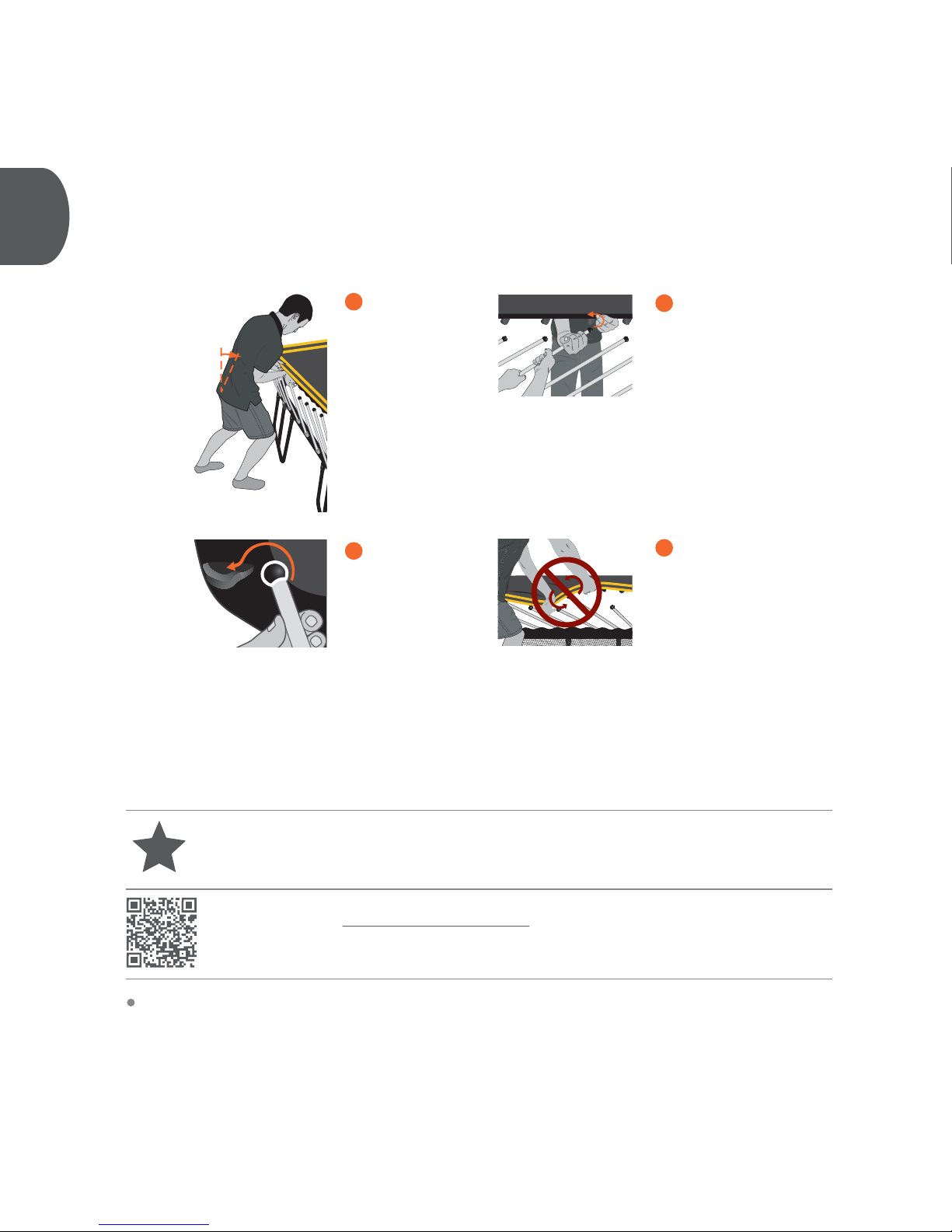

Have one person
position themselves
inside the frame of
the trampoline while
the other stands
outside as shown.
3
Inside Person:
Take hold of the rod
with both hands and
maintain a steady
grip until it is
securely installed in
the mat rod holder.
Incorrect Position
Correct Position
2
Inside Person:
Ensure that the mat
rod holder is
correctly positioned
with the small tag
positioned outside
the mat rod holder
pocket.
4
Outside Person:
Hold the white mat
rod with your palm
facing up. Keep the
mat edge horizontal
with the other hand.
5
Outside Person:
Stand with one leg
forward and knees
bent. Bend your arm
at a right angle,
push your elbow
into your hip, and
hold the white mat
rod.
6
Outside Person:
Pushing across your
body in the direction
shown will make it
easier to get the mat
rods in or out of the
mat rod holders.
Page 11
6c
7
Outside
Person: Rocking
from your heels to
the balls of your
feet, use your
body weight to
push the white
mat rod towards
the center of the
mat.
9
Inside Person:
Guide the white
mat rod up and
over the back edge
of the mat rod
holder and into
position. Check that
the rod is fully
seated in the mat
rod holder before
continuing.
8
Inside Person:
As the outside
person pushes,
carefully pull the
rod in and up in the
direction of the mat
rod holder.
10
Outside Person:
Do not twist or
rotate the mat to
remove a rod from a
mat rod holder. This
could cause serious
injury or damage
the trampoline.
TIP - Keep the mat level when you install or uninstall the white mat rods.
SCAN HERE or visit http://springfr.ee/g4-step-6 for a helpful installation video for Step 6.
If you need to take a white mat rod out of the mat see the Disassembly Instructions.
Page 12
7
6
5
7
8
WARNING - Treat any loaded rod with caution until you are sure it is properly installed or
uninstalled. Keep your face well away from any loaded rod.
NOTE - Follow the mat rod installation sequence. Do not install multiple mat rods in one
location. If you do not follow this sequence, it will be very diicult to attach the mat.
NOTE are correctly seated under the trampoline frame. If they are not, adjust them before installing
any more rods. You may need to uninstall rods to release the tension.
Go back to the very first rod you attached to the mat in Step 6a. Now, moving clockwise, attach ONE white
mat rod next to the initially installed rod.
Moving clockwise around the trampoline, attach ONE additional rod next to each of the already installed
rods as shown above.
Continue circling the trampoline several more times following this sequence, installing only ONE rod per
grouping, until all the white mat rods are attached to the mat.
Each time you circle the trampoline, check that the center posts of the leg sections
Page 13
8
WARNING - Do not use the trampoline until it is completely assembled. Failure to follow these
instructions may cause rods to break or eject from the trampoline frame.
NOTE - Check that the net is not caught on the trampoline frame or the bolts – if the net catches,
it may tear.
Moving clockwise around the frame, carefully slide the net up to the top of the white mat rods.
Carefully pull the net up over the edge of the mat. It is normal for the net to be tight.
Working around the frame, li the rest of the net into the center of the mat. Ensure that the bottom band of
the net is pulled all the way to the top of the white mat rods.
Page 14
9
1
Unfold
and align
2
Secure
WARNING - Treat any loaded rod with caution until you are sure it is properly installed or
uninstalled. Keep your face well away from any loaded rod.

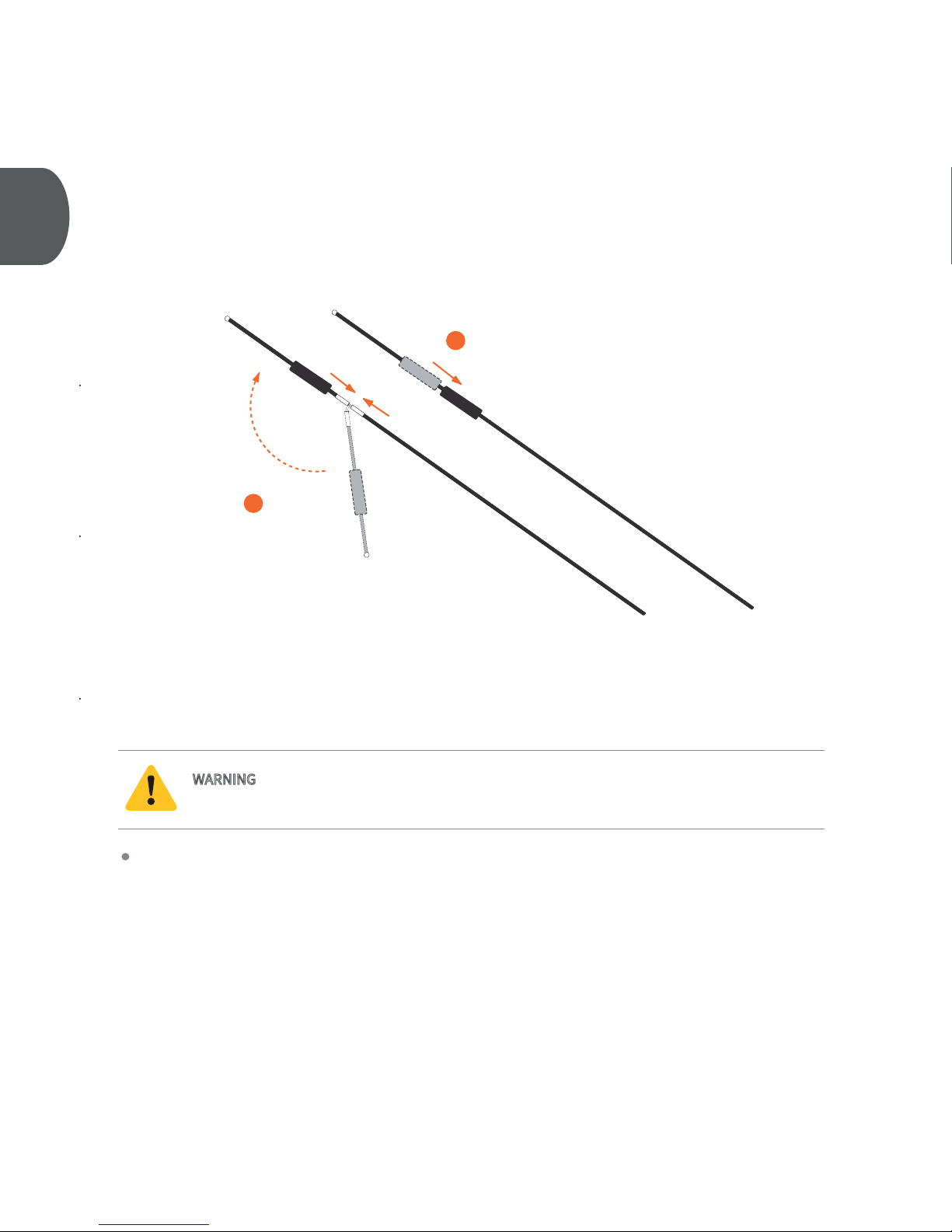

Assemble the black net rods as shown.
Page 15
10
SERIAL NUMBER
NUMÉRO DE SÉRIE
G41530
RECORD PURCHASE DATE IN THE
SPACE PROVIDED /
ENREGISTREZ LA DATE D'ACHAT
DANS L'ESPACE PRÉVU:
E.
IM
T
A
T
E A
N
!O
AFE
.
S
IT
DO
A FOIS
L
?
À
E
UN
O JUMP
É!
T
T
I
NT
WA
SÉCUR
TE
OU
T
N
E
-LE
S
AITE
F
?
R
TE
AU
S
E
D
ENVIE
WARNING - Never attempt to remove a black net rod from its net rod pocket or disengage (unlock)
the rod sleeve while the black net rod is under tension.
NOTE - Please record the purchase date of your trampoline on the net serial number tag. It is located
under the net warnings, which are sewn into the edge of the net beside the entrance.
Insert ALL of the black net rods into the net rod pockets at the top edge of the net. Push the rod up into
the pocket and past the catch. You will feel some resistance as the ball is pushed through.
Insert the bottom end of the black net rod into the net rod socket on the trampoline frame. You will hear
a click when the black net rod is fully seated.
SCAN HERE or visit http://springfr.ee/g4-step-10 for a helpful installation video for Step 10.
Page 16
11
.
TIME
A
AT
E
N
!O
SAFE
IT
DO
A FOIS.
?
E À L
UN
O JUMP
É!
T
T
I
R
NT
WA
SÉCU
TE
OU
T
EN
-LE
S
ITE
A
F
?
R
TE
U
A
S
ENVIE DE
WARNING - Make sure you read all warnings and precautions found in the User Guide before using
the trampoline
WARNING - If you anticipate severe weather, consider lowering the enclosure, moving the
trampoline to a sheltered location or disassembling the trampoline completely.

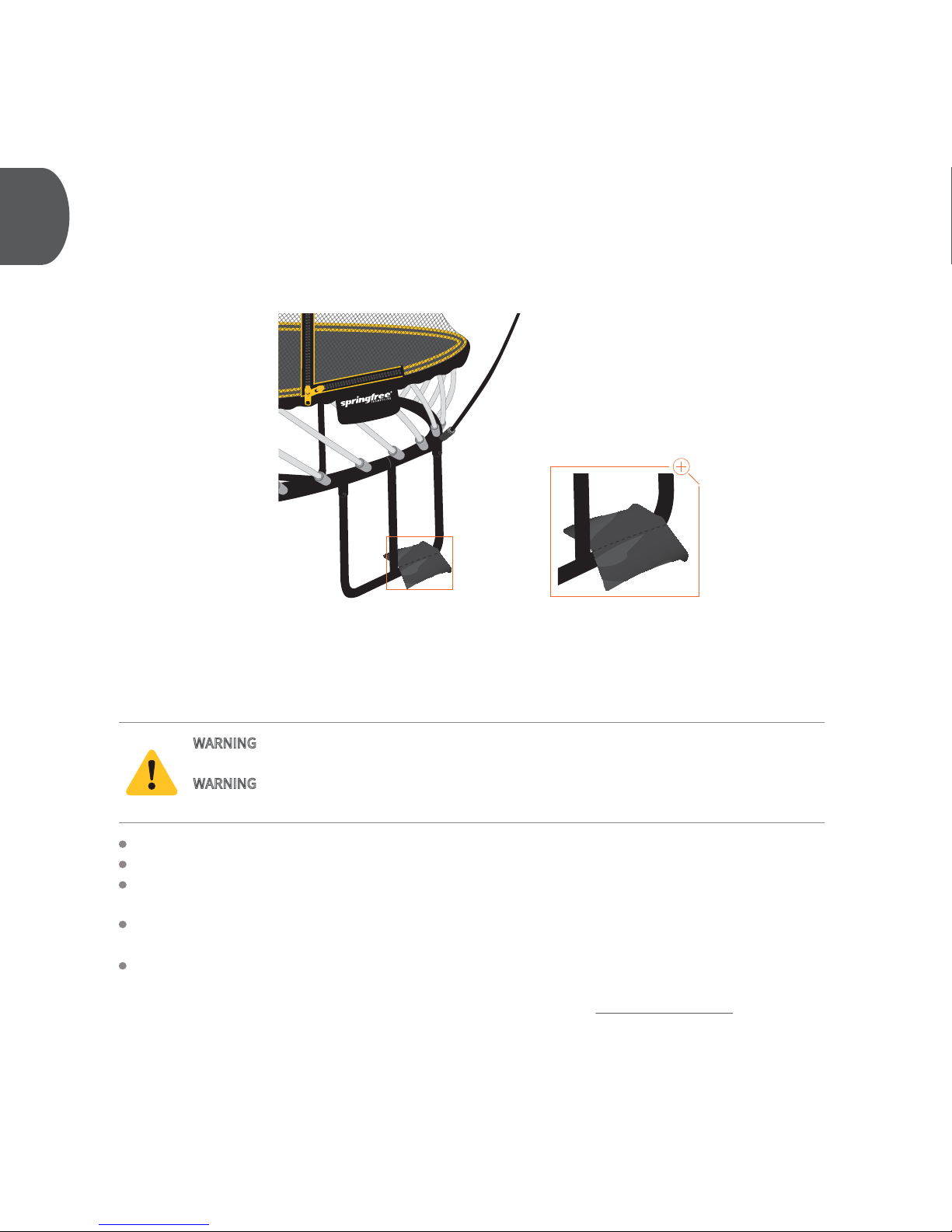

For increased stability, your trampoline comes with sandbags.
Fill these sandbags to approximately 6 inches (150 mm) below the top with wet or dry coarse sand.
Fold over the top of the bag twice so the Velcro® strips meet. Velcro is a registered trademark of Velcro
Industries B.V.
Place the sandbags over the trampoline legs as required so that the sandbag cannot slip o. We
recommend that the stitched seam in the center should lay over the leg tube.
If your trampoline is installed in an area susceptible to high winds or if you are looking for increased stability
for your trampoline, we recommend the Springfree Ground Anchor, which has been designed specifically for
the Springfree Trampoline. Ground Anchors can be purchased online at www.springfree.com.
Congratulations! You have successfully installed your Springfree Trampoline! Happy bouncing!
