Springer Controls N5 Dimensional Sheet

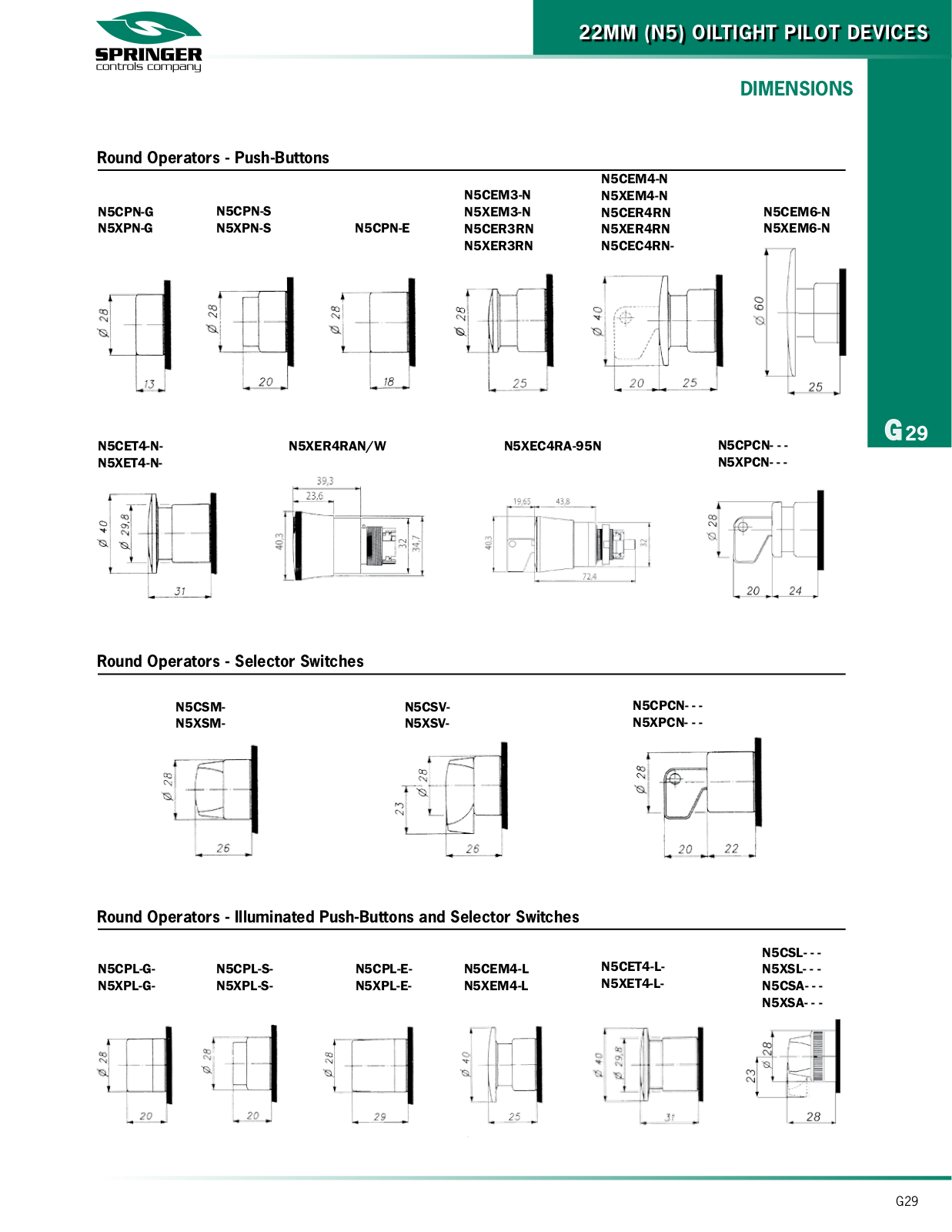

Round Operators - Push-Buttons

N5CPN-G
N5XPN-G

N5CET4-N­N5XET4-N-

N5CPN-S
N5XPN-S

N5XER4RAN/W N5XEC4RA-95N

N5CPN-E

N5CEM3-N
N5XEM3-N
N5CER3RN
N5XER3RN

22MM (N5) OILTIGHT PILOT DEVICES

DIMENSIONS

N5CEM4-N
N5XEM4-N
N5CER4RN
N5XER4RN
N5CEC4RN-

N5CEM6-N
N5XEM6-N

N5CPCN- - ­N5XPCN- - -

G

29

Round Operators - Selector Switches

N5CSM­N5XSM-

N5CSV­N5XSV-

Round Operators - Illuminated Push-Buttons and Selector Switches

N5CPL-G­N5XPL-G-

N5CPL-S­N5XPL-S-

N5CPL-E­N5XPL-E-

N5CEM4-L
N5XEM4-L

N5CPCN- - ­N5XPCN- - -

N5CET4-L­N5XET4-L-

N5CSL- - ­N5XSL- - ­N5CSA- - ­N5XSA- - -

G29

22MM (N5) OILTIGHT PILOT DEVICES

DIMENSIONS

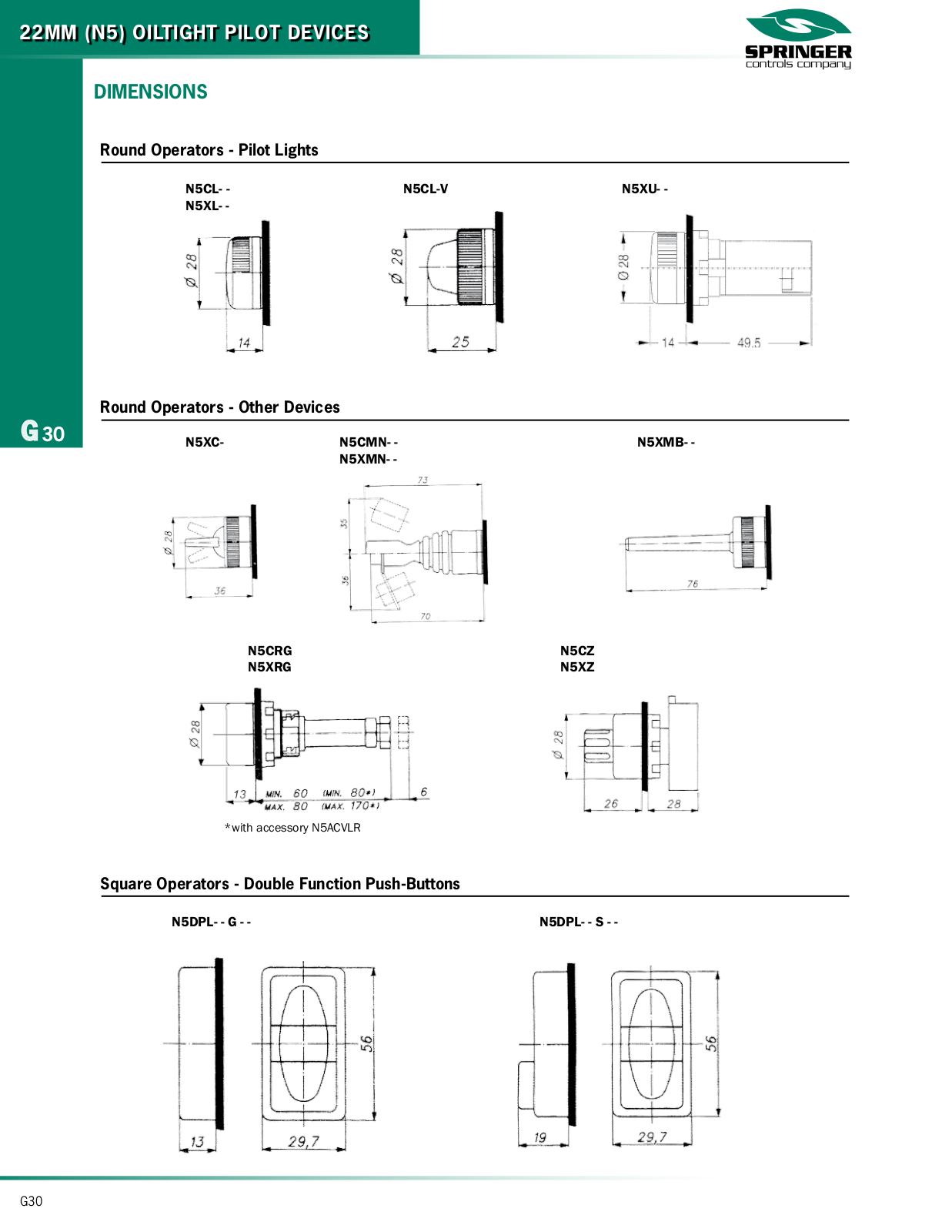

Round Operators - Pilot Lights

G

30

N5CL- ­N5XL- -

Round Operators - Other Devices

N5XC-

N5CMN- ­N5XMN- -

N5CL-V N5XU- -

N5XMB- -

N5CRG
N5XRG

*with accessory N5ACVLR

Square Operators - Double Function Push-Buttons

N5DPL- - G - -

N5CZ
N5XZ

N5DPL- - S - -

G30
