SpringCard Prox'N'Roll, PMA82TP-BA, PMA82TP-BB Reference Manual

Download

PMA8N9P-BC

02/06/2009

Headquarters, Europa

SpringCard

13 voie la Cardon Parc Gutenberg 91120 Palaiseau FRANCE

Phone : +33 (0) 164 53 20 10 Fax : +33 (0) 164 53 20 18

Americas

SpringCard

964 Fifth Avenue Suite 235 San Diego, CA 92101 USA

Phone : +1 (619) 544 1450 Fax : +1 (619) 573 6867

www.springcard.com

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

ROX

'N'R

OLL

RFID S

CANNER

Reference manual

PMA8N9P-BC

2 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

DOCUMENT INFORMATION

Category :

Manual

Keywords :

Group :

Prox'N'Roll RFID Scanner, Reader, Prox'N'Roll, HID, Configuration

Reference :

PMA8N9P

Version :

Abstract :

Status :

Approved

pma8n9p-bc.doc saved 02/06/09 - printed 02/06/09

REVISION HISTORY

Valid. by

Ver. Date

Author

Tech. Qual.

Approv.

Remarks :

BC 02/06/09 LTX LTX LTX ECL Change the default value of General Option (OPT) BB 13/05/09 LTX LTX LTX ECL Added new keyboard layout BA 20/02/09 LTX JDA JDA JDA SpringCard branding.

Added reference to “RFID Scanner” family. Common chapters now shared with other products along the same family. Added serial mode and reference to CrazyWriter / CSB6.

AA 03/12/08 LTX Initial release, Pro Active branding

PMA8N9P-BC

3 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

TABLE OF CONTENT

INTRODUCTION.................................... 5

1.1. A

UDIENCE

.............................................. 5

1.2. P

RODUCT BRIEF

....................................... 5

1.3. K

EYBOARD EMULATION MODE

....................... 5

1.4. S

ERIAL PORT EMULATION MODE

..................... 6

1.5. R

ELATED DOCUMENTS

................................ 6

1.6. O

THER PRODUCTS IN THE SAME FAMILY

............ 6

CONFIGURATION ATTRIBUTES ............... 7

2.1. P

RINCIPLES

............................................ 7

2.2. G

LOBAL CONFIGURATION ATTRIBUTES

............. 8

2.3. K

EYBOARD EMULATION MODE ATTRIBUTES

.......10

2.4. S

ERIAL EMULATION MODE ATTRIBUTES

............11

2.5. O

THER ATTRIBUTES

..................................12

CARD ACCEPTANCE TEMPLATES ............13

3.1. B

ASIS

.................................................13

3.2. ID-

ONLY ACCEPTANCE TEMPLATES

................16

3.3. M

IFARE CLASSIC ACCEPTANCE TEMPLATE

........21

3.4. M

IFARE ULTRALIGHT ACCEPTANCE TEMPLATE

...26

3.5. D

ESFIRE ACCEPTANCE TEMPLATE

..................28

3.6. ISO 7816-4 A

CCEPTANCE TEMPLATE

............31

3.7. C

ALYPSO ACCEPTANCE TEMPLATE

.................35

SERIAL PROTOCOL AND COMMAND SET .38

4.1. S

ERIAL OUTPUT FORMAT

............................38

4.2. S

ERIAL INPUT

.........................................38

CONFIGURING PROX’N’ROLL RFID

SCANNER ...........................................40

5.1. C

ONNECTING PROX

’N’R

OLL TO A COMPUTER

.... 40

5.2. R

ETRIEVING PROX

’N’R

OLL

RFID S

CANNER

INFORMATION

........................................ 41

5.3. E

NABLING CONFIGURATION COMMANDS

.......... 41

5.4. A

CCESSING PROX

’N’R

OLL CONFIGURATION

..... 41

5.5. A

PPLYING NEW CONFIGURATION

.................. 42

5.6. R

EVERTING TO DEFAULT

............................ 42

CREATING MASTER CARDS USING

SQ844P SOFTWARE ............................ 43

6.1. O

VERVIEW

........................................... 43

6.2. C

ONFIGURATION FILES

............................. 44

6.3. O

PERATION INSTRUCTIONS

........................ 47

6.4. C

HANGING AUTHENTICATION KEY FOR MASTER

ARDS

................................................ 47

6.5. R

EVERTING TO DEFAULT

............................ 49

SPECIFICATION OF MASTER CARDS...... 50

7.1. B

UILDING A MASTER CARD

........................ 50

7.2. T

EMPLATE FOR MASTER CARDS

................... 50

7.3. D

ATA STRUCTURE

................................... 52

7.4. D

IGITAL SIGNATURE

................................ 53

SECURITY ALGORITHMS ...................... 54

8.1. HMAC

SIGNATURE AND KEY DIVERSIFICATION

. 54

8.2. D

ESFIRE

SAM / RC171

KEY DIVERSIFICATION

PMA8N9P-BC

4 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

PMA8N9P-BC

5 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

1. I

NTRODUCTION

This document provides detailed technical information for use of SpringCard Prox’N’Roll RFID Scanner.

1.1. A

UDIENCE

This reference manual assumes that the reader has expert knowledge of computer configuration and usage. It is designed to be used by system integrators.

1.2. P

RODUCT BRIEF

Prox’N’Roll RFID Scanner is a table-top USB proximity reader. It reads serial

number or data from any standard ISO/IEC 14443 contactless card, including popular NXP MIFARE and DESFire families, and also ISO/IEC 15693 vicinity tags used in RFID systems.

Prox’N’Roll RFID Scanner supports to operating modes :



Keyboard emulation mode (default configuration),



Serial port emulation mode.

1.3. K

EYBOARD EMULATION MODE

Configured for keyboard emulation1, Prox’N’Roll RFID Scanner outputs its data as if there were typed on the computer’s keyboard, just as a bar code scanner behaves.

This allows a drop-in replacement of legacy bar code scanners (PS/2 or USB devices) by a state-of-the-art RFID solution.

a. Typical applications

This reader is primarily dedicated to replace a bar code scanner where RFID labels may be used instead of barcodes : library or book stores, item management, ….

b. Output configuration

Thanks to the software’s configuration (stored in non-volatile memory), the same reader is highly customizable on-the-field :



Keyboard layout (QWERTY, AZERTY, QWERTZ),



Keyboard sequences (prefix and postfix) to automate the navigation between the fields in any existing application.

The device complies with the USB “Human Interface Device” (HID) profile, keyboard subclass. With most operation systems, no specific driver is needed as the device is seen as a standard computer keyboard.

PMA8N9P-BC

6 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

1.4. S

ERIAL PORT EMULATION MODE

Configured to emulate a serial port2, Prox’N’Roll RFID Scanner outputs its data in a standard serial communication stream.

This configuration typically allows to replace an RS-232 Magstripe reader by a state-of-the-art RFID solution. Replacing former RS-232 bar code scanners is possible too.

a. Typical applications

This reader is primarily dedicated to replace a card reader (Magstripe, 125kHz…) or a bar code scanner in cashiers, top-up kiosks, vending machines…

b. Output configuration

Thanks to the software’s configuration (stored in non-volatile memory), the same reader is highly customizable on-the-field :



Output format,



Prefix and postfix sequences.

1.5. R

ELATED DOCUMENTS

You’ll find any details regarding hardware and physical characteristics of each reader in the corresponding datasheet.

Datasheet Covered products

PFL8P9P Prox'N'Roll RFID Scanner product information sheet PMU84OP Prox'N'Roll RFID Scanner Quick Start guide

1.6. O

THER PRODUCTS IN THE SAME FAMILY

Prox’N’Roll RFID Scanner firmware is able to run on any other hardware in

the SpringCard CSB6 family.

For instance, the SpringCard CrazyWriter OEM contactless coupler may run the Prox’N’Roll RFID Scanner firmware, providing same functionality as tabletop Prox’N’Roll, but in a form factor that may be more convenient for custom integrations.

Due to the wide choice of hardware platforms and the rich portfolio of firmware to cover virtually any requirement, not every combination can be offered as an “out of the shelf” product. Hopefully, SpringCard has a strong experience in offering customized yet flexible products to the integrators. Do not hesitate to contact us in case you need such a specific offer.

The device complies with the USB “Communication Device Class” (CDC) profile. Drivers are available for most operation systems to have the device activated as a serial communication port.

PMA8N9P-BC

7 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2. C

ONFIGURATION ATTRIBUTES

There are two families of configuration attributes :



Product specific Global Configuration Attributes,



Card Acceptance Templates.

The Card Acceptance Templates are common to all products in the SpringCard RFID Scanner family, and are exposed in detail in the next chapter.

In this chapter, we’ll introduce configuration tags and detail the Prox’N’Roll

RFID Scanner’s specific configuration attributes.

2.1. P

RINCIPLES

a. Configuration tags

Each configuration attribute is recognized by its “tag” and its length. The tag is a one-byte value, that uniquely identifies the attribute.

The list of available tags, and their meaning, is the purpose of this chapter and the next one.



Unless specified, each configuration attribute is exactly one byte (8 bits) long.

b. Non-volatile memory endurance

Prox’N’Roll RFID Scanner configuration attributes are stored in reader’s nonvolatile memory (flash). They can be changed up to 100 times.



Changing any configuration attribute more than 100 times may permanently

damage your Prox’N’Roll RFID Scanner reader.

PMA8N9P-BC

8 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2.2. G

LOBAL CONFIGURATION ATTRIBUTES

2.2.1. Operating mode

Name Tag Description Size

MOD

C0 Operating mode. See table a below. 1

a. Operating mode bits

Bit Value

Meaning

7 – 4

RFU (set to 0000)

3 – 0

0001 0011

Operating mode :

Serial emulation mode Keyboard emulation mode

Default value : b00000011

2.2.2. General options

Name Tag Description Size

OPT

60 General options. See table a below. 1

a. General options bits

Bit Value

Meaning

RFU (set to 0)

0 1 Shutdown RF field when idle

Shutdown RF field only when no card detected3

5 – 4

00 01 10 11

Anti-collision model :

Process every card one after the other RFU When 2 cards are in the field, process the 1st and ignore the 2nd When 2 cards are in the field, ignore both

3 – 2

00 01 10 11

Master Card :

Master Cards are disabled4 Master Cards are enabled at power up RFU Master Cards are enabled all the time

1 – 0

00 01 10 11

Activate physical serial port5 :

Serial port is enabled RFU Serial port is disabled

RFU

Default value : b00001100

(Master Cards are enabled all the time, serial port enabled)

This is required if strict anti-collision (bits 5-4 = b10 or b11) is needed.

Configuration settings can only be altered through serial link

Prox’N’Roll doesn’t have a serial port. This attribute is relevant only for CrazyWriter or other hardware platforms that feature an UART with either RS-TTL or RS-232 connection

PMA8N9P-BC

9 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2.2.3. Delays and repeat options

Name Tag Description Min Max

ODL

61 Min. delay between 2 consecutive outputs (0.1s). 0 100

RDL

62 Min. delay between 2 consecutive identical outputs (0.1s).

A value of 255 means that the card must be removed from the field –and re-inserted into– before being read again.

0 100

Default value : ODL = 2 (200ms) RDL = 10 (1s)

2.2.4. LED and buzzer control options

Name Tag Description Size

CLD

63 LEDs control. See table a below. 1

CBZ

64 Buzzer control. See table b below. 1

a. LEDs control bits

Bit Value

Meaning

0 1 Short LED sequences (3 seconds)

Long LED sequences (10 seconds)

6 – 5

00 01 10 11

When idle, blue LED blinks slowly (“heart beat” sequence) When idle, blue LED is always on When idle, blue LED is always off RFU

0 1 Green LED stays OFF

Green LED blinks when a valid card has been processed

0 1 Red LED stays OFF

Red LED blinks when an unsupported card has been processed

0 1 Green LED stays OFF

Green LED blinks as soon as a card is seen in the field

1 – 0

11 RFU (set to 11)

Default value : b00001111

b. Buzzer control bits

Bit Value

Meaning

0 1 Buzzer short pulse = 0,2 sec

Buzzer short pulse = 0,5 sec

0 1 Buzzer long pulse = 0,7 sec

Buzzer long pulse = 1,5 sec

RFU

0 1 No action on buzzer before specified by host controller

Short pulse when a valid card has been processed

0 1 No action on buzzer for unsupported cards

Long pulse when an unsupported card has been processed

0 1 No action on buzzer before processing is achieved

Short pulse as soon as a card is seen in the field

1 – 0

RFU (set to 01)

Default value : b00010001

PMA8N9P-BC

10 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2.3. K

EYBOARD EMULATION MODE ATTRIBUTES

The following attributes are relevant only when the devices is configured for keyboard emulation (MOD = h03)

Name Tag Description Size

KBD.LYT

A0 Keyboard layout. See table a below. 1

KBD.OPT

A1 Keyboard options. See paragraph b below. 1

KBD.BEF

A2 Prefix string. See paragraph c below. Var.

KBD.AFT

A3 Postfix string. See paragraph c below. Var.

a. Keyboard layout

Bit Value

Meaning

7 – 0

QWERTY AZERTY using Numeric Pad for number input QWERTZ AZERTY using Shift key for number input All other values are RFU and must not be used

Default value : b00000000 (QWERTY)

b. Keyboard options

This entry is RFU and must be left empty.

c. Prefix and postfix

KBD.BEF defines the character string do be sent before the actual data.

Default value for KBD.DEF : absent (no prefix)

KBD.AFT defines the character string do be sent after the actual data.

Default value for KBD.DEF : ENTER key

If a non-null ASCII value is specified for either KBD.DEF or KBD.AFT (either a single character or a string), it will be transmitted before of after the data respectively.

Allowed ASCII codes are :

HEX value C char Meaning

09 \t TAB key

0A \n ENTER key

0D \r (discarded)

20 ‘ ’ Space

41 to h5A ‘A’ to ‘Z’

61 to h7A ‘a’ to ‘z’

Letters A to Z. Actual case vary with CAPS LOCK state.

30 to h39 ‘0’ to ‘9’ Digits 0 to 9 (as if they were entered on the numerical

keypad). NUM LOCK must be active.

21 to h2F

‘!’ to ‘/’

3A to h40

‘:’ to ‘@’

5B to h60

‘[ to ‘`’

7B to h7E

‘{’ to ‘~’

Symbols (put in order) : !"#$%&'()*+,-./:;<=>?@ [\]^_`{|}~

00 \0 End of string

PMA8N9P-BC

11 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2.4. S

ERIAL EMULATION MODE ATTRIBUTES

The following attributes are relevant only when the devices is configured for serial emulation (MOD = h01) or when the serial output is enabled (bits 1-0 in OPT).

2.4.1. Serial configuration

Name Tag Description Size

SER

67 Serial configuration bits. See table a below. 1

a. Serial configuration bits

Bit Value

Meaning

0 1 No STX / ETX frame markers

Use STX and ETX as frame markers

6 – 5

00 01 10 11

No BEL / TAB / CR/LF frame markers Use CR/LF only Use BEL and CR/LF as frame markers Use TAB and CR/LF as frame markers

4 – 3

00 01 10 11

Serial Repeat No repeat Repeat 4 times with timeout of 100ms Repeat 4 times with timeout of 250ms Repeat 9 times with timeout of 250ms

2 – 0

RFU (set to 101)

Default value : b11000000



The baudrate is always 38400 bps.

b. Serial frame format

Serial frames are always transmitted using ASCII representation of binary values.

For example, data ‘00 7A 12 6C 59 F4 04’ (hexadecimal notation) is transmitted as string “007A126C59F404”.

c. Serial frame markers

Bits 7-5 drive the start of frame / end of frame markers.

See chapter 4.1 for details on using the reader in Serial mode.

PMA8N9P-BC

12 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

2.5. O

THER ATTRIBUTES

2.5.1. PIN code

Name Tag Description Size

6F PIN code to access reader’s console. 2

Default value : empty (no pin-code)

Use this tag to define a 4 digits PIN code to protect access to reader’s console.

The 2-byte value must store 4 valid BCD digits, or the reserved value hFFFF that permanently disables the console feature.

PMA8N9P-BC

13 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3. C

ARD ACCEPTANCE TEMPLATES

Products in the SpringCard RFID Scanners family are able to manage different types of cards, and different sources of data on each card.

A Card Acceptance Template defines how the reader will recognize the card to be read, and how it would get the actual data (serial number, block reading, file selection and reading, authentication keys to be used for Mifare or Desfire, etc).

The template also defines which formatting is to be applied to the data when sending them to the target device (translation to ASCII or to Decimal, constant prefix or suffic, etc).

This product is able to run up to 4 Card Acceptance Templates simultaneously.

3.1. B

ASIS

Each Card Acceptance Template is configured through a set of configuration attributes, each attribute having its own tag.

• Template 1 uses Configuration tags

10 to h1F

• Template 2 uses Configuration tags

20 to h2F

• Template 3 uses Configuration tags

30 to h3F

• Template 4 uses Configuration tags

40 to h4F

In the following pages, we use the convention “ Template t uses Configuration tags ht0 to htF ”. Replace t by the current template number.

PMA8N9P-BC

14 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.1.1. Card lookup list

Name Tag Description Size

LKL

t0 Card lookup list of the template. See table a below. 1

a. Available values for LKL

Value Card(s) accepted by the template Processing template §

01 ISO/IEC 14443 type A (layer 3)

02 ISO/IEC 14443 type B (layer 3)

03 ISO/IEC 14443 A&B (layer 3)

04 ISO/IEC 15693

07 ISO/IEC 14443 A&B and ISO/IEC 15693

08 NXP ICODE1

0C NXP ICODE1 and ISO/IEC 15693

0F All of the above

ID only 3.2

11 ISO/IEC 14443 type A (layer 4 / T=CL)

12 ISO/IEC 14443 type B (layer 4 / T=CL)

13 ISO/IEC 14443 A&B (layer 4 / T=CL)

7816-4 3.6

22 ST MicroElectronics SR family

23 ASK CTS256B and CTS512B

h24

Inside Contactless PicoTAG6

ID only 3.2

61 NXP Mifare Classic 1k & 4k Mifare Classic 3.3

h62

NXP Mifare UltraLight Mifare UltraLight 3.4

71 NXP Desfire 4k Desfire 3.5

72 Calypso (Innovatron protocol) ID only or 7816-4 3.2 or 3.7

FF All cards supported ID only 3.2

Other values are RFU

The LKL tag is mandatory to enable a template group. If not found, the template group is empty.

Also HID iClass

PMA8N9P-BC

15 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.1.2. Summary of other tags in templates

Depending of the card lookup list (LKL tag), a specific list of tags controls the behaviour of the Processing Template.

The table below summarize this.

Tag

ID only

Mifare

UltraLight

Mifare

Classic

Desfire

7816-4

Calypso

t1 Output format

ht2

Output prefix

ht3

Offset Location of data

t4 Options T=CL options C. options

t5 Auth. method & key 1st APDU

t6 Sign. method & key 2nd APDU

t7 3rd APDU

Grey items are RFU and must be kept empty.

3.1.3. Important notice regarding template-ordering

Be careful that the 4 templates are processed one after the other. The loop is ended after the first successful match.

If a card matches two (or more) templates, it will be handled only by the first one.

Suppose you want to accept both a specific kind of 14443-B T=CL cards, with advanced file reading, and another kind of wired-logic 14443-B cards, where only the ID is significant. You must put the T=CL template before the ID template, otherwise the T=CL part will be skipped.

PMA8N9P-BC

16 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.2. ID-

ONLY ACCEPTANCE TEMPLATES

Use an ID-only Acceptance Templates when you want to read the serial number and/or the protocol-related constant bytes from a contactless card, or a group of contactless cards.

Depending on the settings you define in the Lookup List attribute (tag LKL.IDO), the reader may either

• Find any supported contactless card,

• Find only a specific family of contactless cards,

• Find ISO compliant contactless cards.

As you may have more than one ID-only Acceptance Template (up to 4 in fact), you may easily display different types of cards with a different format.

Including card’s type in the returned ID is also an interesting option (see

3.2.6.b), as for instance there’s no rule to prevent an ISO 14443-B card to have a different serial number than any ISO 14443-A ones.

3.2.1. Lookup list

Name Tag Description Size

LKL.IDO

t0 ID-only lookup list :

01 ≤ value ≤

0F for ISO-compliant cards,

21 ≤ value ≤

2F for non-ISO cards, value = hFF all the supported cards. See 3.1.1.a for details.

PMA8N9P-BC

17 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.2.2. Output format

Name Tag Description Size

TOF.IDO

t1 ID-only output format. See table a below. 1

a. Output format bits

Bit Value

Meaning

7 – 6

00 01 10

Byte swapping

Do not swap ID bytes (ID is transmitted “as is”)

RFU

Swap bytes for single-size (4 bytes) ISO 14443-A UIDs 7 only ; IDs of any other card is transmitted “as is” Swap ID bytes for all kind of cards

0 1

Padding

Left-padding with h0 Right-padding with hF

0 1

ISO 14443-B specific

Use ISO 14443-B PUPI (4 bytes) as ID Use complete ISO 14443-B ATQ (11 bytes) as ID

3 – 0

0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111

Output length

Decimal, 4 bytes seen as 10 digits (i.e. 32  40 bits expansion) Fixed length, 4 bytes 8 Fixed length, 8 bytes 9 Fixed length, 5 bytes Fixed length, 12 bytes 10 Fixed length, 7 bytes 11 Fixed length, 11 bytes 12

RFU

Fixed length, 16 bytes

RFU RFU RFU

Decimal, 5 bytes seen as 12 digits (i.e. 40  56 bits expansion) Decimal, 5 bytes seen as 13 digits (i.e. 40  64 bits expansion) Decimal, variable length (maximum 13 digits) Variable length (depends on actual size of ID)

Default value : b10000010

(8 bytes fixed length, left padding, swap bytes for short ISO 14443-A UIDs only)

This is the default format in NXP’s Mifare Classic related literature.

ISO 14443-A single-size UID, ISO 14443-B PUPI, serial number for ASK CTS256B and CTS512B.

ISO 15693 ID, serial number for NXP ICODE1, Inside Contactless PicoTag, ST MicroElectronics SR

family…

ISO 14443-A triple-size UID.

ISO 14443-A double-size UID.

ISO 14443-B complete ATQB.

PMA8N9P-BC

18 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.2.3. Output prefix

Name Tag Description Size

PFX.IDO

t2 ID-only output prefix. Var.

Default value : absent (no prefix)

If a non-null ASCII value is specified (either a single character or a string), it will be transmitted before the data (therefore the actual length will be longer than the specified length).

3.2.4. Offset of data

Name Tag Description Size

LOC.IDO

t3 Offset in the ID. 1

Default value : b00000000 (d0)

When TOF.IDO specifies a fixed length output, using LOC.IDO makes it possible to select some bytes in the ID, and not only the first ones. This is principally useful when working with non-ISO cards, as shown in the following paragraphs.

PMA8N9P-BC

19 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.2.5. Role of LOC.IDO with non-ISO cards

A few manufacturers still offer non standard cards, most of them based on ISO 14443-B bit-level specification, but with a proprietary frame format (protocol) and a proprietary command set.

As those cards don’t answer to ISO 14443 standard detection commands, a specific template must be activated to discover them.

a. ST MicroElectronics SR family

When LKL.IDO=h22, the reader performs the lookup sequence for cards in the ST MicroElectronics SR family (SR176, SRX, SRIX).

A 8-byte serial number is returned by the card. Use TOF.IDO and LOC.IDO if you need to truncate it.

b. ASK CTS256B and CTS512B

When LKL.IDO=h23, the reader performs the lookup sequence for cards in the ASK CTS-B family (CTS256B, CTS512B).

A 8-byte identifier is built as follow :

Byte 0 Byte 1 Byte 2 Byte 3 Bytes 4 to 7

Manufacturing code

Product code Embedded code Application code 4-byte serial

number



CTS256B’s product code is between h50 and h5F,



CTS512B’s product code is between h60 and h6F,



See ASK’s documentation for explanations regarding other bytes.

Define LOC.IDO=h04 (and TOF.IDO=h01) if you need only the serial number (and don’t care for card type and other data).

c. Inside Contactless PicoTAG13

When LKL.IDO=h24, the reader performs the lookup sequence for cards in the Inside Contactless PicoTAG family (PicoTAG 16KS).

A 8-byte serial number is returned by the card. Use TOF.IDO and LOC.IDO if you need to truncate it.

Also HID iClass

PMA8N9P-BC

20 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.2.6. Miscellaneous options

Name Tag Description Size

OPT.IDO

t4 ID-only miscellaneous options. See table a below. 1

a. Miscellaneous option bits

Bit Value

Meaning

7 – 4

RFU

3 – 2

00 01 10 11

Position of card’s type in the output

Card type is sent before the prefix14 Card type is sent after the prefix and before the ID15 Card type is sent after the actual ID16

RFU

1 – 0

00 01 10 11

Send card’s type in the output

Do not send card’s type Send card’s type on one byte (2 hex digits) (see table b below) Send card’s type as a string (see table b below)

RFU

Default value : b00000000

b. Values for card’s type byte or string

When OPT.IDO is configured to send card’s type in the output, the possible values are :

“Physical”

card’s type

One byte

value

String

value

Remark

ISO/IEC 14443 A

01 “ A ”

ISO/IEC 14443 B

02 “ B ”

Card must be compliant with Layer 3 or layer 4

ISO/IEC 15693

04 “ V ”

NXP ICODE1

08 “ I ”

Inside Contactless PicoTAG

10 “ i ” Also HID iClass

ST MicroElectronics SR family

20 “ s ”

ASK CTS256B and CTS512B

40 “ a ”

Calypso (Innovatron protocol)

80 “ C ”

The actual frame is <card type><PFX.IDO><card id> (PFX.IDO may be empty)

The actual frame is <PFX.IDO><card type><card id> (PFX.IDO may be empty)

The actual frame is <PFX.IDO><card id><card type> (PFX.IDO may be empty)

PMA8N9P-BC

21 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.3. M

IFARE CLASSIC ACCEPTANCE TEMPLATE

Mifare “Classic” refers to NXP Mifare 1k (MF1ICS50) and Mifare 4k (MF1ICS70) wired-logic contactless cards.

Mifare 1k is divided into 64 16-byte blocks.

Mifare 4k is divided into 256 16-byte blocks.

Both cards have a 4-byte serial number, located at the beginning of block 0. As those cards are ISO/IEC 14443-3 compliant, you can read the serial number through the generic ID-Only template, instead of using this dedicated template.

3.3.1. Lookup list

Name Tag Description Size

LKL.MIF

t0 Mifare classic lookup list, value = h61.

See 3.1.1.a for details.

3.3.2. Output format

Name Tag Description Size

TOF.MIF

t1 Mifare output format. See table a below. 1

a. Output format bits

Bit Value

Meaning

0 1 Do not swap bytes

Swap bytes

0 1 RAW data

ASCII encoded data 17

0 1 Left-padding with h0 (RAW) or <SPACE> (ASCII)

Right-padding with hF (RAW) or <SPACE> (ASCII)

0 1

Long string reading option18

Disable long string reading option Enable long string reading option

3 – 0

Output length

Format depends on bit 6 (RAW or ASCII). See table b below for RAW data (bit 6 = 0) See table c below for ASCII data (bit 6 = 1)

Default value : b00000010

If data read from the memory card is “31 32 33 43 34 35” (hexadecimal notation), output will be “123C45”. Make sure that only valid digits (values from 31 to 39 and 41 to 46 or 61 to 66) are encoded in every card, otherwise actual reader output will be undefined.

This option is only available on Prox’N’Roll RFID Scanner, RDR-K632 and ProxRunner. If working with IWM-K632 or FunkyGate, please ignore this configuration tag.

PMA8N9P-BC

22 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

b. Output length when bit 6 = 0

Bit Value

Meaning

3 – 0

0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111

Decimal, 4 bytes seen as 10 digits (i.e. 32  40 bits expansion) Fixed length, 4 bytes (32 bits) Fixed length, 8 bytes (64 bits) Fixed length, 5 bytes (40 bits) Fixed length, 12 bytes (96 bits) Fixed length, 7 bytes (56 bits) Fixed length, 11 bytes (88 bits)

RFU

Fixed length, 16 bytes (128 bits)

RFU RFU RFU

c. Output length when bit 6 = 1

Bit Value

Meaning

3 – 0

0000 0001

1111

Max output length = d16

Max output length from d1 to d15

3.3.3. Output prefix

Name Tag Description Size

PFX.MIF

t2 Mifare output prefix. Var.

Same as ID-only output prefix (see 3.2.3).

3.3.4. Location of data

Depending on the size, the LOC.MIF tag can either be



A block number (= address of data in Mifare card) when size = 1,



An Application Identifier (AID) when size = 2.

PMA8N9P-BC

23 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

a. Fixed block number

Name Tag Description Size

LOC.MIF

t3 Block number to be read. 1

Default value : b00000100 (d4)

When a Mifare card is found, the reader tries to read the block specified in LOC.MIF (16 bytes), and then truncates the data according to the length specified in TOF.MIF.

The block number shall be



Between 0 and 63 for Mifare 1k cards,



Between 0 and 255 for Mifare 4k cards.

Note that data must start on a block boundary.



Mifare sector t

railers (security blocks) numbered 3, 7, … can be read, but their

content is masked (to protect the keys). Using such a block as access control

identifier is definitely not a good idea.

b. AID in MAD

Name Tag Description Size

LOC.MIF

t3 AID to be selected and read. 2

When a Mifare card is found, reader reads the MAD (blocks 1 and 2 of sector 0)19 and tries to find the specified AID. The location of the AID in the MAD is the pointer onto the actual block to be read.

Note that data must be located at the beginning of the first block marked with the specified AID.

Please refer to NXP application notes for detailed explanations of the MAD.

Sector 0 must be freely readable either with base key A (“A0 A1 A2 A3 A4 A5”), with transport key (“FF FF FF FF FF FF”) or with the application key specified in AUT.MIF .

PMA8N9P-BC

24 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.3.5. Authentication key

Depending on the size, the AUT.MIF tag can either be



A pointer to a key located in RC’s secure EEPROM when size = 1.



The Mifare key itself, when size = 7,



A master key and its diversification options, when size = 9 or 17

When the AUT.MIF tag is absent, all EEPROM keys are tried out in sequence (this can take a long time…).

Name Tag Description Size

AUT.MIF

t5 Mifare authentication key. See below

Default value : absent

a. Size = 1 : pointer to a key in RC’s secure EEPROM



Values h00 to h0F refer to type A keys d0 to d15, respectively,



Values h80 to h8F refer to type B keys d0 to d15, respectively.

b. Size = 7 : specified Mifare key

Offset Length Content

0 1 Key options. See table c below. 1 6 Mifare key value.

c. Key options bits, when size = 7

Bit Value

Meaning

0 1 Key is an A key

Key is a B key

6 – 0

RFU

d. Size = 17 : master key diversification using HMAC-MD5

Offset Length Content

0 1 Key options. See table e below. 1 16 Master key value.

e. Key options bits, when size = 17

Bit Value

Meaning

0 1 Diversified key is an A key

Diversified key is a B key

0 1 Diversification with card UID and address fixed to h00

Diversification with card UID and address = sector number

5 – 4

10 Diversify the key using HMAC-MD5 algorithm

3 – 0

RFU

PMA8N9P-BC

25 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

f. Size = 15 or 23 : master key diversification using RC171 algorithm

Offset Length Content

0 1 Key options. See table g below. 1 6 Mifare master key. 7 8 or 16 DES or 3-DES diversification key.

g. Key options bits, when size = 15 or 23

Bit Value

Meaning

0 1 Diversified key is an A key

Diversified key is a B key

0 1 Diversification with card UID and address fixed to h00

Diversification with card UID and address = sector number

5 – 4

01 Diversify the key using RC171 algorithm

3 – 0

RFU

3.3.6. Reading a long string from a Mifare Classic card

Note : This option is only available on Prox’N’Roll RFID Scanner, RDR-K632 and

ProxRunner.

When bits 4 and 6 in TOF.MIF are set (ASCII output, long string reading extension enabled), the reader behaves as follow :

• The output length (bits 0 to 3 of TOF.MIF) is ignored,

• The reader reads sequentially all Mifare data blocks starting at address

specified in LOC.MIF (absolute address or pointer found in MAD), until one of those events occurs :

o The end-of-string character (‘\0’ i.e. h00) is read, o The end of the card is reached, o The authentication failed (see note below), o 4 blocks (64 bytes) have been read.

Doing so, the reader is able to fetch ASCII strings up to 64 characters.

Note : in this mode, the reading may cross a sector boundary (64 bytes is 4 blocks, where sectors below 32 are 3-block wide). In this case, the two sectors to be read must be formatted with the same Mifare key and the same access mode.

PMA8N9P-BC

26 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.4. M

IFARE ULTRALIGHT ACCEPTANCE TEMPLATE

NXP Mifare UltraLight is a low-cost wired-logic contactless cards. It is divided into 16 4-byte pages. This template reads 4 pages (i.e. exactly 16 bytes) at once.

This card has a 7-byte serial number, located on blocks 0 and 1. As the card is ISO/IEC 14443-3 compliant, you can read the serial number through the generic ID-Only template, instead of using this dedicated template.

3.4.1. Lookup list

Name Tag Description Size

LKL.MFU

t0 Mifare UltraLight lookup list, value = h62.

See 3.1.1.a for details.

3.4.2. Output format

Name Tag Description Size

TOF. MFU

t1 Mifare UltraLight output format. 1

Same as Mifare Classic output format (see 3.3.2).

3.4.3. Output prefix

Name Tag Description Size

PFX.MFU

t2 Mifare UltraLight output prefix. Var.

Same as ID-only output prefix (see 3.2.3).

3.4.4. Location of data

Name Tag Description Size

LOC.MFU

t3 Number of the first page to be read. 1

Default value : b00000000 (d0)

Remember that this template always reads 4 pages (16 bytes) starting at LOC.MFU.

PMA8N9P-BC

27 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.4.5. Reading a long string from a Mifare UltraLight card

Note : This option is only available on Prox’N’Roll RFID Scanner, RDR-K632 and

ProxRunner.

When bits 4 and 6 in TOF.MIF are set (ASCII output, long string reading extension enabled), the reader behaves as follow :

• The output length (bits 0 to 3 of TOF.MIF) is ignored,

• The reader reads sequentially all Mifare data blocks starting at address

specified in LOC.MIF (absolute address or pointer found in MAD), until one of those events occurs :

o The end-of-string character (‘\0’ i.e. h00) is read, o The end of the card is reached, o 16 pages (64 bytes) have been read.

Doing so, the reader is able to return ASCII strings up to 64 characters20.

Well, not really, as Mifare UltraLight currently features only 64 bytes of data, with only 48 bytes actually usable to store data.

PMA8N9P-BC

28 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.5. D

ESFIRE ACCEPTANCE TEMPLATE

Desfire Acceptance Template has been designed for the first version of NXP Desfire 4k cards (MF3ICD40).

It should work with new Desfire versions (MF3ICD21, MF3ICD41 and MF3ICD81) as long as they are configured to remain compatible with the earlier version (DES or two-key Triple-DES authentication, same ATQ/SAK as MF3ICD40).

3.5.1. Lookup list

Name Tag Description Size

LKL.DFR

t0 Desfire lookup list, value = h71.

See 3.1.1.a for details.

3.5.2. Output format

Name Tag Description Size

TOF.DFR

t1 Desfire output format. 1

Same as Mifare Classic output format (see 3.3.2).

3.5.3. Output prefix

Name Tag Description Size

PFX.DFR

t2 Desfire output prefix. Var.

Same as ID-only output prefix (see 3.2.3).

3.5.4. Location of data

Name Tag Description Size

LOC.DFR

t3 Location of data in Desfire card. See table a below. 8

a. Data location bytes

Offset Length Content

0 3 Application IDentifier (AID). 3 1 File IDentifier (FID). File must be a “standard data” file. 4 3 Offset of data in file. 7 1 Length of data to be read21 (1 to 64).

Default value : unspecified.

Values are MSB first.

Data will be truncated to the length specified in TOF.DFR, unless the long string reading extension is enabled.

PMA8N9P-BC

29 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.5.5. T=CL options

Name Tag Description Size

OPT.DFR

t4 Desfire T=CL options. 1

Same as 7816-4 T=CL options (see 3.5.5).

3.5.6. Authentication key

Name Tag Description Size

AUT.DFR

t5 Desfire authentication key. See table a below. 9 or 17

Default value : absent

(No authentication is performed, plain read operation is used to fetch the data)

a. Authentication key bytes

Offset Length Content

0 1 Desfire key index and options. See table b below. 1 8 or 16 Key value (8 bytes for a DES key, 16 bytes for a 3-DES key).

b. Key index and options

Bit Value

Meaning

7 – 6

00 01 10 11

Communication mode for reading

Plain MACed with session key RFU Enciphered with session key

5 – 4

00 01 10 11

Key diversification algorithm

Use the key “as is” Diversify the key using Desfire SAM algorithm Diversify the key using HMAC-MD5 algorithm RFU

3 – 0

0000

to 1110 1111

Index of key in Desfire application

Index of the key to be used for authentication

RFU

PMA8N9P-BC

30 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.5.7. Reading a long string from a Desfire card

Note : This option is only available on Prox’N’Roll RFID Scanner, RDR-K632 and

ProxRunner.

When bits 4 and 6 in TOF.DFR are set (ASCII output, long string reading extension enabled), the reader behaves as follow :

• The output length (bits 0 to 3 of TOF.DFR) is ignored,

• The reader reads the data up to the length specified in LOC.DFR (64

bytes max.),

• The reader returns those bytes as an ASCII string, truncated at the

correct length when the end-of-string character (‘\0’ i.e. h00) is reached.

Doing so, the reader is able to fetch ASCII strings up to 64 characters.

PMA8N9P-BC

31 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.6. ISO 7816-4 A

CCEPTANCE TEMPLATE

3.6.1. Lookup list

Name Tag Description Size

LKL.TCL

7816-4 lookup list,

11 ≤ value ≤

13.

See 3.1.1.a for details.

3.6.2. Output format

Name Tag Description Size

TOF.TCL

t1 T=CL output format. 1

Same as Mifare Classic output format (see 3.3.2).

3.6.3. Output prefix

Name Tag Description Size

PFX.TCL

t2 T=CL output prefix. Var.

Same as ID-only output prefix (see 3.2.3).

3.6.4. Location of data

Name Tag Description Size

LOC.TCL

t3 Offset of data in answer to APDU 322 (0 to 127). 1

Default value : 0.

3.6.5. T=CL options

Name Tag Description Size

OPT.TCL

t4 T=CL (ISO/IEC 14443 layer 4) options. See table a below. 1

Data will be truncated according to the length specified in TOF.TCL .

PMA8N9P-BC

32 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

a. T=CL option bits

Bit Value

Meaning

7 – 6

00 01 10 11

Card to reader baudrate

No PPS, DSI = 106kbit/s Perform PPS, DSI = 212kbit/s if card allows it Perform PPS, DSI = 424kbit/s if card allows it Perform PPS, DSI = 848kbit/s if card allows it

5 – 4

00 01 10 11

Reader to card baudrate

No PPS, DRI = 106kbit/s Perform PPS, DRI = 212kbit/s if card allows it Perform PPS, DRI = 424kbit/s if card allows it Perform PPS, DRI = 848kbit/s if card allows it

3 – 0

0000 0001

to 1110 1111

Card identifier (CID)

Empty CID = d0

CID from d1 to d14

CID is disabled

This tag exists only if T=CL card is selected in LST.

Default value : b00001111

3.6.6. T=CL APDU 1

Typically this is a Select Application (or Select Applet) command.

May be absent if T=CL APDU 3 is sufficient to fetch the data.

Name Tag Description Size

AU1.TCL

t5 TCL APDU 1. Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

considered valid. Any other value for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128 bytes. If card’s answer is longer, the

answer will be discarded and the reader will ignore the card.

PMA8N9P-BC

33 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.6.7. T=CL APDU 2

Typically this is a Select File command.

May be absent if T=CL APDU 3 is sufficient to fetch the data.

Name Tag Description Size

AU2.TCL

t6 TCL APDU 2. Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

considered valid. Any ot

her value for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128 bytes. If card’s answer is longer, the

answer will be discarded and the reader will ignore the card.

3.6.8. T=CL APDU 3

APDU used to actually retrieve the data (typically this is a Read Binary command). Data have to be found in answer at offset specified in LOC.TCL.

Name Tag Description Size

AU3.TCL

t7 TCL APDU 3. Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

considered valid. Any other value for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128 bytes. If card’s answer is longer, the

answer will be discarded and the reader will ignore the card.

PMA8N9P-BC

34 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.6.9. Reading a long string from a T=CL card

Note : This option is only available on Prox’N’Roll RFID Scanner, RDR-K632 and

ProxRunner.

When bits 4 and 6 in TOF.TCL are set (ASCII output, long string reading extension enabled), the reader behaves as follow :

• The output length (bits 0 to 3 of TOF.TCL) is ignored,

• The reader fetches the data from offset LOC.TCL up to the length of the

response to APDU 3 (64 bytes max.),

• The reader returns those bytes as an ASCII string, truncated at the

correct length when the end-of-string character (‘\0’ i.e. h00) is reached.

Doing so, the reader is able to fetch ASCII strings up to 64 characters.

PMA8N9P-BC

35 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.7. C

ALYPSO ACCEPTANCE TEMPLATE

This part deals with old Calypso cards, to be accessed only through the legacy Innovatron radio protocol.

New Calypso cards now support ISO/IEC 14443-B, and therefore can be accessed either through ID-Only or ISO/IEC 7816-4 templates.



Working with Calypso cards is subject to a specific licence fee. This function is

therefore disabled in our readers, unless you order them with the Calypso

option.

Depending on the specified options, this Calypso card processing template can retrieve :



A 4-byte serial number (ID-Only template)



Arbitrary data to be read in Calypso files (7816-4 template)

3.7.1. Lookup list

Name Tag Description Size

LKL.CYO

t0 Calypso/Innovatron lookup list, value = h72.

See 3.1.1.a for details.

3.7.2. Output format

Name Tag Description Size

TOF.CYO

t1 Calypso/Innovatron output format. 1

Same as Mifare Classic output format (see 3.3.2).

3.7.3. Output prefix

Name Tag Description Size

PFX.CYO

t2 Calypso/Innovatron output prefix. Var.

Same as ID-only output prefix (see 3.2.3).

PMA8N9P-BC

36 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.7.4. Location of data

Name Tag Description Size

LOC.CYO

t3 Offset of data in answer to APDU 323 (0 to 64). 1

Default value : 0.

3.7.5. Calypso APDU 1

Typically this is a Select Application, or Select DF command.

Name Tag Description Size

AU1.CYO

t5 Calypso/Innovatron APDU 1. Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

considered valid. Any other v

alue for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128 bytes. If card’s answer is longer, the

answer will be discarded and the reader will ignore the card.

3.7.6. Calypso APDU 2

Typically this is a Select EF command.

Name Tag Description Size

AU2.CYO

t6 Calypso/Innovatron APDU 2. Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

con

sidered valid. Any other value for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128 bytes. If card’s answer is lo

nger, the

answer will be discarded and the reader will ignore the card.

Data will be truncated according to the length specified in TOF.CYO .

PMA8N9P-BC

37 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

3.7.7. Calypso APDU 3

Typically this is a Read Binary command.

Name Tag Description Size

AU3.CYO

t7 Calypso/Innovatron APDU 3 Var.



Card’s Status Word is checked by the reader. A SW between h9000 and

9FFF is

considered valid. Any other value for SW (and in particular error values as

defined by ISO 7816-4 between h6100 and

6FFF) is considered as an error, and

the reader will ignore the card.

Reader’s internal buffer is limited to 128

bytes. If card’s answer is longer, the

answer will be discarded and the reader will ignore the card.

PMA8N9P-BC

38 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

4. S

ERIAL PROTOCOL AND COMMAND SET

4.1. S

ERIAL OUTPUT FORMAT

4.1.1. Frame markers

Serial frame markers are configured by bits 7-5 of SER .

Consider data ’01 23 45 67’ with a prefix <BEF> and postfix <AFT>,



If bits 7-5 = b000, frame is “<BEF>01234567<AFT>”.



If bits 7-5 = b001, frame is “<BEF>01234567<AFT><CR><LF>” where <CR> the ASCII carriage return (h0D), and <LF> the ASCII line feed (h0A).



If bits 7-5 = b010, frame is “<BEL><BEF>01234567<AFT> <CR> <LF> ” where <BEL> is the ASCII bell (or ring) character (h07), <CR> the ASCII carriage return (h0D), and <LF> the ASCII line feed (h0A).



If bits 7-5 = b011, frame is “<TAB><BEF>01234567<AFT><CR><LF>” where <TAB> is the ASCII horizontal tab character (h09), <CR> the ASCII carriage return (h0D), and <LF> the ASCII line feed (h0A).



If bits 7-5 = b100, frame is “<STX><BEF>01234567<AFT><ETX>” where <STX> is the ASCII “start of text” character (h02), and <ETX> the ASCII “end of text” (h03).



If bits 7-5 = b101, frame is “<STX><BEF>01234567<AFT><ETX><CR><LF>”.



If bits 7-5 = b110, frame is “<BEL><STX><BEF>01234567<AFT><ETX><CR><LF>”.



If bits 7-5 = b111, frame is “<TAB><STX><BEF>01234567<AFT><ETX><CR><LF>”.

4.2. S

ERIAL INPUT

Prox’N’Roll RFID Scanner in Serial mode accepts short commands from the

host, typically to drive its LEDs and buzzer.

Prox’N’Roll RFID Scanner doesn’t echo back the received data.

If the received command has been understood by Prox’N’Roll RFID Scanner, it replies with an <ACK> byte before executing the requested action.

Otherwise, it replies with a <NACK> byte. Command transmission format is <command> <CR> <LF>.

PMA8N9P-BC

39 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

4.2.1. List of commands

Command Action

Reader goes inactive (tag polling is halted)

Reader goes active

Switch red LED off

Switch red LED on

Red LED blinks slowly

Red LED blinks quickly

Switch green LED off

Switch green LED on

Green LED blinks slowly

Green LED blinks quickly

Stop buzzer

Start buzzer

Short buzzer sound

Long buzzer sound

Margz

Same as sending Aa + Rr + Gg + Zz

Mrg

Same as sending Rr + Gg

Marg

Same as sending Aa + Rr + Gg

RST

Reset the reader

VER

Retrieve reader’s version

SHO

Retrieve reader’s settings



Choose approp

riate configuration in CLD and CBZ before using the LEDs or

buzzer related commands.

PMA8N9P-BC

40 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

5. C

ONFIGURING PROX

’N’R

OLL

RFID S

CANNER

There are two ways to configure Prox’N’Roll RFID Scanner:



Using a Master Card, formatted with cfgfilecreator.exe software. See chapters 6 and 7 for details. In Keyboard mode, when the Master Card has been processed the reader, it sends its firmware version (in the keyboard emulation stream), then restarts.



Manually, by entering configuration values in reader’s console (serial line access), as shown in this chapter. Only available for Prox’N’Roll RFID Scanner in Serial mode.



Default factory settings for Prox’N’Roll RFID Scanner firmware are :



Keyboard mode,



Reads any kind of ID, 8 byte fixed length output.

5.1. C

ONNECTING PROX

’N’R

OLL TO A COMPUTER

5.1.1. Activating serial mode

Activate the Serial mode using a Master Card configured to modify the OPT attribute. See chapters 2.2.1 for details.

5.1.2. Connection information

Install software ref. SDD100 “USB Driver for SpringCard’s FTDI-based devices” to see the interface as a virtual serial port (VCP).

Use HyperTerminal or any compliant terminal emulator to get connected onto the reader through the serial port. Default communication settings are :



8 data bits, 1 stop, no parity, no flow control ;



Baudrate = 38400bps.

5.1.3. Testing connection



Power-up (or reset) the reader,



Reader sends its identification string :

SpringCard Prox’N’Roll RFID Scanner 1.28

PMA8N9P-BC

41 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

5.2. R

ETRIEVING PROX

’N’R

OLL

RFID S

CANNER INFORMATION

5.2.1. Firmware version

Enter “

ver

” to read Prox’N’Roll RFID Scanner firmware version.

5.2.2. Firmware configuration

Enter “

sho

” to read Prox’N’Roll RFID Scanner configuration.

5.3. E

NABLING CONFIGURATION COMMANDS



Prox’N’Roll RFID Scanner configuration may be protected by a pin-

code (if

PIN configuration tag is empty, no pin-code is needed.

If defined to hFFFF, configuration commands are permanently disabled).

Enter “

pinNNNN

” to allow configuration commands, where NNNN is the actual

pin-code (for instance, “

pin1234

”)24.

5.4. A

CCESSING PROX

’N’R

OLL CONFIGURATION

5.4.1. Reading configuration tags

Enter “

cfg

” to list all configuration tags.

Enter “

cfgXX

” to read value configuration tag XX (hexadecimal address).

Note that configuration tags h55, h56 and h6F (keys used by Master Cards and pin-code) are masked when read back.

5.4.2. Writing configuration tags

Enter “

cfgXX=YYYY

” to update configuration tag XX (hexadecimal address)

with value YYYY (hexadecimal value).

Enter “

cfgXX=!!

” to delete configuration tag XX (hexadecimal address).

5.4.3. Writing keys in RC’s secure EEPROM

Enter “

keya0=XXXXXXXXXXXX

” to update key A at index 0, “

keya1=

...” to

update key A at index 1, and so on until “

keyaf=

...”.

Enter “

keyb0=XXXXXXXXXXXX

” to update key B at index 0, “

keyb1=

...” to

update key B at index 1, and so on until “

keybf=

...”.

For security reasons, configuration commands are enabled only for 3 minutes. After 3 minutes of

inactivity, you’ll have to enter the pin-code again.

PMA8N9P-BC

42 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

Note that keys stored in RC can’t be read back.

5.4.4. Reading RC’s 4-byte EEPROM

RC’s chipset includes a 4-byte EEPROM to store a configuration value.

Enter “

cfgRC

” to read this 4-byte value.

5.4.5. Writing RC’s 4-byte EEPROM

RC’s chipset includes a 4-byte EEPROM to store a configuration value.

Enter “

cfgRC=XXXXXXXX

” to write this 4-byte value.



Content of RC’s 4-byte EEPROM is currently not used by

Prox’N’Roll RFID

Scanner firmware.

Please keep this value to 00000000 as it may be used in future versions.

5.5. A

PPLYING NEW CONFIGURATION

New configuration is applied only after reset.

Cycle power or enter “

rst

” to reset the reader.

5.6. R

EVERTING TO DEFAULT

Sometimes it is necessary to put reader back in “out-of-factory” configuration (for instance when reader goes from one site to another). This is done easily by erasing all tags from reader’s memory.

Enter “

cfg!!=!!

” to delete all configuration tags.



There’s no confirmation prompt nor any kind of “are you sure ?” popup window.

Erasing everything is immediate and unrecoverable.



Erasing all the configuration tags is not really enough to put the reader(s) back

in out-of-

factory configuration, since Mifare keys stored in RC’s secure EEPROM

are not erased.

Read paragraph 3.5.3 to see how the keys may be overwritten.

PMA8N9P-BC

43 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

6. C

REATING MASTER CARDS USING

SQ844P

SOFTWARE

6.1. O

VERVIEW

Master Cards for SpringCard RFID Scanners are NXP Desfire 4k (MF3ICD40 or MF3ICD41). You may buy them from SpringCard or any other NXP reseller.

SpringCard SQ844P is a software package featuring :

• A command line utility, that creates the Master Cards from a Master

Configuration File, and using a SpringCard contactless reader/writer25

• A wizard (HTML page) that helps authoring the Master Configuration File.

SpringCard SQ844P also includes various configuration files, that show typical configuration for Prox’N’Roll RFID Scanner, IWM-K632, FunkyGate, RDR-K632, ProxRunner, etc.

SpringCard SQ844P is available only for Microsoft Windows systems.

a. Downloading and installing

Go to www.springcard.com/download/sdks.html and download latest version of package sq884p.

Double-click the downloaded file to launch the installer, and follow the wizard.

b. The cfgfilecreator.exe command line utility

cfgfilecreator.exe is a Windows command line software.

☺

Enter cfgfilecreator.exe -h

to read the complete list of command line switches

and options, and the complete list of sections and variables for configuration

files.

cfgfilecreator.exe

software comes with various sample configuration files that

show typical configurations of IWM-

K632, FunkyGate, Prox’N’Roll RFID Scanner,

etc.

SpringCard Prox’N’Roll PC/SC (or Legacy) typically. CSB4 or any product in the CSB6 family

may be used to create Master Cards too.

PMA8N9P-BC

44 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

c. The cfgfilecreator.exe web page

cfgfilecreator.html is a standalone web page that helps creating configuration files for cfgfilecreator.exe .

6.2. C

ONFIGURATION FILES

cfgfilecreator.exe uses a configuration file to retrieve configuration data to be

written into the Master Card.

Configuration files are written like standard Windows “INI” files. They can be created using Notepad or any other text editor, or using cfgfilecreator.html .

Each line of each section uses the format “name=value” where “name” is either the name or the tag of the configuration variable (e.g. either “opt” or “60”), and “value” its value in hexadecimal.

6.2.1. The “general” section

This section maps to tags h60 to h6F. Default content is :

[general] opt=0C ; value for OPT odl=02 ; value for ODL rdl=0A ; value for RDF cld=0F ; value for CLD cbz=13 ; value for CBZ wgd=0A ; value for WGD dtc=0A ; value for DTC

PMA8N9P-BC

45 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

ser=C5 ; value for SER shd=00 ; value for SHD pin=0000 ; value for PIN

6.2.2. The “rckeys” section

This section holds the Mifare access keys to be written in RC’s secure EEPROM.

Type A keys are named “a0” to “a15”, and type B keys “b0” to “b15”.

Here’s an example of content :

[rckeys] a0=A0A1A2A3A4A5 ; Mifare type A base key (for MAD) a1=FFFFFFFFFFFF ; NXP transport key a2=000000000000 ; other transport key a3=CCCCCCCCCCCC ; unused (...) a15=CCCCCCCCCCCC ; unused b0=B0B1B2B3B4B5 ; Mifare type B base key (for MAD) b1=FFFFFFFFFFFF ; NXP transport key b2=000000000000 ; other transport key b3=CCCCCCCCCCCC ; unused (...) b15=CCCCCCCCCCCC ; unused

This section (and each line in it) is optional. Only keys listed in this section will be written, other keys will be left unchanged.

6.2.3. Sections for Card Processing Templates

SpringCard RFID Scanners run 1 to 4 card accepting templates.

Each template is configured by sections “tpl1”, “tpl2”, “tpl3” and “tpl4” respectively.

Mandatory and optional content for each section depends on the card lookup list (LKL field) of the section itself.

a. ID-Only example

This sample section configures template 4 to read any kind of ID. Output format is : 8-byte fixed length, prefixed by the string “ID=” :

[tpl4] lkl=0F ; wants any kind of ID tof=82 ; 8-byte output, swap 14443 A short IDs pfx=49443D ; prefix = “ID=”

b. Desfire example

This sample section configures template 1 to read 8 bytes of data from a Desfire card. Output format is : 8-byte fixed length, no prefix :

[tpl1] lkl=71 ; wants Desfire cards tof=02 ; 8-byte output pfx= ; no prefix loc=123456 01 000100 08 ; 8 bytes of data to be read in application ; 0x123456, field 0x01, at offset 0x000100

PMA8N9P-BC

46 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

aut=00 A0A1A2A3A4A5A7 ; authentication with key 0, plain comm. ; mode, no diversification. Key is a single ; DES key (8 bytes)

6.2.4. Master Cards related sections

a. Specifying a new configuration for future Master Cards

The “tpl5” section allows to update the card processing template reserved to Master Cards. See paragraph 6.4.1 for details.

[tpl5] aut=E0

xx...xx

; 16-byte authentication key



This 16-byte authentication key in the “tpl5” section is

the one that will be

written in the reader(s) by the Master Card.

It is not the key that will be used to create the Master Card itself.

b. Specifying configuration to be used by current Master Card

The “master” section defines how the Master Card shall be created. See paragraph 6.4.2 for details.

[master] aut=E0

xx...xx

; 16-byte authentication key



This 16-

byte authentication key in the “master” section is the one that will be

used to create the Master Card.

It has no impact on the key written in the reader(s).

PMA8N9P-BC

47 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

6.3. O

PERATION INSTRUCTIONS



Open Configuration files creator (cfgfilecreator.html) (on Windows : Start Menu  All Programs  SpringCard  Configuration Tools),



Create your configuration file and save it in the directory where cfgfilecreator.exe is installed, for instance with the name siteconf.ini (on Windows : C:\Program Files\SpringCard\SQ844P),



Open Configuration tools directory (on Windows : Start Menu  All Programs  SpringCard  Configuration Tools),



Plug and power-on your Prox’N’Roll PC/SC (or legacy),



Put a virgin Desfire card on the Prox’N’Roll PC/SC (or legacy),



Enter cfgfilecreator.exe –c siteconf.ini,



Wait until Master Card is written.



If the Desfire card is not virgin, the software will try to format it

(i.e. erase

the whole file structure with all the data) without prior notification.

Be sure to put on the reader only a virgin card, or an old Master Card to be

overwritten.

You’ve been warned…

6.4. C

HANGING AUTHENTICATION KEY FOR MASTER CARDS



All SpringCard products ship with the same out-of-

factory authentication key.

To secure their site, customers should replace the default key by their own key

before installing the readers.

SpringCard recommends to make (and keep) at least two distinct Master Cards for each customer or site :



1st level Master Card alters only the authentication key (replace default key by site specific key).

o All readers bought for this site shall be configured using this 1st

level Master Card as soon as they are received.



2nd level Master Card actually configures the reader (card processing templates, output mode and format, and so on).

o It uses the site specific key for authentication, but doesn’t update

the key that is already inside the reader.

o The 2nd level Master Card shall be used during installation and

whenever you wish to change reader configuration.

PMA8N9P-BC

48 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

Note that more than one 2nd level Master Cards can be created (one for each kind of output settings, one for each people in charge of installation…) whereas only one 1st level Master Card should be created and be kept in a secure place26.



Be sure to remember the new authentication key you put in a reader. If

you forget the authentication key, and forget the pin-code (or define pincode to hFFFF), it will be impossible to change

reader configuration

again !

You’ve been warned…

6.4.1. Creating a first level Master Card



Create a configuration file (say, “master.ini”) with only those 4 lines :

[master] ; Master section is empty, we use SpringCard’s default keys

[tpl5] aut=E0

xx...xx

where xx…xx is the site specific 16-byte authentication key27,



Put a virgin card on the Prox’N’Roll, label it “1st level Master Card”,



Enter cfgfilecreator.exe –c master.ini ,



Use this Master Card to write the new authentication key in the reader(s).

6.4.2. Creating a second level Master Card



Create a complete configuration file as seen earlier .



Terminate the file with those 4 lines :

[master] aut=E0

xx...xx

[tpl5] ; Template 5 section is empty, we keep current keys in the reader

where xx…xx is the site specific 16-byte authentication key,



Put a virgin card on the Prox’N’Roll, label it “2nd level Master Card”,



Enter cfgfilecreator.exe –c siteconf.ini ,



Use this Master Card to write complete configuration in the reader(s).

That’s because 1st level Master Card has got the authentication key written in it, and anybody may retrieve it using cfgfilecreator software, as the authentication key is only used to secure 2nd level Master Cards and is not written in them.

This is key 0 inside Master Card application ; the key will be diversified using HMAC-MD5 algorithm, so the “E0” header is mandatory.

PMA8N9P-BC

49 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

6.5. R

EVERTING TO DEFAULT



Create a configuration file (say, “factory.ini”) with only those 3 lines :

[master] aut=E0

xx...xx

clear=1

where xx…xx is the site specific 16-byte authentication key



Put a virgin card on the Prox’N’Roll, label it “Erase all Master Card”,



Enter cfgfilecreator.exe –c factory.ini



Use this Master Card to put the reader(s) back in out-of-factory configuration.



Erasing all the configuration tags is not really sufficient to put the reader(s)

back in out-of-

factory configuration, since Mifare keys stored in RC’s secure

EEPROM are not erased.

Just add an “rckeys” section, with dummy keys, to overwrite those keys.

PMA8N9P-BC

50 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

7. S

PECIFICATION OF MASTER CARDS

☺

This chapter is provided as a mean for security experts to evaluate the Master

Card architecture of SpringCard RFID Scanners.

Customers do not need to implement this part themselves, since

cfgfilecreator.exe

software is a convenient tool to create Master Cards. See

chapter 6 for details.

7.1. B

UILDING A MASTER CARD



The Master Card must be a Desfire 4k,



The reader tries to fetch configuration data from Desfire cards according to the Master Card template specified in next paragraph. Data are protected by an authentication key that may be changed on a per-customer or per-site basis (i.e. Master Cards belonging to customer X will not work on customer Y’s readers),



Before storing new settings in its non-volatile memory, the reader checks that data comes with a valid digital signature. The signing key can’t be changed, and is only known by SpringCard’s software. This ensure that only data that has been pre-validated by a genuine software can be loaded in reader’s non-volatile memory.

7.2. T

EMPLATE FOR MASTER CARDS

7.2.1. Location of data

Name Tag Description Size

LOC.MAS

53 Location of data in master cards. See table a below. 5

a. Data location bytes

Offset Length

Content Specified value

0 3 Application IDentifier (AID).

504143

3 1 File IDentifier (FID) for configuration data.

4 1 File IDentifier (FID) for digital signature.

PMA8N9P-BC

51 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

7.2.2. Authentication key



Out-of-factory key used for authentication of Master Cards is confidential.

Only SpringCard genuine software –such as cfgfilecreator.exe–

is able to

create Master Cards with the default authentication key.

To secure their installation, customers should replace this key as soon as they

receive the readers, as explained in 6.4 .

This is the same structure as AUT.DFR .

Name Tag Description Size

AUT.MAS

55 Authentication key. See table a below. 17

a. Authentication key bytes

Offset Length Content

0 1 Authentication key index and options. See table b below. 1 16 Authentication key for Master Cards (this is 3-DES key).

b. Authentication key index and options

Bit Value

Meaning

7 – 6

00 01 10 11

Communication mode in read operation

Plain MACed with session key RFU Enciphered with session key

5 – 4

00 01 10 11

Key diversification algorithm

Use the key “as is” Diversify the key using Desfire SAM algorithm Diversify the key using HMAC-MD5 algorithm RFU

3 – 0

0000

to 1110 1111

Index of key in Desfire application

Index of the key to be used for authentication

RFU

Specified value : hE0 (key 0, HMAC-MD5 diversification, ciphered reading)

PMA8N9P-BC

52 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

7.2.3. Signing key

Name Tag Description Size

SGN.MAS

56 Signing key. See table a below. 17



Key used for digital signature of master cards is confidential.

Only SpringCard genuine software –such as cfgfilecreator.exe–

is able to

sign the Master Cards28.

Customers shall not try to change this parameter, unless advised to by

SpringCard.

a. Signing key bytes

Offset Length Content

0 1 Index and options. See table b below. 1 16 Key data (this is 128-bits key).

b. Signing key index and options

Bit Value

Meaning

7 – 6

00 Those bits are RFU and must be 00

5 – 4

00 01 10 11

Key diversification algorithm

Use the key “as is” Diversify the key using Desfire SAM algorithm Diversify the key using HMAC-MD5 algorithm RFU

3 – 0

0000 Those bits are RFU and must be 00

Specified value : h20 (HMAC-MD5 diversification)

7.3. D

ATA STRUCTURE

7.3.1. Size of file

File holding configuration data and Mifare keys (offset 3 in LOC.MAS) must be exactly 512-byte long. In case used size is shorter than 512 bytes, file must be padded with h00.

7.3.2. Configuration data

The configuration data block uses the T,L,V (tag, length, value) encoding scheme.



Tag is 1 byte-wide,



Len is 1 byte-wide,



Value is 0 to 24 byte-wide.

This choice has been done to ensure that data inside the Master Card have been pre-validated

according to reader specifications, and have not been corrupted afterwards.

PMA8N9P-BC

53 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

Items found in T,L,V blocks will overwrite data with the same tag already present in reader’s non-volatile memory.

Set Len = 0 to delete an existing tag from the non-volatile memory, without replacing it.

Last T,L,V of the configuration data block must be the (valid) signature of the whole block, according to the HMAC-MD5 digital signature algorithm specified in next chapter.

7.3.3. Mifare keys to be loaded into RC’s secure EEPROM

Keys to be loaded into RC’s secure EEPROM use the T,L,V scheme, as follow :



Tag (1 byte) = h80 + key index (see chapter “Mifare Classic Card Acceptance Template”),



Len (1 byte) = h06,



Value is the Mifare key (6 bytes exactly).

7.4. D

IGITAL SIGNATURE

7.4.1. Size of file

File holding the signature (offset 4 in LOC.MAS) must be exactly 16-byte long.

7.4.2. Algorithm

This is the signature algorithm when default parameters in SGN.KEY are used :



Let Content be the 512-byte configuration block as written in the card29,



Let SignKey be the 16-byte key,



Diversify SignKey from card’s UID, using HMAC-MD5 diversification algorithm30 to get DivKey,



Compute Sign = HMAC-MD5 (Block) using DivKey 31.

The value of SignKey is confidential. Customers shall not try to change the key, nor the signature algorithm.

This is the configuration data plus the Mifare keys to be loaded into RC’s secure EEPROM. Total size is up to 512 bytes. Note that signature is computed over the whole file, including its padding, whatever the used length is.

See next chapter “Security algorithms”

PMA8N9P-BC

54 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

8. S

ECURITY ALGORITHMS

8.1. HMAC

SIGNATURE AND KEY DIVERSIFICATION

8.1.1. Abstracts

A message authentication code, or MAC, is a short piece of information used to authenticate a message. A MAC algorithm accepts as input a secret key and a message, and outputs a MAC that protects both message’s integrity and authenticity.

An HMAC (or keyed-hash message authentication code) is a type of MAC function were a cryptographic hash function is used to compute the output.

a. HMAC algorithm

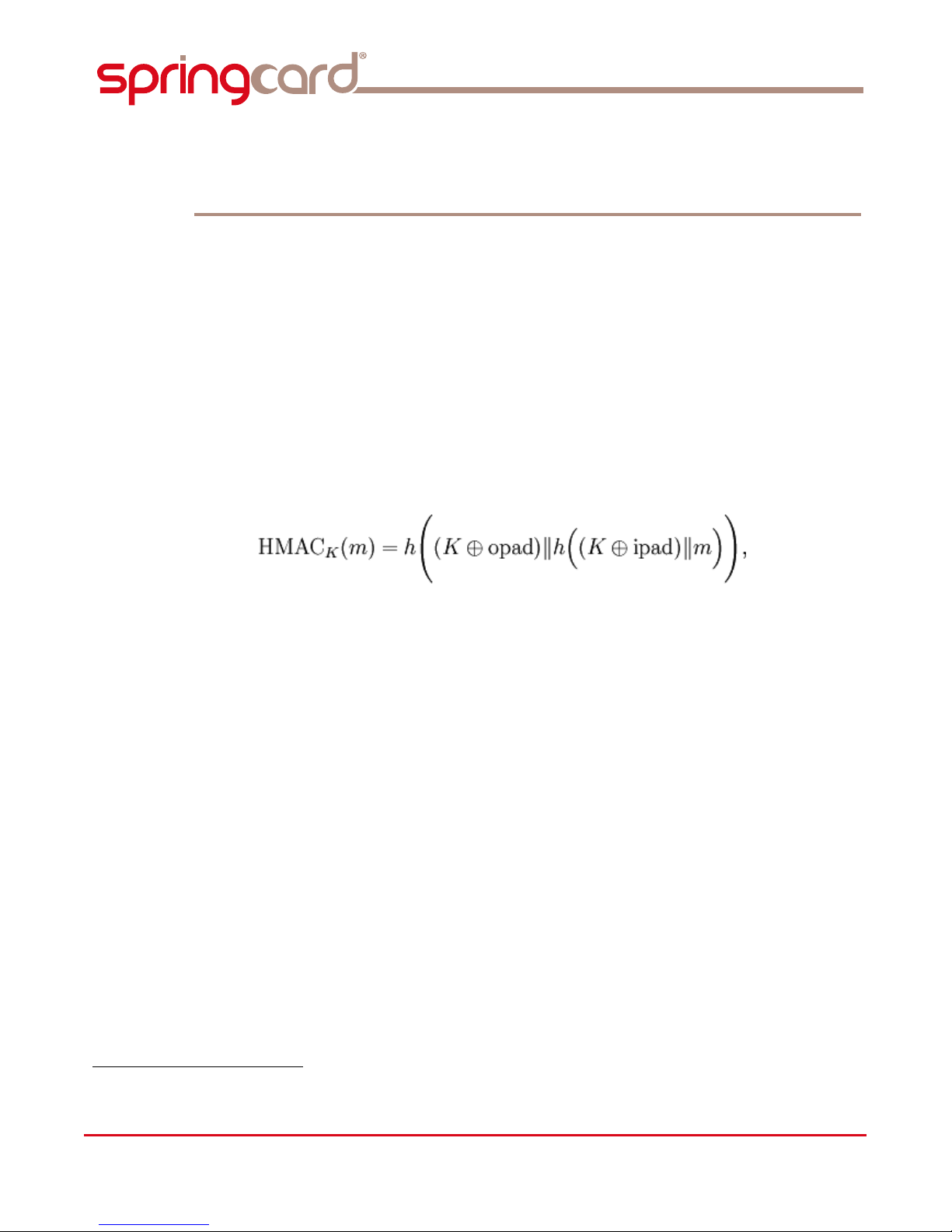

Where h is the hash function, K is the secret key padded with extra zeros up to 64 bytes, m is the message to be authenticated. opad is the value h5C repeated 64 times, and ipad the value h36 repeated 64 times.

b. HMAC-MD5

HMAC-MD5 is a particular HMAC function where h is the MD5 standard function, as defined by RSA laboratories. Size of HMAC is 16 bytes exactly.

In the SpringCard RFID Scanners family, we use HMAC-MD5 for both signature and key diversification.

8.1.2. HMAC-MD5 for digital signature

HMAC protects both message’s integrity and authenticity, so it can be considered as a digital signature32.

IWM implementation allows only 16-byte keys. The key can be used “as is” or be the result of a diversification from a master key.

8.1.3. HMAC-MD5 for key diversification

In this particular mode, we name K the “master key” and we compute the HMAC over card’s identifier to establish a “diversified key” Ku.

Literature often reserve the name “digital signature” to public key schemes, where verifier doesn’t need to know signer’s private key to verify the signature. HMAC is a scheme where signer and verifier must share the same secret key.

PMA8N9P-BC

55 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

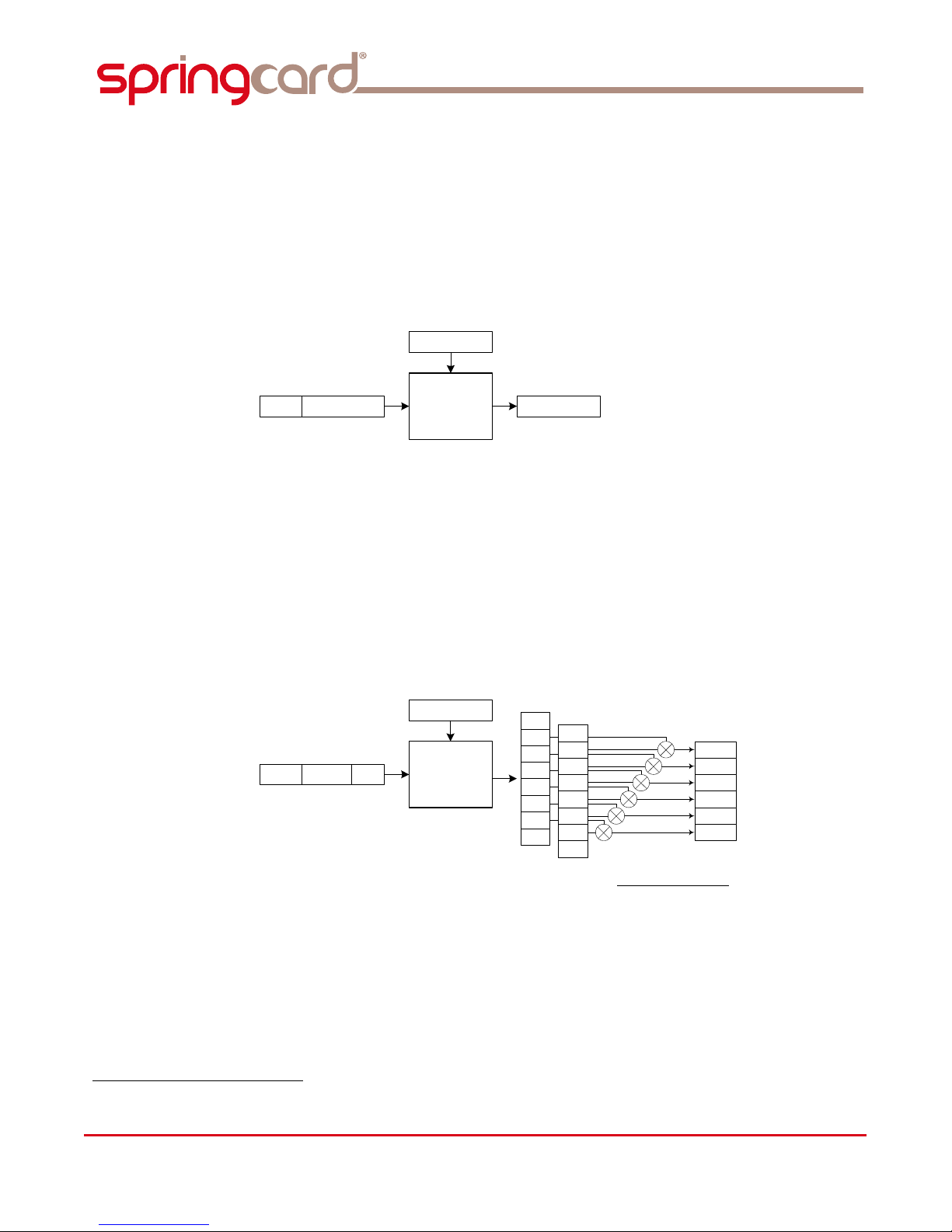

a. DES or Triple-DES key diversification

The algorithm takes as inputs :



A 16-byte master key (Km)



The card serial number (uid)33

It provides as output :



The 16-byte diversified key specific to this card (Ku).

HMAC

uid

0-n

The diversified key can now be used either for Desfire authentication, or for HMAC-MD5 signature.

b. Mifare key diversification

The algorithm takes as inputs :



A 16-byte master key (Km)



The 4-byte card serial number (uid)



The 1-byte block address (adr)

It provides as output :



The 6-byte Mifare key specific to the couple card + address (Ku).

HMAC

uid

0-4h

88 adr

Note : the adr parameter is the either the sector number (not the block) number) or fixed to h00, depending on the configuration in the Mifare Classic Card Acceptance Template.

The UID is 7-byte long for a Desfire card, 4-byte long for a Mifare card. The same diversification algorithm is usable whatever the length is.

PMA8N9P-BC

56 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

8.2. D

ESFIRE

SAM / RC171

KEY DIVERSIFICATION

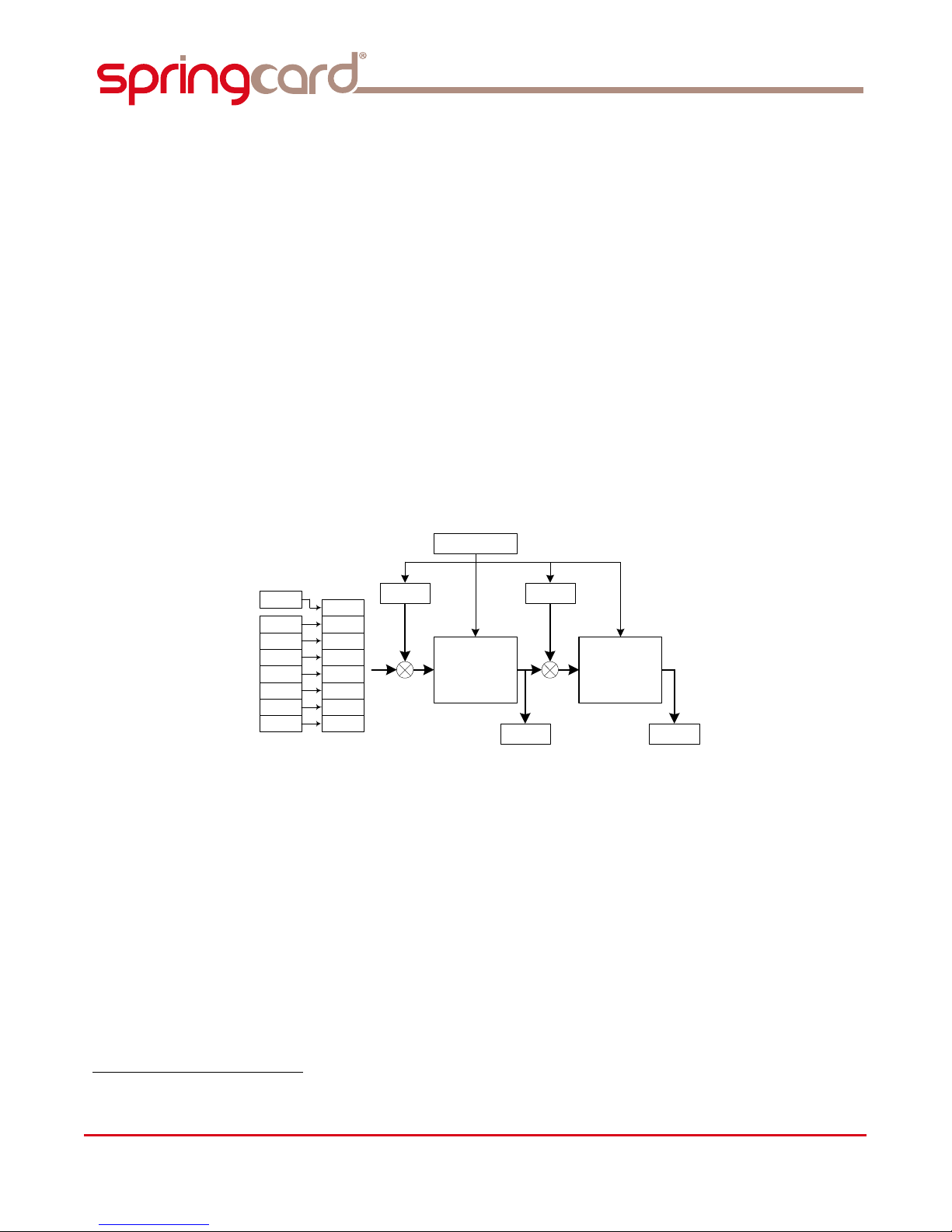

8.2.1. DES or Triple DES key diversification

The key diversification algorithm described here is the one provided by Desfire SAM. Please refer to the corresponding datasheet for details.

The algorithm takes as inputs :



A 16-byte Triple-DES master key (Km)34



The 7-byte card serial number (uid)

It provides as output :



The 16-byte diversified key specific to this card (Ku).

Here’s the flowchart :

0-7

8-16

TDES

or DES

uid

0-7

8-16

TDES

or DES

The diversified key now be used for Desfire authentication.

8.2.2. Mifare key diversification

The Mifare diversification algorithm described here is provided both by Desfire SAM and by NXP RC171 coprocessor. Please refer to the corresponding datasheets for details.

a. Basis

The algorithm takes as inputs :



A 6-byte master key (Km)



A 16-byte Triple-DES diversification key (Kd)35

If both halves are equals, the key maps to a single DES key

PMA8N9P-BC

57 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.



The 1-byte block address (adr)



The 4-byte card serial number (uid)

It provides as output :



The 6-byte Mifare key specific to the couple card + address (Ku).

Here’s the flowchart :

uid

adr

TDES

or DES

b. Diversification based on UID only

If this option is selected, the adr input parameter is fixed to h00 whatever the block to be read is.

c. Diversification based on UID and address

If this option is selected, the adr input parameter is the Mifare sector number (not the block).

Here’s an example with a Mifare 1k card :



Data is located on block 29,



Block 29 belongs to sector 7 (29 / 4),



The diversification algorithm will be fed with adr = 7.

Here’s an example with a Mifare 4k card :



Data is located on block 231,



Block 231 belongs to sector 38 (32 + (231-128) / 16),



The diversification algorithm will be fed with adr = 38.



PMA8N9P-BC

58 / 58

PROX'N'ROLL RFID SCANNER - Reference manual

SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.

All other brand names, product names, or trademarks belong to their respective holders.

Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.

DISCLAIMER

This document is provided for informational purposes only and shall not be construed as a commercial offer, a license, an advisory, fiduciary or professional relationship between PRO ACTIVE and you. No information provided in this document shall be considered a substitute for your independent investigation.

The information provided in document may be related to products or services that are not available in your country.

This document is provided "as is" and without warranty of any kind to the extent allowed by the applicable law. While PRO ACTIVE will use reasonable efforts to provide reliable information, we don't warrant that this document is free of inaccuracies, errors and/or omissions, or that its content is appropriate for your particular use or up to date. PRO ACTIVE reserves the right to change the information at any time without notice.

PRO ACTIVE does not warrant any results derived from the use of the products described in this document. PRO ACTIVE will not be liable for any indirect, consequential or incidental damages, including but not limited to lost profits or revenues, business interruption, loss of data arising out of or in connection with the use, inability to use or reliance on any product (either hardware or software) described in this document.

These products are not designed for use in life support appliances, devices, or systems where malfunction of these product may result in personal injury. PRO ACTIVE customers using or selling these products for use in such applications do so on their own risk and agree to fully indemnify PRO ACTIVE for any damages resulting from such improper use or sale.

All information in this document is either public information or is the intellectual property of PRO ACTIVE and/or its suppliers or partners.

You are free to view and print this document for your own use only. Those rights granted to you constitute a license and not a transfer of title : you may not remove this copyright notice nor the proprietary notices contained in this documents, and you are not allowed to publish or reproduce this document, either on the web or by any mean, without written permission of PRO ACTIVE.

EDITOR’S INFORMATION

PRO ACTIVE SAS company with a capital of 227 000 €

RCS EVRY B 429 665 482

Parc Gutenberg, 13 voie La Cardon

91120 Palaiseau – France

SpringCard Prox'N'Roll, PMA82TP-BA, PMA82TP-BB Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
